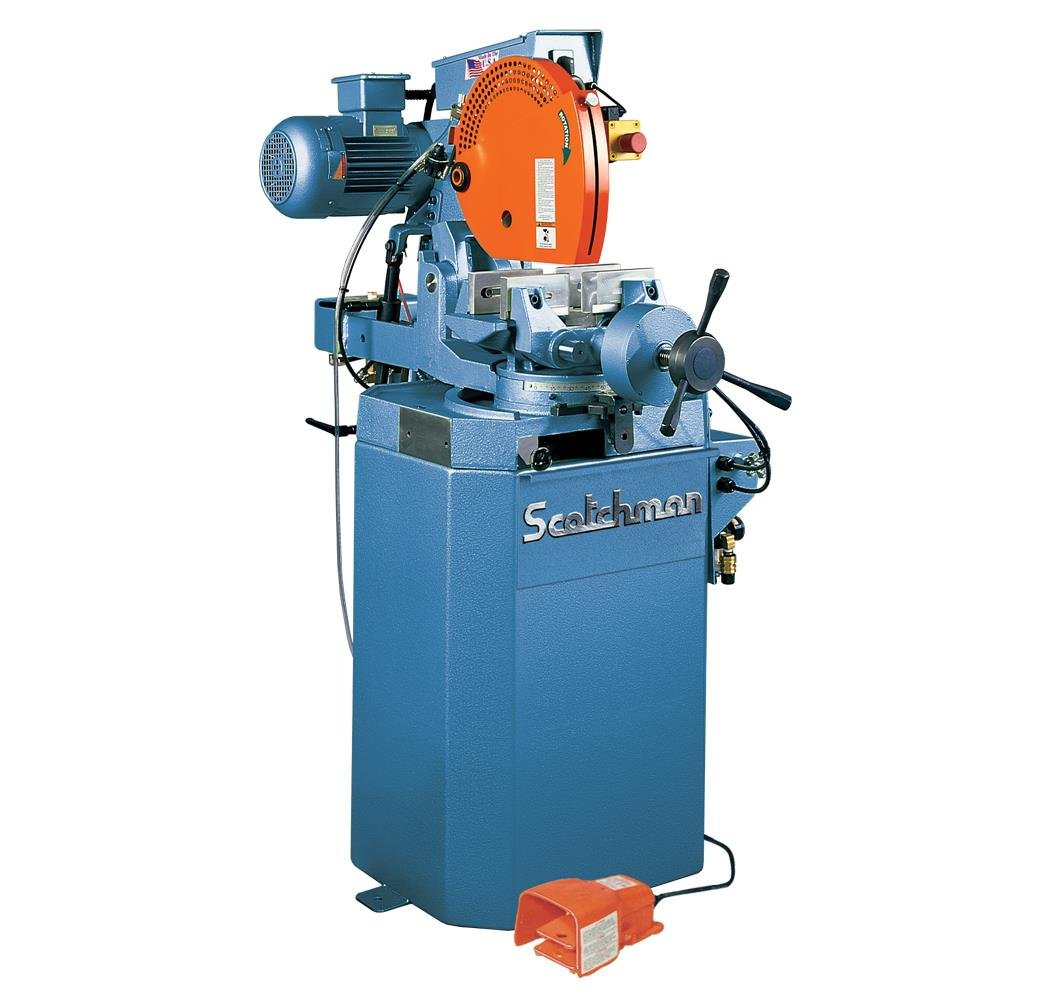

The Scotchman CPO350 NF PKPD semi-automatic coldsaw is built for industrial use and designed to make precise burr-free cuts on a production scale through non-ferrous metals like aluminum, copper & plastic.
This wet saw accepts up to a 14" (350mm) carbide tipped saw blade and can easily cut 4.5” OD round tube and 3” solid at 90°; plus, it has mitering capabilities of 180° with a miter locking device allowing for quick & accurate stop setting at 45°, 90° and 135°. This saw can also slot and notch, and with accuracy within 1 degree of mitering and a squareness tolerance of ±0.002 per diameter inch in height, the real payoff for this machine is fast, clean, and very precise cuts.
The semi-auto cycle is simple to operate with a press on the remote foot pedal and features a double clamping and self-centering vise for maximum material hold. Its pneumatic vise and automatic return save you time, and the integrated mist coolant system maintains a high cut quality while extending the life of the blade saving you money.

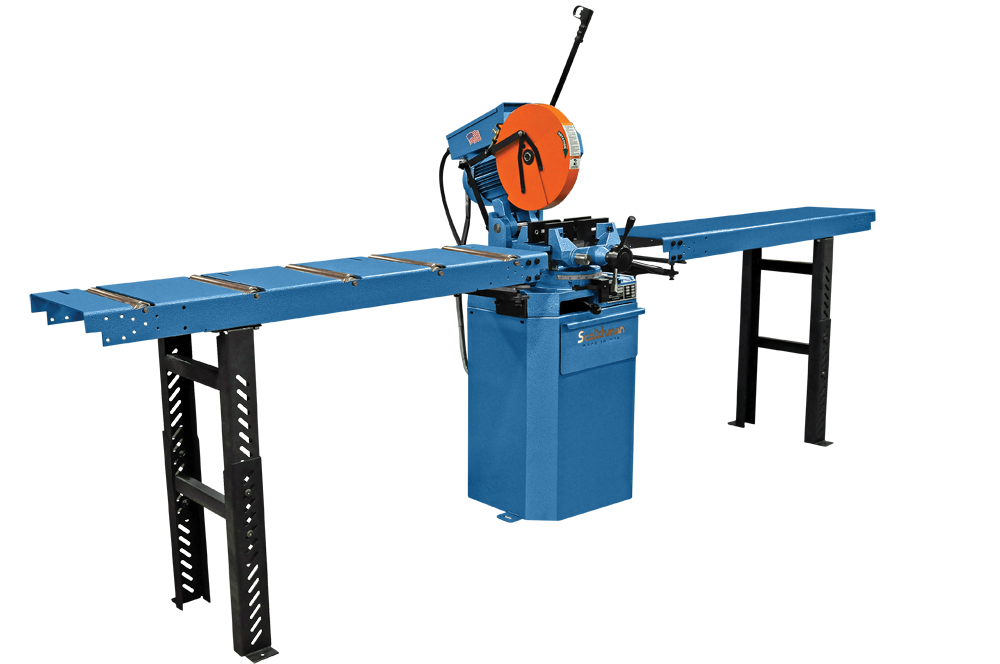

All Scotchman CPO series saws are American-made, built with a rigid cast iron saw base, and have a double reduction ground and hardened all-metal gear box to ensure tight tolerances throughout the life of the saw. The CPO 350NF PKPD is built with dependability and versatility in mind and is able to expand to meet growing production needs by adding on a programmable stop/feed material positioning system.
This saw is backed by a 3-year warranty and lifetime technical support. Cut with confidence on a USA made sawing system from Scotchman.
Cutting Speed
3,000 rpm
Motor Rate: 5 hp
Maximum Cutting Capacities (Non-Ferrous & PVC )
TUBING Round Square Rectangle
90 Degree 4-1/2" 4-1/4" x 4-1/4" 5-1/2" x 4"
45 Degree 4-1/4" 4" x 4" 4" x 4"
SOLID Round Square
90 Degree 3" 3" x 3"
45 Degree 2-1/2" 2-1/2" x 2-1/2"
Motor Options (Factory Wired)
Specify: 208/230/460v, 3 ph
Maximum Diameter Blade
350 mm
Arbor Bore
40 mm
Pin Spacing
4/12/64
Width
21-7/8"
55.5 cm
Depth
43-1/2"
110.5 cm
Height (not including feed handle)
56-1/4"
143 cm
Height (floor to vise)
37-7/16"
95 cm
Shipping Weight (may vary)
725 lbs.
329 kg
