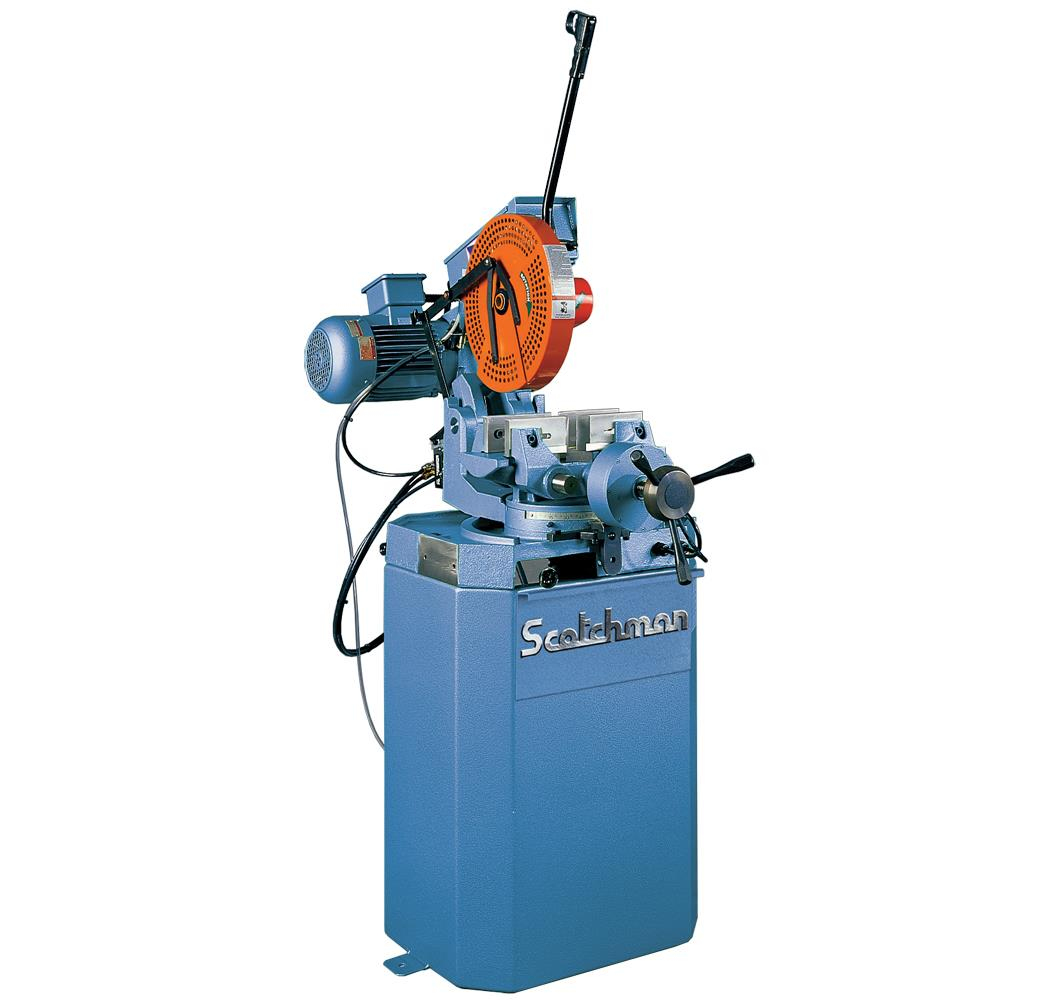

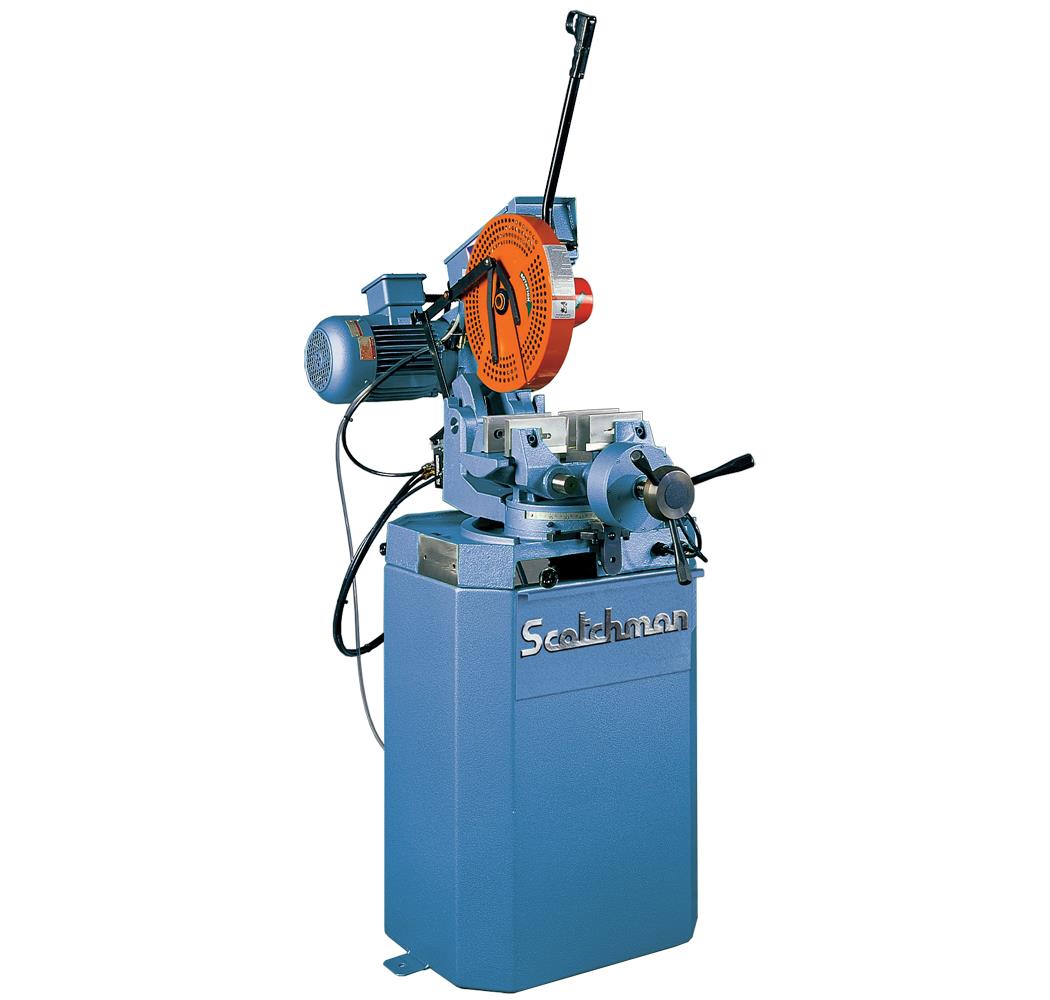

If you are looking for a precision nonferrous metal cutting saw, this powerful American-made Circular Cold Saw takes sawing to the next level. The CPO350 NF PK coldsaw is designed to make extremely fast and accurate cuts through non-ferrous metals like aluminum, plastic, and copper. This wet saw features a mist coolant lubrication system, a double clamping self-centering air-operated vise and operator controlled trigger switch to ensure safe, precise, fast, burr-free, high quality, volume parts.
The CPO 350 NFPK saw has 180 degrees of mitering capabilities and a built-in miter-locking device that makes quick, accurate stops at 45 degrees left, 90 degrees straight, and 45 degrees right, and has the ability to slot and notch. Accuracy within 1° of mitering and a squareness tolerance of ±0.002 per diameter inch in height; the real payoff for this machine is fast, clean and extremely accurate cuts.
Additional machine features include a chip drawer, a 3,000 rpm motor and utilizes up to a 14" diameter (350mm) carbide tipped sawblade giving it the ability to cut 4-1/2" OD max round tube at 90° and 3" max round or square solid at 90 degrees. The CPO 350NF PK saw is a dependable machine built for industrial use, and with the quality you expect from a Scotchman. Always backed by our 3-Year Warranty and lifetime customer support!
Pair this machine with a Scotchman digital measuring system to automate the measuring process; simply enter the desired length on the touchscreen and the stop will automatically move to the correct length.
Cutting Speed
3,000 rpm
Motor Rate: 5 hp
Maximum Cutting Capacities (Non-Ferrous & PVC )
TUBING Round Square Rectangle
90 Degree 4-1/2" 4-1/4" x 4-1/4" 5-1/2" x 4"
45 Degree 4-1/4" 4" x 4" 4" x 4"
SOLID Round Square
90 Degree 3" 3" x 3"
45 Degree 2-1/2" 2-1/2" x 2-1/2"
Motor Options (Factory Wired)
Specify: 208/230/460v, 3 ph
Maximum Diameter Blade
350 mm
Arbor Bore
40 mm
Pin Spacing
4/12/64
Width
21-7/8"
55.5 cm
Depth
43-1/2"
110.5 cm
Height (not including feed handle)
56-1/4"
143 cm
Height (floor to vise)
37-7/16"
95 cm
Shipping Weight (may vary)
655 lbs.
297 kg
