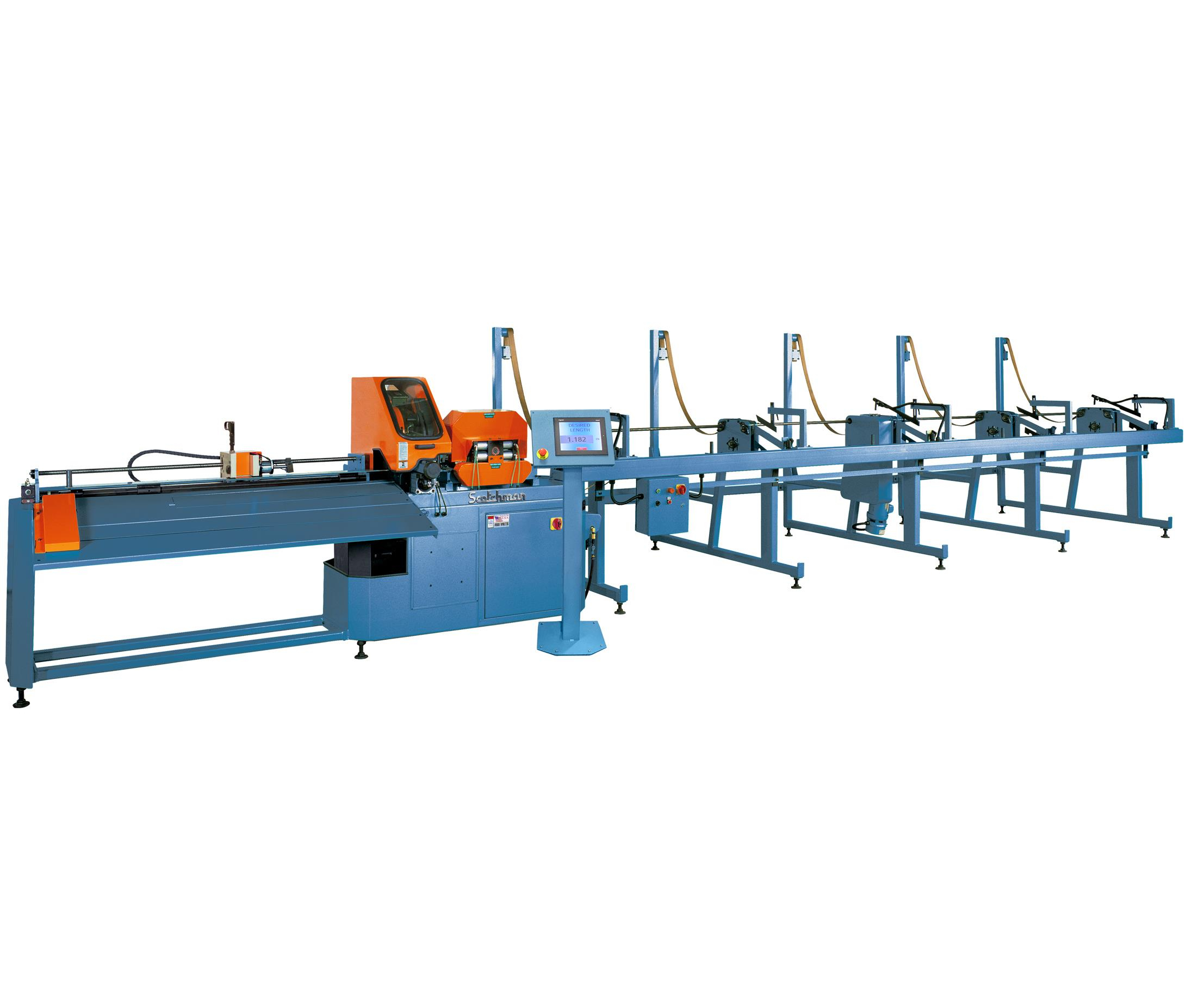

The CPO 315 RFA (Roll Feed Automatic) cold saw provides uninterrupted straight 90° cutting on tubes, solids, and extrusions while supplying precise high quality cuts, and is an ideal saw for high volume & long length applications that require clean accurate cuts. This machine's touch screen controls and other features decrease cycle times and make this saw fast & easy to operate. The RFA can store profile settings such as speeds & feeds, which make changing material sizes even faster.
This automatic sawing system accepts a 315 mm sawblade and can easily cut up to 3" round tube, 1-3/4" solid round mild steel, and 3" solid round aluminum, copper, plastic or other nonferrous materials at a 90 degree straight cut. The RFA saw comes equipped with either a standard supply track or a full bundle loading attachment. Both systems allow the saw to automatically load, trim, cut, and sort part lengths up to 120 inches and hold a ±0.006" tolerance in length of tubing up to 3" in diameter while continually providing a squareness tolerance of ±0.002" per diameter inch.
With optional equipment you can feed directly into a deburring machine or we can customize form jaws to handle thin wall applications without distortion. This American made automatic roll feed saw by Scotchman is available as a ferrous (steel cutting) version or a nonferrous (aluminum, copper, plastic cutting) version, designed to your specifications, and comes with a 2-year warranty and lifetime customer service & support.
Cutting Speeds (must specify when ordering)
CPO 315 RFA (ferrous)
Variable Speed 11 to 177 rpm
Motor Rate: 5 hp
CPO 315 RFA NF (non-ferrous)
3,000 rpm
Maximum Cutting Capacities (based on mild steel)
TUBING Round Square
90 Degree 3" 2-1/2" x 2-1/2"
SOLID Round Square
90 Degree 1-3/4" 1-1/2" x 1-1/2"
Maximum Cutting Capacities (NF) (Non-Ferrous & PVC )
SOLID (NF) Round Square
Length Tolerance
± 0.006" per index
Squareness Tolerance
± 0.002" per dia. inch
Minimum Cut Length
1-1/4"
32 mm
Maximum Cut Length
60" (90" or 120" Avail.)
Minimum Trim Cut
1"
25 mm
Motor Options (Factory Wired)
Specify: 208/230/460v, 3 ph
Air Pressure
90 psi
Maximum Saw Blade
315 mm
Arbor Bore Size
40 mm
Pin Spacing
4/12/64
Must Specify Infeed Table Type ↓

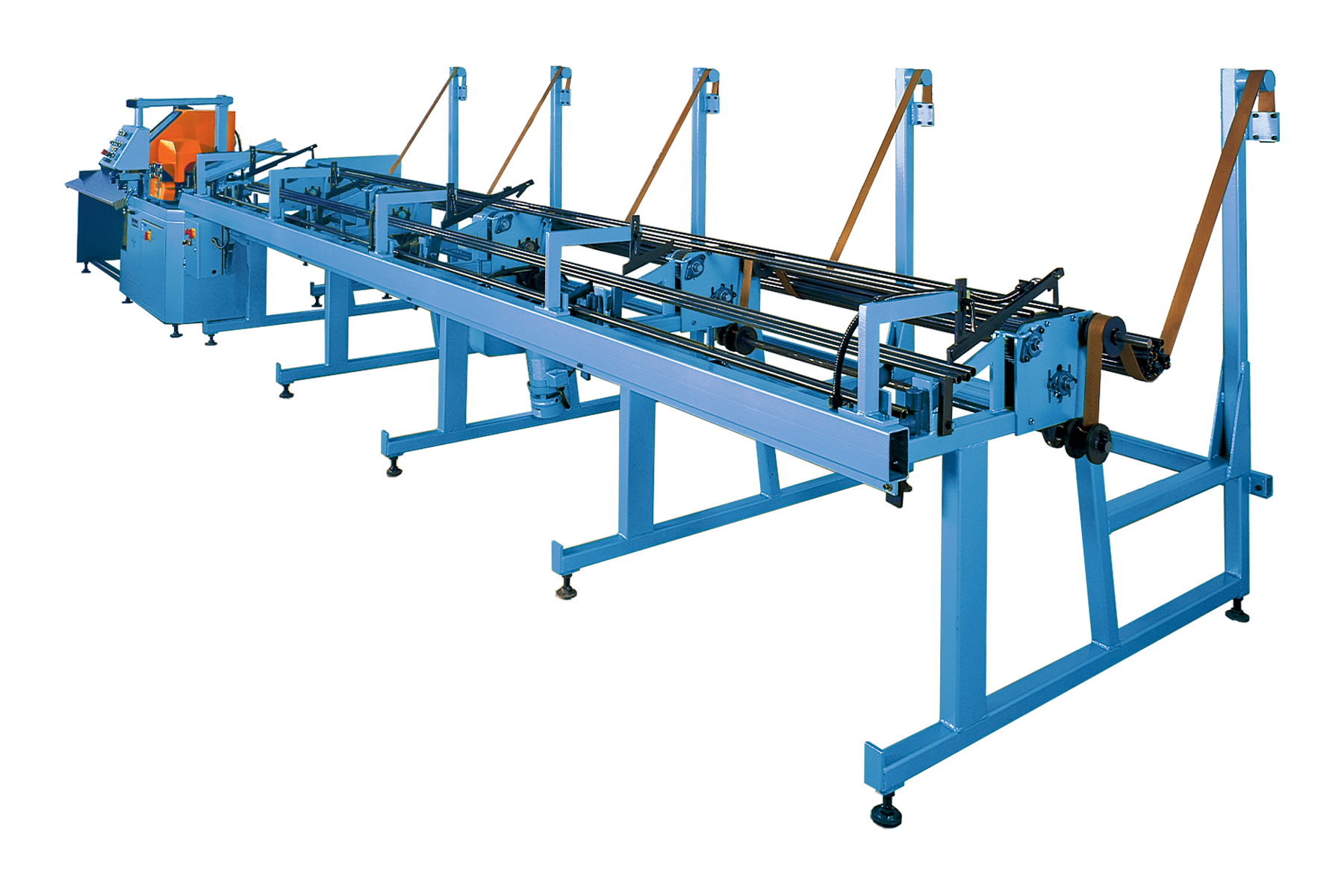

Bundle Loader (BL)
Maximum Raw Stock (BL)
Up to 24'
Maximum Lifting Capacity (BL)
4,000 lbs
Dimensions - 24' BL w/60" Saw
(L)384" (W)93" (H)60"

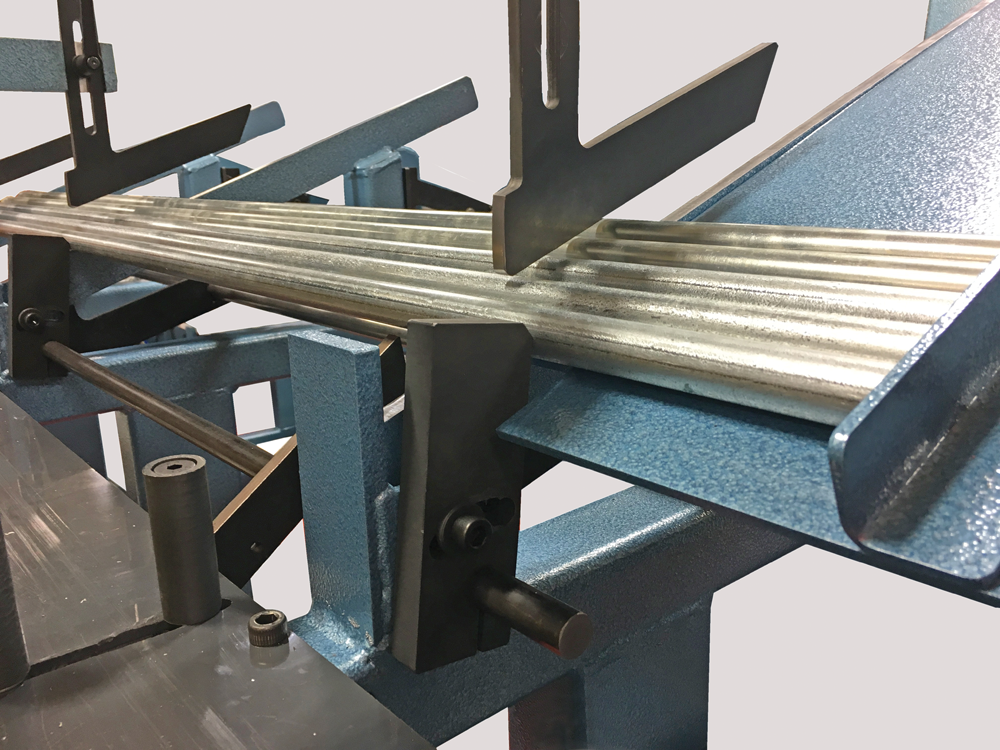

12' Supply Table (ST)
Maximum Raw Stock (12' ST)
12'
Load Table Capacity (ST)
24"
Dimensions - 12' ST w/60" Saw
(L)240" (W)48" (H)60"
24' Supply Table (ST)
Maximum Raw Stock (24' ST)
24'
Dimensions - 24' ST w/60" Saw
(L)380" (W)48" (H)60"
