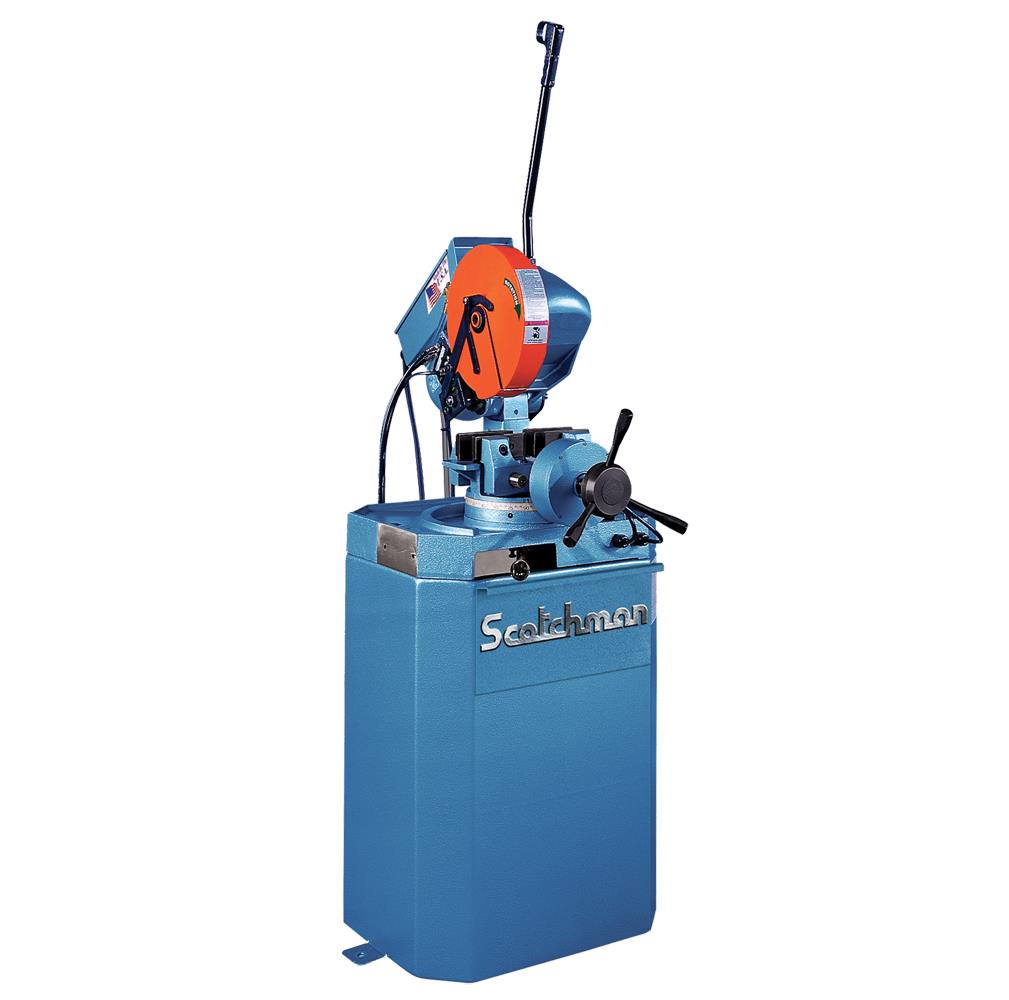

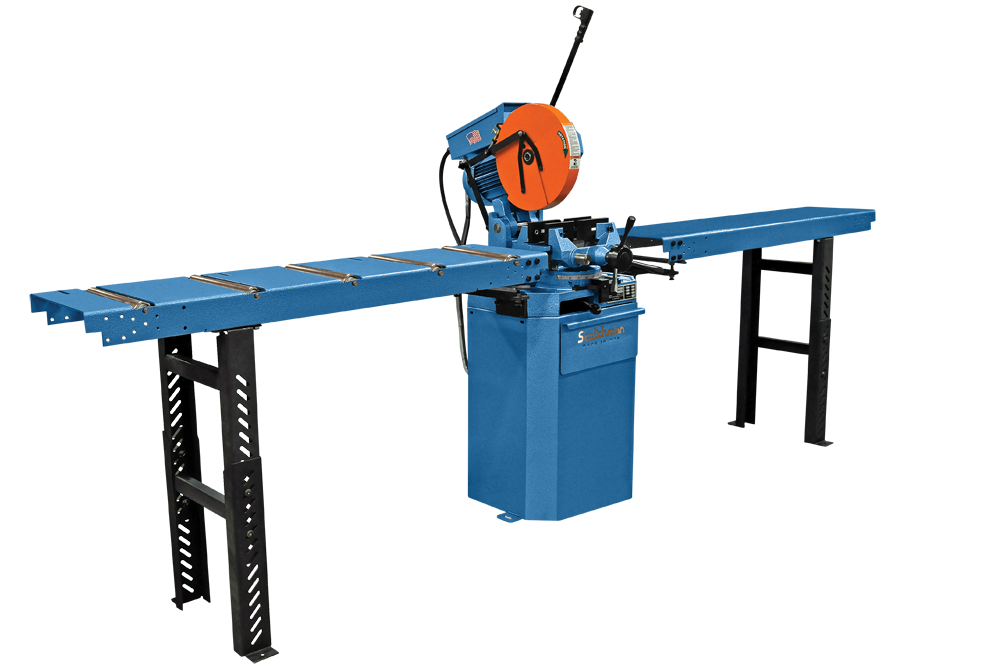

Scotchman's CPO 275 PK is a manual circular cold saw with a powered clamp and is built for cutting steel. This saw features a double self-centering, air-operated material vise to ensure safe, precise, fast and burr-free cuts.
The CPO 275 PK saw has 180° of mitering capabilities and a built-in miter-locking device that makes quick, accurate stops at 45° left, 90° straight, and 45° right. This saw accepts up to a 10-3/4" (275mm) HSS saw blade and can cut 3-3/8" max round tube at 90 degrees and 1-1/2" max solid at 90 degrees.
With accuracy within 1° of mitering and a squareness tolerance of ±0.002 per diameter inch in height, the real payoff for this machine is fast, clean and extremely accurate cuts.

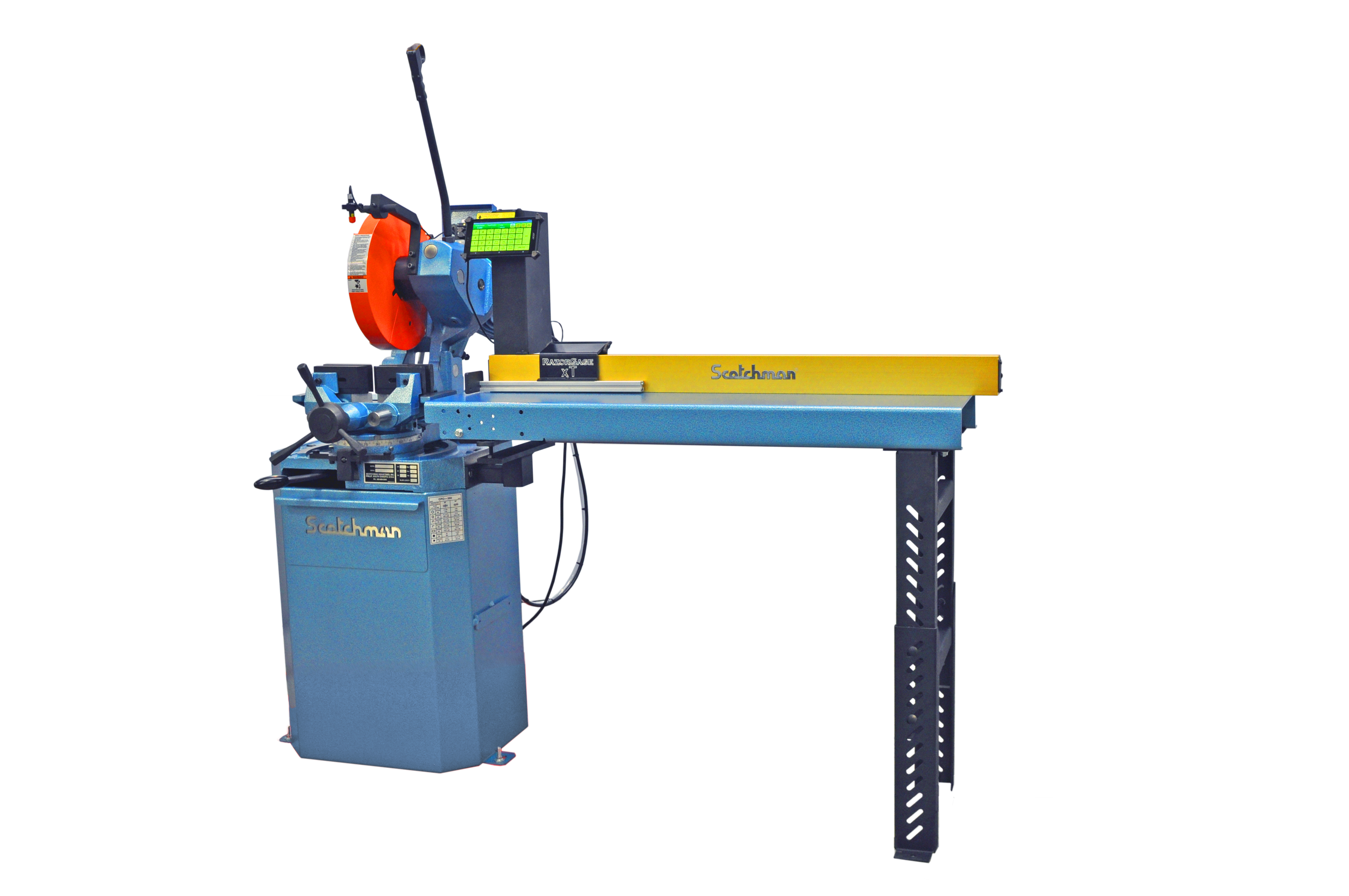

Features two cutting speeds (LT 30/60 rpm or HT 60/120 rpm), the CPO 275PK also comes with a seven-gallon coolant tank. Pair this machine with a Scotchman digital measuring system to automate the measuring process; simply enter the desired length on the touchscreen and the stop will automatically move to the correct length.
This machine is made in the USA and built with dependability and versatility in mind; plus it's backed by our 3-year warranty.
Cutting Speeds (must specify when ordering)
LT (Low Turn) - designed for solid mild steel, solid stainless steel & thick wall pipe
LT (Low Turn) 30 / 60 rpm
Motor rate: 2 hp
HT (High Turn) - designed for thin wall tube 0.060 wall thickness or thinner and non-ferrous material
HT (High Turn) 60 / 120 rpm
Motor rate: 1.5 hp
SS (Single Speed) - designed for 220v 1ph applications
SS (Single Speed) 60 rpm
Maximum Cutting Capacities (based on mild steel)
TUBING Round Square Rectangle
90 Degree 3-3/8" 3" x 3" 3" x 2-3/8"
45 Degree 2" 2" x 2" 2" x 2"
SOLID Round Square
90 Degree 1-1/2" 1-1/2" x 1-1/2"
45 Degree 1" 1" x 1"
Motor Options (Factory Wired)
Specify: LT & HT: 208/230/460/575v, 3 ph SS: 220v, 1 ph
Maximum Diameter Blade
275 mm
Arbor Bore
32 mm
Pin Spacing
2/8/45
Width
21-7/8"
55.5 cm
Depth
43-1/2"
110.5 cm
Height (not including feed handle)
53-1/4"
135 cm
Height (floor to vise)
36-1/8"
92 cm
Shipping Weight (may vary)
580 lbs.
263 kg
