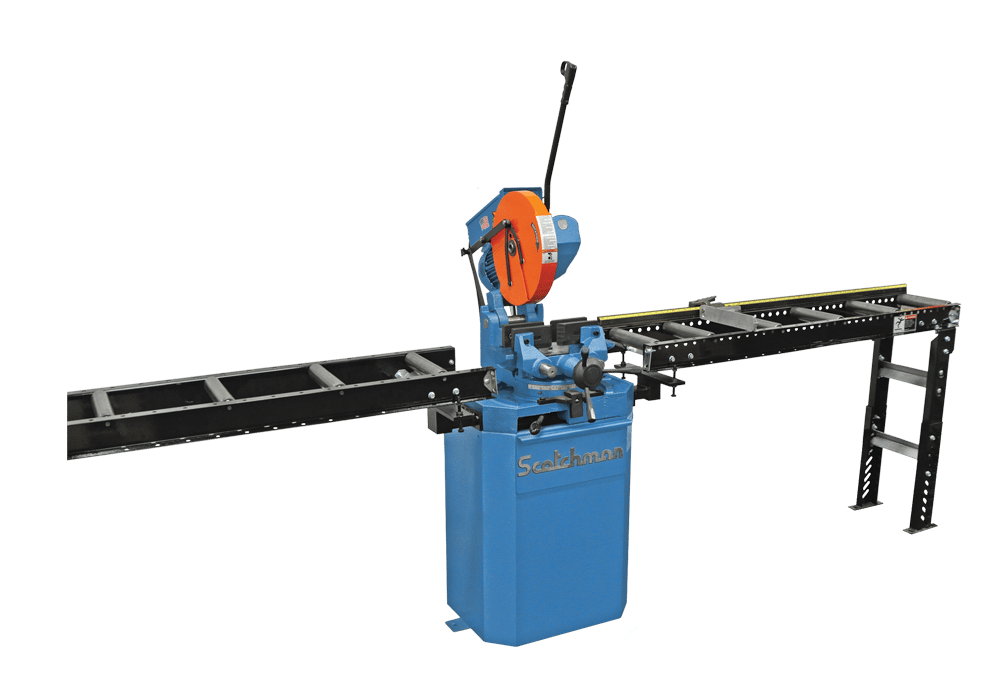

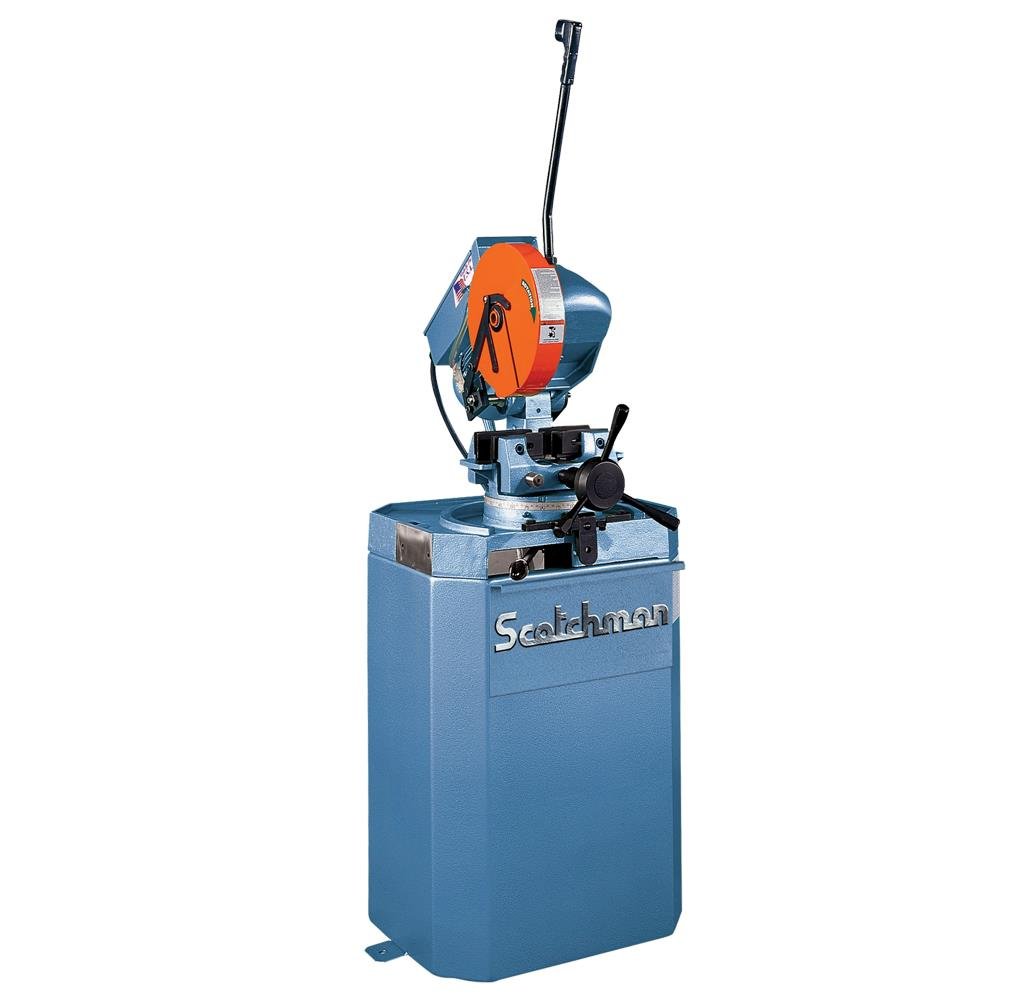

The CPO 275 circular cold saw is designed to make extremely accurate cuts through steel, without producing any sparks or burrs, and features a double self-centering vise to ensure burr-free cuts.
This saw has 180° of mitering capabilities and a built-in miter-locking device that makes quick, accurate stops at 45° left, 90° straight, and 45° right. This saw accepts up to a 10-3/4" (275mm) HSS saw blade and can cut 3-3/8" max round tube at 90 degrees and 1-1/2" max solid at 90 degrees.
With accuracy within 1° of mitering and a squareness tolerance of ±0.002 per diameter inch in height, the real payoff for this machine is fast, clean and extremely accurate cuts.
This machine is made in the USA and built with dependability and versatility in mind; plus it's backed by our 3-year warranty.
Cutting Speeds (specify when ordering)
LT(Low Turn) - designed for solid mild steel, solid stainless steel & thick wall pipe
LT 30 / 60 rpm
Motor rate: 2 hp
HT(High Turn) - designed for thin wall tube 0.060 wall thickness or thinner and non-ferrous material
HT 60 / 120 rpm
Motor rate: 1.5 hp
SS(Single Speed) - designed for 220v 1ph applications
SS 60 rpm
Maximum Cutting Capacities (with 275 mm blade)
TUBING Round Square Rectangle
90 Degree 3-3/8" 3" x 3" 3" x 2-3/8"
45 Degree 2" 2" x 2" 2" x 2"
SOLID Round Square
90 Degree 1-1/2" 1-1/2" x 1-1/2"
45 Degree 1" 1" x 1"
Motor Options (Factory Wired)
Specify: LT & HT: 208/230/460/575v, 3 ph SS: 220v, 1 ph
Maximum Diameter Blade
275 mm
Arbor Bore
32 mm
Pin Spacing
2/8/45
Width
21-7/8"
55.5 cm
Depth
43-1/2"
110.5 cm
Height (not including feed handle)
53-1/4"
135 cm
Height (floor to vise)
36-1/8"
92 cm
Shipping Weight (may vary)
550 lbs.
279 kg
