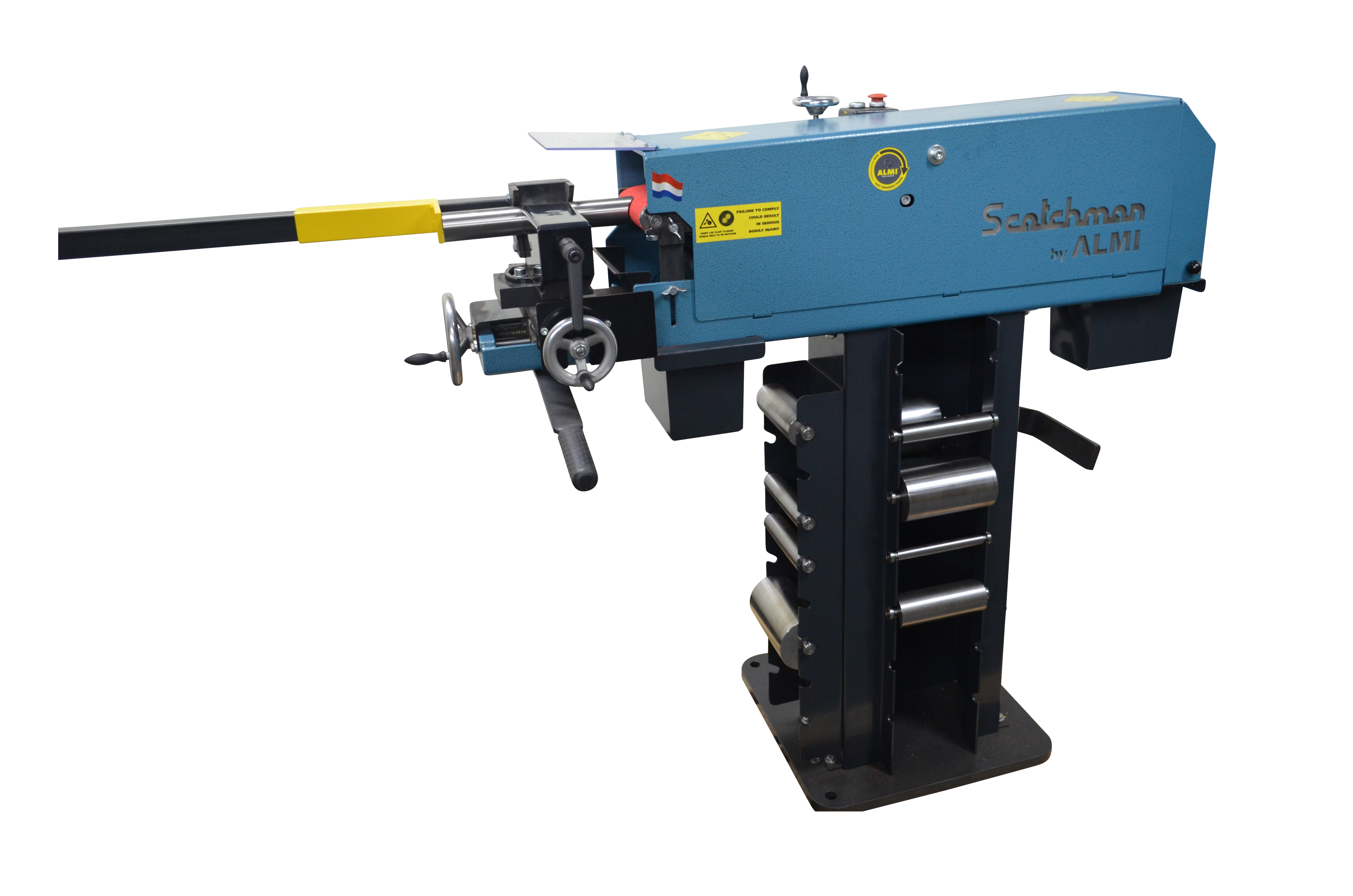

Scotchman AL150-HS Abrasive Grinder/Notcher

The AL150 HS high-speed Abrasive Grinder/Notcher is a two-in-one machine that includes a grinding belt and pipe grinder to create perfect notches and is 40% faster that the original AL150. It is ideal for use on stainless, aluminum and plastic. With a belt speed of 150 ft/sec, its benefits include faster grinding with less dust/particles, less color distortion due to heat and 2X to 3X longer belt life. This machine can grind any angle from 20 deg to 90 deg on square, rectangular, and round pipes of varying wall thicknesses. The AL150 HS machine is perfect for double corner joints, great for high production and is backed by a three-year warranty.

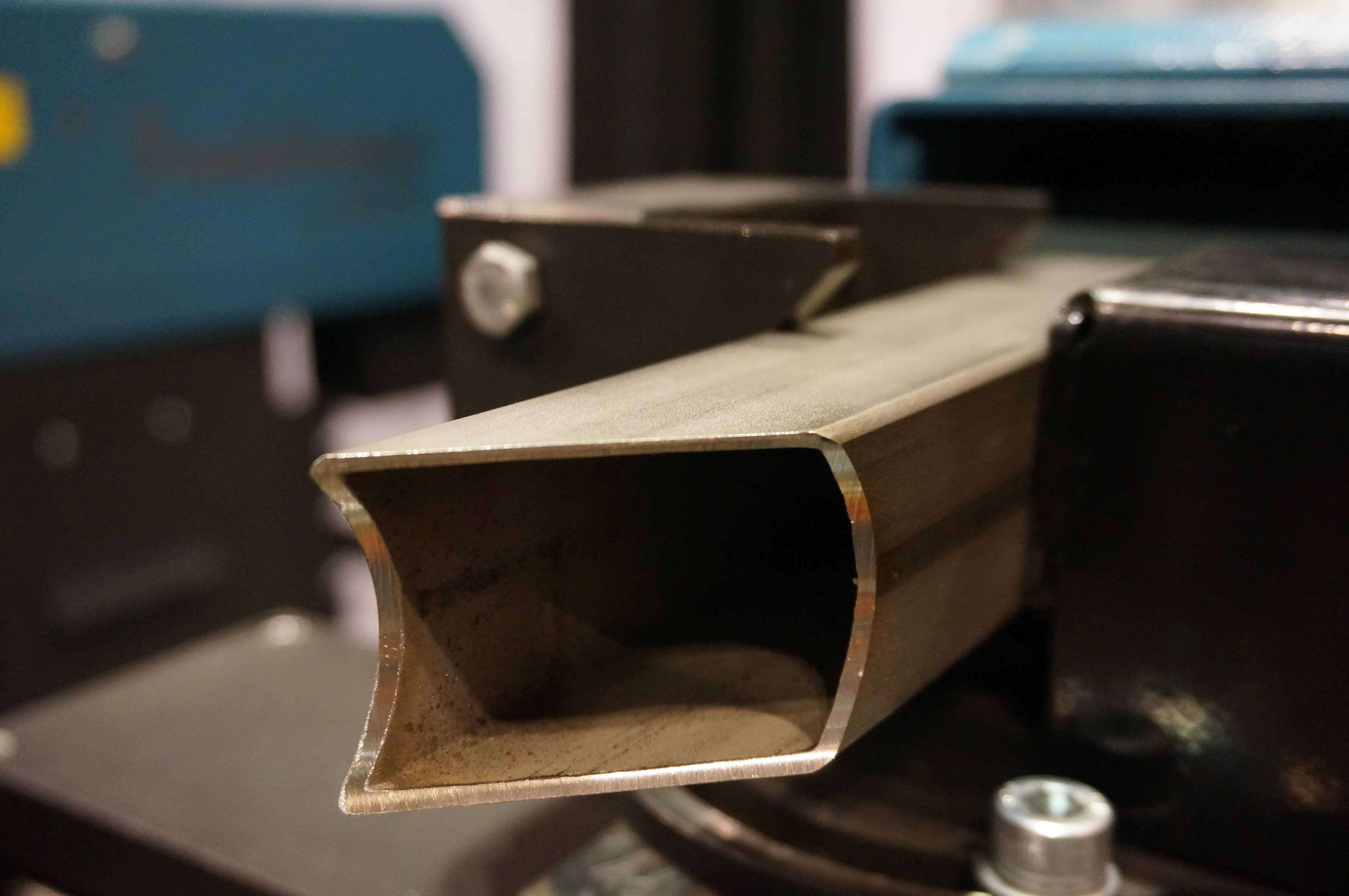

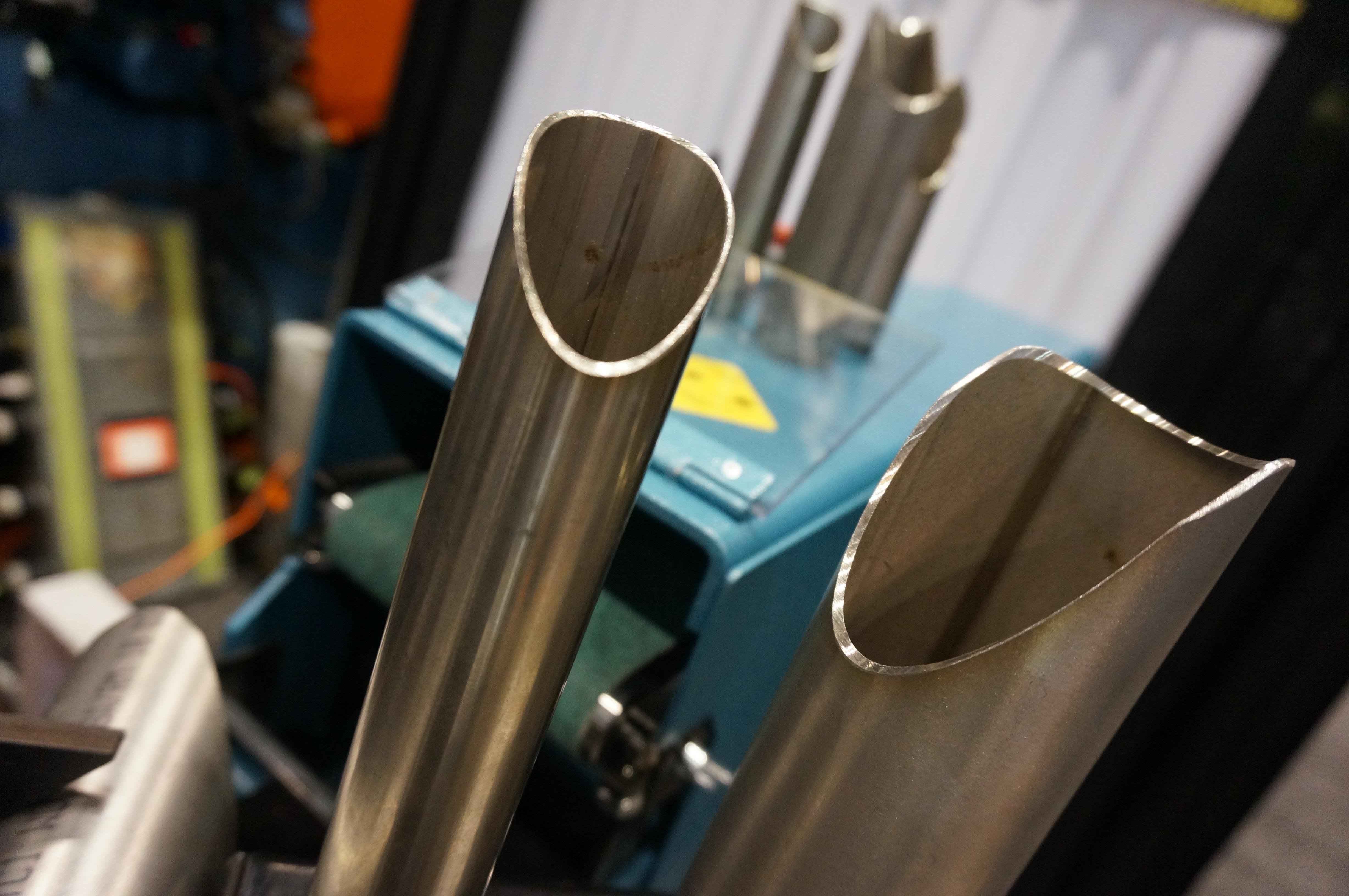

• Produces gap-free fits ready for welding
• Ideal for stainless & aluminum -- 40% faster than AL150!
• Grinds notches of any desired angle from 90 degrees to 20 degrees in seconds
• Two Axis Precision Crossfeed Table with Both Handwheels and Hand Lever Feed Handle
• Smooth operation with minimal vibration
• Heavy duty frame and base construction
• Base has two built-in racks to store mandrels
• Mandrel centerline adjustment
• One vise holds all pipe and tube sizes
• High-speed parts grinder in rear creates a multifunctional machine
• Produces less heat, decreasing discoloration
• Easy setup with vise graduated in degrees
• 17 Mandrel sizes available to ensure correct gap-free fits
• Supplied with 2 belts and two pipe mandrels (1-1/4" & 1-1/2")
• Tool-free belt and mandrel change over for easy transition
• Warranty: Three years on parts
• Manufactured in the Netherlands

Grinding Capacity	1/2" to 4-1/2" O.D.	12.7 to 114 mm
Angle Range	Straight=90° to 20°
Profile Applications	All: Round, Square, Rectangle or Flat
Belt	6" x 78-3/4"	150 x 2,000 mm
Speed	4,320 RPM
Operation	Lever & Handwheel
Motor	230/460v, 3ph (must specify) 6 hp
Dimensions (L x W x H)	57" x 47-1/4" x 33-1/2"	145 x 120 x 85 cm
Shipping Weight (may vary)	695 lbs	315 kg
