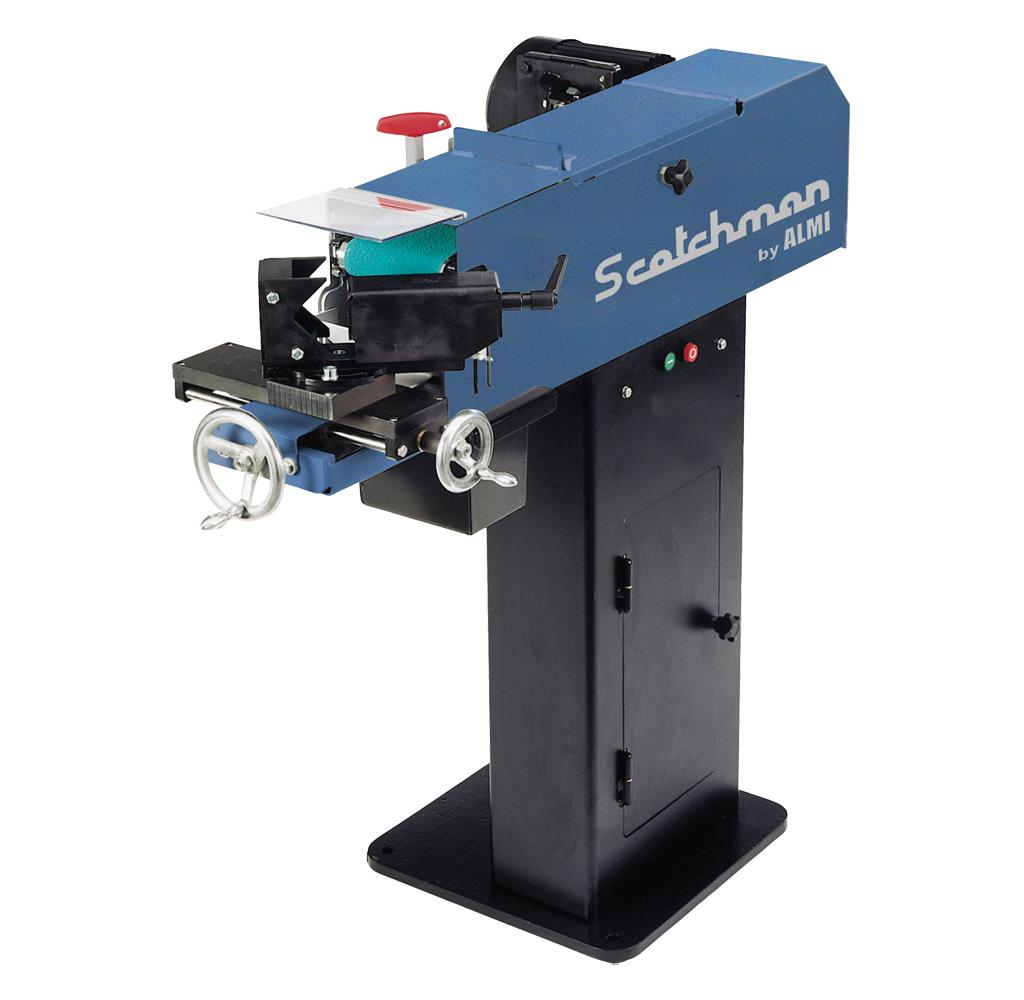

Scotchman AL150 Abrasive Grinder/Notcher (AL150)

The AL150 Abrasive Grinder/Notcher creates perfect notches in seconds. It is ideal for use on aluminum and plastic. This machine can grind any angle from 20 deg to 90 deg on square, rectangular, and round pipes of varying wall thicknesses. The AL150 machine is perfect for double corner joints, great for high production and is backed by a three-year warranty.

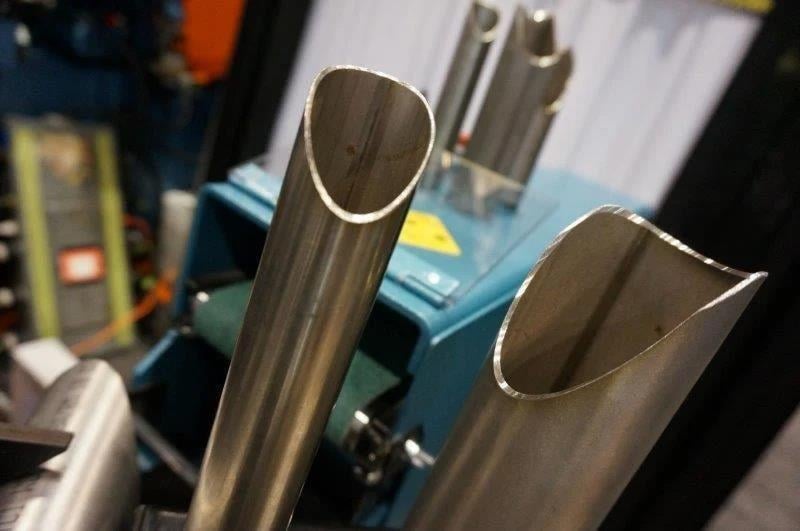

• Produces gap-free fits ready for welding
• Grinds notches of any desired angle from 90 degrees to 20 degrees in seconds
• Smooth operation with minimal vibration
• Two axis precision crossfeed table with both handwheels and hand lever feed handle
• Heavy duty frame and base construction
• Base has one built-in rack to store mandrels
• Mandrel centerline adjustment
• One vise holds all pipe and tube sizes
• Top-mounted deburring surface creates a multifunctional machine
• Easy setup with vise graduated in degrees

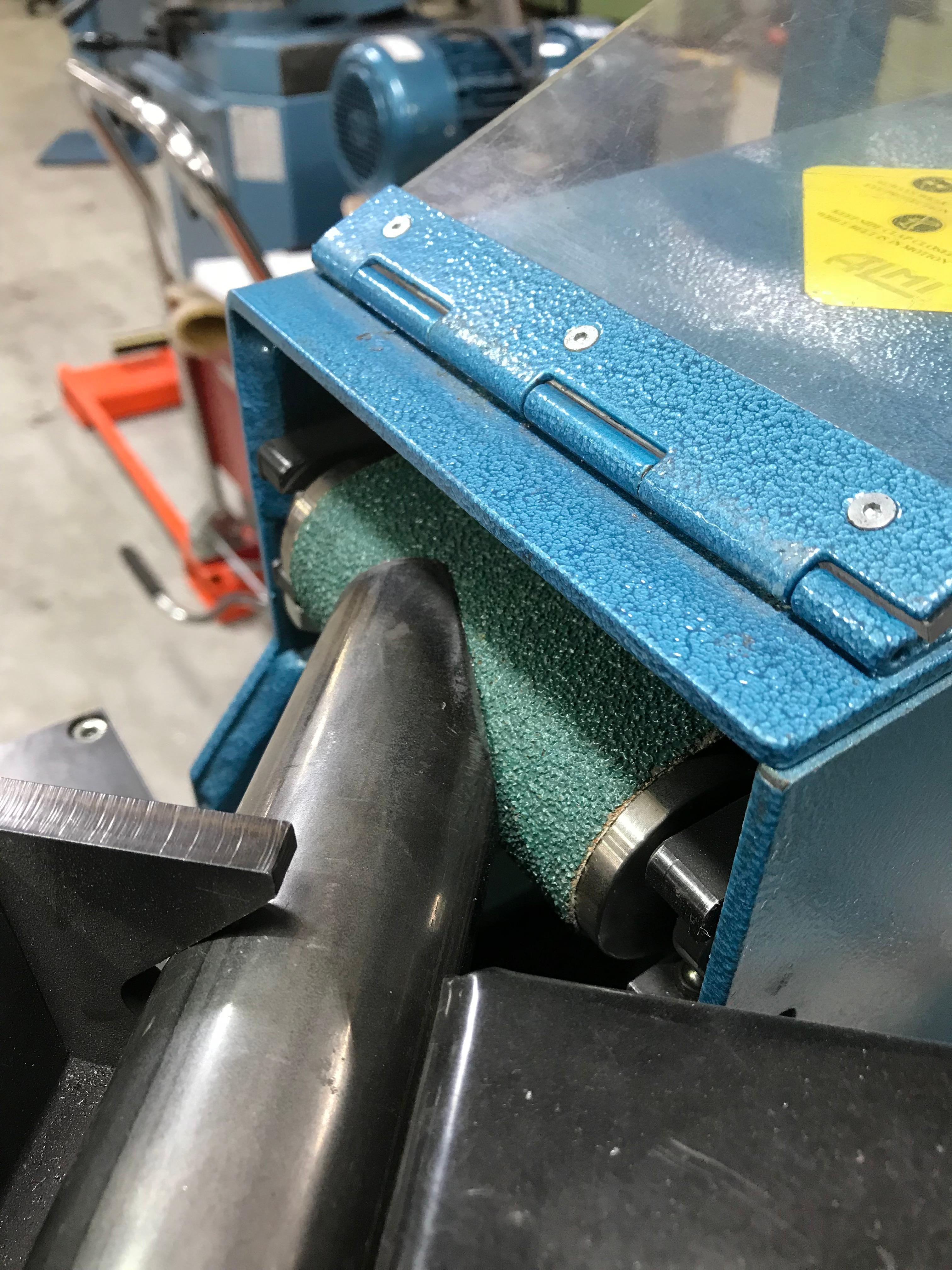

• 17 Mandrel sizes available to ensure correct gap-free fits
• Supplied with 2 belts and two pipe mandrels (1-1/4" & 1-1/2")
• Tool-free belt and mandrel change over for easy transition
• Warranty: Three years on parts
• Manufactured in the Netherlands

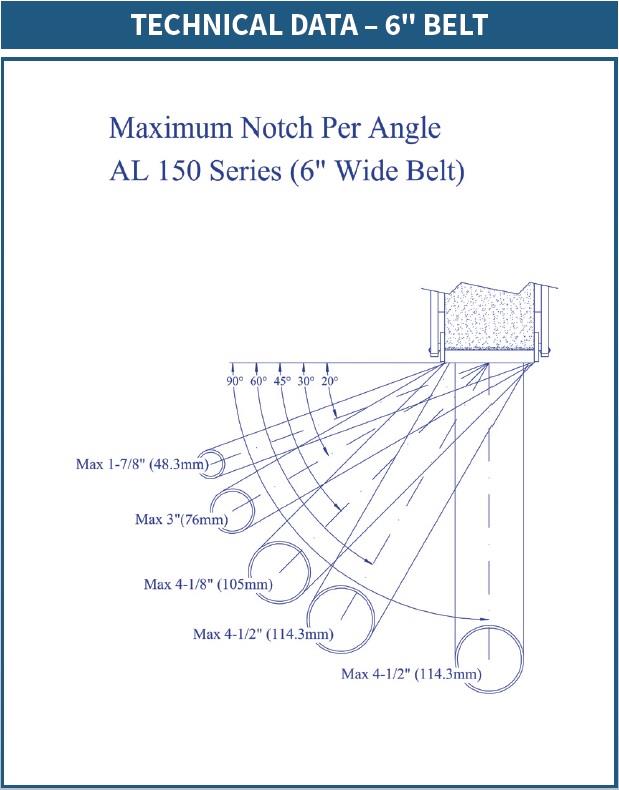

Grinding Capacity	1/2" to 4-1/2" O.D.	12.7 to 114 mm
Angle Range	Straight=90° to 20°
Profile Applications	All: Round, Square, Rectangle or Flat
Belt	6" x 78-3/4"	150 x 2,000 mm
Speed	3,420 RPM
Operation	Lever & Handwheel
Motor (Standard)	230/460v, 3ph (must specify) 6 hp
Motor (Optional)	220v, 1ph 6 hp
Dimensions (L x W x H)	57" x 47-1/4" x 33-1/2"	145 x 120 x 85 cm
Shipping Weight (may vary)	615 lbs	279 kg
