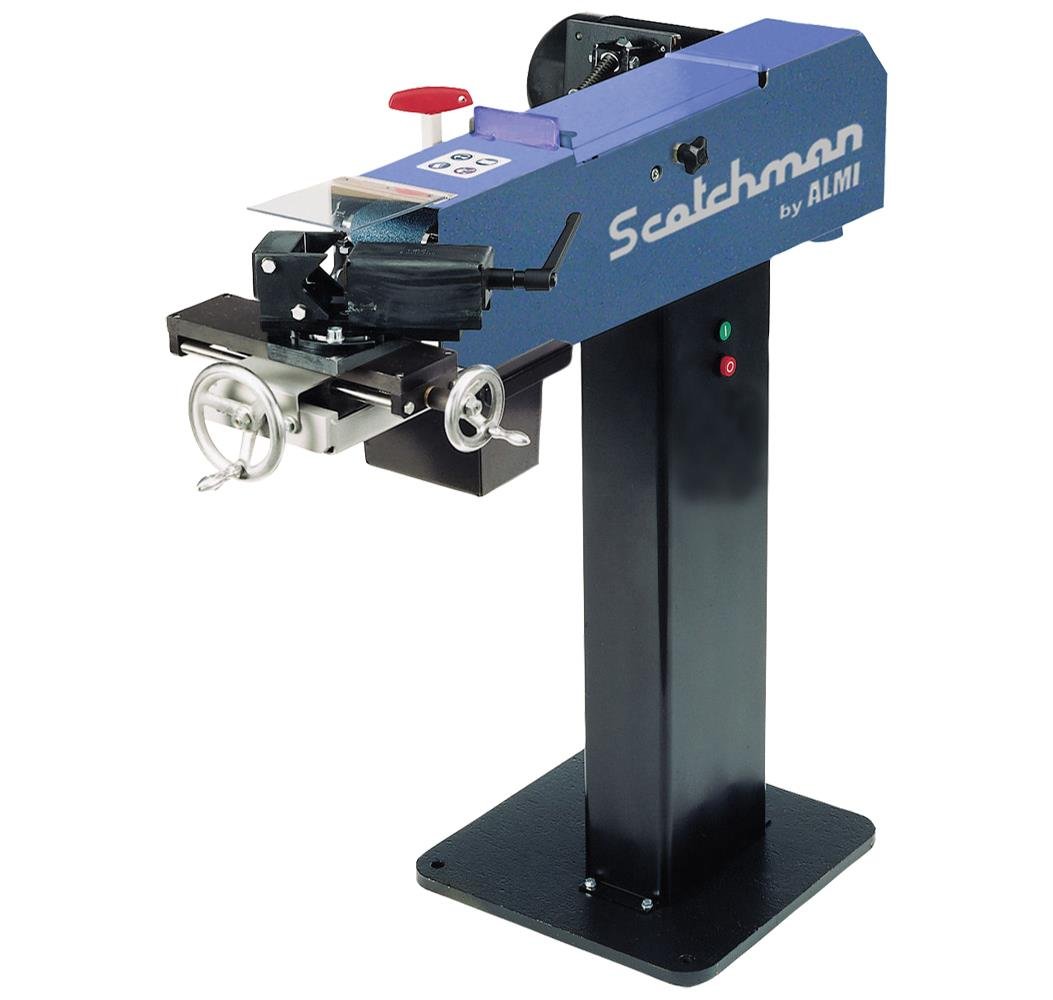

Scotchman AL100U-02 Abrasive Grinder/Notcher

Scotchman AL100U-02 Abrasive Grinder/Notcher (AL100U-02)

Brand : Scotchman

Stock Amount : 0

Delivery Time 45-60 Days After O.C.

Shipment Place Turkiye

Payment Terms % 50 T/T On O.C., % 50 T/T B.S.

Made In USA

Min. Order Qty. 1 Pcs.

Warranty1 Year

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

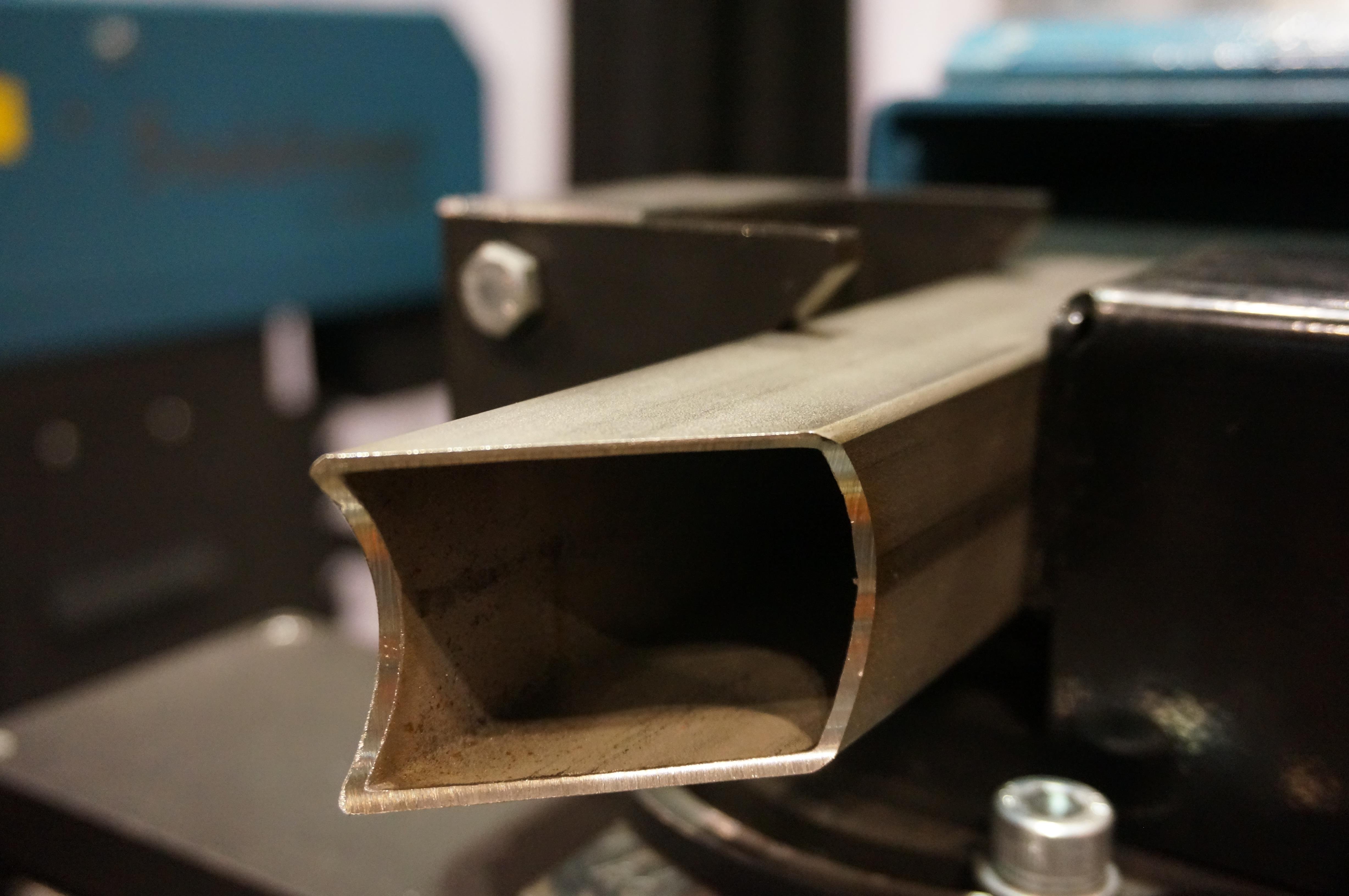

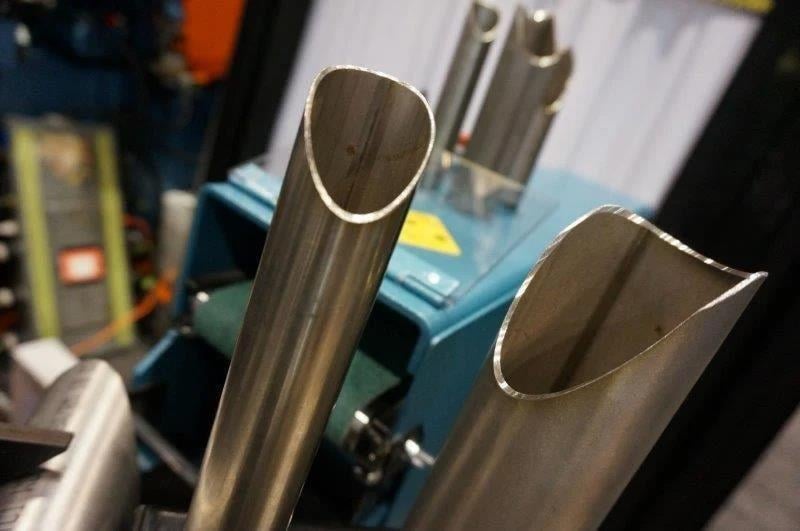

The AL100U-02 produces gap-free fits ready for welding, with minimal vibration. Angle range is straight=90° to 30° in tube or pipe from 1/2" to 3" O.D. It's equipped with handwheels for feed handle & vise that can be adjusted right or left.

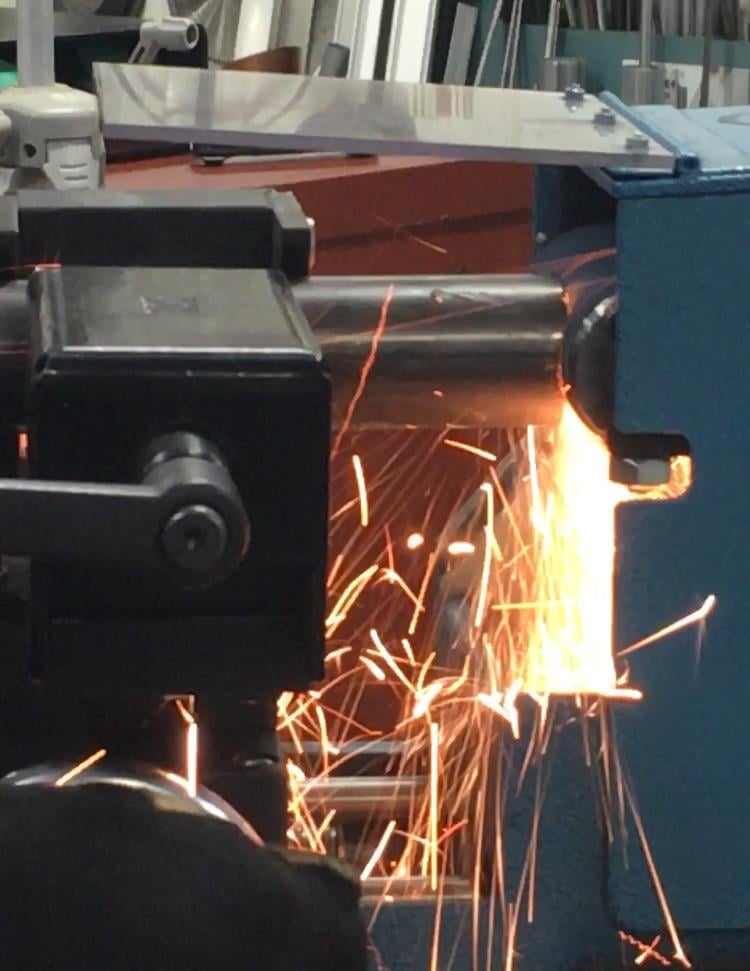

Grinds notches of any desired angle from 90 degrees to 30 degrees in seconds
Two Axis precision crossfeed table with both handwheels and hand lever feed handle
Smooth operation with minimal vibration
Heavy duty frame and base construction
Mandrel centerline adjustment
One vise holds all pipe and tube sizes
Top-mounted deburring surface creates a multifunctional machine
Easy setup with vise graduated in degrees
13 Mandrel sizes available to ensure a correct gap-free fit
Supplied with 2 belts and two pipe mandrels (1-1/4" & 1-1/2")
Tool-free belt and mandrel change over for easy transition
Warranty: Three years on parts
Manufactured in the Netherlands

Grinding Capacity	1/2" to 3" O.D.	12.7 to 76 mm
Angle Range	Straight=90° to 30°
Profile Applications	All: Round, Square, Rectangle or Flat
Belt	4" x 78-3/4"	100 x 2,000 mm
Speed	3,420 RPM
Operation	Lever & Handwheel
Motor (Standard)	230/460v, 3ph (must specify) 4.5 hp
Motor (Optional)	220v, 1ph 4.5 hp
Dimensions (L x W x H)	57" x 45-1/4" x 25-1/2"	145 x 115 x 65 cm
Shipping Weight (may vary)	460 lbs	209 kg
