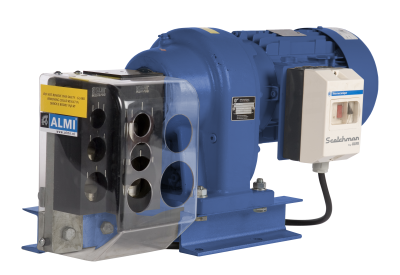

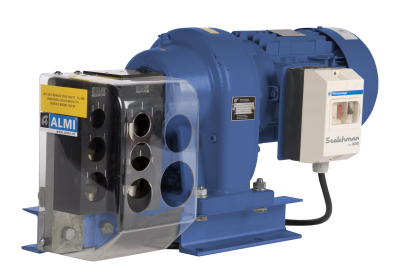

The AL1-2E is equipped to notch 3/4", 1", 1-1/4", 1-1/2" and 2" up to schedule 40 wall thickness.
Scotchman pipe notchers make notches for joints quickly and accurately and are ideally suited for double corner joints.
O.D. Pipe Sizes
3/4", 1", 1-1/4", 1-1/2" and 2"; Schedule 40
Max. Wall Thickness
0.197" steel 0.118" stainless steel
5 mm steel 3 mm stainless steel
Profile Applications
Round Tube & Pipe
Motor
3-1/2 hp 230/460v, 3ph (must specify)
2.2 kW
Dimensions (L x W x H)
30" x 13-1/2" x 11-1/2"
762 x 343 x 292 mm
Shipping Weight
230 lbs
104 kg
