Slip bending rolls 125

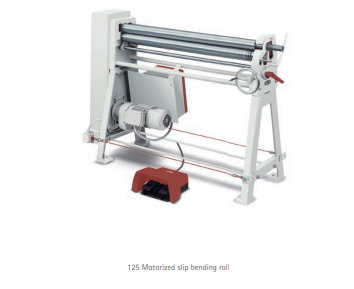

125 Motorized slip bending roll Pre-bending and fi nal bending very easy with our slip bending rolls - With its special roll concept, wide range of accessories and robust design, this is the machine for truly universal and cost-effective work on single jobs and in series production.
|
|

|
- FM 1R control system, foot switch, electric control, operating mode: single step operation
- Rolls with seam groove and wiring grooves, ca. 700 N/mm² tensile strength
- The top roll with pivotable bearing has a seam groove for the production of seam tubes
- Lower roll and back roll are equipped with wire grooves. Adjustment of lower roll via lever whereas adjustment of the backroll is done via handwheel
- Motorized drive of upper and lower roll: Working speed V = 6 m/min.
- Double foot switch for clockwise and anti-clockwise rotation
|
|
The small power-operated slip bending roll type 125 is a reasonable alternative to the hand-operated 102. The solild construction guarantees the necessary continous accuracy even for small series production. Pre-bending and fi nal bending takes place in the machine. Small parts can easily be unloaded by the one-side location of the drive. Thanks to an easy inclination of the backroll, simple conical bending is possible. The high quality of rounding is reached by the asymetric roll arrangement. |
