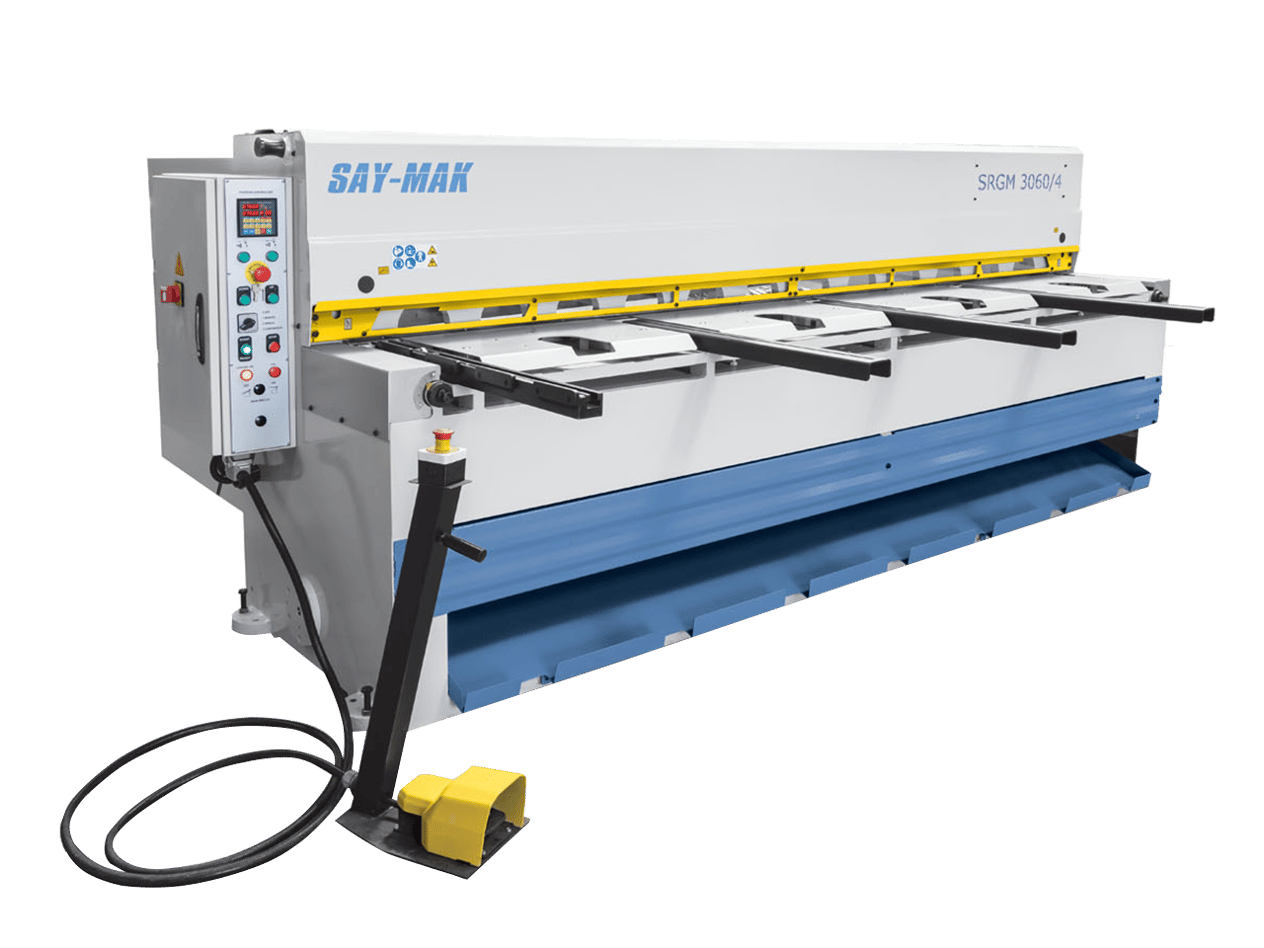

Say-Mak SRGM-FR 3060 Direct-Gear Motorised Guillotine

Say-Mak SRGM-FR 1100 Direct-Gear Motorised Guillotine

Say-Mak SRGM-FR 1100 Direct-Gear Motorised Guillotine

Say-Mak SRGM-FR 1100 Direct-Gear Motorised Guillotine

Say-Mak SRGM-FR 1100 Direct-Gear Motorised Guillotine

Say-Mak SRGM-FR 1100 Direct-Gear Motorised Guillotine

Say-Mak SRGM-FR 3060 Direct-Gear Motorised Guillotine

Brand : Say-Mak

Stock Code (SRGM-FR 3060)

Delivery Time 45-60 Days After O.C.

Shipment Place Turkiye

Payment Terms % 50 T/T On O.C., % 50 T/T B.S.

Made In Turkiye

Min. Order Qty. 1 Pcs.

Warranty1 Year

Stock Amount : 0

Price : 0,00 EURO(Vat included)

Item is out of stock.

Get Information with WhatsApp

Add to Favorites

Add to My Wish List

Notify me when the price goes down

Notify me when it is in stock

Welded steel construction
High carbon/high chrome, two edged top and four edged bottom blades
Cutting beam working in perfectly sliding, durable teflon slideways
Easy blade gap adjustment in front
Mechanical sheet clamping system

NC controlled back gauge with 750 mm stroke
Manual Return-to-Sender
Squaring arm with T-slot, stopper and ruler
Foot pedal
Cutting unit counter
Front sheet holding arms
Finger protection cages

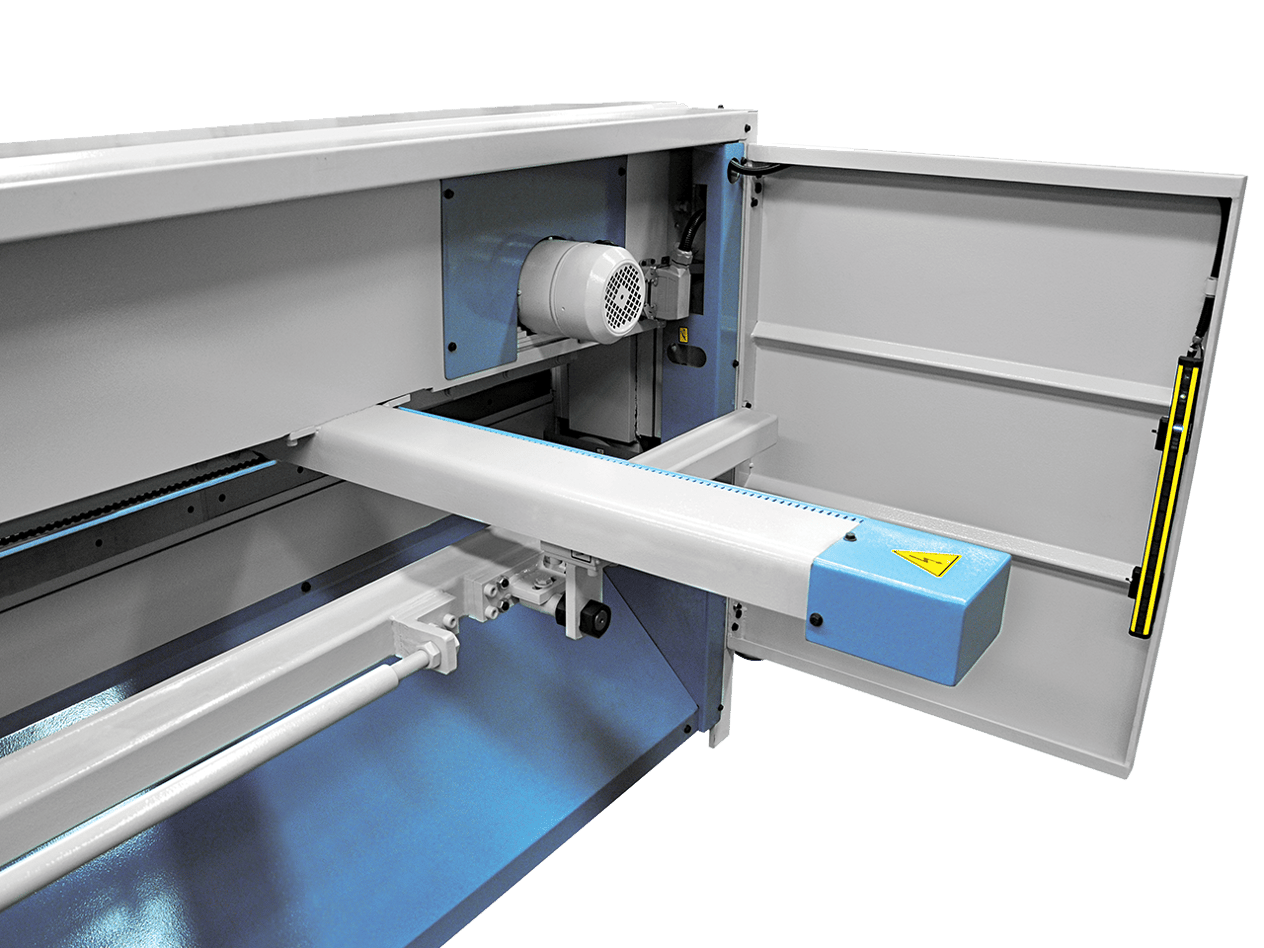

Rear protection cages with photocell
Table with ball transfer
Cutting line illumination with shadow wire

NC controlled back gauge with 1000 mm stroke
Pneumatic sheet support system with Return-to-Sender & Returnto-Rear feature
Rear protection cages with light barrier
0-180° angular cutting device
ELGO P40T touch-screen NC control unit
FUJI Monitouch touch-screen NC control unit
Longer squaring arm and front sheet holding arms up to 3000 mm
Front operated manual back gauge with ball screw

Shearing Capacity	mm	4
Max. Shearing Length	mm	3060
Strokes Per Minute	cuts/min	31
Motor Power	kW	11
Table Height	mm	880
Table Width	mm	455
Width	mm	2250
Length	mm	3700
Height	mm	1400
Weight	kg	4100
