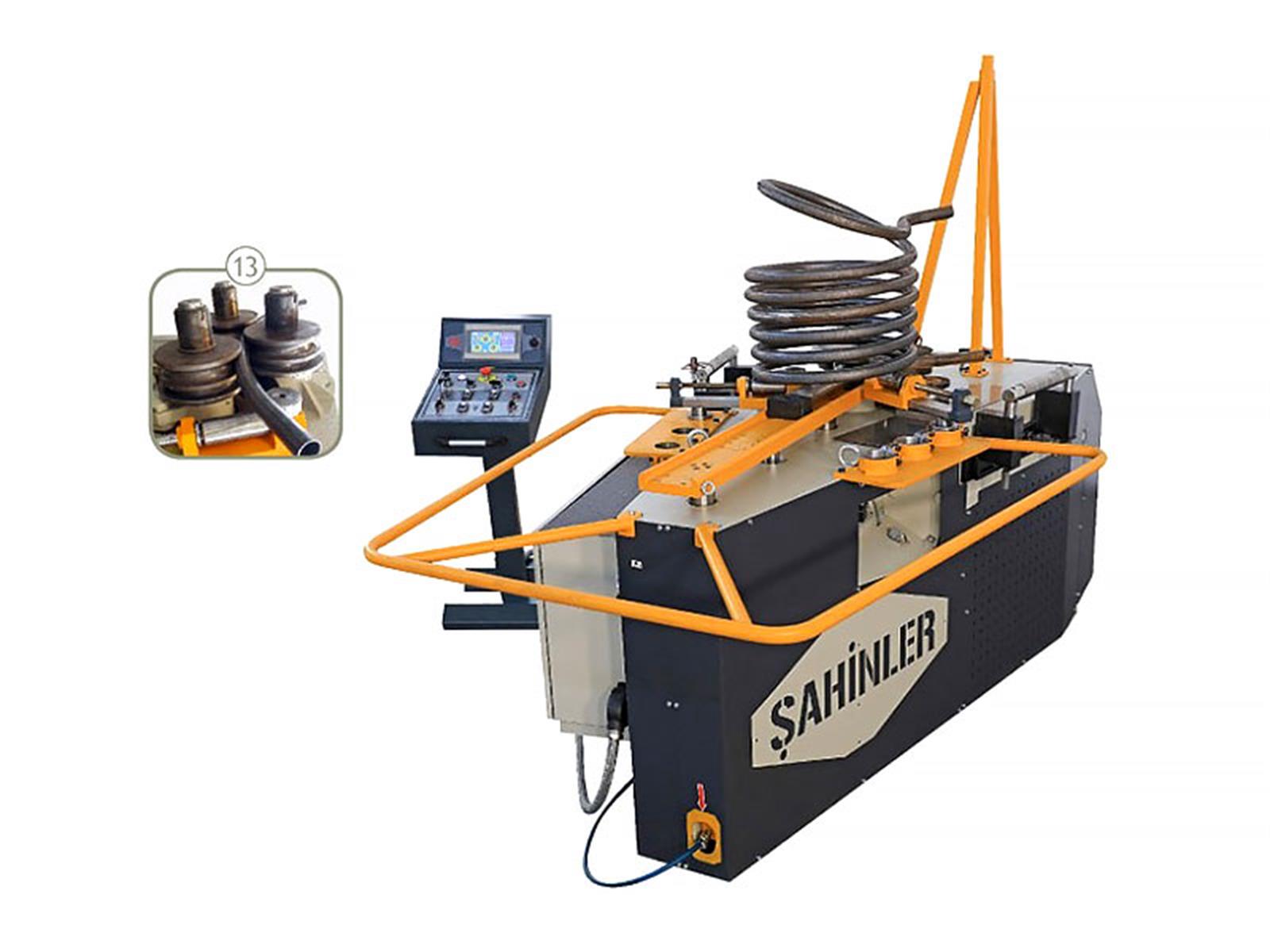

Sahinler TC-42 NC Tube Coiling Machines (TC-42 NC)

Steel construction welded frame
Single gearbox with hydromotor drives 3 rolls by agear system
Rolls are hardened and ground in the hole.
Horizontal working position
Mobile control panel
Hydraulic lateral supports with roller
NC Control Panel (Standard)
Manual lateral supports
Hydraulic top support
Infinitively variable speed adjustment
Material support stand
• Bottom rolls hydraulic movable up-down

Pipe, tube and profile bending rolls


TC-42NC
Upper roll shaft	Ømm	65
Bottom Rolls shaft	Ømm	65
Roll Diameter	Ømm	165
Working speed	m/min	5
Motor power	kW	7,5
Length	mm	3340
Width	mm	2120
Height	mm	1400
Weight	kg	2720
