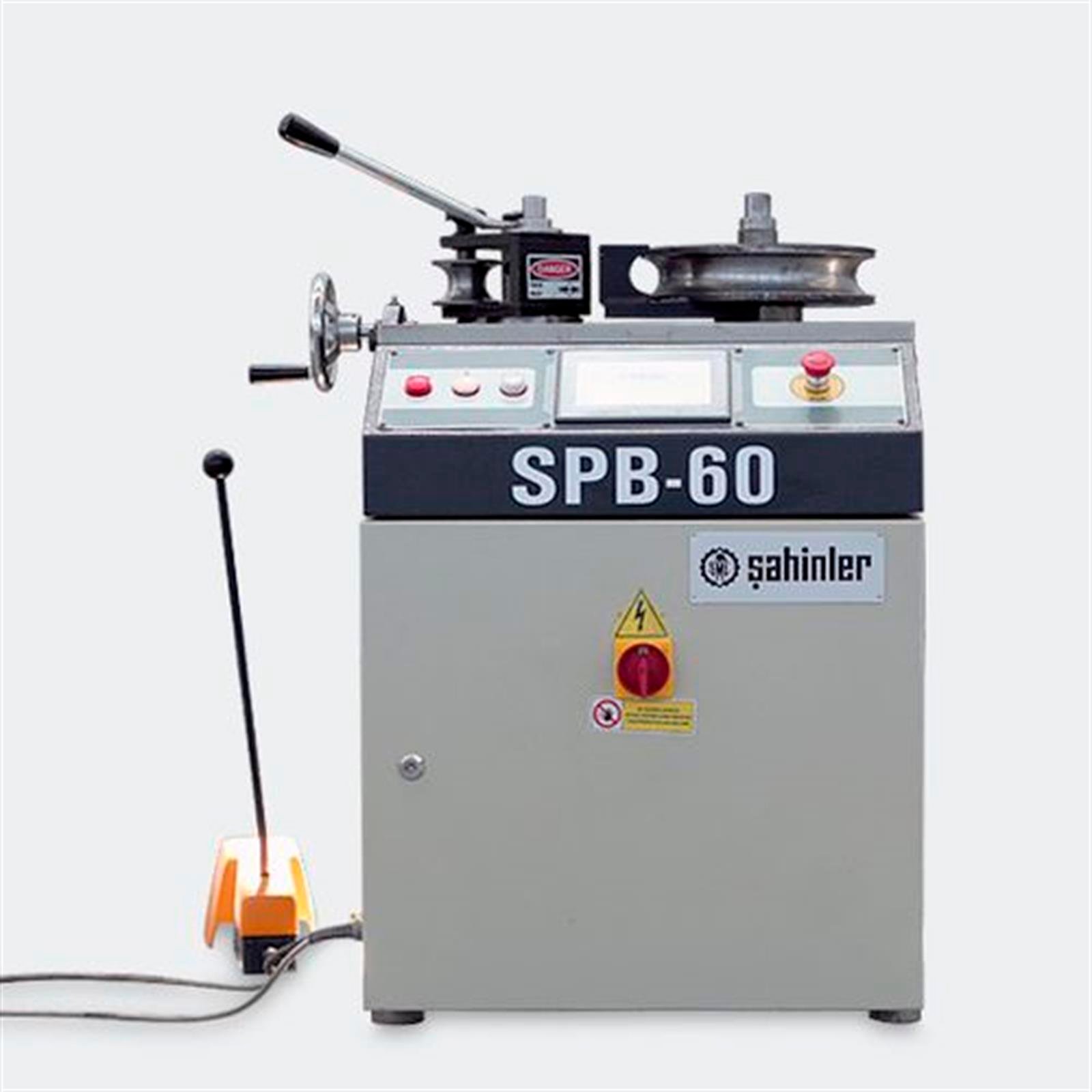

Sahinler SPB 60 NC None Mandrel Type Pipe and Tube Bending Machine - Stock (SPB 60 NC)

NC Control Screen with Memory enables professional and easy operation of the machine
SPB 60 model has capability of bending up to Ø 60mm x 4mm pipe, SPB 76 model has capability of bending up to Ø 76mm x 3 mm pipe
Holder attachment for supporting the tube during the fixing it on to the machine
Free holes for mounting the special tools
Steel Welded Construction Frame
Termic – Power Reset gauges
Emergency stop button
•The Machine has 500 programme memory on internal memory
•Minimum bending Radius 3 times the diameter (Ø) of the tube (varies according to the tube Wall thickness and material)
•1 Set of Pipe Bending Tool standard included
Infinite Speed Adjustment System

	SPB	60
Min. Radius	Ømm	R60(Ø16x4)
Max. Radius	Ømm	R150(Ø60x3,5)
Working speed	RPM	0-4,5
Motor power	kW	2,2
Length	mm	850
Width	mm	750
Height	mm	1200
Weight	kg	330
Tube Types
Boiler tube	mm	60x2,8
Mild Steel tube	mm	48x4
Aluminium tube	mm	60x4
Round Bar (M.S)	mm	40
Square Tube (M.S)	mm	40x40x4
