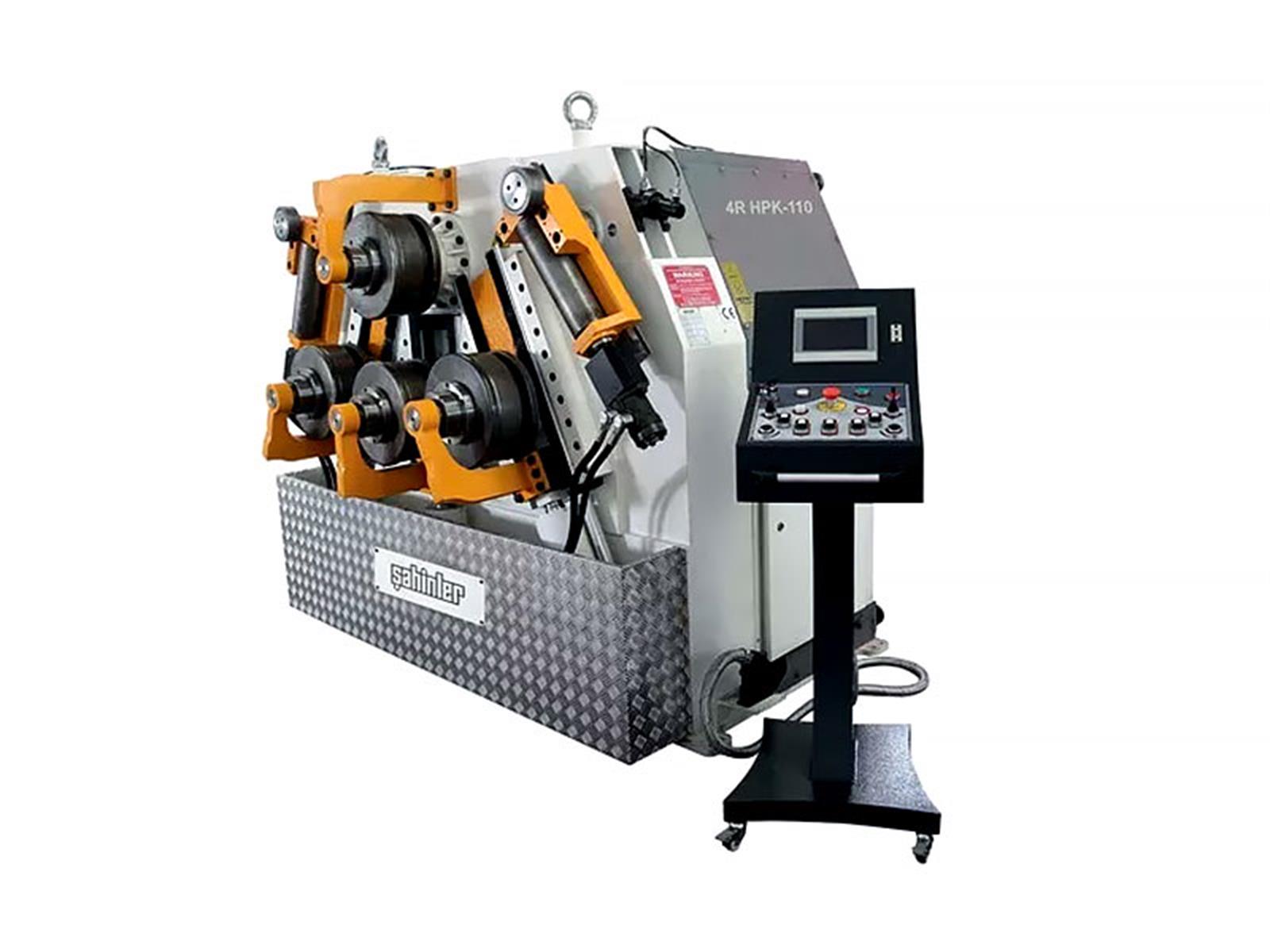

Sahinler 4R HPK 110 4 Rolls Hydraulic Section and Pipe Bending Machines (4R HPK 110)

Shorter flat on edges. More Accurate results for pipes and Aluminium profiles. Wide distance of side rolls and consequently more capacity on bigger diameter bending. Better performance with NC control Unit. More accessories available on applications.
• 4 Rolls Machine.
Steel Welded Construction Frame.
• On 90 and 110mm Shaft Models 3 Rolls are driven by hydromotor + planetary reducers , on 70mm Shaft Model 2 Rolls are driven
• Hardened and ground shafts made of high tensile special steel.
• Standard Rolls (1 Set with 4 Rolls).
• Rolls are hardened and ground in the hole.
Bottom and lateral rolls hydraulic movable up-down.
• Horizontal and Vertical Working Position.
On 70mm Shaft model 1+1 axis Guide Rolls , on 90 and
110mm Shaft models 3+3 axis Guide rolls
Mobile Control Panel.
• User’s Manual with EC Certification.

Infinitively variable speed adjustment
3+3 hydraulic supports
Automation with NC control
All NNC kind of pipes, tubes, profile rolls and HEB, IPN and UPN beam attachments are available upon request

4R HPK 110
Shaft Diameter	mm	110
Rolls Diameter	mm	320
Shaft Length	mm	200
Bending speed	d/dk rpm	4,98
Number of motorized roll	ad./pcs.	3
Number of guide rolls axes	ad./pcs.	3
Motor power	kW	7,5
Machine weight(Standard)	kg	4500
Machine Dimensions(LxWxH)	mm	2000x1700x1250
