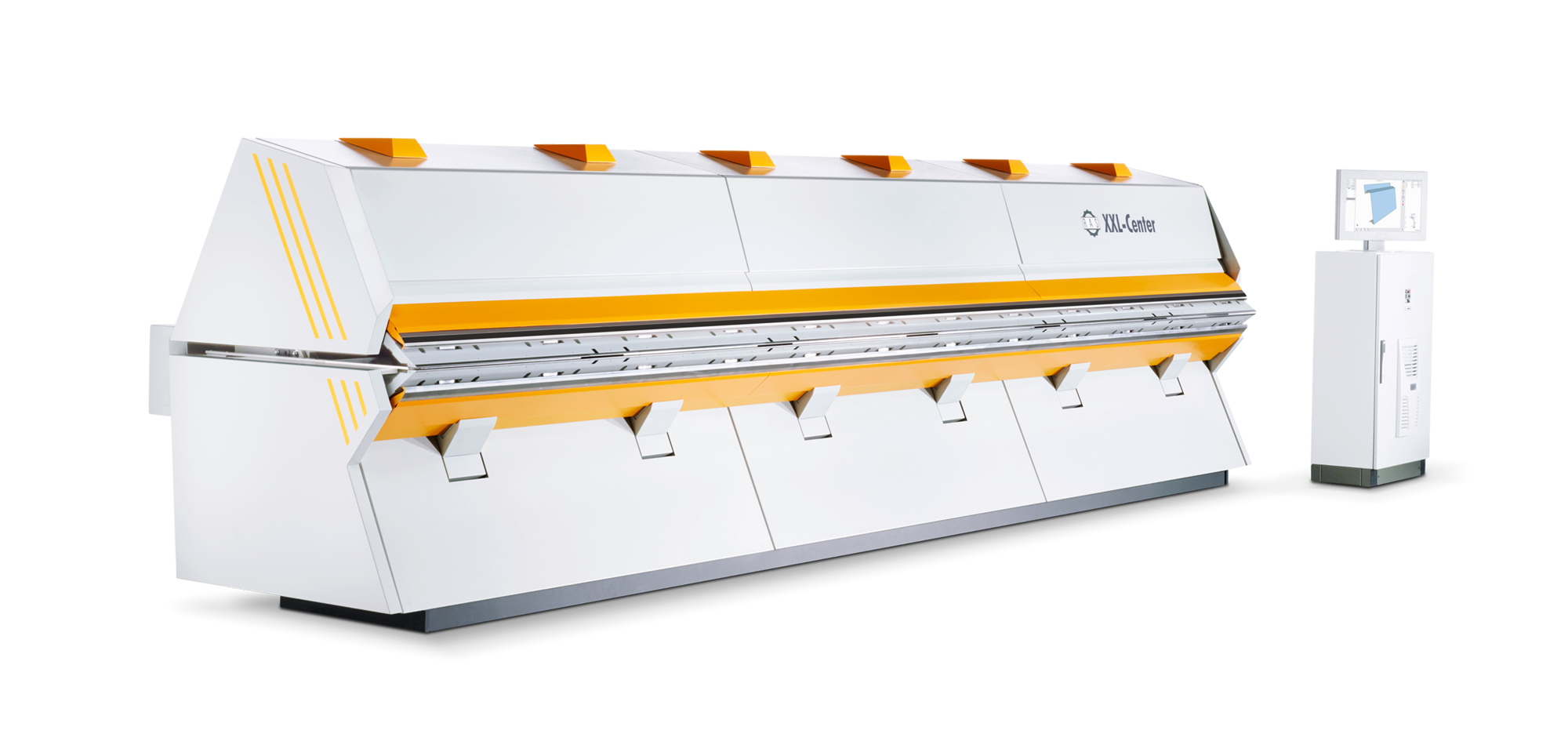

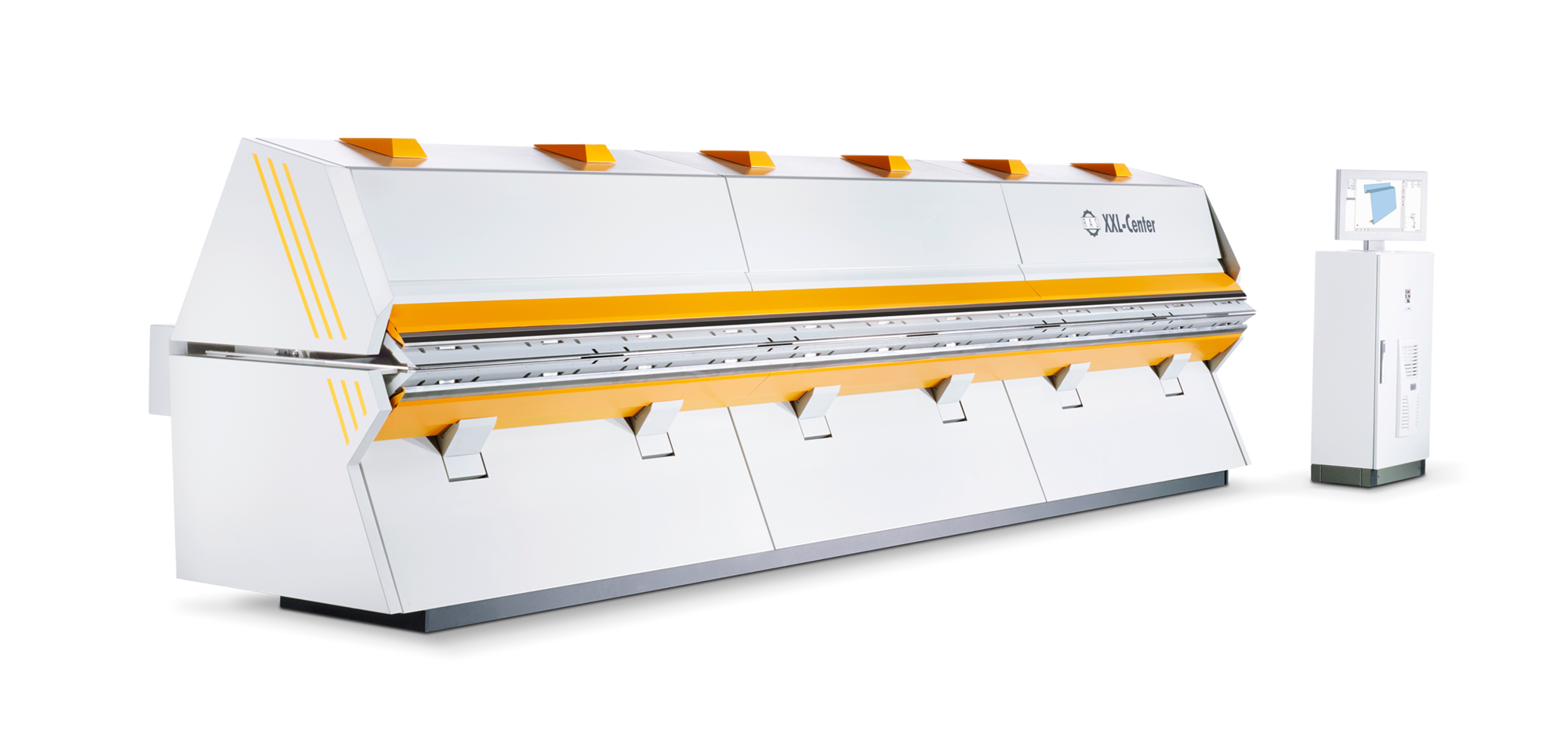

The XXL long folding center automatically inserts, squares, positions to the bend line, and folds the flanges up or down. No more rotation. No more complicated handling. No more second or third operator. The XXL-Center automatically produces precision long parts in record time.

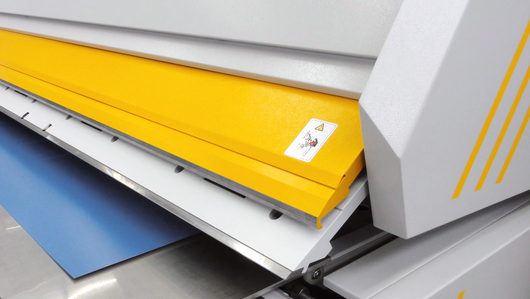

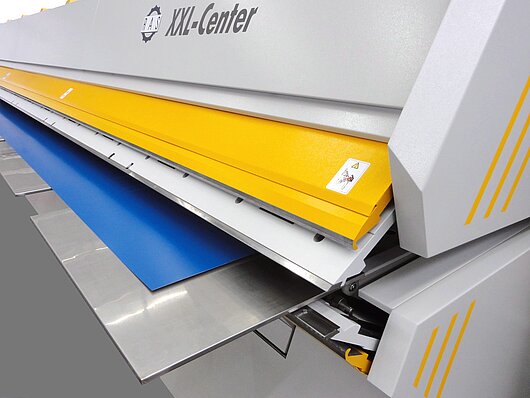

It has never been that easy loading a blank into a long folder. The stainless steel loading table automatically move out of the machine just as far that the operator can easily load the cut part.

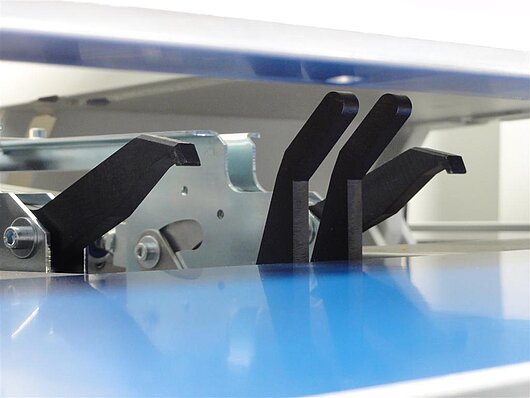

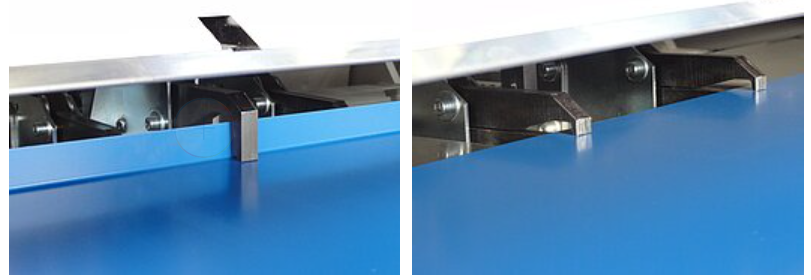

The squaring fingers pop-up from the work surface and automatically 80 mm square the cut blank.
After the blank is squared the XXL-Centers grippers take over the workpiece. They hold and automatically position the part for each bend. The grippers can clamp on straight material, but can also clamp on a closed hem. Additional higher grippers can clamp over a pre-bent flange.

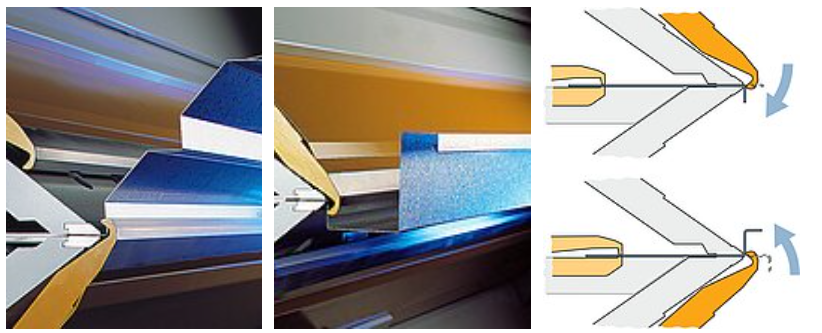

Up and down folding eliminates a need to rotate the parts. Short cycle times, precision flange dimensions and angles, high levels of productivity and low costs per part guarantee a quick payback of the investment.

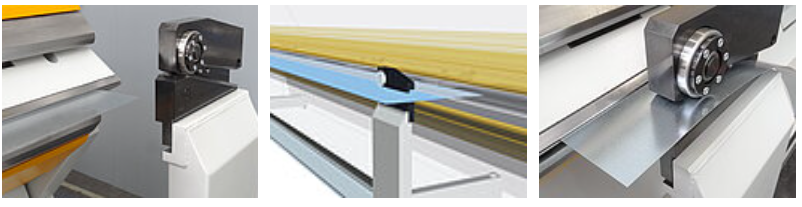

If the CutModul is selected, the software shows where the operator has to insert the material strip. The XXL-Center pulls the metal workpiece into the machine, squares and positions ito dimension. The upper beam clamps the material and the cutting unit starts from its right home position and cuts the workpiece to the requested dimension.

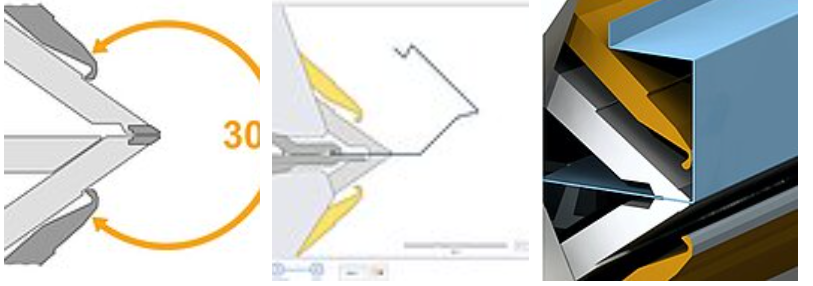

RAS has designed XXL-Center with maximum free space in front of the folding beams and has also patented this aspect. The extremely large free area of 300 degrees creates room for the most complex part geometries.

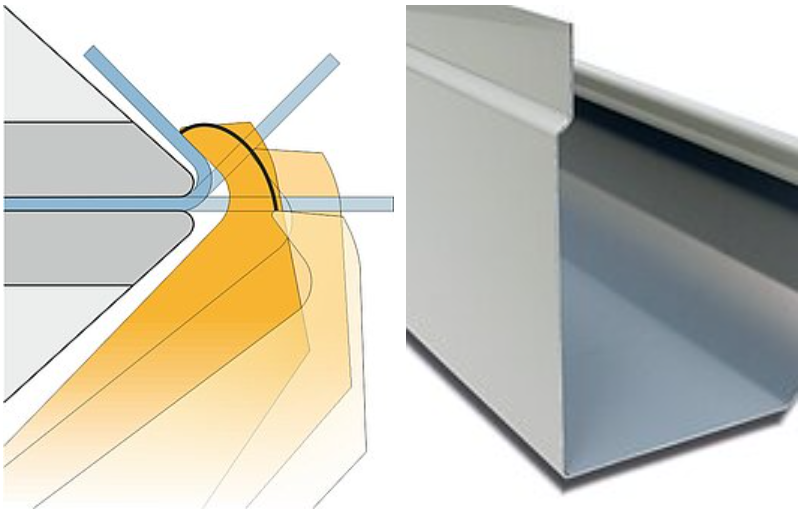

The tools roll away with the blank and fold them without scratching pre-painted materials.

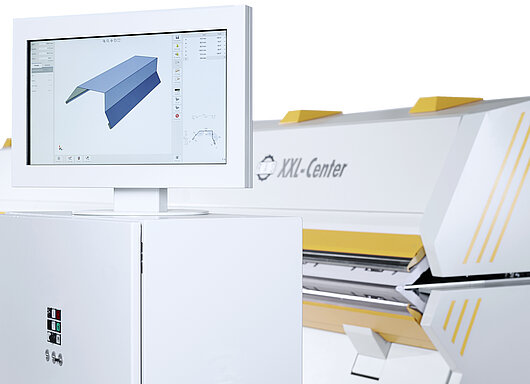

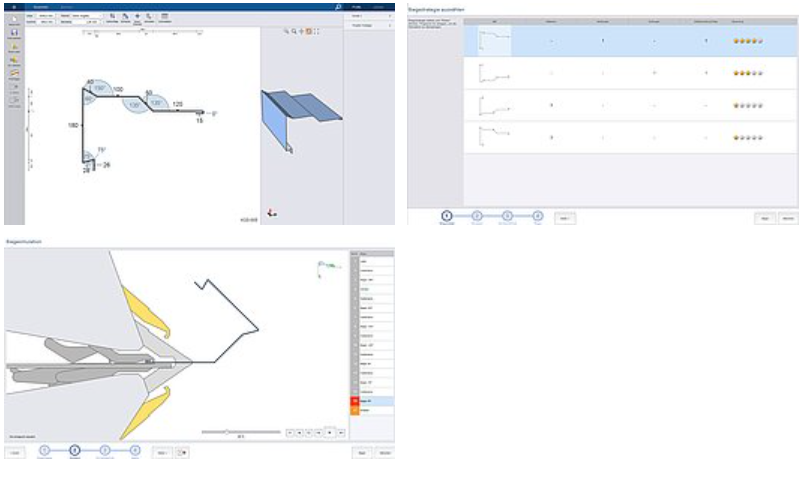

The operator draws the profile of the touch monitor or in the office using the Office software. The Bendex software automatically programs the part and suggests the optimum bending strategy. The software simulates the entire program cycle in either a 2D or 3D view.
The unique and powerful Bendex software automatically programs the parts. Its enormous fetaure list increases the throughput and productivity of the machine many times over.
