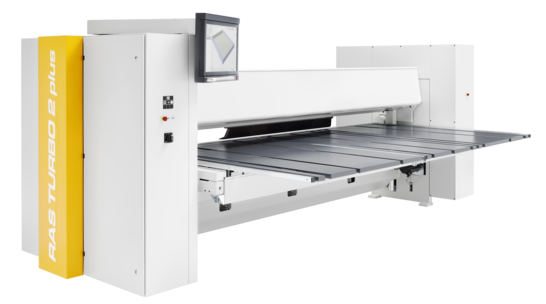

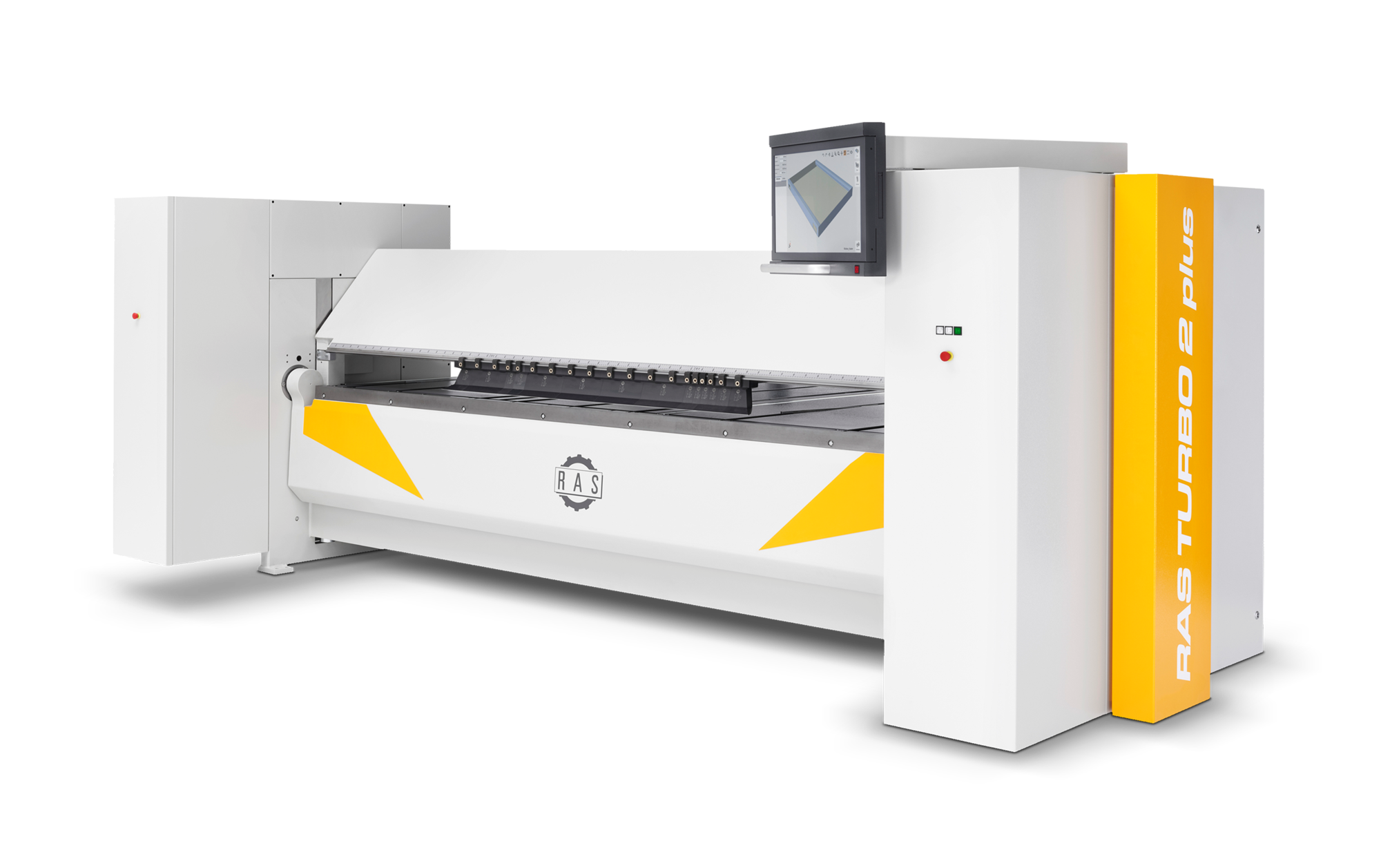

With the TURBO2plus, bending of roof and façade profiles, as well as advertising signs or panels has arrived at a next level. The Bendex software automatically programs the parts, evaluates alternative bending strategies, and shows the bending sequence on the monitor in 3D. Expertise translated into software!

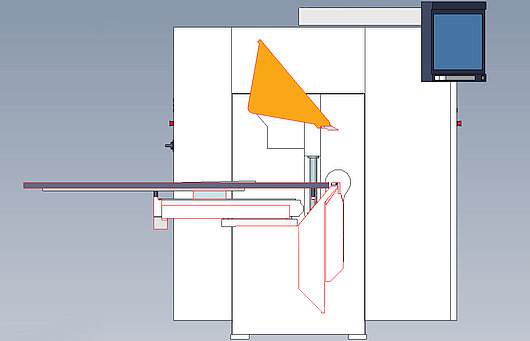

The upper beam opens and closes with inpressive speed. As the open and close position is programmable, you can create open or closed hems, thus making your parts unique and versatile. The upper beam shape offers large free space in front and behind of the beam.

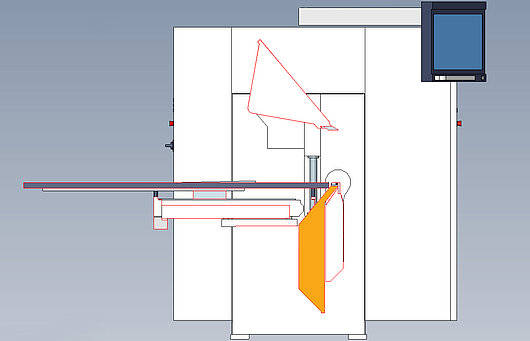

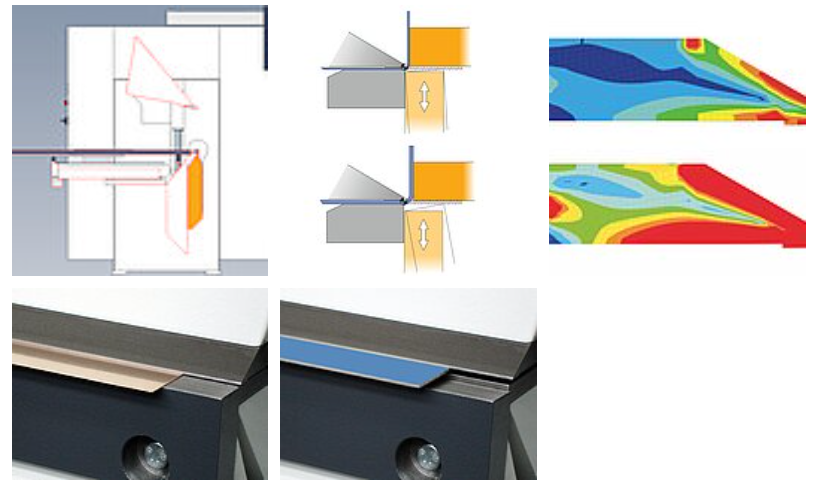

The folding beam on the TURBO2plus is an example of engineering superiority. Fast folding cycles lead to high productivity. An impressive plus is its ability to adjust the folding beam automatically to the actual material thicknesses.

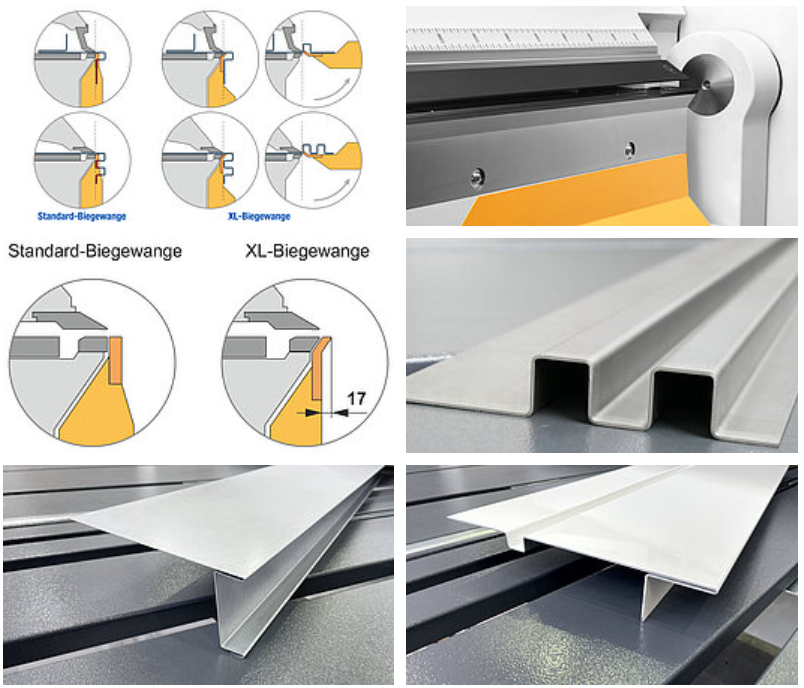

As an alternative to the machine with standard folding beam, RAS also offers the TURBO2plus with a modified machine frame and an XL folding beam geometry. The additional free space expands the range of applications for bending profiles that require more space in front of the folding beam.
The lower clamping beam is designed with a deep box configuration for maximum strength and resistance.

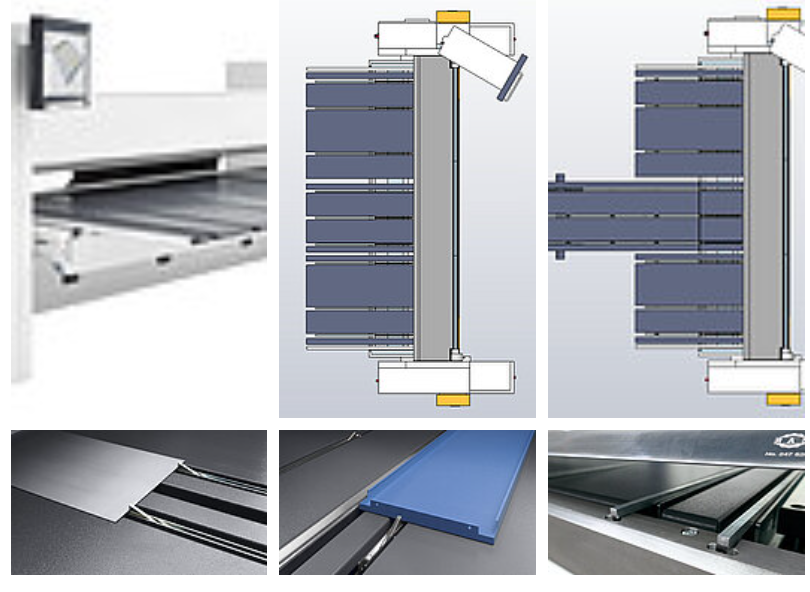

The fingers of the gauging system position the workpiece for each bend. All stop fingers disappear below the table surface when the part has to be rotated on the sheet support table.

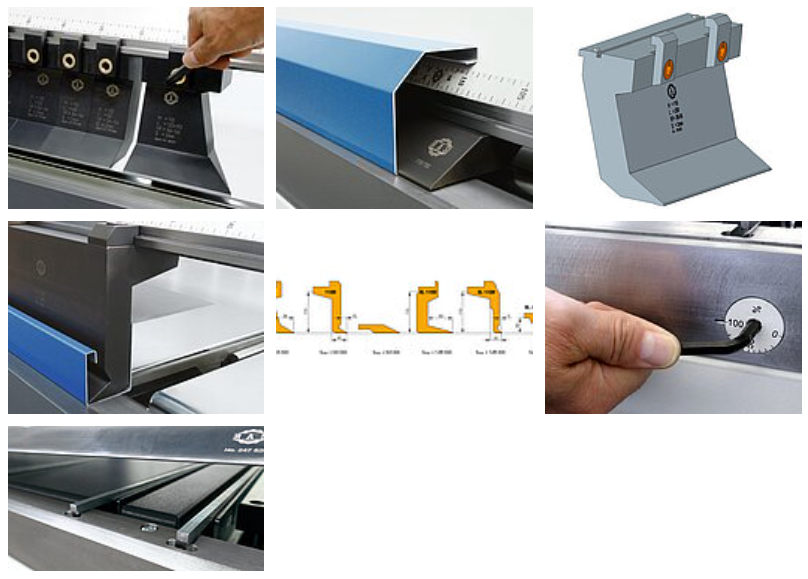

The segmented sharp tool can be taken on and off by a single operator in no time. The segmented goat's foot tooling is precision designed, and literally "quick-clamps" and locks in position so that it is ready to work within seconds.

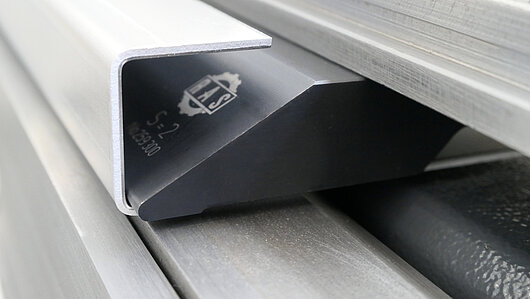

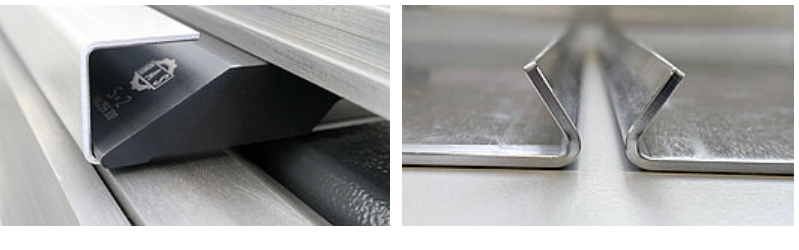

To prevent cracking of the material surface when bending aluminum, radius tools can be added to the TURBO2plus metal folding machine. The second picture shows the result when bending 2 mm aluminum with a 1.5 mm (left) and a 2 mm (right) radius tool.

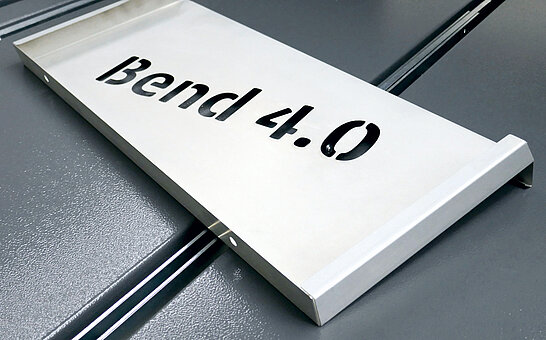

If only profiles are bent, a continuous sharp or radius tool in the upper beam is sufficient to bend almost any geometries. For four-sided panels, segmented tools are needed. If a special tool is required due to the part geometry, RAS manufactures customized tools for the upper beam and folding beam according to job requirements

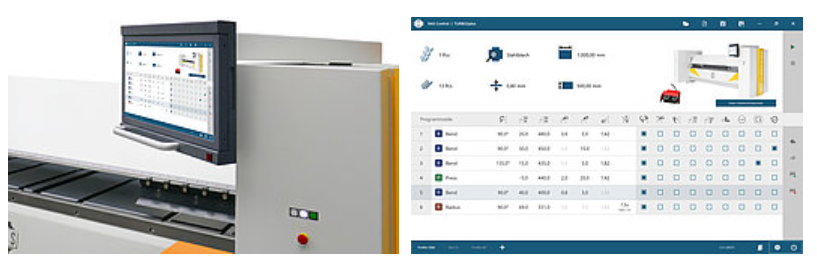

The Bendex software programs the bending sequence automatically. Just use your finger and draw the part on the machine's touch monitor. Alternatively, the part can also be drawn in the office software or imported as CAD data in STEP, dxf or geo format. With one click, the software programs the entire bending sequence automatically
With the additional OpenEditor input, operators at the machine can individually program any machine movement and bending sequences entirely according to their preferences.
