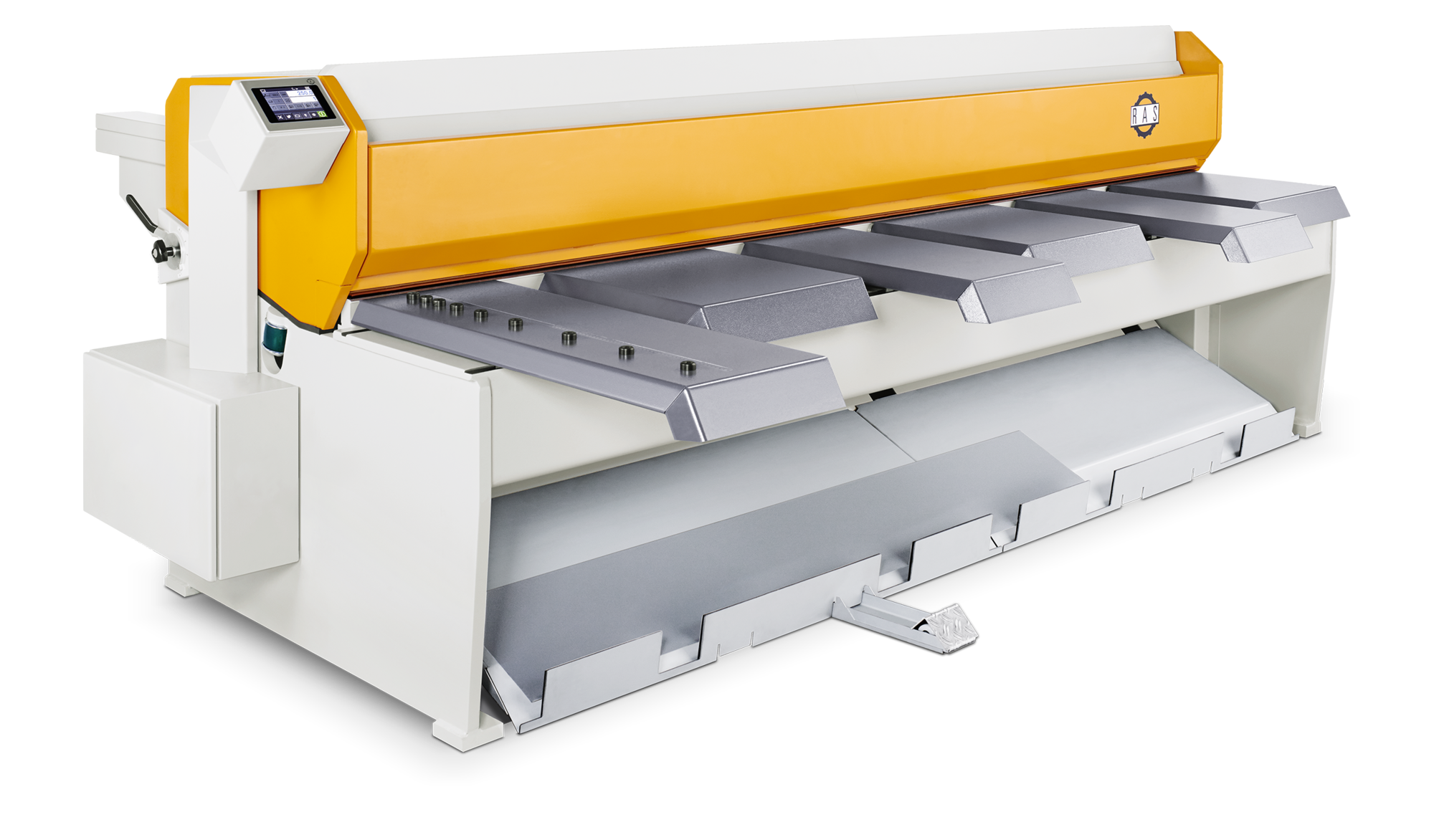

RAS has added a TouchScreen control to the PRIMEcut swing beam shear, thus giving optimum clearness on the monitor. With its 3 mm capacity and 3100 mm cutting length the RAS PRIMEcut combines all characteristics of a high performance, premium shear.

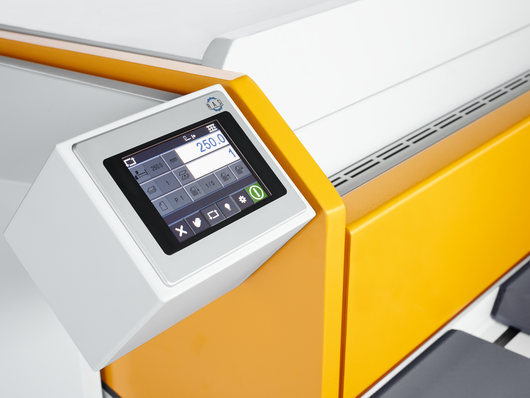

The Touch-Cut control positions the backstop to the programmed dimension and cuts the required number of pieces. The operator can program a single program line or can create entire cutting programs.

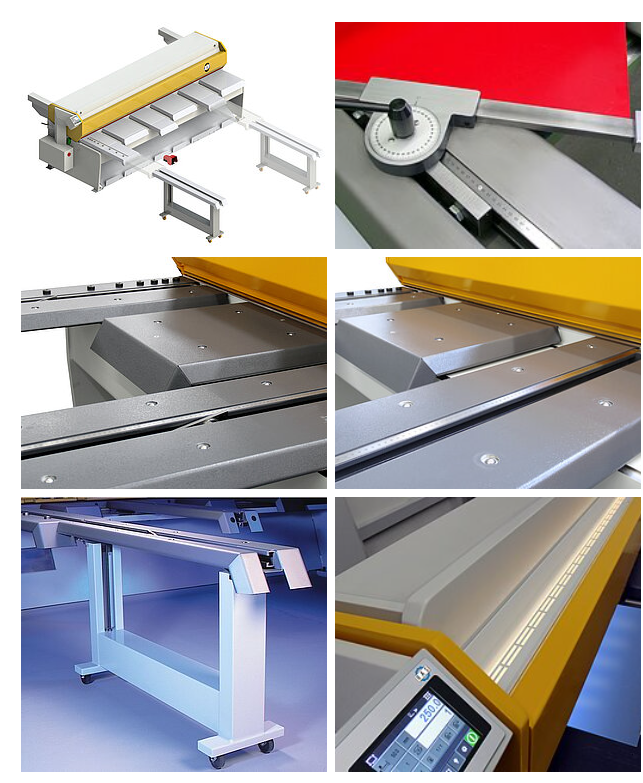

The CNC backgauge positions the blank precisely within the 750 mm stop depth. A bright LED cutting line illumination simplifies the work, if the blanks need to be positioned below the shear blades using marks.

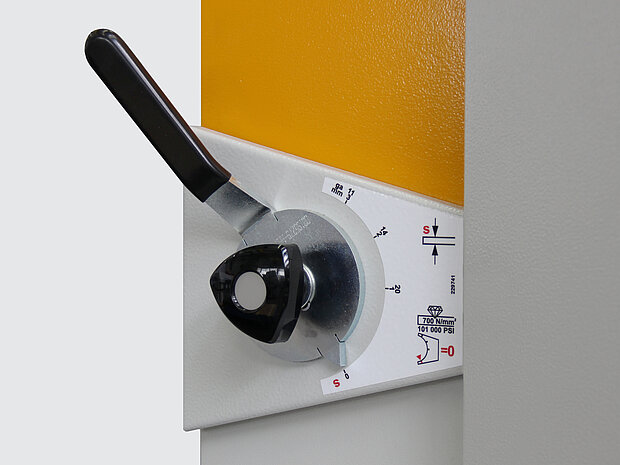

With a hand lever, the cutting gap eccentric can be quickly and easily adjusted to sheet thickness and material type.

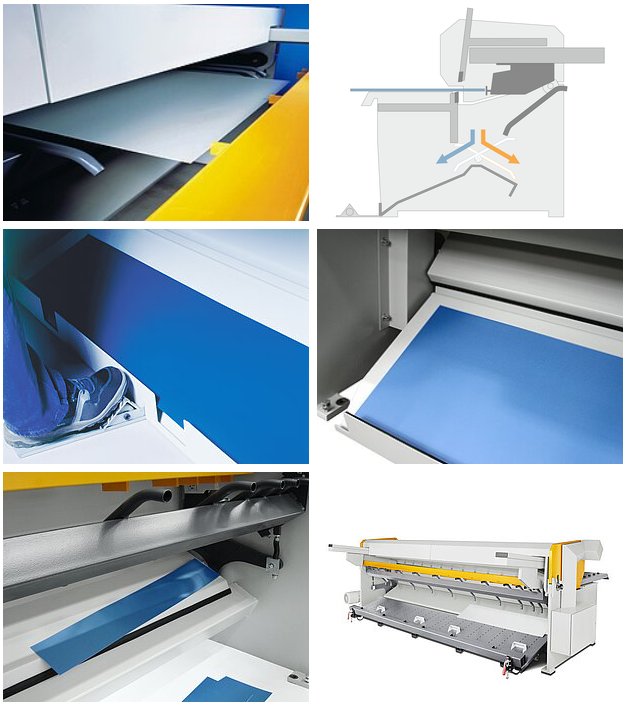

The sheet support guides even the thinnest materials horizontally and accurately to the backstop. A foot lever position determines whether the parts chute delivers cut pieces to the front or the rear.

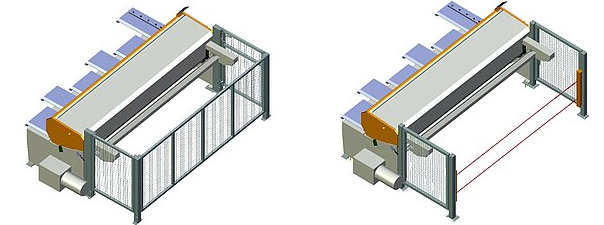

Protective fences and safety light beams together with the attractive machine design complete the PRIMEcut swing beam shear safety concept.
