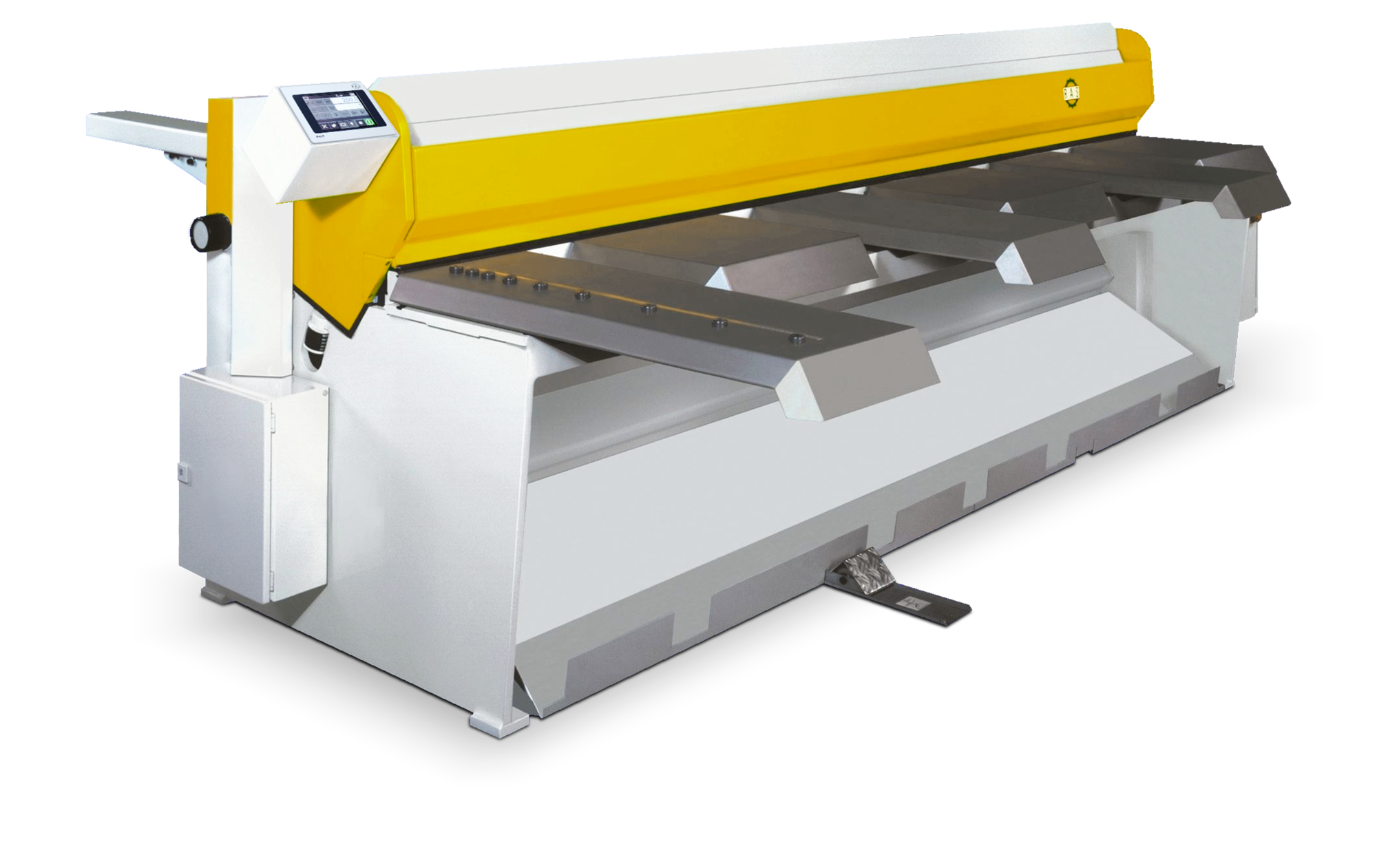

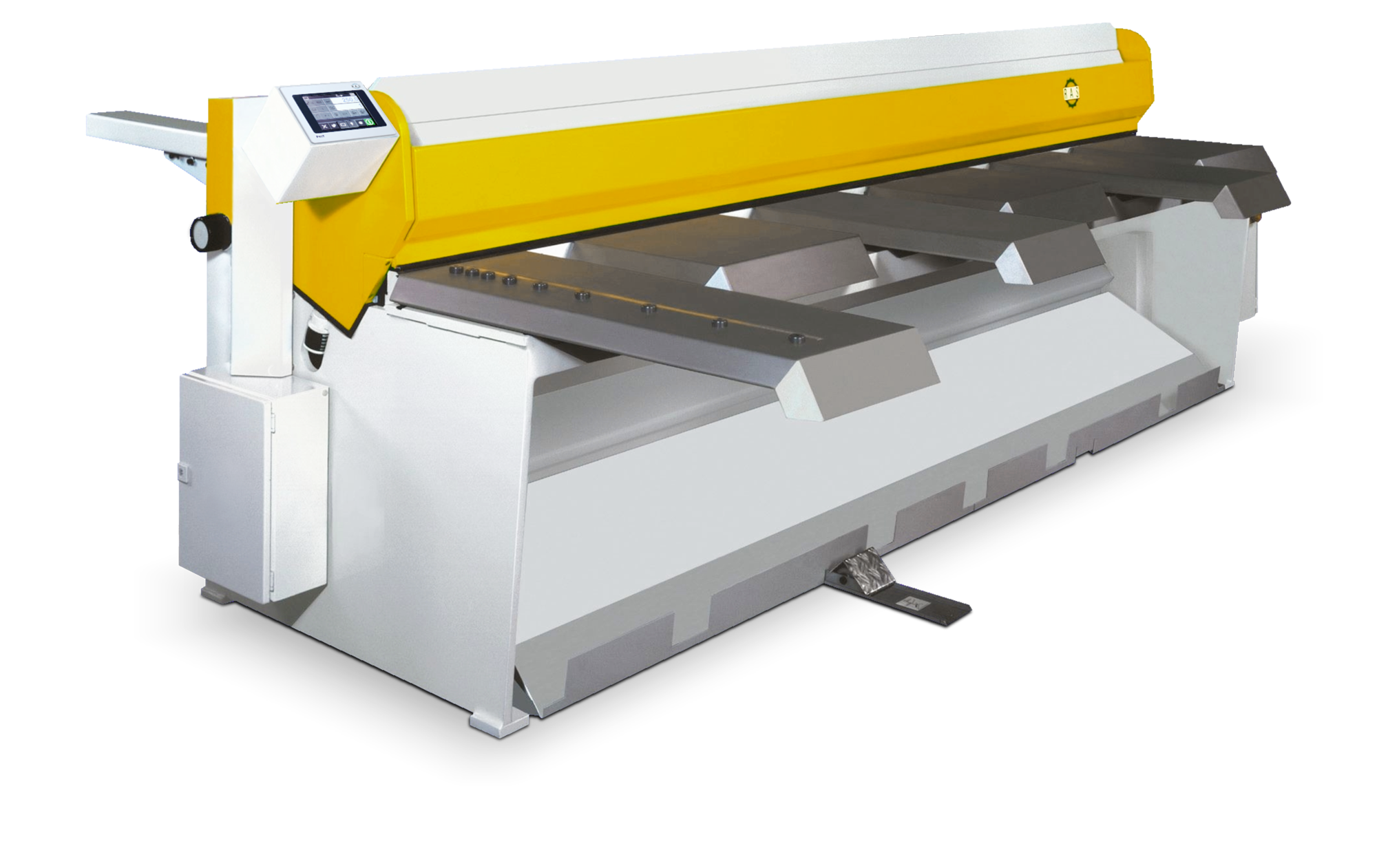

RAS has added a TouchScreen control to the SMARTcut swing beam shear, thus giving optimum clearness on the monitor. With its 3100 x 2 mm and 2540 x 2.5 mm the RAS SMARTcut models combines all characteristics of a high performance, premium shear.
The RAS SMARTcut with high-quality CNC backgauge offers maximum comfort. The TouchScreen control positions the fast and dynamic backgauge to the programmed dimension and processes the requested number of parts.
The CNC backgauge positions the blank precisely within the 750 mm stop depth. A bright LED cutting line illumination simplifies the work, if the blanks need to be positioned below the shear blades using marks.
With a rotation wheel, the cutting gap eccentric can be quickly and easily adjusted to sheet thickness and material type.
The sheet support guides even the thinnest materials horizontally and accurately to the backstop. A foot lever position determines whether the parts chute delivers cut pieces to the front or the rear.
The pop-up hold-down is raised automatically as soon as the cut has been made and before the swing beam moves back up.
Protective fences and safety light beams together with the attractive machine design complete the SMARTcut swing beam shear safety concept.
