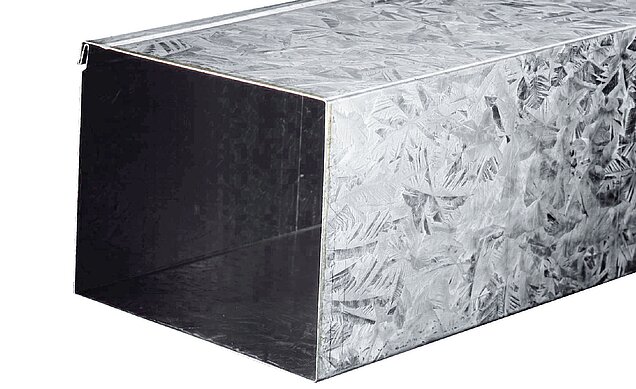

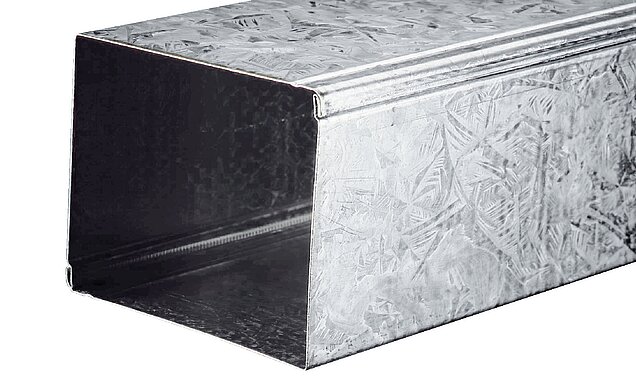

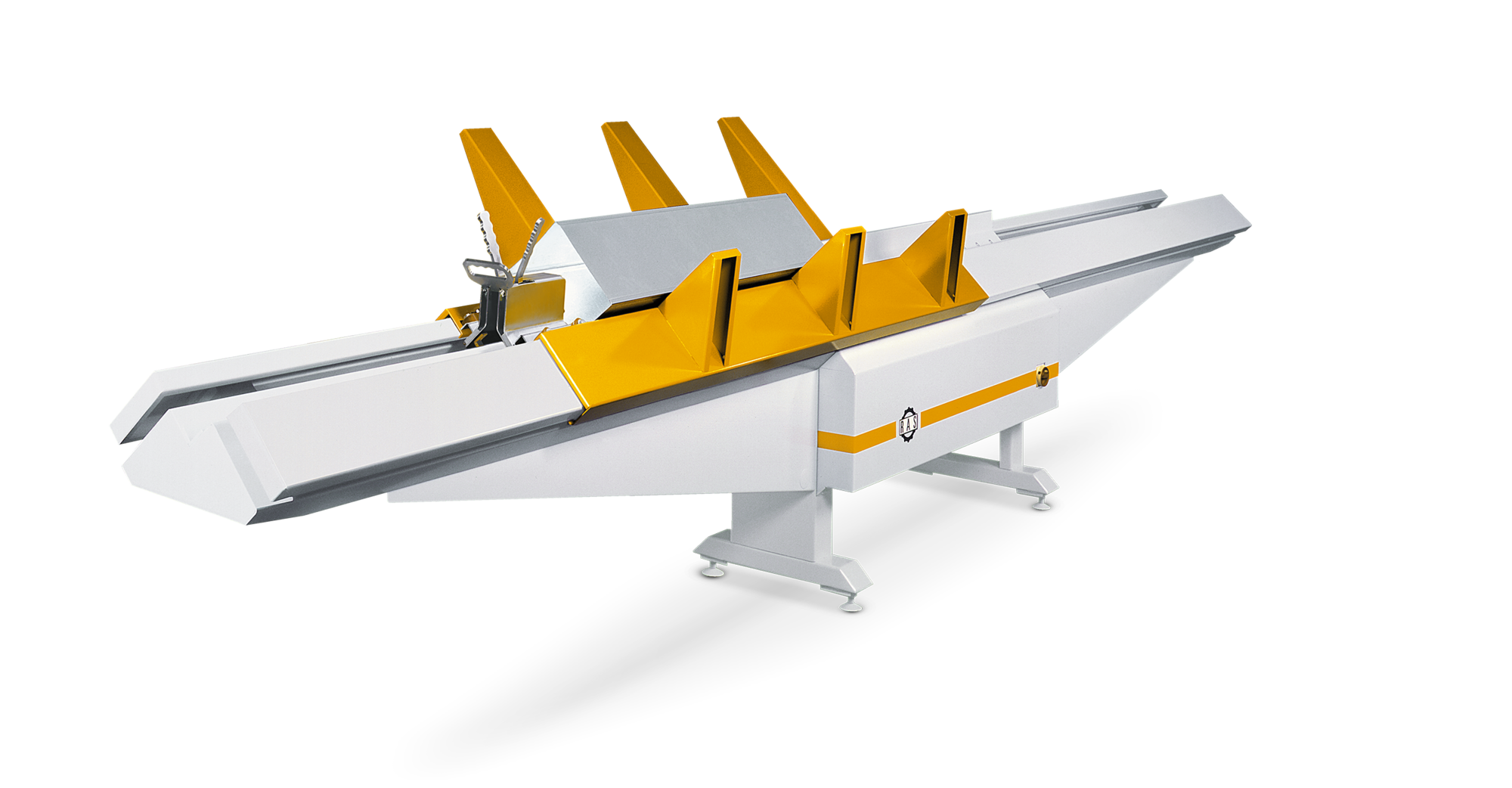

The RAS DuctZipper-V forms and closes the seamed joint on small and medium size air ducts. Professional air ducts can hardly be produced faster, more easily and more economically. The RAS DuctZipper closes a duct bent on three sides with a seam in a single pass.
Machine highlights
The support system with its three short and three long arms supports small and medium size air ducts ideally. The support system moves through the machine connected to the AutoPilot starting from the run-in to the run-out side.

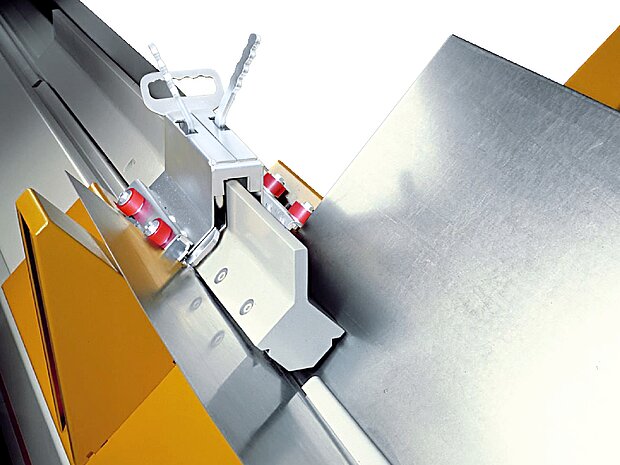

The AutoPilot clamps the blanks during the run through the DuctZipper

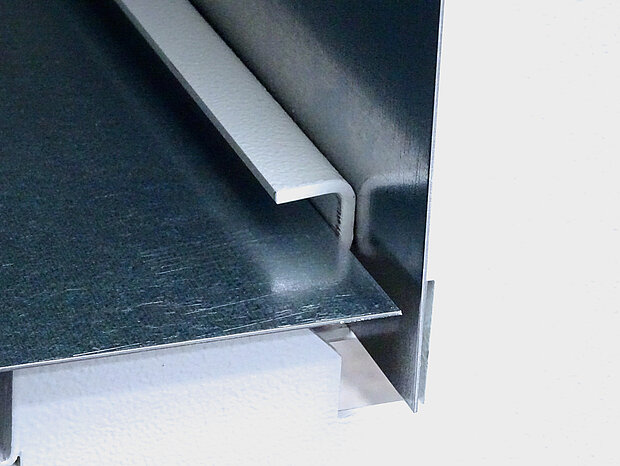

As the U-shaped rail at the run-in side has been extended up to the forming rolls the duct will be guided to the very end. This improves the seaming quality on the DuctZipper in L-shape especially at the outlet side of the duct, which also results in a reduced distortion of the duct cross-section.

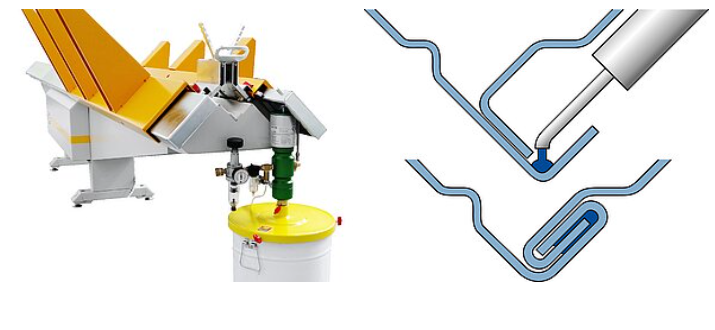

The SealJet additionally seals the seam joint during the run.
