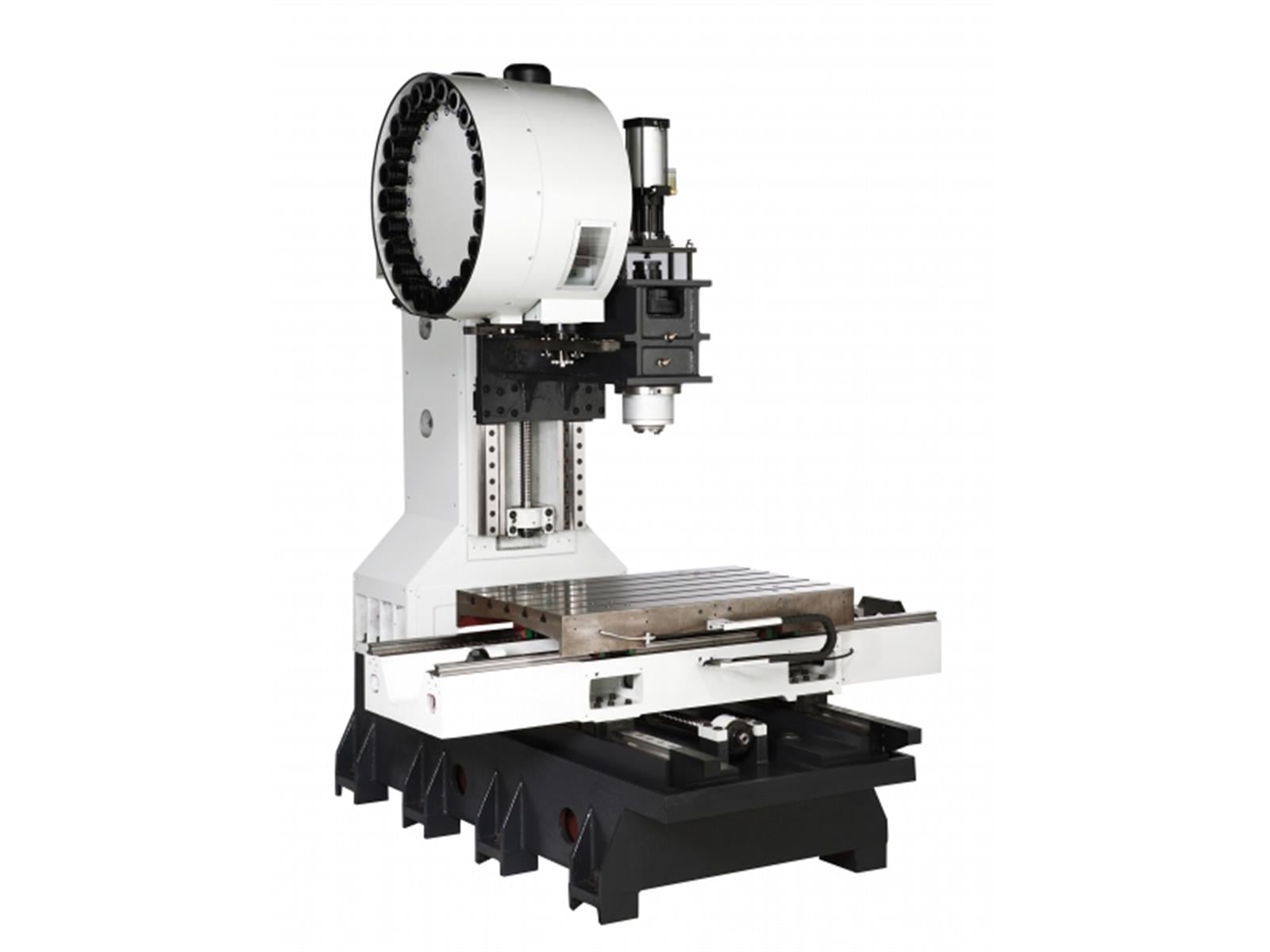

Prompt VMC-500L Vertical Machining Center

Prompt VMC-500L Vertical Machining Center (VMC-500L)

Brand : Prompt

Stock Amount : 0

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InChina

Min. Order Qty.1 Pcs.

Warranty1 Year

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Machining Centers

Vertical Machining Centers

X/Y/Z Linear guide way
Designed for high productivity machining

Features:
High precision and rigidity spindle
Top quality gears
Optical linear scale
4th and 5th axis rotary table
Circular inspection
Inspection by laser unit
Spindle dynamic balancing testing

Mitsubishi M70-2A controller
Coolant system
Auto lubrication system
Working & warning lamps
Spindle air blast (M code)
Toolbox and tools
Fully enclosed splash guard
RS-232 interface
Rigid tapping
Auto power off
Heat exchanger for electric box
M.P.G
leveling bolts and pads
Power transformer
Manuals, quality check report and warranty note

Mitsubishi M80/M720/M730 controller
12000/15000 r.p.m. spindle (BT, CAT, DIN)
Fanuc 0i-MF controller
Siemens 828D/840D controller
4th/5th axes CNC rotary or indexing table
Chip conveyor with basket
Coolant through spindle
Tool measurement system
Workpiece measurment system
Oil skimmer
Spindle chillier
3 axes linear scales

Model	VMC-500L
Travel:
X axis travel	500 mm
Y axis travel	400 mm
Z axis travel	500 mm
Spindle nose to table	125~625 mm
Spindle center to column front	500 mm
Work Table:
Work table size	600*400 mm
Max. table loading	400 kg
T-slot pitch / width / no	100 x 18 mm x 3T
Feedrate:
X / Y / Z rapid feedrate	36 / 36 / 30 m/min
Cutting speed	10 / 10 / 10 m/min
Headstock:
Spindle motor cont. / 30min	7.5 / 11 kw
Spindle taper	BT 40
Spindle speed	10,000 rpm (opt: 1,2000 / 15,000)
ATC:
Tool no & type	20 Arm
Max. tool diameter x length	Ø75 x 250 mm
Max. tool weight	7 kg
General information:
Air pressure	6 kg / cm²
Coolant tank capacity	150 L
Machine weight	3400 kg
Gross weight	3700 kg
Floor space (L x W x H)	175230198 cm
Packing size (L x W x H)	285228255 cm
Positioning	0.005 mm / 300 mm
Repeatability	+/- 0.003 mm

Manuals, quality check report and warranty note
* The above specifications subject to change without prior notice.
