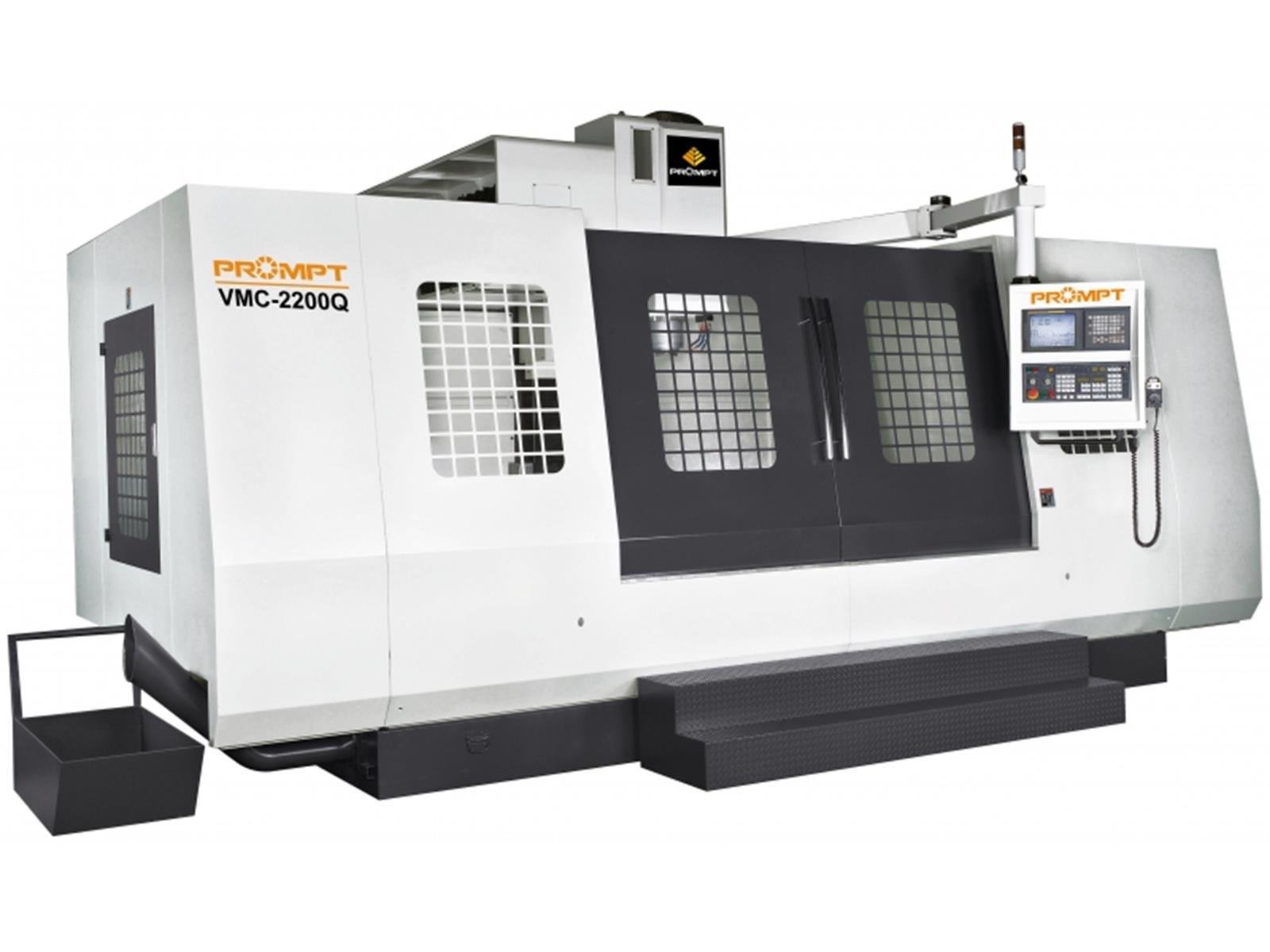

Prompt VMC-2200Q Vertical Machining Center

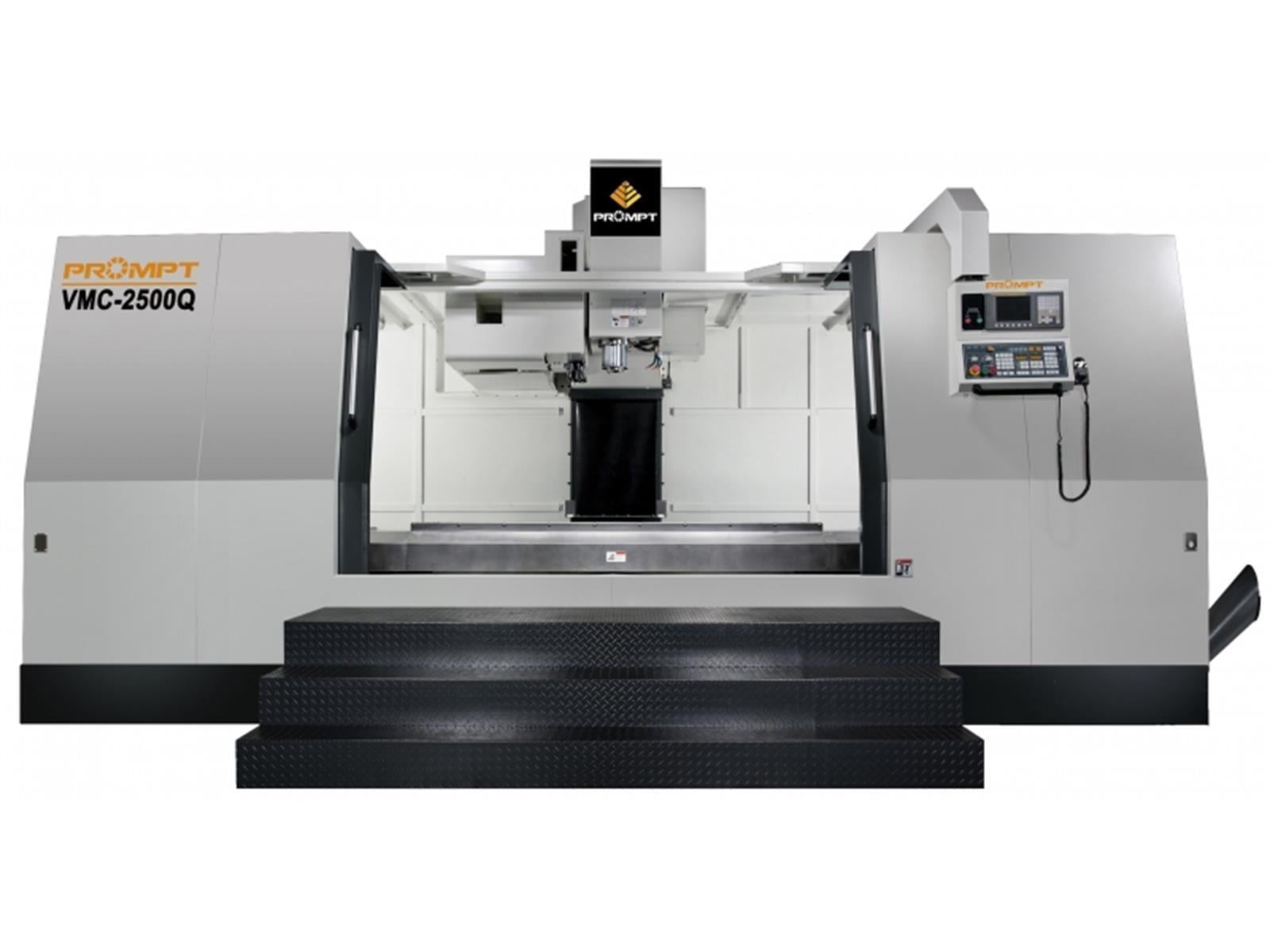

Prompt VMC-2500Q Vertical Machining Center (VMC-2500Q)

Brand : Prompt

Stock Amount : 0

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InChina

Min. Order Qty.1 Pcs.

Warranty1 Year

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Machining Centers

Vertical Machining Centers

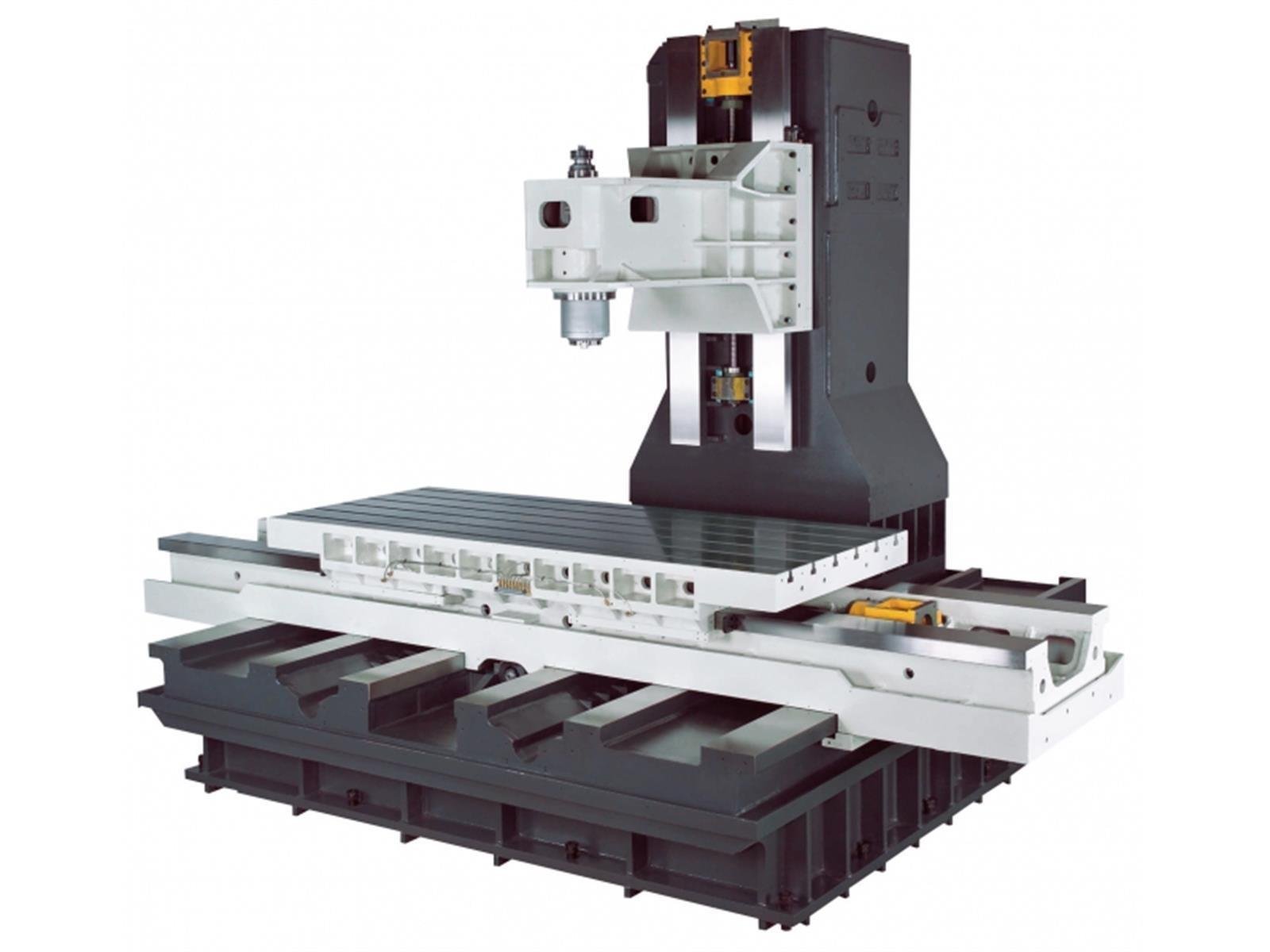

X/Y/Z: BOX WAY
DESIGNED FOR SUPER HEAVY-DUTY CUTTING

Features:
High precision and rigidity spindle
Top quality gears
Optical linear scale
4th and 5th axes rotary table
Circular inspection
Inspection by laser unit
Spindle dynamic balancing testing

Mitsubishi M70-2A controller
Coolant system
Auto lubrication system
Working & warning lamps
Spindle air blast (M code)
Toolbox and tools
Fully enclosed splash guard
RS-232 interface
Rigid tapping
Auto power off
Heat exchanger for electric box
M.P.G
leveling bolts and pads
Power transformer

Mitsubishi M80/M720/M730 controller
12000/15000 rpm spindle (BT, CAT, DIN)
Fanuc 0i-MF controller
Siemens 828D/840D controller
4th/5th axes CNC rotary or indexing table
Chip conveyor with basket
Coolant through spindle
Tool measurement system
Workpiece measurment system
Oil skimmer
Spindle chillier
3 axes linear scales

Model	VMC-2500Q
Travel:
X axis travel	2500 mm
Y axis travel	1100 mm
Z axis travel	900 mm
Spindle nose to table	250~1150 mm
Spindle center to column front	1050 mm
Work Table :
Work table size	2700*1000 mm
Max. table loading	3500 kg
T-slot pitch / width / no.	160 x 22 mm x 6T
Feedrate :
X / Y / Z rapid feedrate	12 / 10 / 10 m/min
Cutting speed	5 / 5 / 5 m/min
Headstock
Spindle motor cont. / 30min	18.5 / 22 kw
Spindle taper	BT50
Spindle speed	6000 rpm
ATC
Tool no & type	24 / 30 Arm
Max. tool diameter x length	Ø127 x 300 mm
Max. tool weight	15 kg
General information:
Air pressure	7 kg / c㎡
Coolant tank capacity	560L
Machine weight	26500 kg
Gross weight	28500 kg
Floor space (L x W x H)	660507393 cm
Packing size (L x W x H)	600228250 + 550228245 + 320339126 + 300260287 + 300230287 cm
Positioning	0.005 mm/ 300 mm
Repeatability	+/-0.003mm

Manuals, quality check report and warranty note
* The above specifications subject to change without prior notice.
