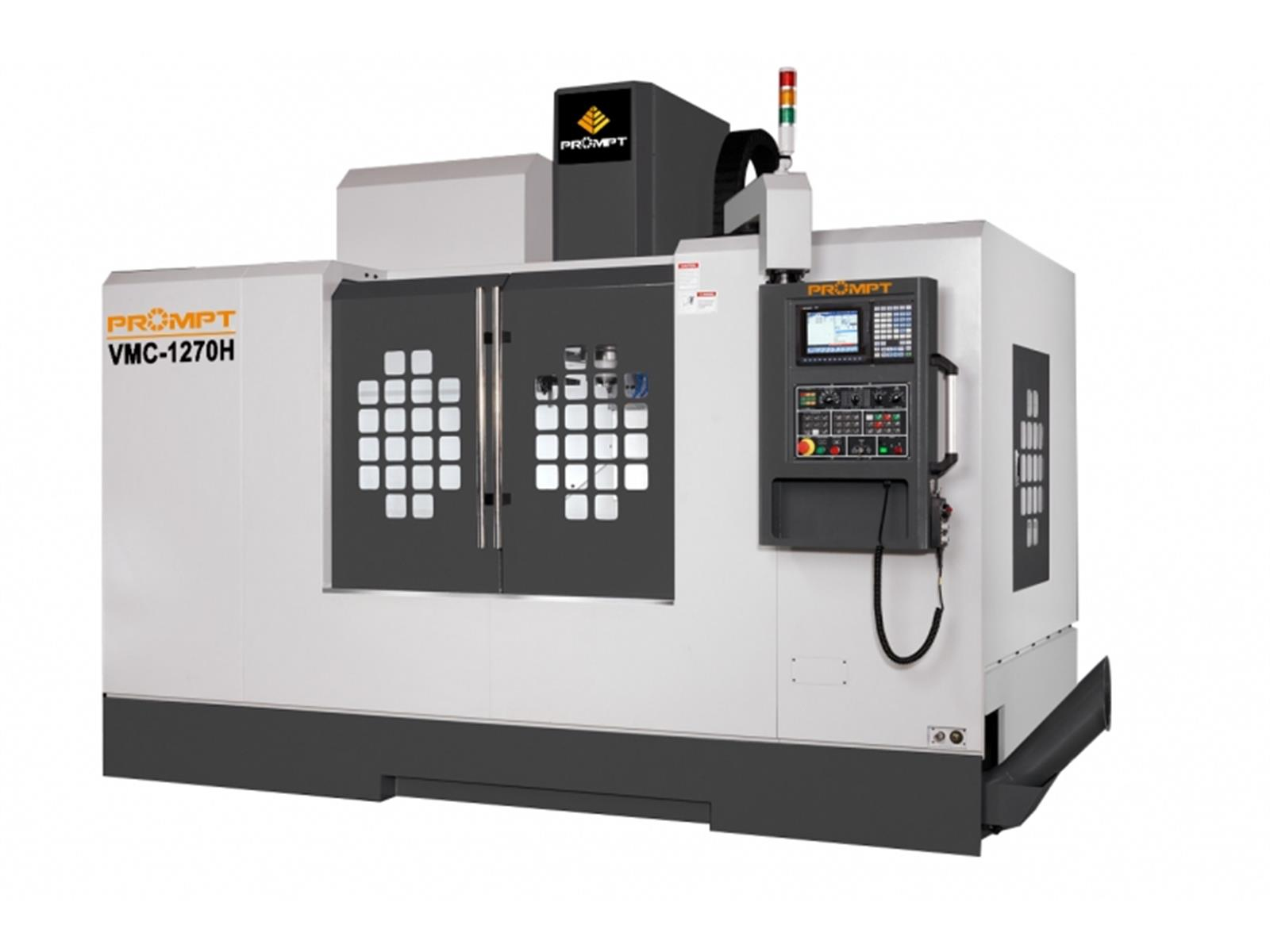

Prompt VMC-1270H Vertical Machining Center (VMC-1270H)

Brand : Prompt

Stock Amount : 0

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InChina

Min. Order Qty.1 Pcs.

Warranty1 Year

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Machining Centers

Vertical Machining Centers

X/Y/Z: BOX WAY
DESIGNED FOR ECONOMIC EFFICIENCY MACHINING

Features:
High precision and rigidity spindle
Top quality gears
Optical linear scale
4th and 5th axes rotary table
Circular inspection
Inspection by laser unit
Spindle dynamic balancing testing

Mitsubishi M70-2A controller
Coolant system
Auto lubrication system
Working & warning lamps
Spindle air blast (M code)
Toolbox and tools
Fully enclosed splash guard
RS-232 interface
Rigid tapping
Auto power off
Heat exchanger for electric box
M.P.G
leveling bolts and pads
Power transformer

4th/5th axes CNC rotary or indexing table
Chip conveyor with basket
Coolant through spindle
Tool measurement system
Workpiece measurment system
Oil skimmer
Spindle chillier
3 axes linear scales

Model	VMC-1270H
Travel:
X axis travel	1200 mm
Y axis travel	700 mm
Z axis travel	700 mm
Spindle nose to table	150~850 mm
Spindle center to column front	760 mm
Work Table :
Work table size	1400*700 mm
Max. table loading	1200 kg
T-slot pitch / width / no	125 x 18 mm x 5T
Feedrate :
X / Y / Z rapid feedrate	20 / 20 / 15 m/min
Cutting speed	10 / 10 / 10 m/min
Headstock :
Spindle motor cont. / 30min	11 / 15 kw
Spindle taper	BT40 / BT50
Spindle speed	10,000/6,000 rpm (opt: 1,2000/15,000)
ATC :
Tool no & type	24 / 30 Arm
Max. tool diameter x length	Ø80 x 300 mm / Ø100 x 300 mm
Max. tool weight	7 / 15 kg
General information:
Air pressure	6 kg / c㎡
Coolant tank capacity	450L
Machine weight	10400 kg
Gross weight	11000 kg
Floor space (L x W x H)	340248280cm
Packing size (L x W x H)	385310315cm
Positioning	0.005 mm/ 300 mm
Repeatability	+/-0.003mm

Manuals, quality check report and warranty note
* The above specifications subject to change without prior notice.
