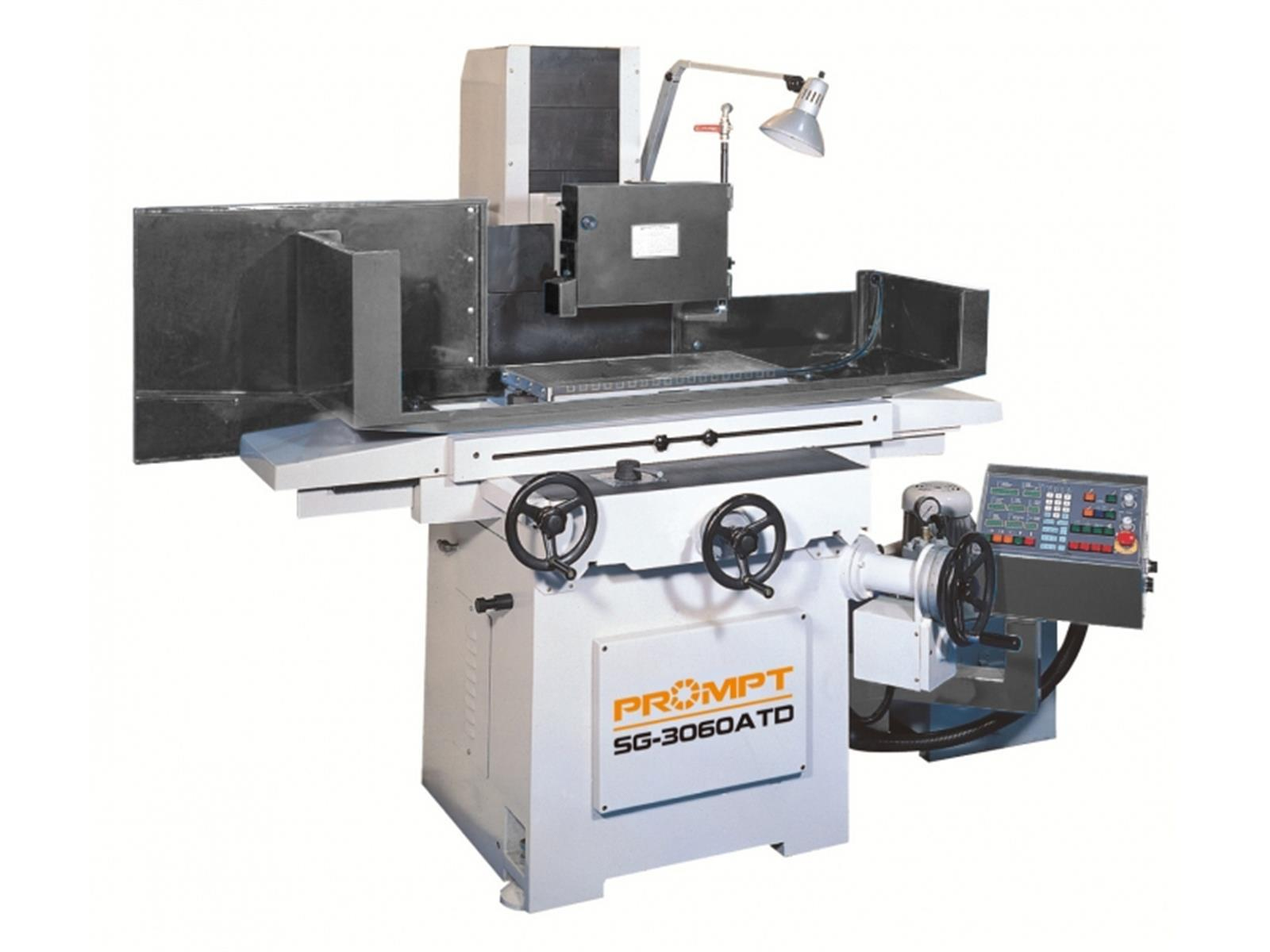

Prompt SG-L3060AH Surface Grinders (SG-L3060AH)

The quality-proven surface grinders designed with accuracy and productivity in mind.

Features:
Computerized automatic downfeed (option).
NC dressing control panel (option).
Optimized structure
Guideway steel balls
Turcite-B on slideways
Precision spindle design
Auto downfeed control
Double wall construction


Grinding wheel
Wheel flange
Flange extractor
Wheel balancing arbor
Wheel balancing base
Wheel dresser with diamond
Leveling screw and plates
Tool box and tools
Working lamp (SG-50.60.70 not included)
Coolant system (SG-50.60.70 only)


Cross/Vertical Micro Feed (for saddle type only)
Wheel Flange
Electro/Permanent Magnetic Chuck
Demagnetizer (110V/220V) for workpiece
Automatic Demagnetizer for Magnetic Chuck
Parallel Dresser(manual)
NC Auto Parallel Dressing &Compansating Device
Coolant System (1/8 HP)
(Dust) Suction System (1/2HP)
(Dust) Suction with Coolant System
Magnetic Separatior with Coolant
Automatic Paper Strip Filter Coolant
Automatic Paper Strip Filter with Magnetic Separator with Coolant System
Rapid Up/Down system
Automatic Down Feed System
Automatic Crossing Stroke Adjustment by Control Panel Switch
Back Water Splash Shield
Semi enclosed Splash Shield
Enclosed splash shield
Auto.Balancing Device
Angles Forming
Radius Forming
Tool makers vise
Sine Bar
Punch Former


Model	SG-L3060AH
Table size (mm)	300*600 (12"*24")
Max. grinding surface (mm)	300*600 (12"*24")
Max. distance center of spindle to table	500mm (20") {Option: 600 mm (24")}
Table speed	5~25 M/min (200"~1000"/min)
Table guideway	V & Flat way
Auto. Cross feed increment approx.	0.5mm ~ 20mm (0.02"~0.8")
Rapid power cross feed (mm/min) approx.	1100 mm/min (44"/min) (60Hz) 900 mm/min (36"/min) (50Hz)
Cross feed (1 rev) on havd wheel (1 gra)	5 mm (0.2") 0.02 mm (0.001")
Rapid power head elevation (60Hz) approx (Option) / (50Hz)	550 mm/min (13"/min) (60Hz) 450 mm/min (11"/min) (50Hz)
Vertical feed (1 rev) on havd wheel (1 gra)	2 mm (0.5") 0.01 mm (0.0002")
Vertical feed (1 rev) with M.P.G (1 gra)	X
Auto. Down feed (Option)	0.001mm~0.999mm/Time (0.0001"~0.0999"/Time) (Option)
Wheel speed (60Hz/ 50Hz)	S:3500 R.P.M (60Hz) / 2900 R.P.M (50Hz) L:1700 R.P.M (60Hz) / 1450 R.P.M (50Hz)
Wheel dimension	S:180*13*31.75mm (7"*0.5"*1.25") L:355*38*127mm (14"*1.5"*5")
Spindle motor	2HP (S type) / 5HP (L type)
Hydraulic pump motor	1HP
Auto. Cross feed motor	1/5HP
Rapid head elevation motor	1/5HP (Option)
Machine net weight (kgs)	1700 (3740Lbs)
Packing gross weight (kgs)	1950 (4290Lbs)
Machine floor space (mm)	2650*1550 (104"*61")
Packing dimensions / L x W x H (cm)	228*178*210 (90"*71"*83")

With AD5 ATTO. DOWN feed, Vertical feed on hand wheel is 2mm(0.05")/rev. 0.005mm(0.0001")/gra
M: M series are 3 axes by manual.
H: H series are longitudinal by hydraulic and cross feed / vertical axes are manual.
AH: AH Series are auto. Cross feed, longitudinal by hydraulic and vertical axis is manual
AHR: AHR Series are auto. Cross feed, longitudinal by hydraulic and vertical axis travel is by AC servo motor.
The manufacturer reserves the right to modify the design and mechanism specifications, etc. without prior notice.
Above the 5010AHR Series are equipped with auto. Cross feed, longitudinal by hydraulic, vertical axis drvien by Ac servomotor and operated by MPG. The AD5, (designed by PROMPT) can be added to become 3 axes fully automated thereby making operation more convenient.
