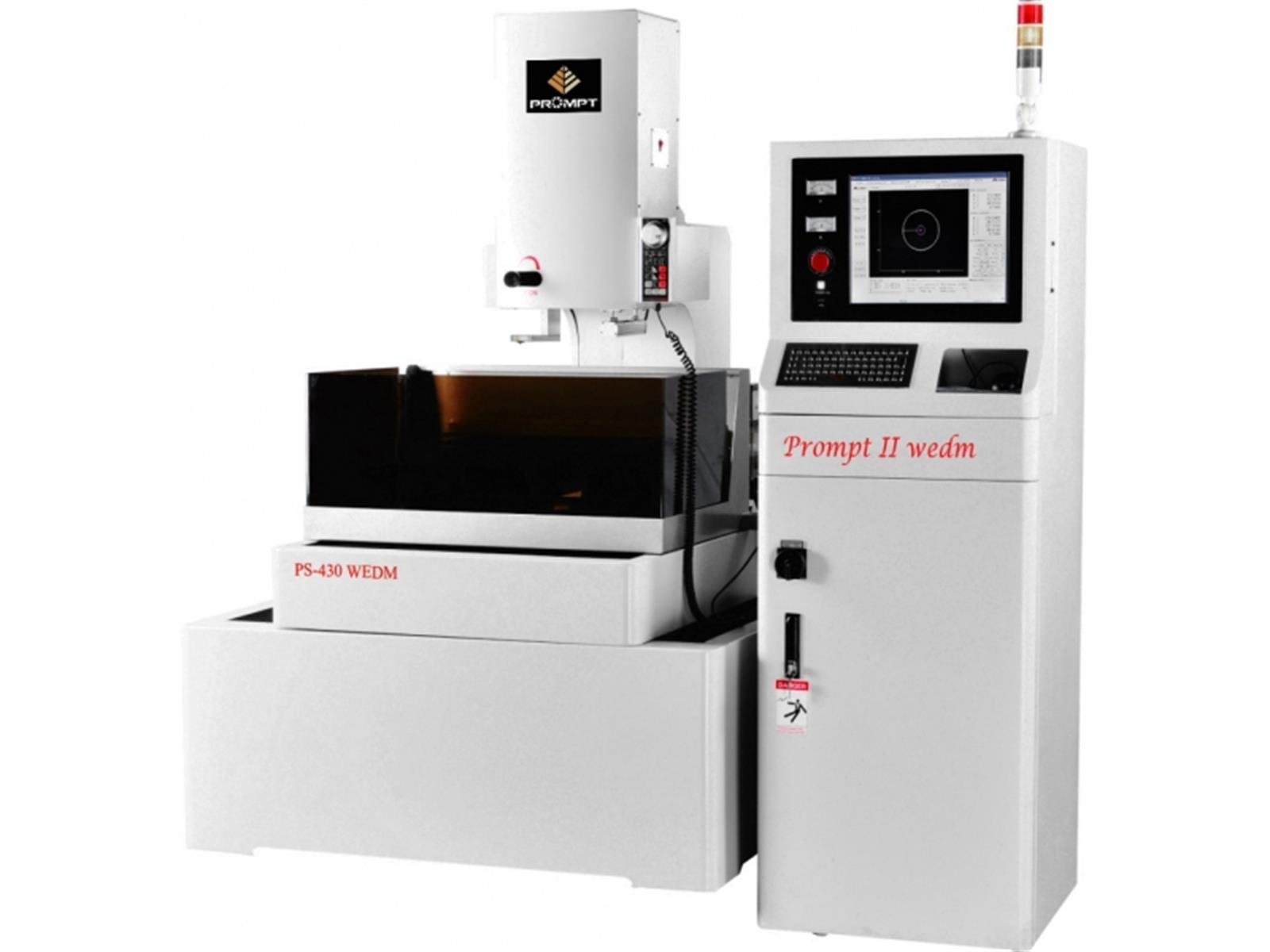

Prompt PS-430 Molybdenum Wire Cut Edm (PS-430)

Descriptions
Main Parts of Generator:
LCD with Touch Screen
XP Embedded Windows 5 Axis Controller
Electronic Handwheel Portable Control Box
XY Axis AC Servo Motor Driver
UVZ Axis Hybrid Motor Driver
Wired Network Function
Warning Light

Main Parts of the Machine:
XY Axis Linear Guideway and Precision Ball Screw
UV Axis Linear Guideway and Precision Screw
The Wire Storage Drum with Linear Guideway and the Precision Screw
Tension Wire Feeder
XY Axis and Wire Storage Drum with Automatic Injector
Two-way Gravity Tight Wire Device
Upper and Lower Front Double Guide Wheel
Diamond Semi-guide Wheel
0.195mm Diamond Guider

Main Parts of the Fluid Tank:
Two-way Flow Device
Filter

LED working lamp *1pcs
Toolbox and workpiece fixture *1set
Tensioning wheel *1pcs
Disassembly guide wheel tool *1pcs
Manual grease gun *1pcs
Molybdenum wire vertical correction device *1pcs
Molybdenum wire 0.18 mm *1roll
Emulsifying fluid *1barrel
Diamond semi-guide wheel and bearing *2sets
Operation manual *1pcs


Wireless USE network function
AC servo with closed loop system
Granite blocks for bridge frame
Work tank metal sheet unit
XY axis 1 ㎛ linear scale and display counter
Taper option: ±15°/80mm or ±30°/80mm

Model	PS-430
Work Table Dimension	495 X 595 mm
Machine Travel	320 X 400 mm
Workpiece Thickness	240 mm
Cutting Taper	±3°/80 mm
Work Table Loading	300 kg
Machine Dimension	1160 X 1520 X 2050 mm
Machine Weight	1700 kg
Cutting Current	8 A
Rate Power	4.5 KVA
Voltage	220/380/415 V
Cutting Speed	140 mm²/min
Workpiece Accuracy	12*35 mm (Octagonal)
Fine Roughness Ra	1.0 ㎛
Molybdenum Range	0.18-0.20 mm
Length of Storage Drum	210 mm
Generator Dimension	600 X 650 X 1850 mm
Generator Weight	230 kg
Work Tank Dimension	800 X 530 X 350 mm
Fluid Tank Dimension	600 X 1000 X 1020 mm
Fluid Tank Capacity	150 L
