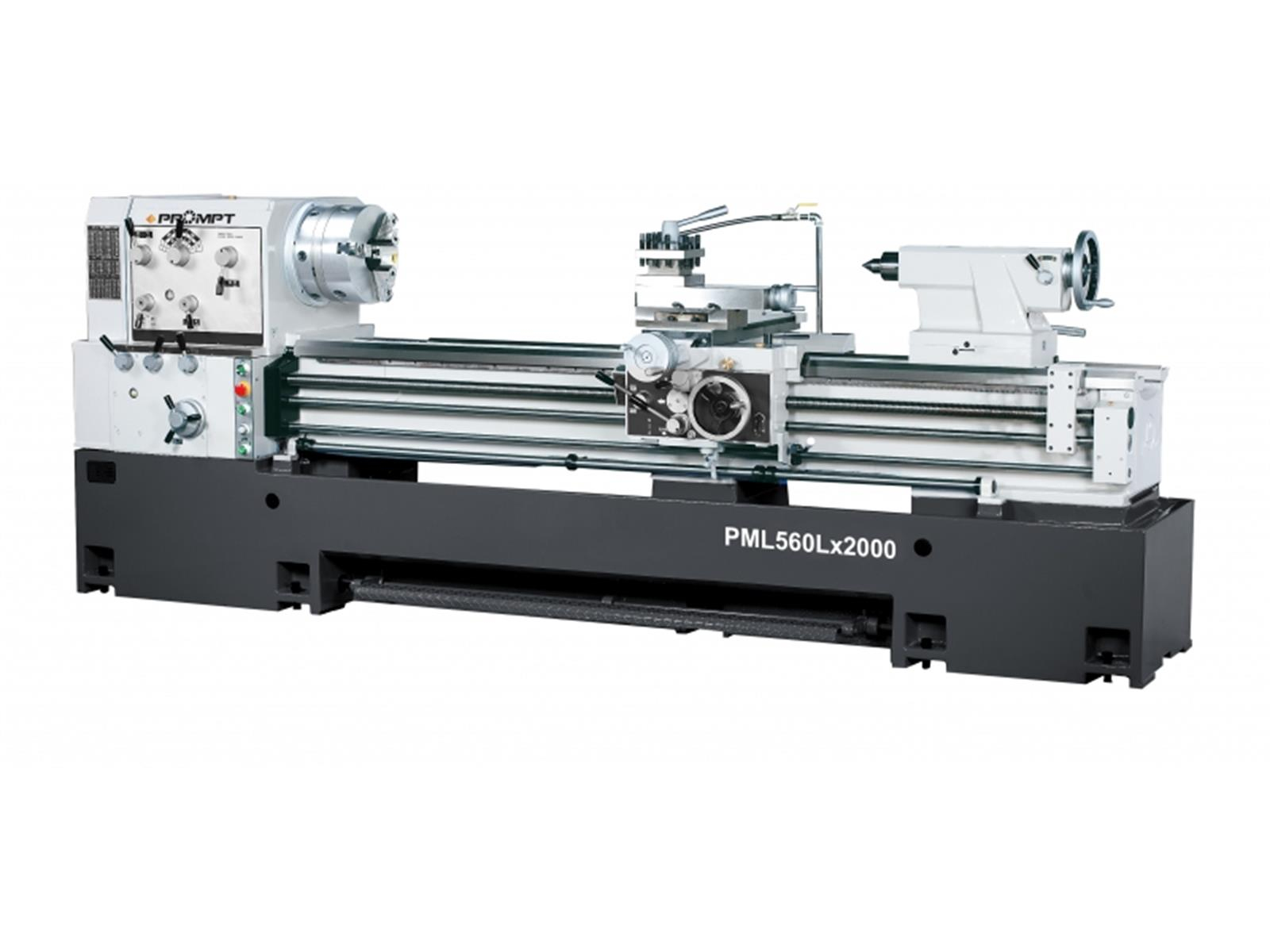

| Specifications |
2240.2260.2280.22100.22120.22160 |
| Swing Over Bed |
560 mm (22") |
| Swing Over Cross Slide |
340 mm (13-1/3") |
| Center Hight |
280 mm (11") |
| Center Distance (mm) |
1000.1500.2000.2500.3300.4300 (40".60".80".100".132".172") |
| Swing Over Gap |
788 mm (31") |
| Bed Width |
400 mm (15-3/4") |
| Spindle Nose |
ASA D1-8 / D1-11 (Opt.) |
| Spindle Bore |
85 mm (3-1/3") / 120 mm (4-1/2") (Opt.) |
| Taper of Spindle Bore |
MT #7 |
| Spindle speed |
15~1500 rpm (12 steps)-spindle bore:85mm /
10~1000 rpm (12 steps)-spindle bore:120mm |
| Inch Threads Range |
2~56 TPI |
| Metric Threads Range |
P0.5-14 |
| Longitudinal Feeds Range |
0.05~0.82 mm (0.002~0.032") |
| Cross Feeds Range |
0.02~0.4 mm (0.001~0.0094") |
| Leadscrew Diameter |
38 mm (1-1/2") |
| Leadscrew Pitch |
4 TPI or 6 mm |
| Taper of Tail Center |
MT 5 |
| Tail Spindle Travel |
165 mm (6-1/2") |
| Tail Spindle Diameter |
85 mm (3-1/3") |
| Main Drive Motor |
10HP (7.5KW) /
15HP / 6P (11KW. Opt.) |
| Coolant Pump |
1/8HP (0.1KW) |
| Compound Rest Travel |
200 mm (8") |
| Cross Slide Travel |
375 mm (14-3/4") |
| Machine Dimension (cm) |
L: 238.290.347.398.473.555
W: 103
H: 126 |
| Packing Dimension (cm) |
L: 270.315.361.410.485.588
W: 115
H: 196 |
| Net Weight (kgs) |
2200/2550/2900/3150/3650/4860 |
| Gross Weight (kgs) |
2300/2650/3050/3300/3800/5060 |
