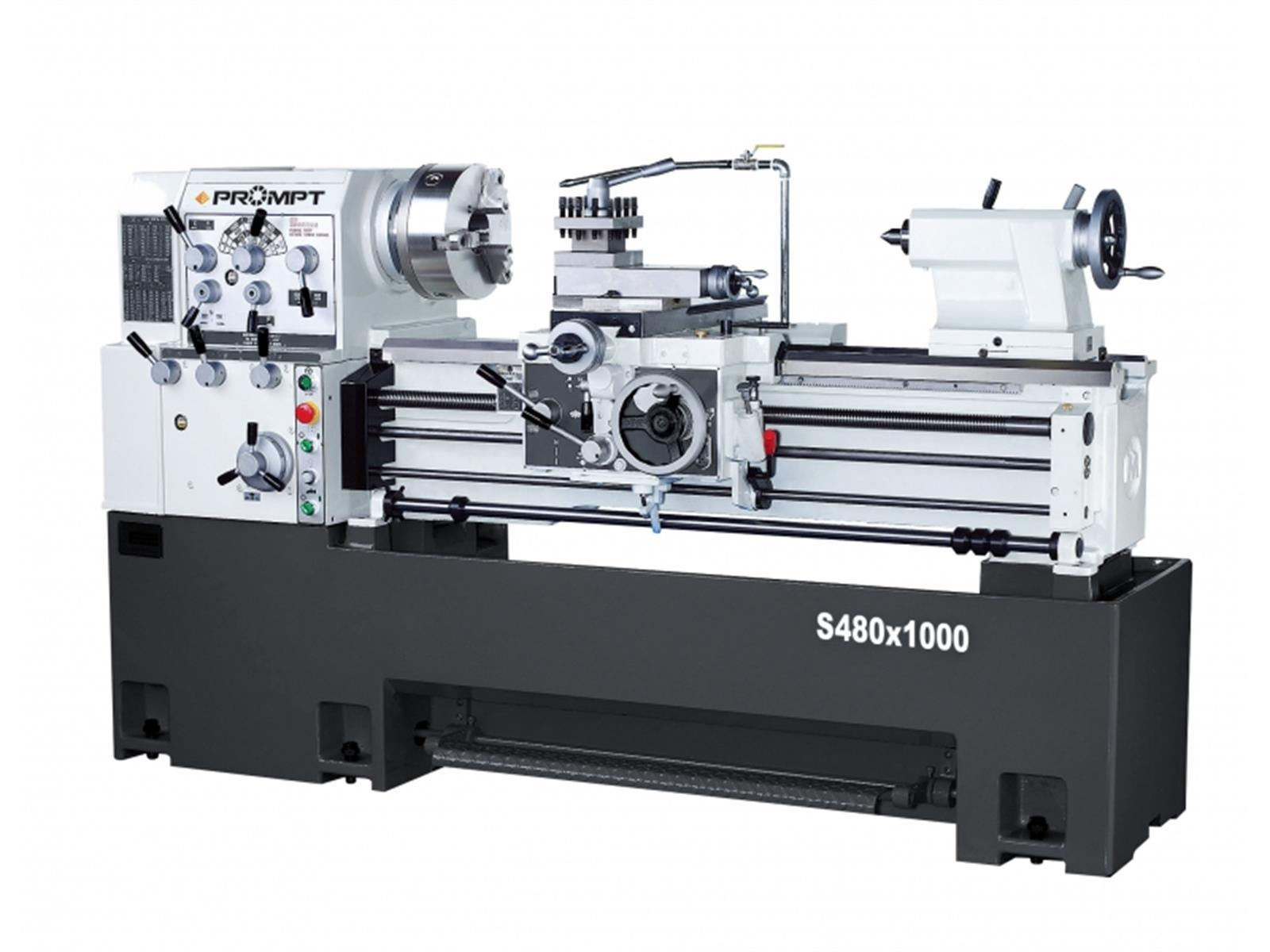

Prompt PML 470S Series Conventional Lathe (PML 470S Series)

Features:
Selective bed width: S series: 300mm / M series: 350mm
Varied spindle bore diameters: S series: Ø58mm / Ø80mm (Option) & M series: Ø85mm / Ø105mm (Option)
Thermal treated and precision ground alloy gears
Universal gearbox for both imperial and metric thread-conversion table also attached
Tracks of cross slide and bed are well lubricated with lubrication pump (manual)
Overload device to ensure safety when operating
Thermal treated Meehanite bed casting
Wear-resistant phosphor bronze lead screw nuts
One piece base for high rigidity and low vibration
High-capacity coolant tank offers sufficient coolant output
All series certified for CE


Tool Box 1pc
Centers 2pcs
Safety pin 1pc
Screw wrench for cutter setting 1pc
Back plate 1pc
Coolant system 1set
4-way tool post 1set
Auto-feed stopper ring  1set
Center sleeve 1pc
Levelling pads 1set

3-jaw scroll chuck
4-jaw independent chuck
Face plate
Steady rest
Follow rest
Work light
4-position carriage stop
Micro carriage stop
Live centers
Rear cutter rest
Taper turning attachment
Rear splash guard
Rapid traverse (L series)
Chuck guard
American tool post (S series)
Change gear for D. P and
module thread
5C lever collet closer
Driving plate
Quick change tool post
Digital readout
Hydraulic copying machine
Chip guard
ID/OD grinder



Model	PML 470S Series
Specifications	1922.1930.1940.1960.1990
Swing Over Bed	470 mm (18-1/2")
Swing Over Cross Slide	280 mm (11")
Center Hight	235 mm (9-1/4")
Center Distance (mm)	560.760.100.015.002.000
	(22".30".40".60".90")
Swing Over Gap	690 mm  (27-1/8")
Bed Width	300 mm (11-4/5")
Spindle Nose	ASA D1-6 / D1-8 (Opt.)
Spindle Bore	58 mm (2-1/4") / 80 mm (3") (Opt.)
Taper of Spindle Bore	MT 6 / MT 7 (Opt.)
Spindle speed	20-2000 rpm (12 steps)-spindle bore:58mm / 40~2000 rpm (12 steps)-spindle bore:80mm
Inch Threads Range	4-56 TPI
Metric Threads Range	P0.5-P7
Longitudinal Feeds Range	0.05-0.82 mm (0.002-0.032")
Cross Feeds Range	0.02-0.4 mm (0.001-0.0094")
Leadscrew Diameter	35 mm (1-1/3")
Leadscrew Pitch	4 TPI or 6 mm
Taper of Tail Center	MT#4
Tail Spindle  Travel	150 mm (5-7/8")
Tail Spindle Diameter	68 mm (2-2/3")
Main Drive Motor	7.5HP (5.625KW) / 10HP (7.5KW. Opt.)
Coolant Pump	1/8HP (0.1KW)
Compound Rest Travel	125 mm (4-7/8")
Cross Slide Travel	250 mm (9-2/3")
Machine Dimension (cm)	L: 165.189.215.265.342
	W: 81
	H: 122
Packing Dimension (cm)	L: 182.200.228.279.355
	W: 95
	H: 168
Net Weight  (kgs)	1540/1720/1800/2075/2465
Gross Weight  (kgs)	1640/1820/1900/2225/2615

* The above specifications subject to change without prior notice.
