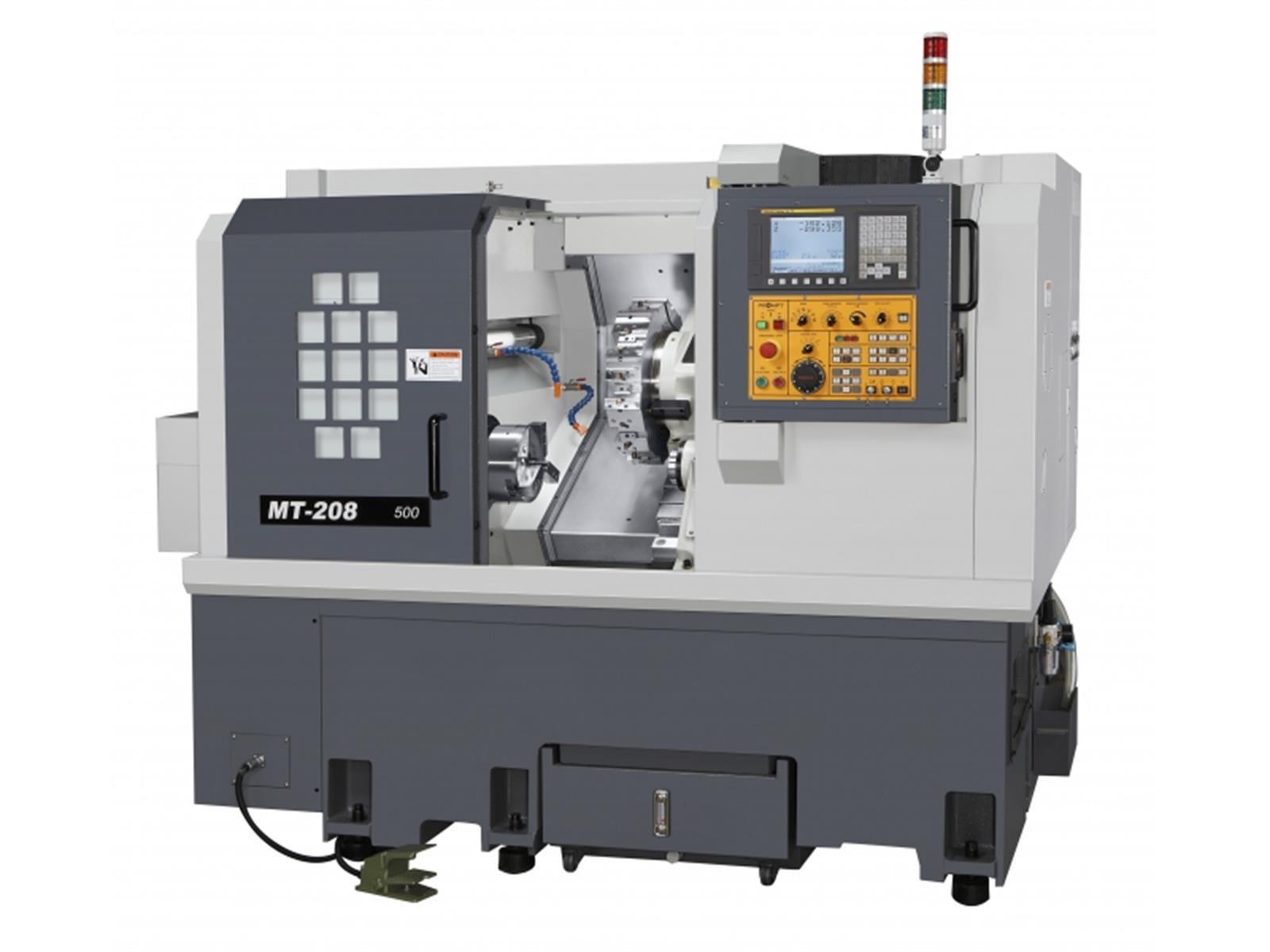

Prompt MT-208 CNC Lathe Slant Type (MT-208)

Features:
30 degree slant bed design for easy operation and easy chip removal
Cast iron bed with optimally designed ribs with integral stiffness provides an very strong rigidity
Big diameter bearing provides high rigidity
High-resolution encoder mounted on spindle to provide accurate C axis positioning
C axis with continuous indexing
Double supported ball screws direct-driven servo motors are used for axial movements
Servo turret or hydraulic turret is offered for users as an alternative choice
Large disc is equipped for easy tool set up
Special spindle motor location design reduces machine floor space
One-piece structure on the machine structure to provide massive rigidity
Programmable tailstock available as an option
Large coolant tank
Internal coolant supply through turret disc
High pressure pump
PLC controlled chip conveyor

3-jaw hydraulic chuck
Hydraulic system
Hydraulic tailstock
Live center
Coolant system
Morse taper sleeve
Auto lubrication system
Working light
Heat exchanger for electrical cabinet
Soft jaw
Foot switch for chuck clamp
MPG hand wheel
Operation & maintenance manuals
Tools and box
Levelling bolts and screws
OD tool holder
Facing tool holder
Boring bar holder & sleeves
Drill sleeves
FANUC controller

Bar feeder
Parts catcher
Tool setter
C-axis
VDI turret
VDI tool holders
Auto door
Chip conveyor
Chip bucket
Transformer
CE mark
Safety torque limit clutch
Hoisting hook package
Levelling kit
Bar feeder interface (LNS system)
Additional tool holders and sleeves
SIEMENS controller


MODEL	MT-208
Machine type	Linear (Box)
Machine body type	Slant
Swing over bed	545 mm
Standard turning dia	350 mm
Max. turning dia	350 mm
Max. turning length	470 / 720 mm
Bar capacity	52 mm
X-axis stroke	380 mm
Z-axis stroke	530 / 780 mm
Spindle speed	4000 rpm
Spindle nose	A2-6
Spindle thru-hole dia	65 mm
Spindle bearing inside dia	100 mm
Type of turret	12
Height of square tool	25 mm
Dia of boring bar holder	40 mm
3-jaw Chuck	8"
Stroke of tailstock	350 / 500 mm
Tail sleeve dia	85 mm
Taper of tailstock	MT#5
Tail sleeve stroke	100 mm
Rapid feed speed	X:20 / Z:24 m/min (opt.:30 for Linear)
Spindle motor	11 / 15 kW
Lubricating oil motor	1.5 kW
Cutting oil motor	0.55 kW
Servo turret motor	1.2 kW
Electric power	30 KVA
Hydraulic pressure	50 L
Lubricating oil	1.8 L
Cutting oil	160 L
Floor space (L x W)	2300 / 3100 x 1500 mm
Net weight	4350 / 4850 kg

* The above specifications subject to change without prior notice.
