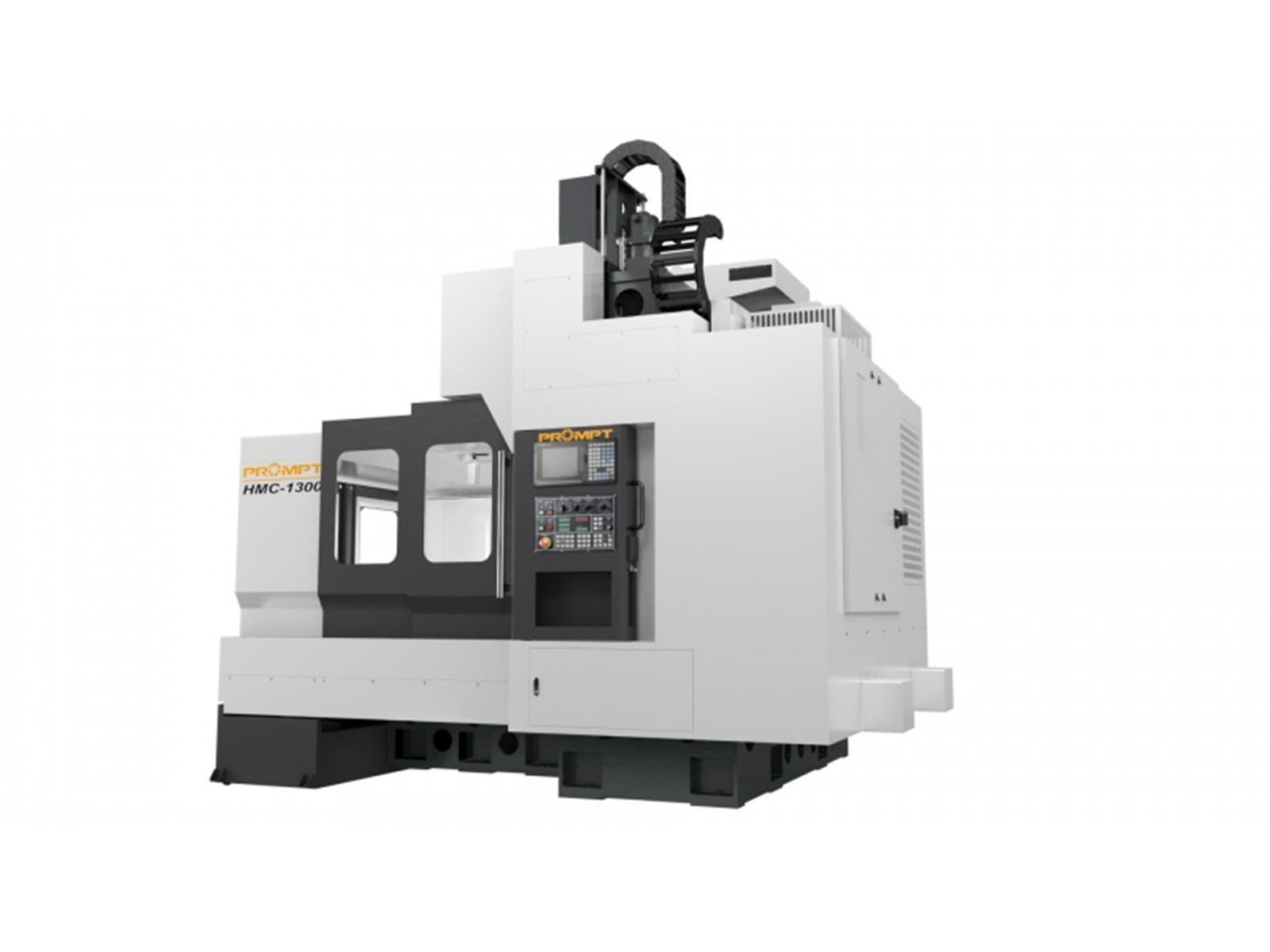

Prompt HMC-1300 Double Column Machining Center (HMC-1300)

Features:

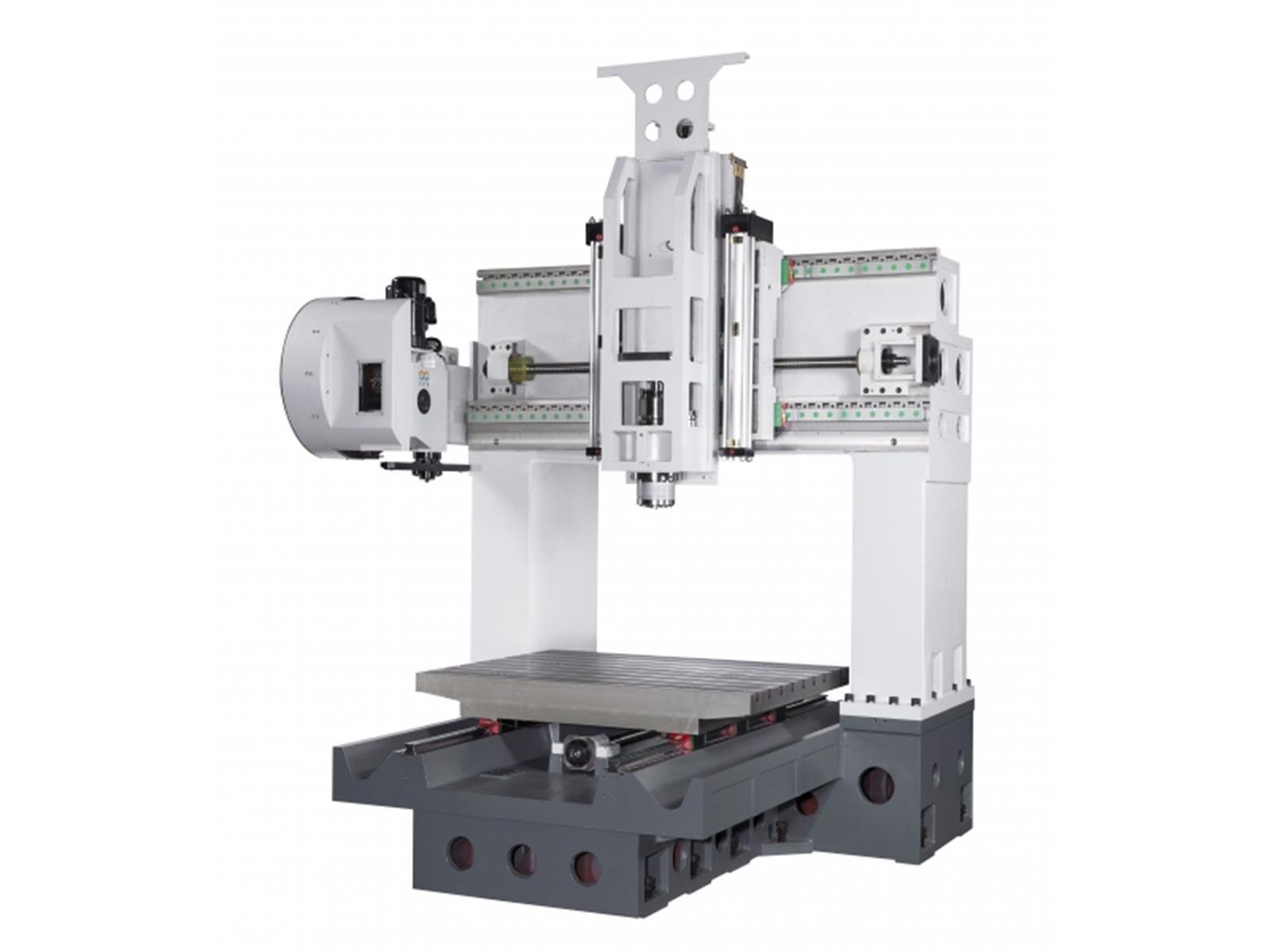

The main structure of base, column and beam adopts high-rigidity and high-precision Meehanite cast iron, and heat treatment to eliminate internal stress, to ensure the structural stability and long-term precision to maintain
The beam box structure design with the ladder-type track configuration, providing a wide combination of saddle span to ensure that the spindle strong and stable cutting capacity
Three-axis roller-type precision linear slide design, fast acceleration and deceleration, feed rate of up to 36 M/min, cutting feed rate of 12 M/min.
Precise pre-drawing design of three-axis screw can effectively restrain the thermal displacement caused by temperature rise and ensure the accuracy of positioning accuracy and repeatability
The six-carriage block of the spindle head is designed with the weighting design, the feed reaction is sensitive and fast and stable, in addition to ensuring the precision and service life of the long-time running, it can buffer the dive to reach the positioning point
High-precision, high-performance spindle can be selected according to different processing needs of direct-type or built-in spindle, speed range BBT40 (HSK-63) / 15,000 rpm ~ 20,000 rpm
Built-in automatic temperature compensation device, effectively reduce the temperature rise arising from thermal displacement, to ensure the accuracy of processing accuracy
Spindle cooling system to ensure that the spindle in operation, the temperature stability, effectively inhibit the spindle temperature rise, to achieve the best precision machining
Convenient operating box rotating design, user-friendly according to the desired angle, position operation
Wide door design, easy to work up and down the workpiece
The spiral chuck screw on both sides of the base can quickly remove the chips and reduce the chip residue
Oil and water separation design, cut water tank with oil and water separation device, can extend the cutting fluid service life
24-disc external disk-type automatic tool changer system, effectively reducing the machine area, to meet the various types of processing the use of different tools needs

Model			HMC-1300
Travel	X-Axis travel		1100/1300/1500 mm
	Y-Axis travel		1100 mm
	Z-Axis travel		750 mm
Linear guide way	X-Axis		RGW45
	Y-Axis		RGW55
	Z-Axis		RGW45
Ball screw	X-Axis		R50xP12
	Y-Axis		R50xP12
	Z-Axis		R50xP12
Table	Area		1150x1200  / 1150x1400 / 1150x1600 mm
	Max. Table Load		2000 kgs
	T-slot dia.		CD 125 x 18mm x 9T
Spindle	Spindle taper		BT40 / HSK63
	Spindle speed and driving method		15,000 rpm Direct Drive (20,000 rpm built-in)
Distance	Spindle nose to table surface		100-850 mm
	Spindle center nose to column		456 mm
Tool	Tool capacity		24
	Max. Length of tool		400 mm
	Max. Weight of tool		20 kgs
	Tool change time		2.5 sec
Feeding	Rapid feed speed		X:36, Y:36, Z:36 m/min
Controller	Mitsubushi controller		MITSUBISHI M80 OPT: (FANUC 0i-MF, SIEMENS 828D)
Motor	Spindle motor		15 HP
	Feed motor		X:3.5, Y:3.5, Z:3.5 KW
Comptessed air supply			6 kg/cm²
Size (Length x Width x Height)			350*395*345 / 370*395*345 / 390*395*345 cm
Net weight			11,550 / 13,050 / 14,550 kgs
Suitable container			HMC-1100 / HMC-1300: Split into 2 pallets for a 40'HQ or 20'FR instead HMC-1500: 20'FR
