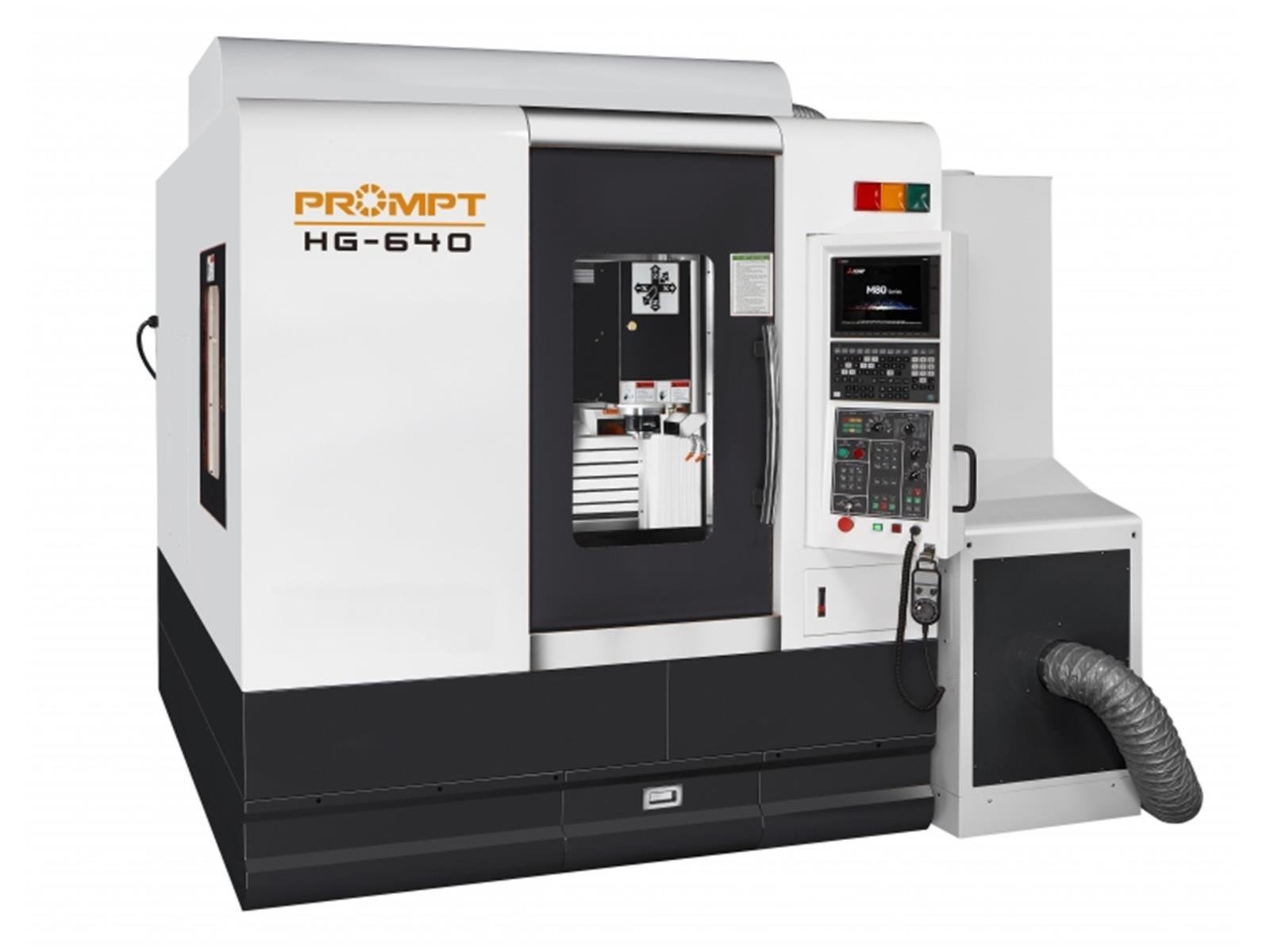

Prompt HG-640 Graphite Machining Center (HG-640)

Moving column structure, table fixed, can improve dust-proof function, work three tank cleaning dust function.

Features:
Dry cutting
Built-in 30,000 rpm high speed spindle
X,Y,Z axis rapid traverse 30,000 mm/min
Traveling column construction
Precision linear ways on X, Y, Z axis
Fixed table (standard)

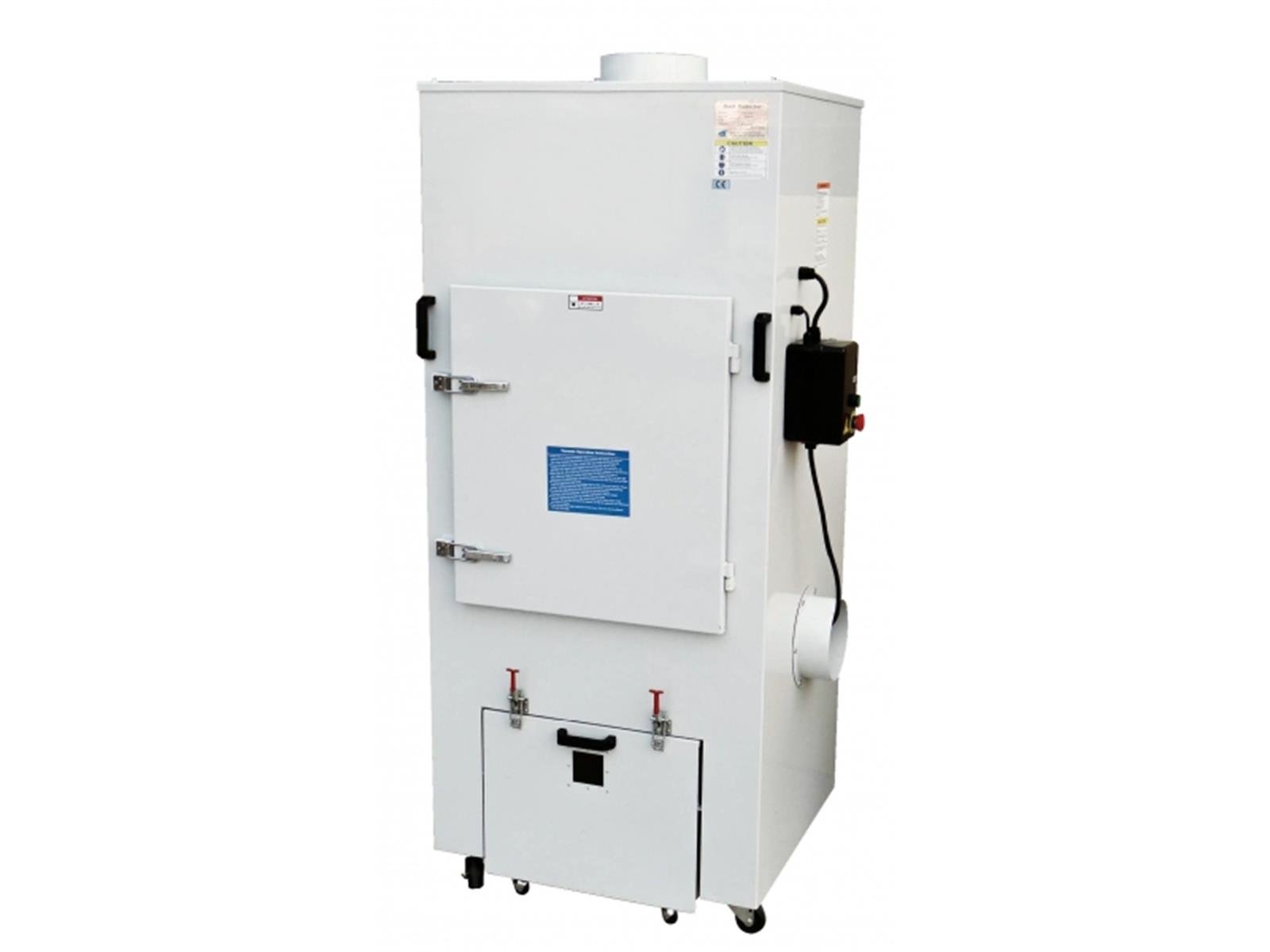

Dry type dust collector
Wet type dust flushing device
Controller: MITSUBISHI (standard) / FANUC (optional)
Fully enclosed splash guard

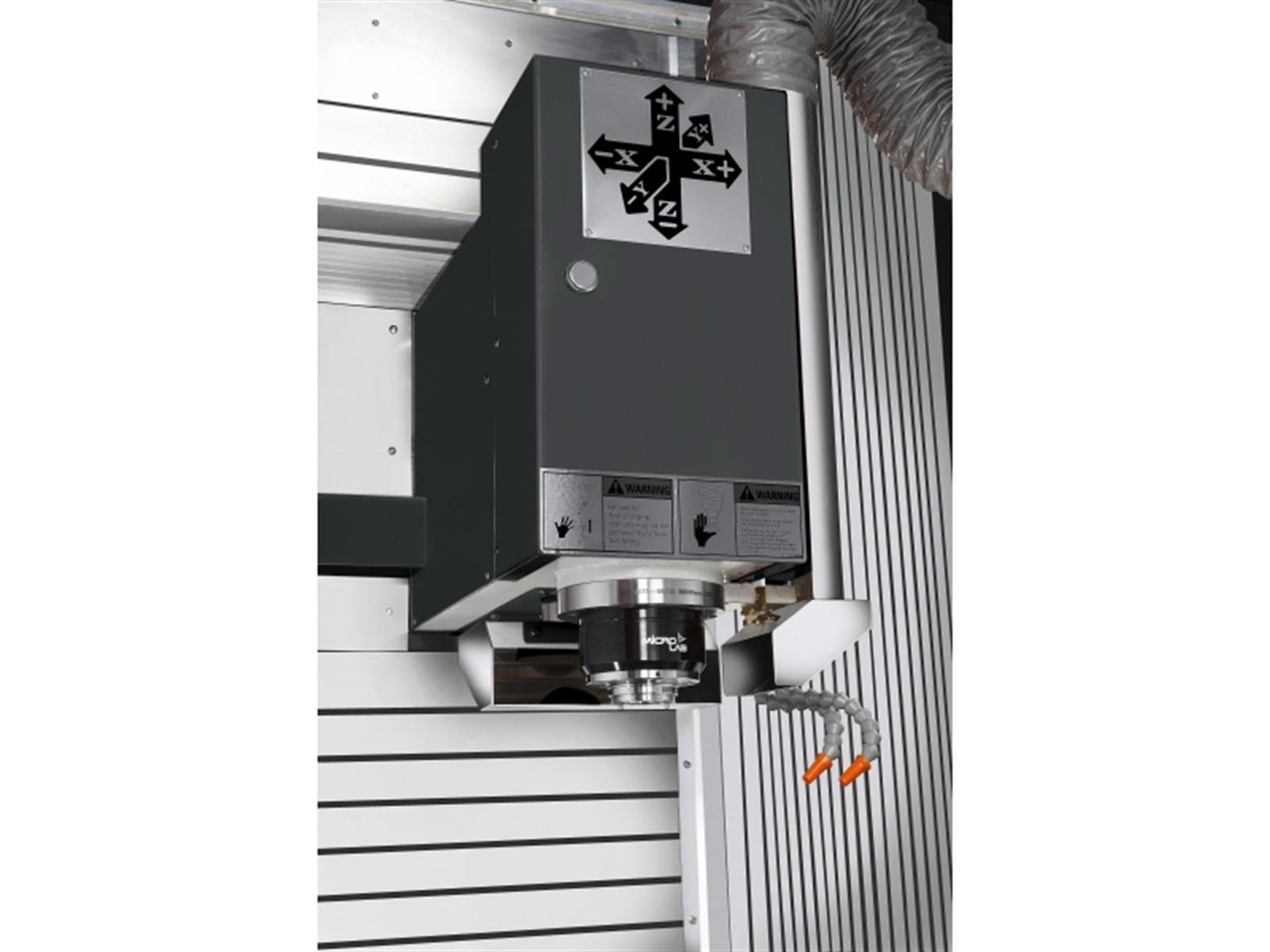

Spindle side with blowing and vacuum devices


Full splash gurad
Built -in spindle 30,000 rpm
Auto lubrication system
MITSUBISHI controller
Leveling bolts and blocks
Work lamp
3 color light
Tool box
Spindle oil cooler unit
Operation manual & electric drawing


Transformer
Built-in 2 axis rotary table
FANUC controller
Umbrella type ATC(10 tools)

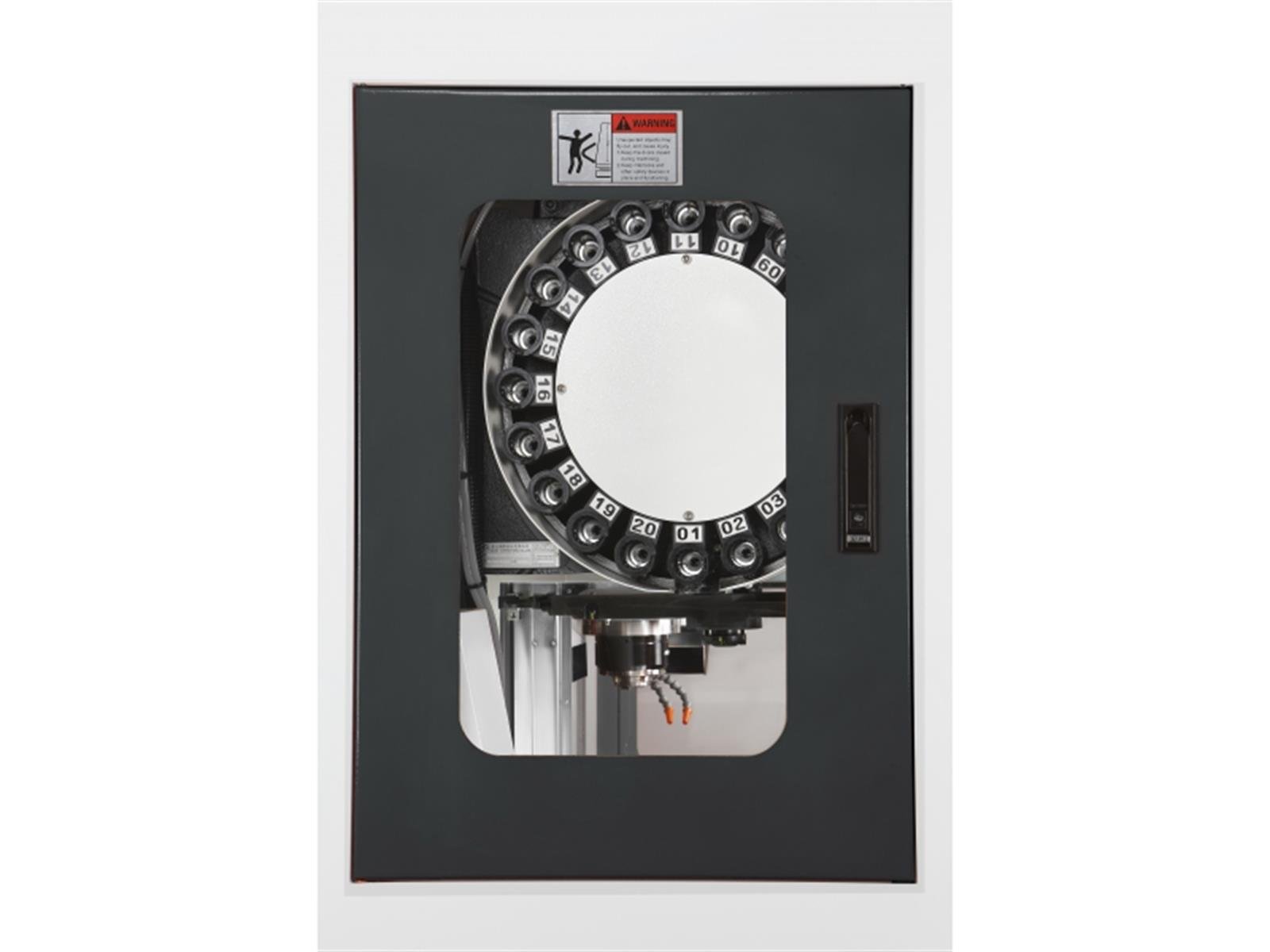

Arm type ATC (20 tools)
Tool length measurement system


Item	HG-640
TRAVEL
X axis	600 mm
Y axis	400 mm
Z axis	400 mm
Spindle nose to table	100-500 mm
FEED RATE
X,Y,Z axis rapid traverse	30,000 mm/min
Cutting feedrate	12,000 mm/min
TABLE
Table size	850*450 mm
Max. table loading	300 kg
Size of T-slots	14*4*80 mm
SPINDLE
Spindle taper	BBT30
Spindle speed	30,000 rpm
Transmission	Built-in
MOTOR
Spindle motor	8.2 kw
X,Y,Z axis motor	2 kw /2 kw / 2 kw
ATC
Tool no.	20
Max. tool weight	3 kg
Max.tool size (dia. x length)	Ø55 x 100 mm
tool shank	BBT30
GENERAL INFORMATION
Machine net weight	3500 kg
Floor space ( L x W x H)	2020 x 2200 x 2400 mm
Recommended container loading	20' container
