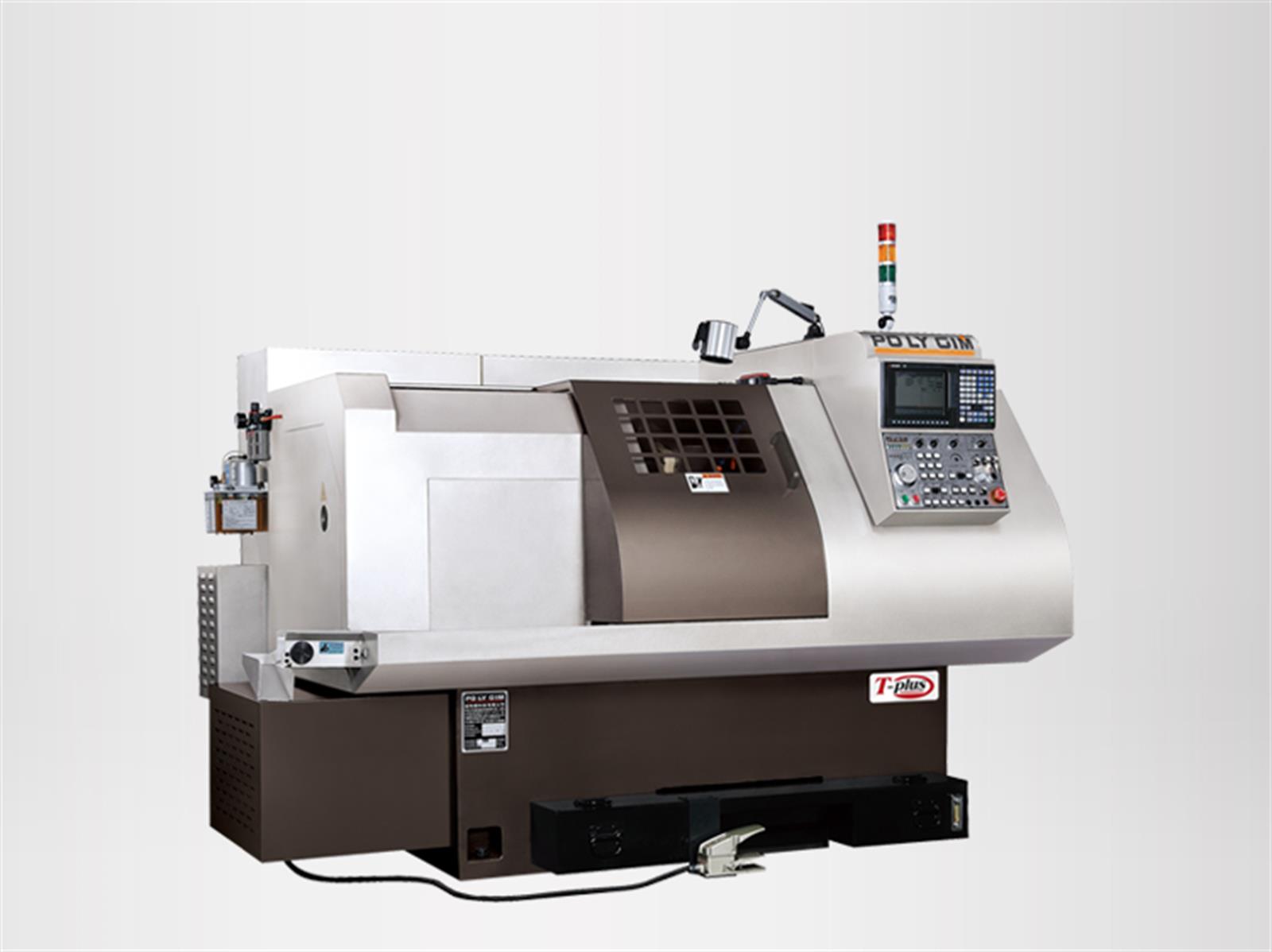

Polygim T-PLUS 42 CNC Lathe T-Plus Series (T-PLUS 42)

Machine Features of Dual Spindle CNC Lathe(Dual Spindle CNC turning lathe machine):
12-stations power turret.

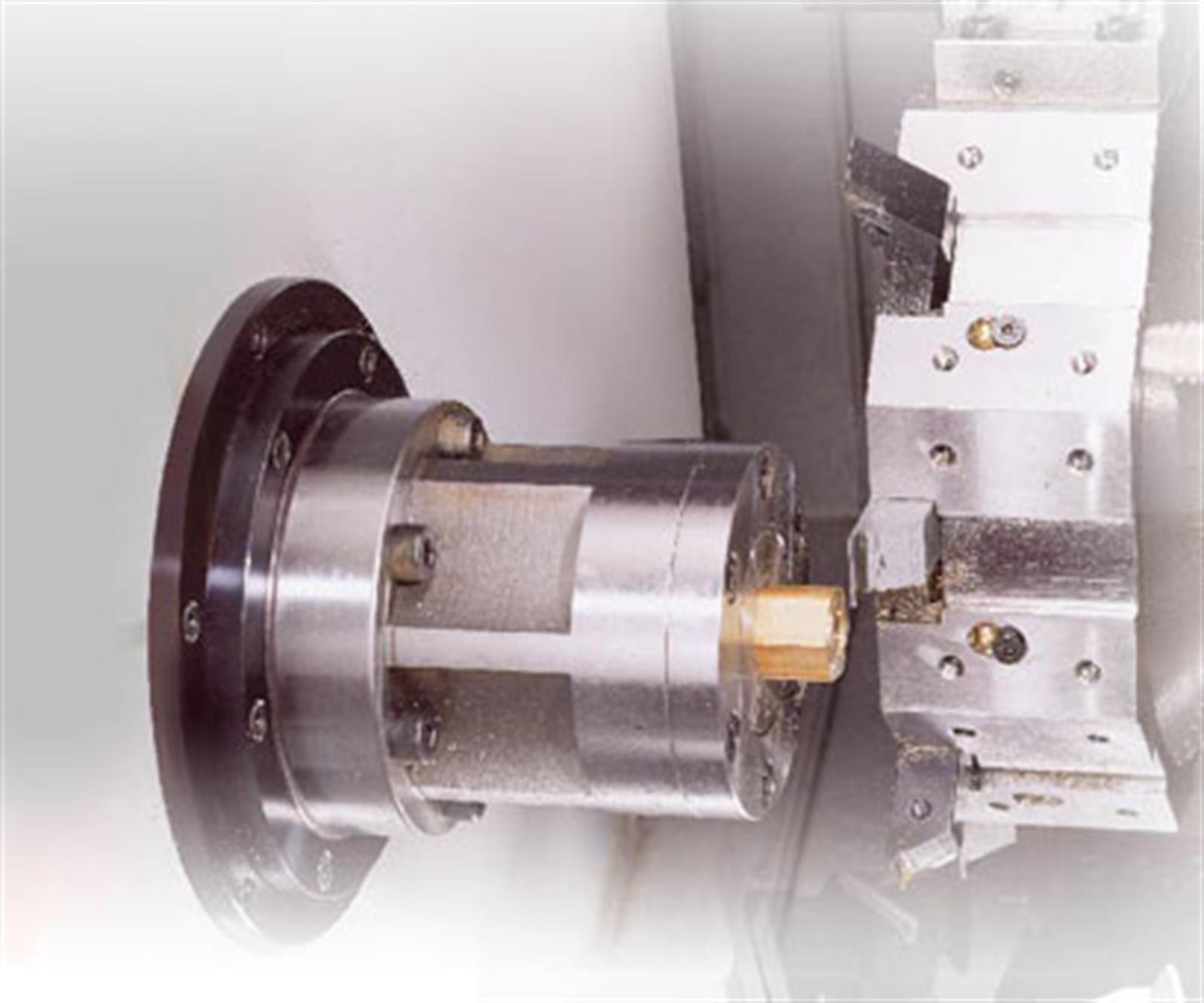

Single Turret
Servo Turret as standard accessory to increase turning efficiency.

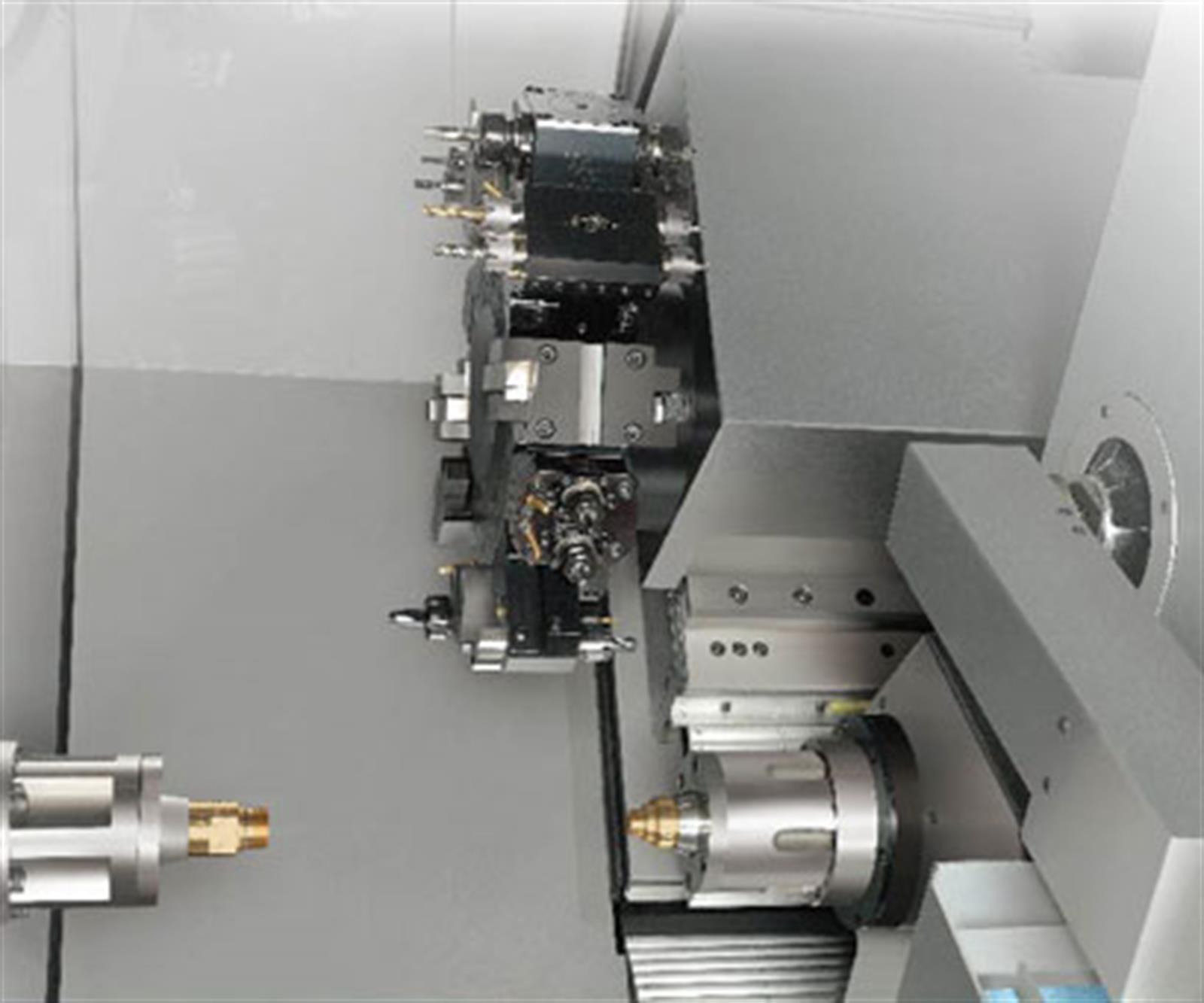

Double Spindle
Main spindle for front working, sub spindle for the back working, two spindle work simultaneausly.

Single Spindle
Controller/1 set Mitsubishi
Main spindle : 3 jaws hydraulic chuck or collet chuck/1 pc
8-stations servo turret/1 pc
Foot chuck switch/1 pc
Working light/1 pc
Coolant device/1 set

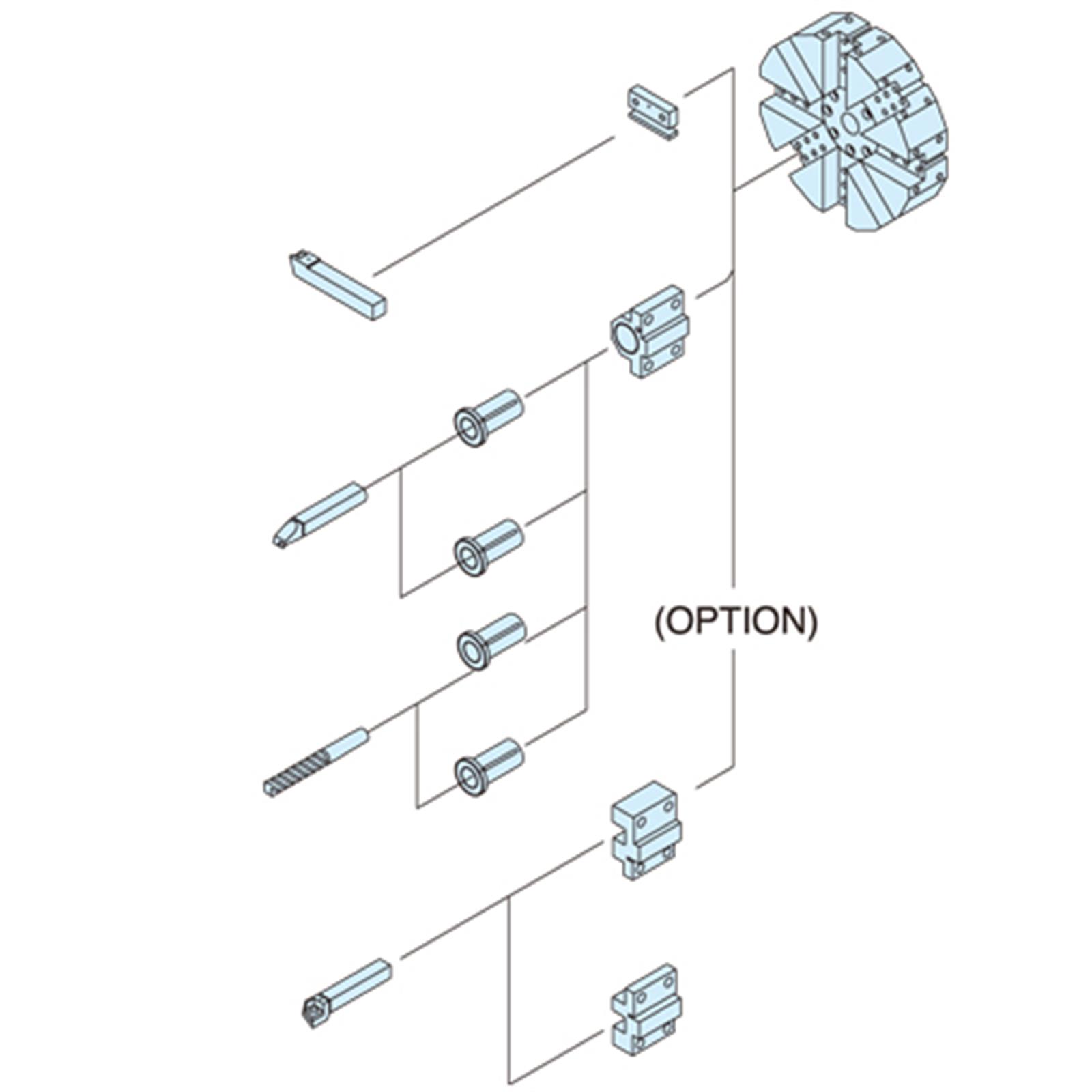

Tool holder bushing:
6/8/10/12/16/20mm/2 pc/ea--- for ø25mm
8/10/12/16/20/25mm/2 pc/ea--- for ø32mm
Leveling bolts and pads/6 pcs
Tools and tool box/1 set
Double Spindle
Controller/1 set Mitsubishi
Main spindle : 3 jaws hydraulic chuck or collet chuck/1 pc
Sub-spindle : 6” 3 jaws hydraulic chuck or model 42 collet chuck/1 pc
12-stations servo turret/1 pc
Foot chuck switch/1 pc
Working light/1 pc
Coolant device/1 set
Tool holder bushing:
6/8/10/12/16/20mm/2 pc/ea--- for ø25mm
8/10/12/16/20/25mm/2 pc/ea--- for ø32mm
Leveling bolts and pads/6 pcs
Tools and tool box/1 set
Double Spindle Opt. Y axis
Controller/1 set Fanuc
Main spindle : 3 jaws hydraulic chuck or collet chuck/1 pc
12-stations power turret/1 pc
Foot chuck switch/1 pc
Working light/1 pc
Coolant device/1 set
Tool holder bushing:
6/8/10/12/16/20mm/2 pc/ea--- for ø25mm
8/10/12/16/20/25mm/2 pc/ea--- for ø32mm
Leveling bolts and pads/6 pcs
Tools and tool box/1 set

Single Spindle
Chip conveyer+Bucket
Part conveyor
Y axis
Main spindle : CF axis orientation
12-stations power turret
Tail-stock(movement is manual or auto)
Double Spindle
Chip conveyer+Bucket
Part conveyor
Main spindle : CF axis orientation
12-stations power turret
Double Spindle Opt. Y axis
Chip conveyer+Bucket
Part conveyor
Y axis
Main spindle : CF axis orientation
Sub-spindle : C axis orientation
Sub-spindle : CS axis orientation

Single Spindle

Items	T-PLUS 42
Max. machining dia.(with 3 jaws chuck)	Ø130 mm
Max. machining length (with tail-stock)	400 mm
Swing over cross slide	350 mm
X axis travel	200 mm
Z axis travel	480 mm
Opt. Y axis travel	70 mm
Bore of spindle	55 mm
Max. bar feeding dia.	42 mm
Spindle nose	A2-5 mm
Spindle chuck	6" inch
Spindle motor	11kW/15HP
Z axis motor	1 kW
X axis / Opt. Y axis motor	1.5 kW
Opt. driven tools motor for power turret	3.7kW/5HP
Spindle speed	100-6000 rpm
Rapid traverse (X, Z axes)	12 m/min
Min. input unit	0.001 mm
Cutting tool size(opt. power turret)	□25(□20)
Max. bore size of tool	Ø32 mm
Coolant pump motor	1HP mm
Dimension(Attched Chip conveyor)	340 x 189 x 184 cm
Dimension(Without Chip conveyor)	257 x 189 x 184 / 300 x 215 x 200 (opt. Y axis) cm
Weight	3588 / 3788 (opt. Y axis) kg

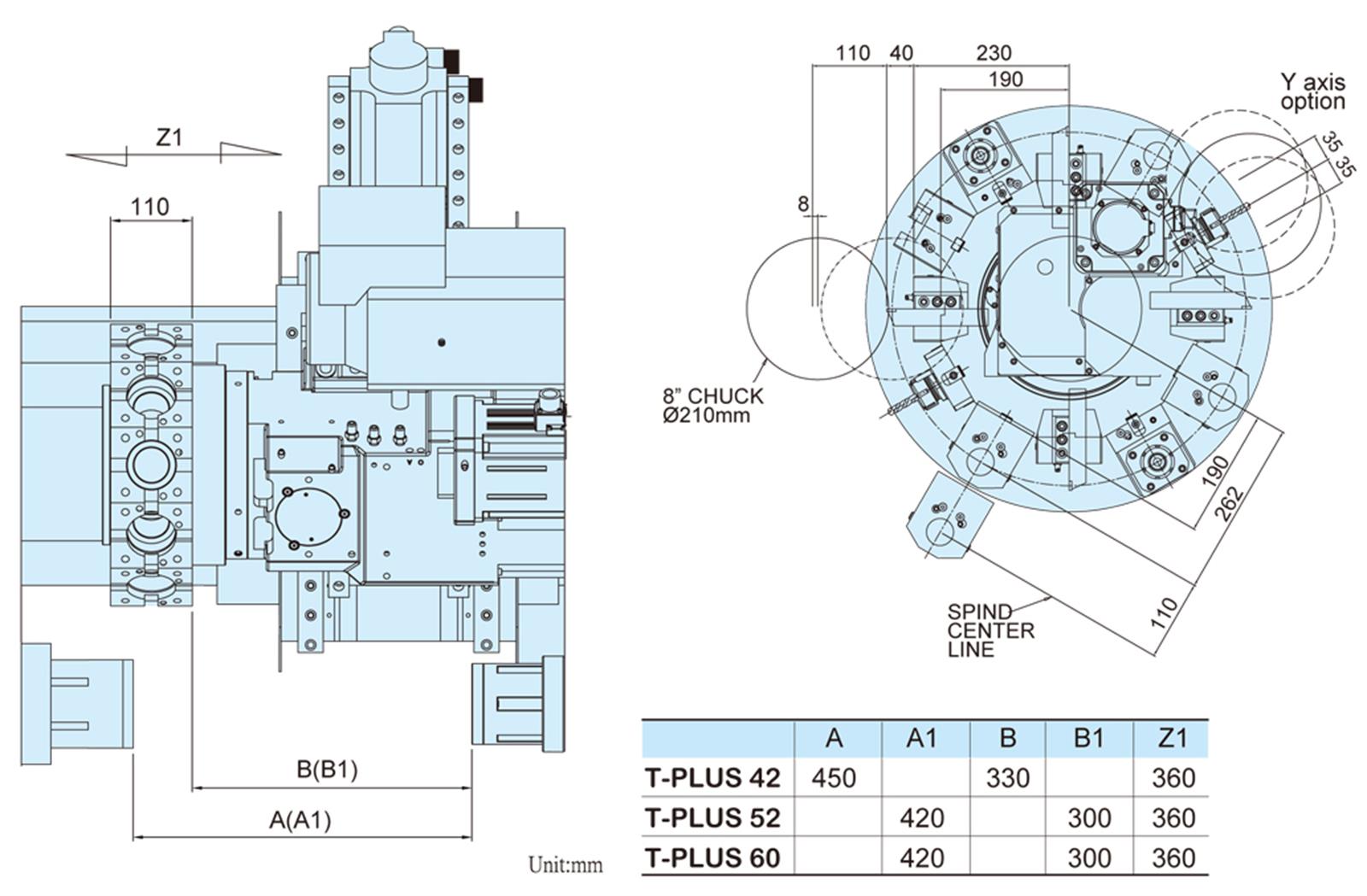

Double Spindle with Power Turret (Opt. Y axis)

Items	T-PLUS 42
Max. machining dia.(with 3 jaws chuck)	Ø130 mm
Max. machining length	200 mm
Swing over cross slide	350 mm
X axis travel	220 mm
Z axis travel	360 mm
A axis travel	450 mm
Y axis travel	70 mm
Bore of spindle	55 mm
Max. bar feeding dia.	42 mm
Spindle nose	A2-5 mm
Sub-Spindle nose	A2-5 mm
Spindle chuck	6" inch
Sub-Spindle chuck	6" inch
Spindle motor	7.5/11 kW
Sub-Spindle motor	2.2/3.7 kW
Z,X,A axes motor	1.6 kW
Driven tools motor for power turret	2.2/3.7 kW
Spindle speed	100-6000 rpm
Sub-Spindle speed	100-6000 rpm
Rapid traverse (X, Z, A axes)	12 m/min
Min. input unit	0.001 mm
Cutting tool size	□25 mm
Max. bore size of tool	Ø25 mm
Coolant pump motor	1HP
Dimension (without Chip conveyor)	300 x 215 x 200 cm
Weight	4500 kg

Double Spindle with Servo Turret

Items	T-PLUS 42
Max. machining dia.(with 3 jaws chuck)/th>	Ø130 mm
Max. machining length	200 mm
Swing over cross slide	350 mm
X axis travel	200 mm
Z axis travel	360 mm
A axis travel	450 mm
Bore of spindle	55 mm
Max. bar feeding dia.	42 mm
Spindle nose	A2-5 mm
Sub-Spindle nose	A2-5 mm
Spindle chuck	6" inch
Spindle motor	6" inch
Sub-Spindle chuck	11kW/15HP
Sub-Spindle motor	3.7kW/5HP
Z / A axes motor	1 kW
X axis motor	1.5 kW
Opt. driven tools motor for power turret	3.7kW/5HP
Spindle speed	100-6000 rpm
Sub-Spindle speed	100-6000 rpm
Rapid traverse (X, Z, A axes)	12 m/min
Min. input unit	0.001 mm
Cutting tool size (opt. power turret)	□25(□20) mm
Max. bore size of tool (opt. power turret)	Ø32 mm/Ø25 mm
Coolant pump motor	1HP
Dimension(Attched Chip conveyor)	340 x 189 x 184 cm
Dimension(Without Chip conveyor)	257 x 189 x 184 cm
Weight	4300 kg
