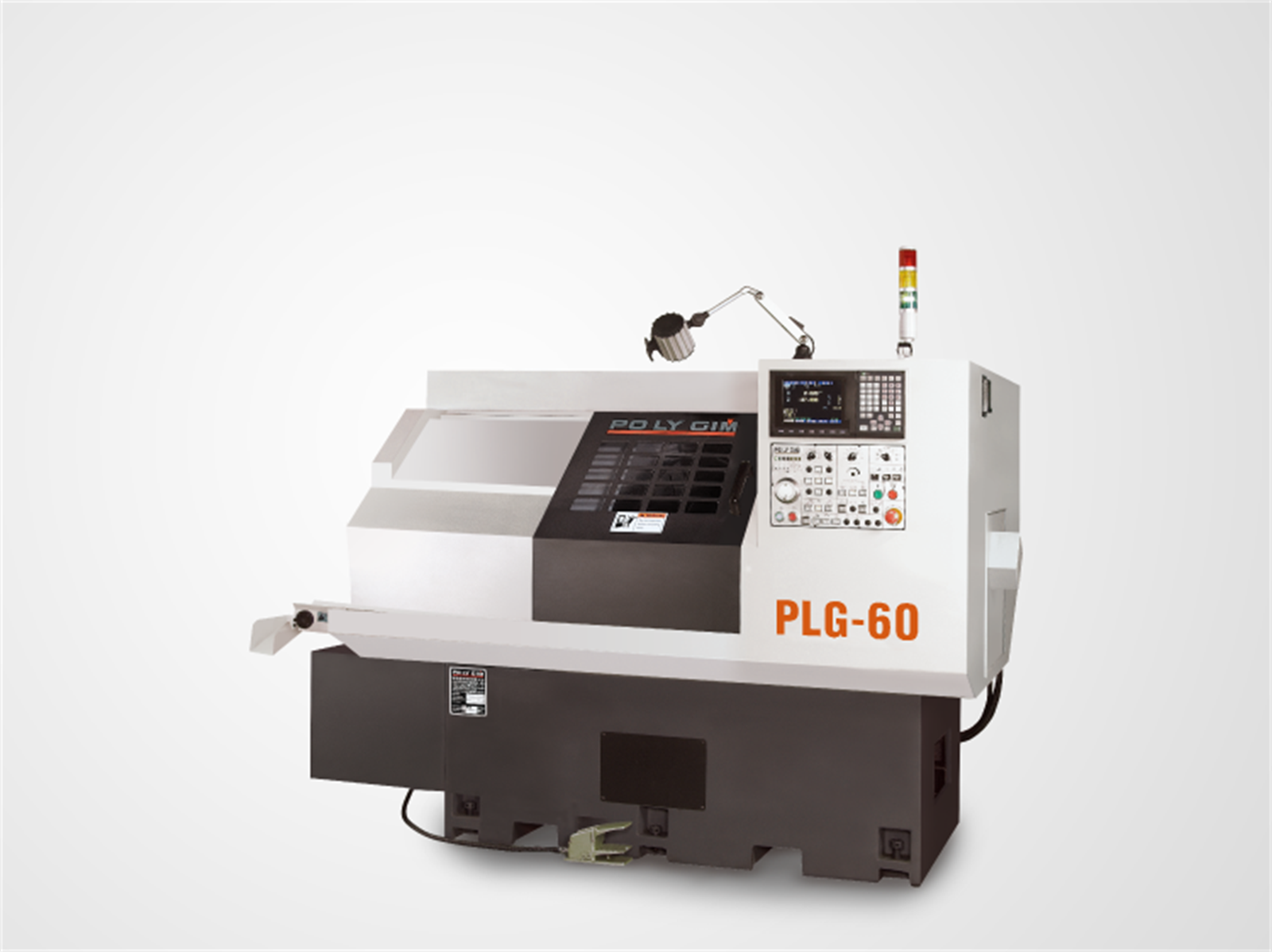

Polygim PLG-60 CNC Turning Machine (PLG-60)

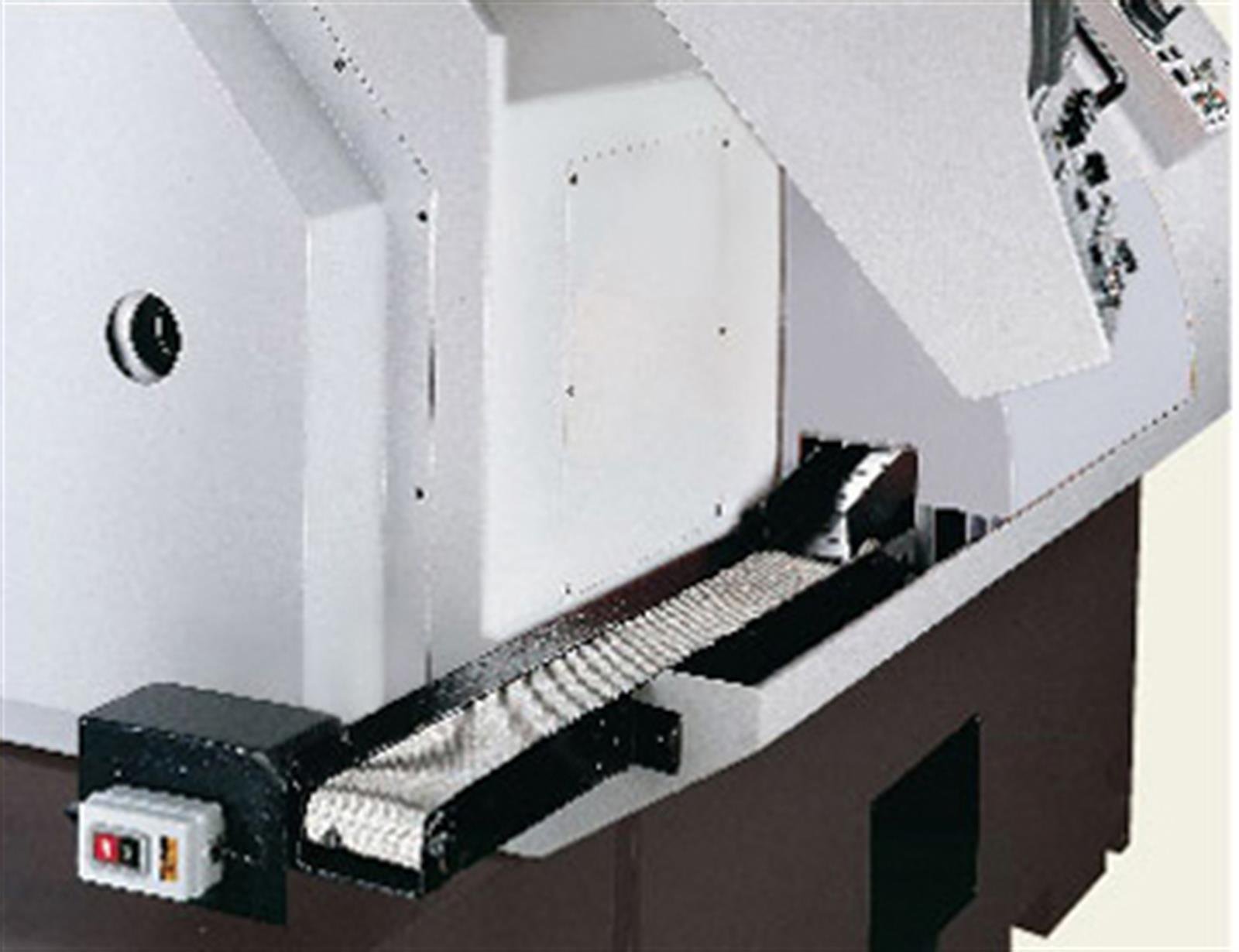

Parts Conveyor

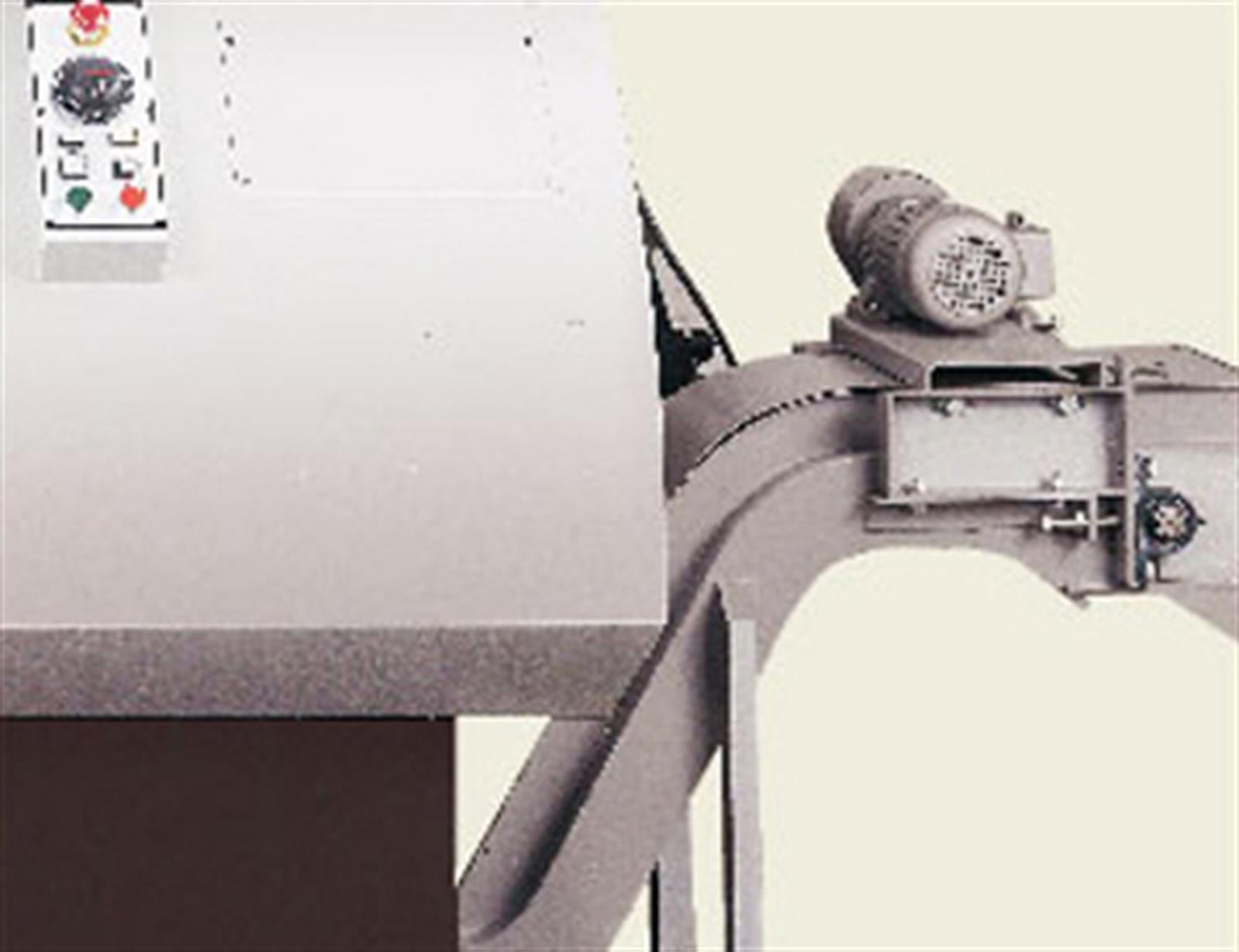

Chip Conveyor

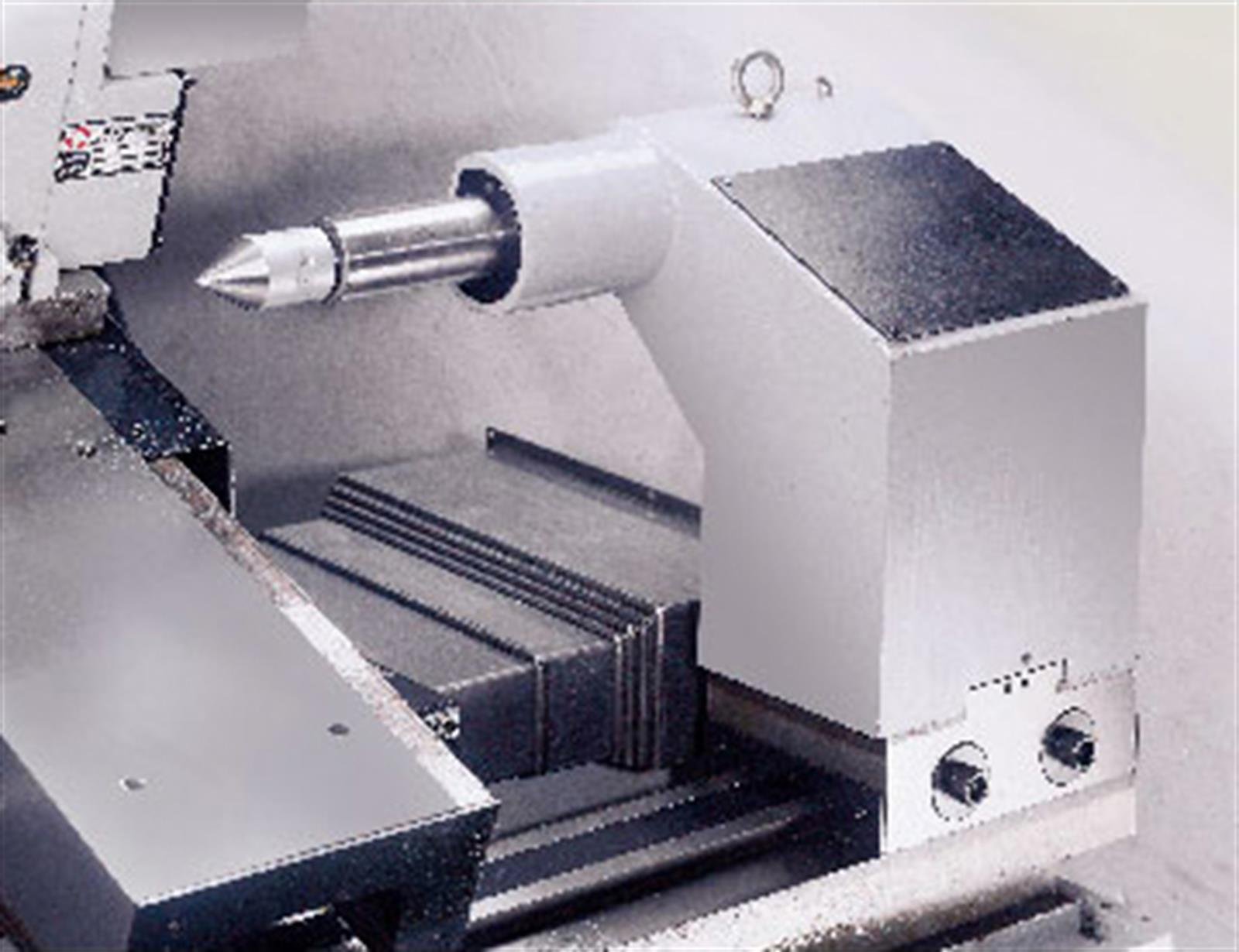

Tailstock
Programmable quill with stroke 100mm and MT4 taper.

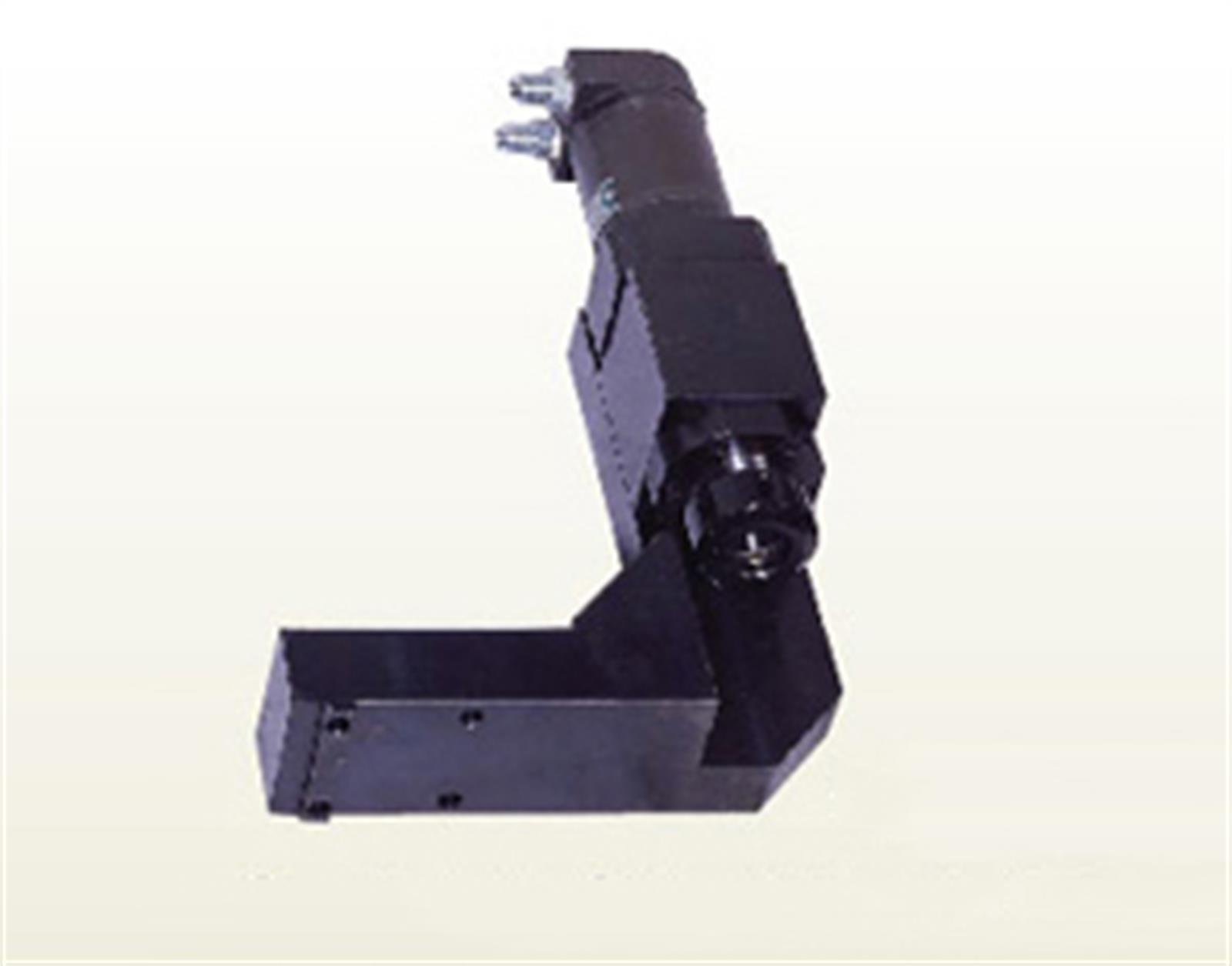

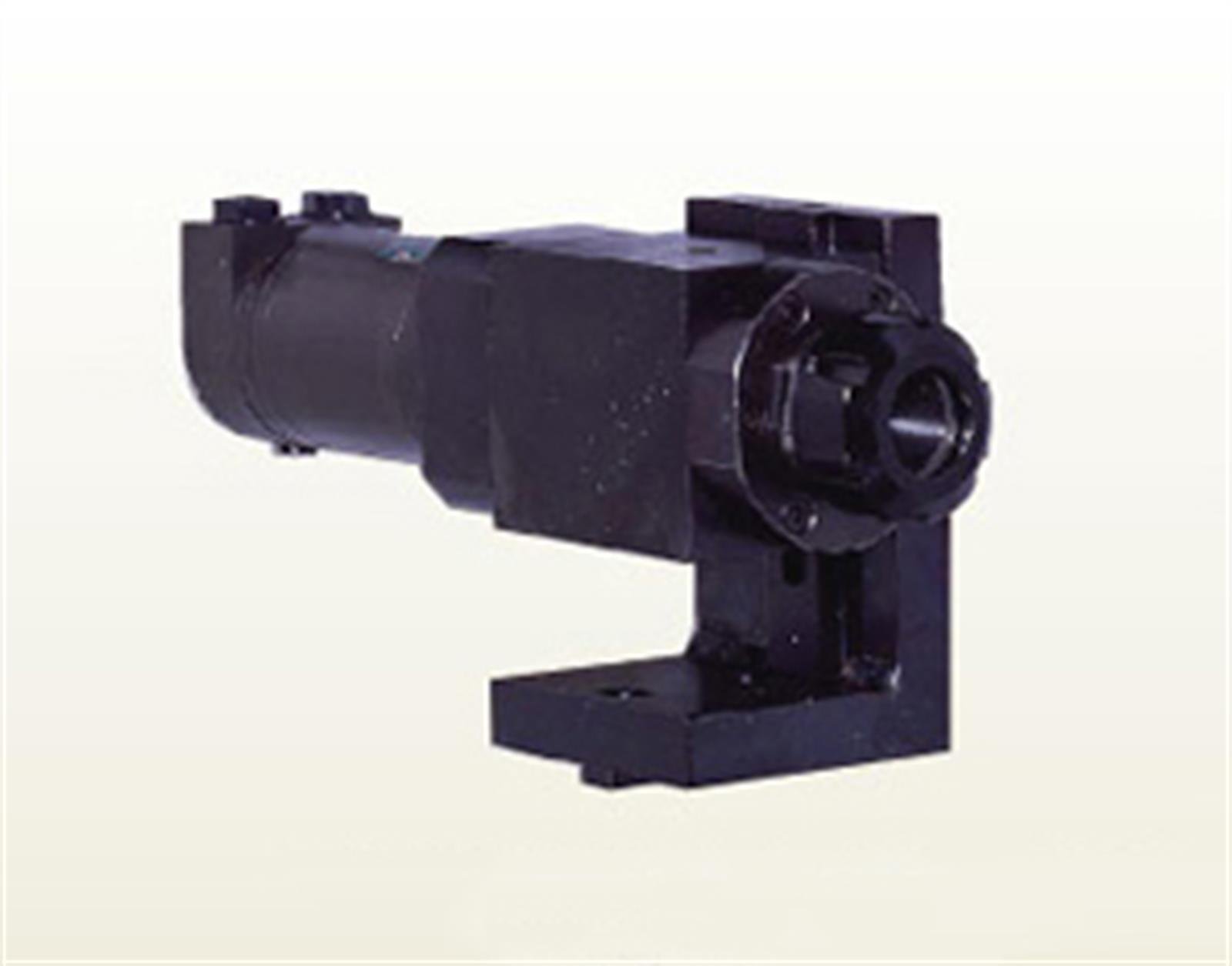

Power Tools Series
Any of hydraulic parts below is optional accessory to satisfy users' every option.

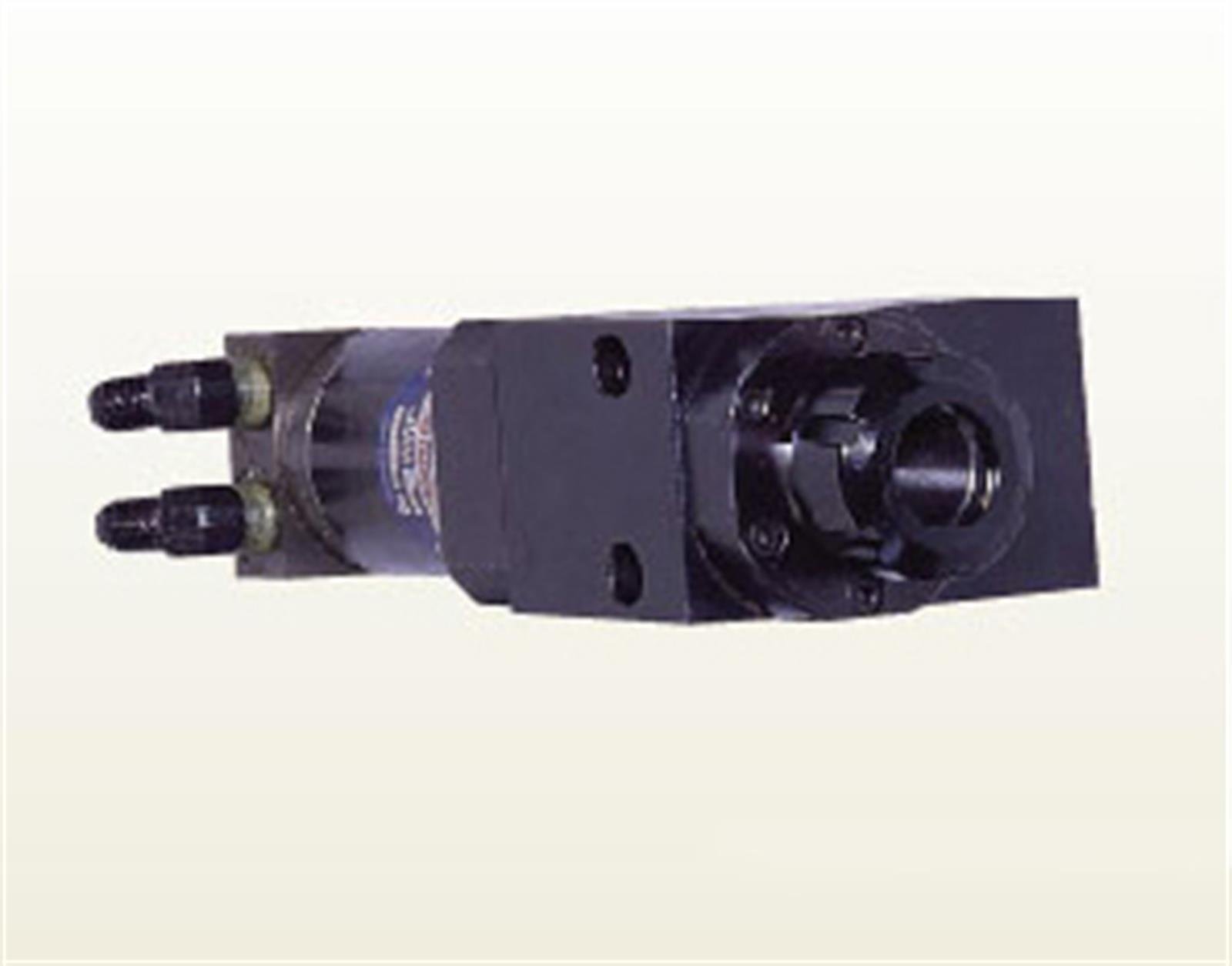

Fixed Holder
Height Adjustable

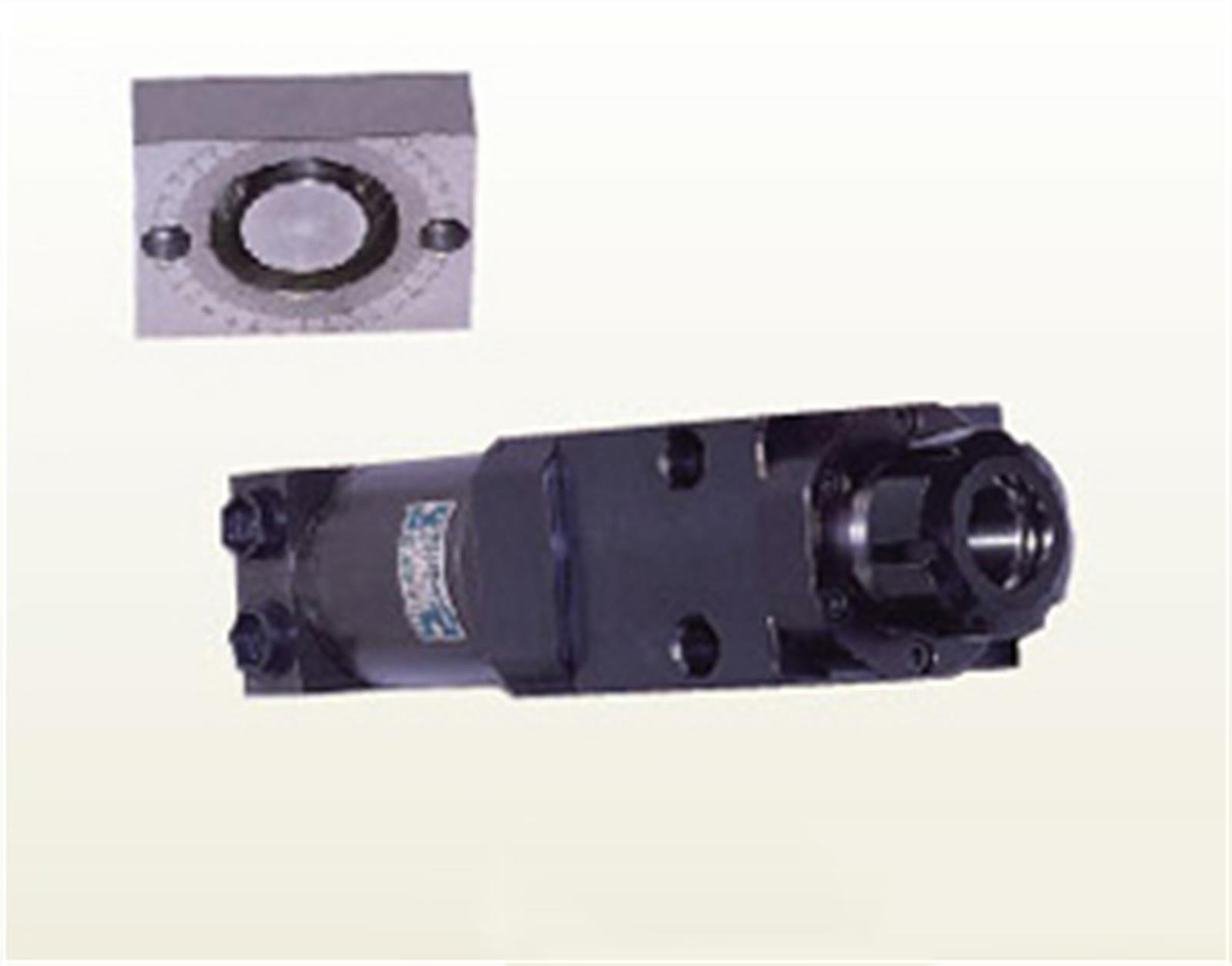

Revolvable Holder
Single-Hole Side Drilling Holder

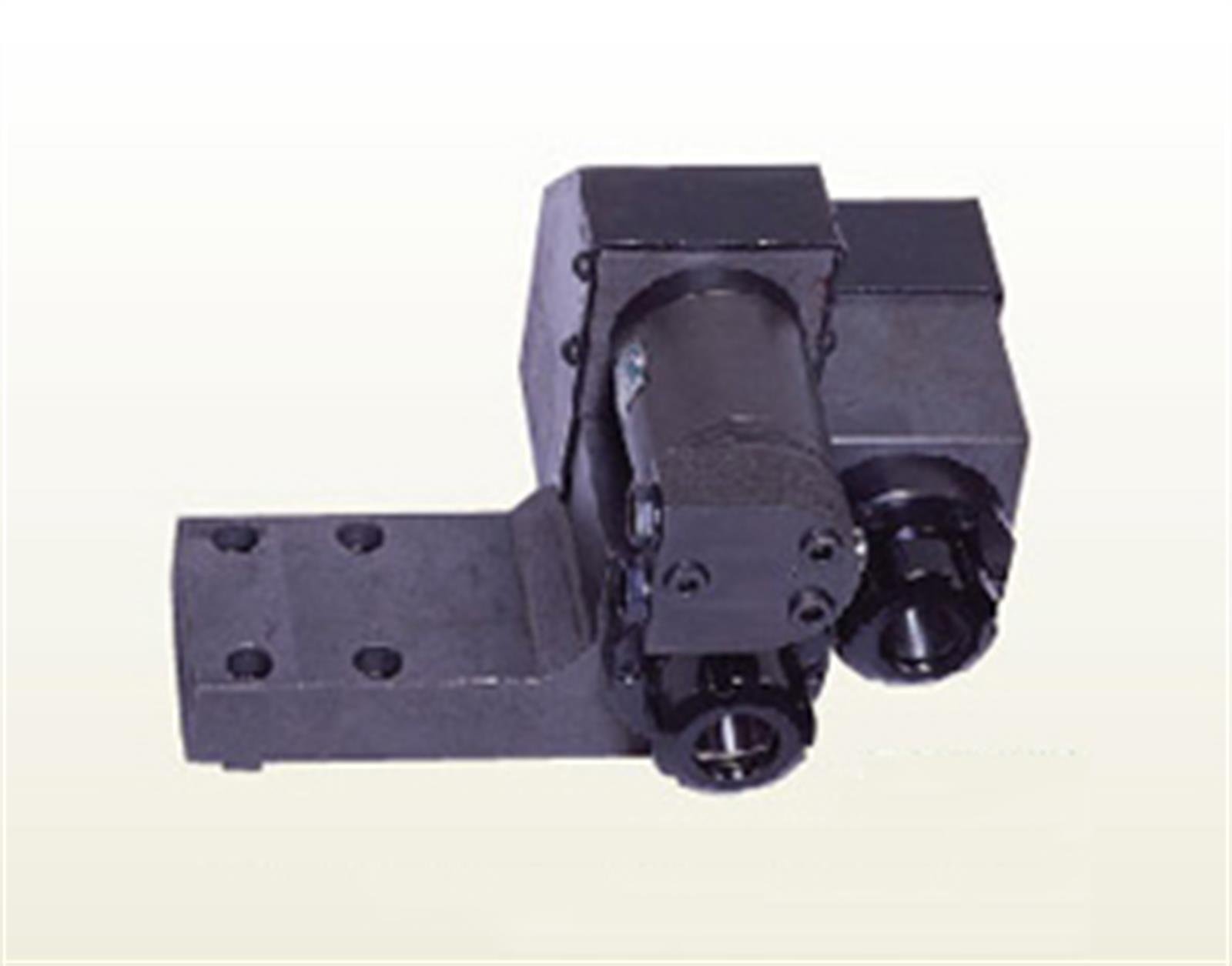

Double-Hole Side Drilling Holder.

Controller : Mitsubishi (1 set)
3-jaw hydraulic chuck (1 pc)
Foot chuck switch (1 pc)
Working Light (1 pc)
Tools & tool box (1 set)
Coolant system (1 set)
Gang type tool disc (1 pc)
Leveling bolts and pads 6 pcs (type 42 with 4 pcs)
Boring tool holder (3 pcs)
O.D turning upper and lower tool holders (4 pcs)
Tool holder bushing
PLG-60
8mm, 10mm, 12mm, 16mm, 20mm, 25mm (2 pcs/ea)

8-stations hydraulic turret
Chip conveyer+Bucket
Part catcher or Part conveyor
Tail-stock (movement is manual )


Items	PLG-60
Max. machining dia. (with 3 jaws chuck)	Ø380 mm
Max. machining length	Bar diameter x 3
(with tail-stock) -Gang Type	480 mm
(Opt. Turret)	400 mm
Swing	200 mm
X Axis Travel	310 mm
Z Axis Travel	520 mm
(Opt. Radial Power Tools)	-
Spindle Hole	85 mm
Bar Capacity	60 mm
Spindle Nose	A2-6
Spindle Chuck	10"
Spindle Motor	11.5kW/15HP
X axis Motor	1.5kW
Z axis Motor	1kW
Axial / Radial Power Tools Motor (Opt.)	4kW
Driven Tools Motor for Power Turret	3.7kW/5HP
Spindle Speed	100-3500 r.p.m.
Rapid traverse (X, Z axes)	12 m/min
Min. Input Unit	0.001 mm
Cutting Tool Size (Opt. Power Turret)	□25/□20 mm
Max. Bore Size of Tool	Ø32 mm
Coolant Pump Motor	1/4 HP
Machine Dimension (without Chip Conveyor)	263x170x194 cm
Machine Weight	3180 kgs
