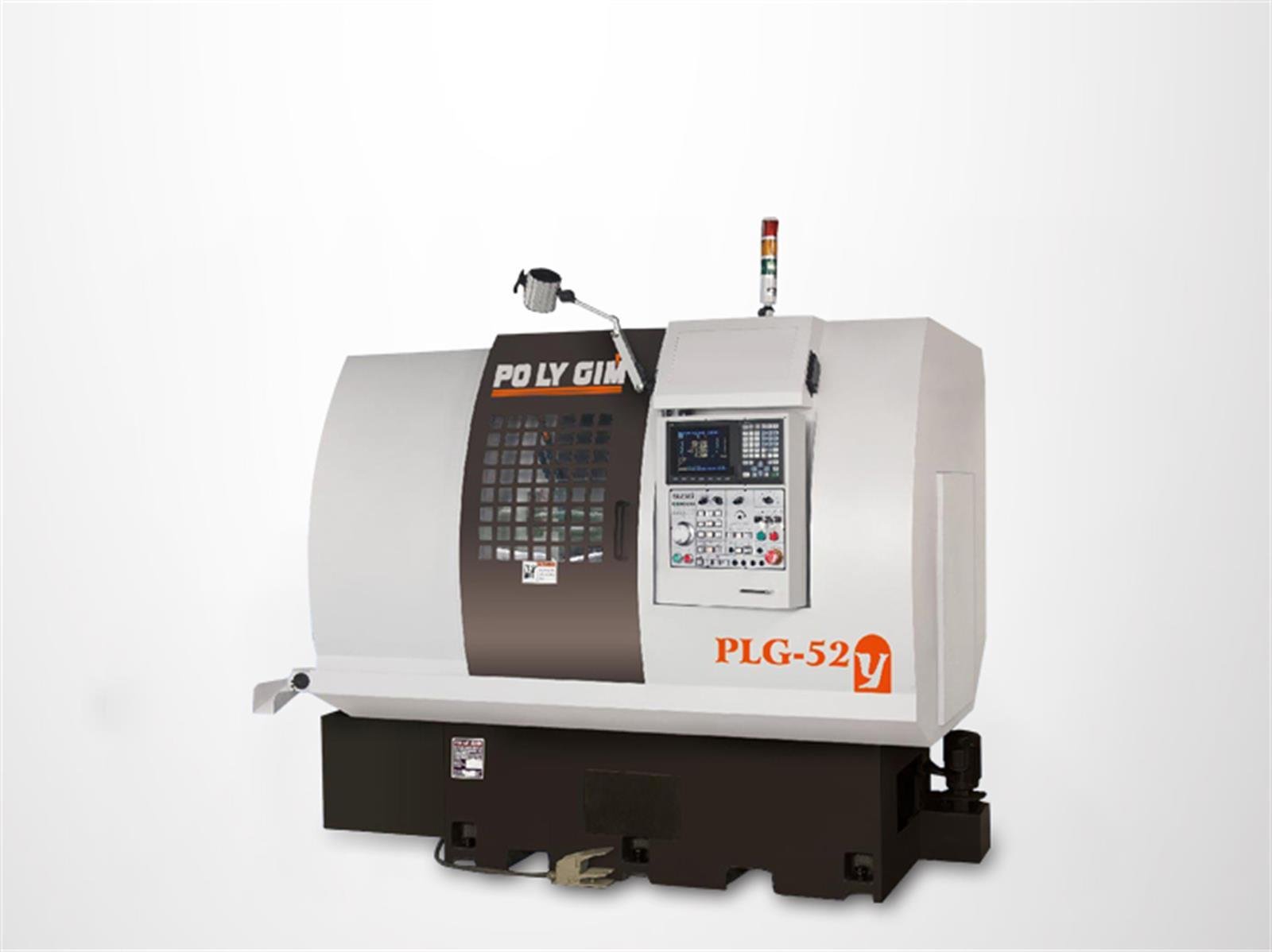

Polygim PLG-52Y CNC Lathe with Y Axis (PLG-52Y)

Spindle mounting collet chuck
5 pcs O.D. turning tools.
(42 type with 6 pcs O.D.turning tools )
6 pcs I.D. stationary tools
4 pcs cross working driven tools
4 pcs front working driven tools
Part catcher with conveyor


Collet chuck (1 pc)
Foot chuck switch (1 pc)
Working light (1 pc)
Coolant device (1 set)
Leveling bolts and pads (4 pcs)
Tools and tool box (1 set)
O.D. turning tools (5 pcs)
(42 type with 6 pcs O.D. turning tools)
I.D. stationary tools (6 pcs)
Cross driven tools (4 pcs)
Front off-center driven tools (4 pcs)

Chip conveyor (1 pc)
Chip bucket (1 pc)
Parts catcher (1 pc)
CF axis (1 pc)

Items	PLG-52Y
Max. Machining Dia.	52 mm
Max. Machining Length	Bar diameter x 3
Swing Over Cross Side	200 mm
X Axis	190 mm
Z Axis	300 mm
Y Axis	300 mm
Bore of Spindle	60 mm
Bar Capacity	52 mm
Spindle Nose	A2-6
Collet Type	177 E or 185 E / 52 mm
Spindle Motor	11 kw / 15 H.P.
Z, Y Axis Motor	1 kw
X Axis Motor	1.5 kw
Cross Spindle Driven Tools Motor	2.2 kw
Front off-Center Driven Tools Motor	2.2 kw
Spindle Speed	100-4000 r.p.m.
Cross Spindle Speed	200-5000 r.p.m.
Front off-Center Driven Tool Speed	200-5000 r.p.m.
Rapid traverse speed(X, Z, Y Axis)	12 m/min
Min. Input Unit	0.001 mm
O.D. Tooling	5
O.D. Tool Dimension	□20 x 20 x 110
I.D. Tooling	6
I.D. Tool Dimension	Ø25 mm
I.D. Tool Max. Drilling Dia.	Ø25 mm
I.D. Tool Max. Tapping Dia.	M16
Cross Driven Tooling	4
Cross Driven Tooling Dimension	16 mm (ER25)
Cross Driven Tool Max. Drilling Dia.	Ø16 mm
Cross Driven Tool Max. Tapping Dia.	M10
Front off-Center Driven Tooling	4
Front off-Center Driven Tool Dimension	16 mm (ER25)
Front off-Center Driven Tool Max. Drilling Dia.	Ø16 mm
Front off-Center Driven Tool Max. Tapping Dia.	M10
High Pressure Coolant Pump	1 H.P.
Hydraulic Pump	1 H.P.
Dimension	2490 x 1690 x 1955 mm
Weight	3000 kgs
