Polygim PLG-42Y CNC Lathe with Y Axis (PLG-42Y)

Brand : Polygim

Stock Amount : 0

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InChina

Min. Order Qty.1 Pcs.

Warranty1 Year

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Lathes

CNC Lathe with Y Axis

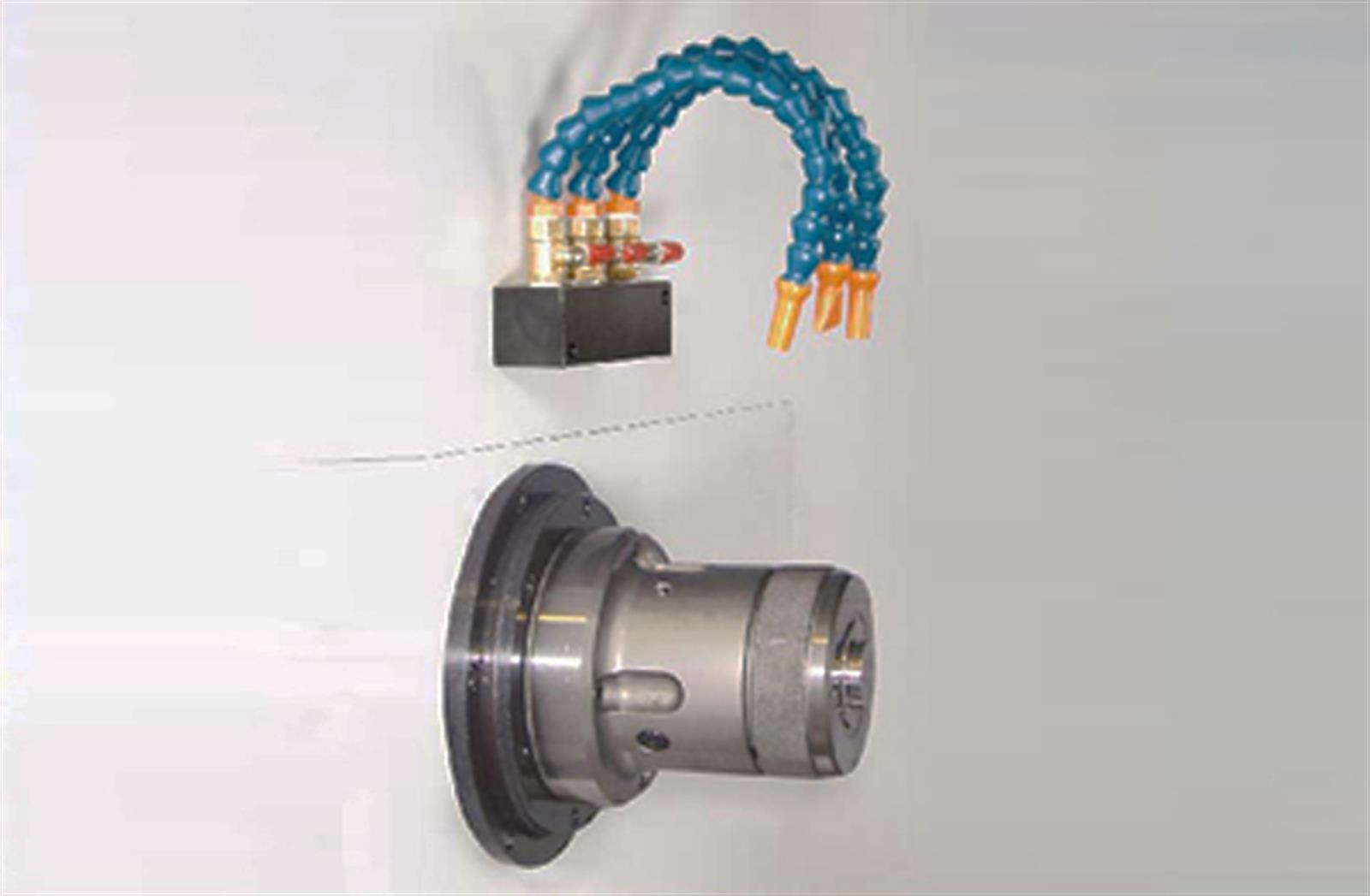

Spindle mounting collet chuck

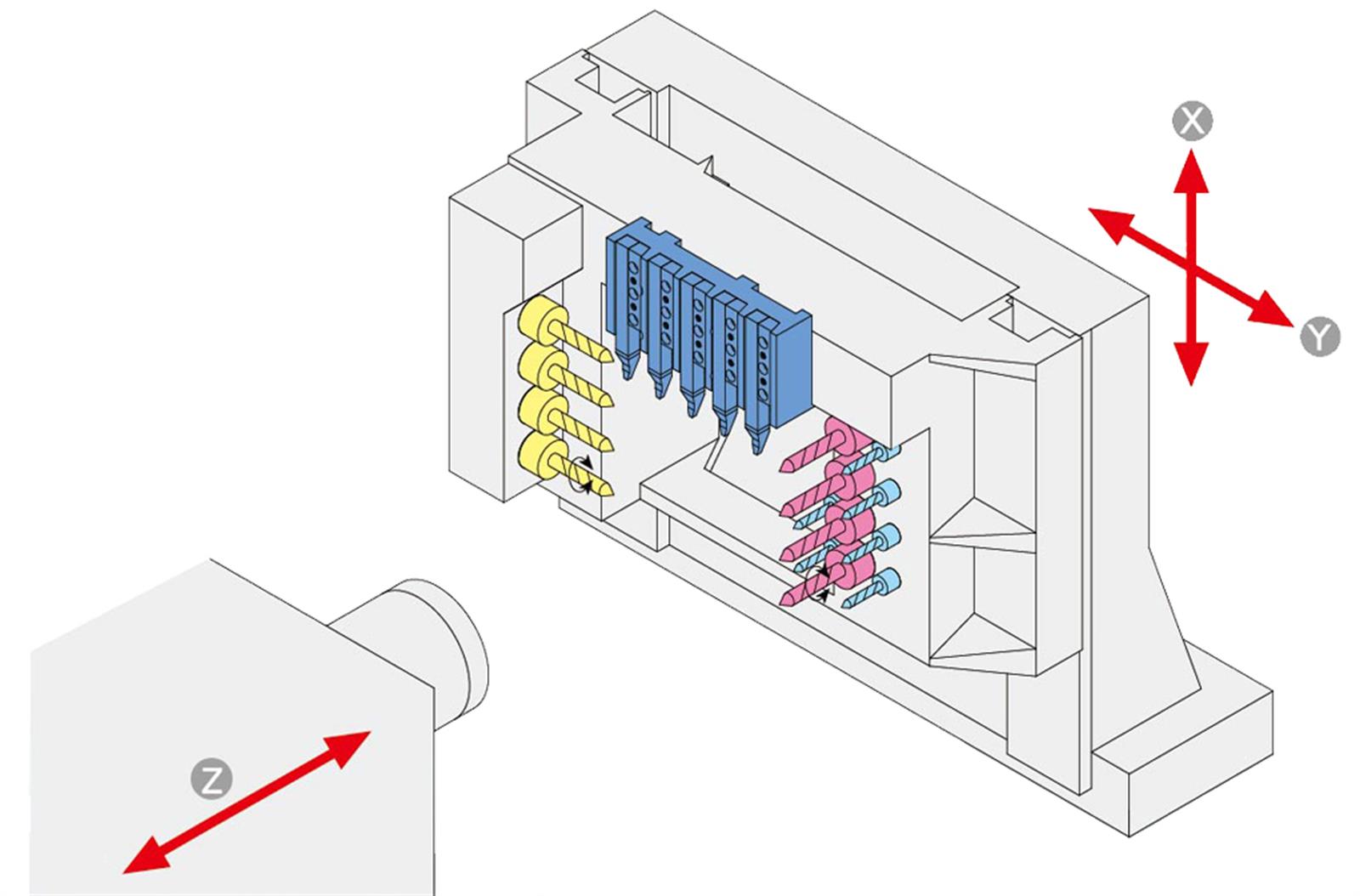

5 pcs O.D. turning tools.
(42 type with 6 pcs O.D.turning tools )
6 pcs I.D. stationary tools
4 pcs cross working driven tools
4 pcs front working driven tools
Part catcher with conveyor

Collet chuck (1 pc)
Foot chuck switch (1 pc)
Working light (1 pc)
Coolant device (1 set)
Leveling bolts and pads (4 pcs)
Tools and tool box (1 set)
O.D. turning tools (5 pcs)
(42 type with 6 pcs O.D. turning tools)
I.D. stationary tools (6 pcs)
Cross driven tools (4 pcs)
Front off-center driven tools (4 pcs)

Chip conveyor (1 pc)
Chip bucket (1 pc)
Parts catcher (1 pc)
CF axis (1 pc)

Items	PLG-42Y
Max. Machining Dia.	42 mm
Max. Machining Length	Bar diameter x 3
Swing Over Cross Slide	200 mm
X Axis	190 mm
Z Axis	300 mm
Y Axis	300 mm
Bore of Spindle	55 mm
Bar Capacity	42 mm
Spindle Nose	A2-5
Collet Type	173 E/ 42 mm
Spindle Motor	11 kw / 15 H.P.
Z, Y Axis Motor	1 kw
X Axis Motor	1.5 kw
Cross Spindle Driven Tools Motor	2.2 kw
Front off-Center Driven Tools Motor	2.2 kw
Spindle Speed	100-5500 r.p.m.
Cross Spindle Speed	200-5000 r.p.m.
Front off-Center Driven Tool Speed	200-5000 r.p.m.
Rapid traverse speed(X, Z, Y Axis)	12 m/min
Min. Input Unit	0.001 mm
O.D. Tooling	6
O.D. Tool Dimension	□20 x 20 x 110
I.D. Tooling	6
I.D. Tool Dimension	Ø25 mm
I.D. Tool Max. Drilling Dia.	Ø25 mm
I.D. Tool Max. Tapping Dia.	M16
Cross Driven Tooling	4
Cross Driven Tooling Dimension	16 mm (ER25)
Cross Driven Tool Max. Drilling Dia.	Ø16 mm
Cross Driven Tool Max. Tapping Dia.	M10
Front off-Center Driven Tooling	4
Front off-Center Driven Tool Dimension	16 mm (ER25)
Front off-Center Driven Tool Max. Drilling Dia.	Ø16 mm
Front off-Center Driven Tool Max. Tapping Dia.	M10
High Pressure Coolant Pump	1 H.P.
Hydraulic Pump	1 H.P.
Dimension	2490 x 1690 x 1955 mm
Weight	3000 kgs
