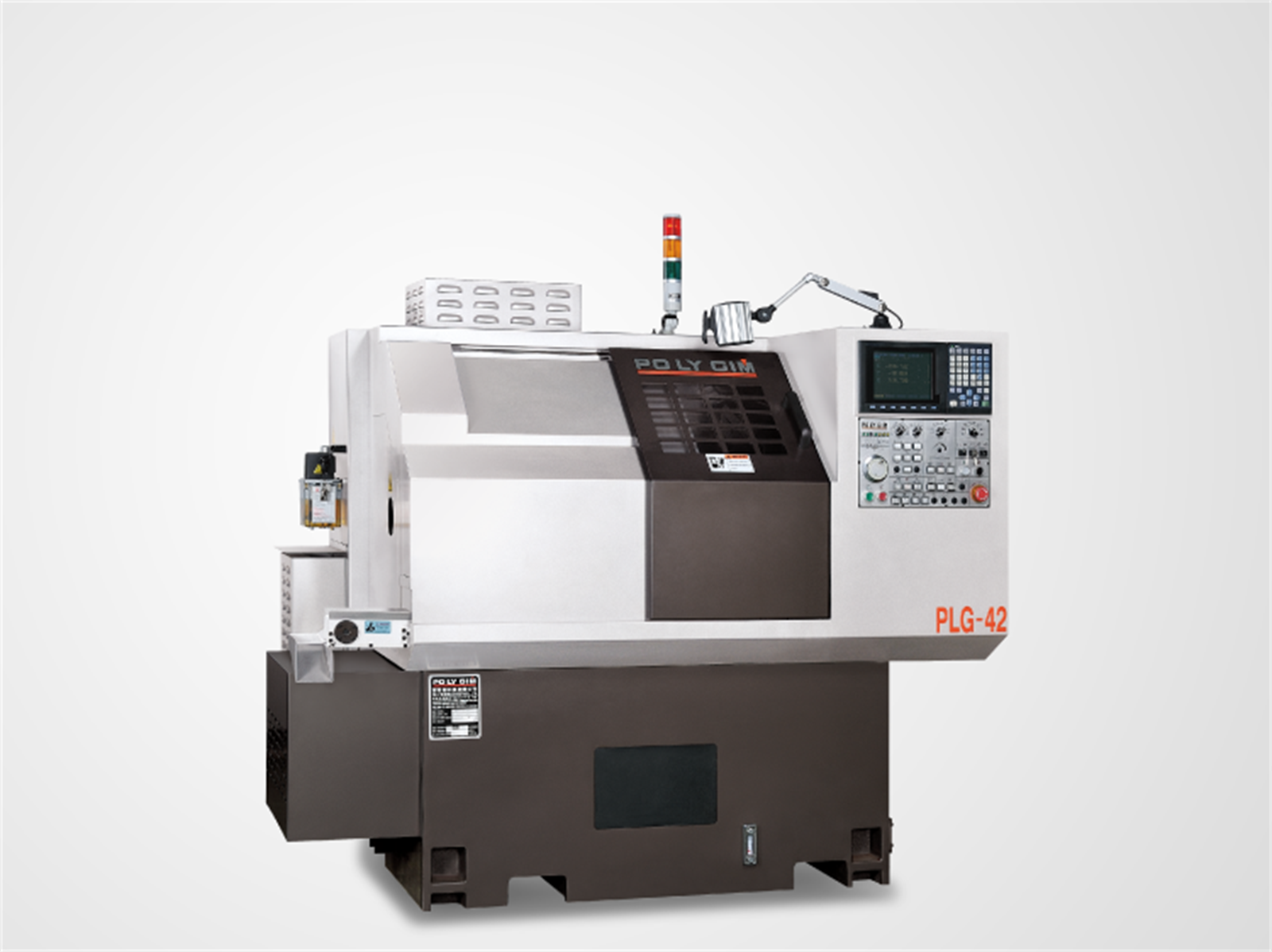

Polygim PLG-42 CNC Turning Machine (PLG-42)

CNC Turning Machine Features:
Optional : 8-station turret, offer flexible operation.
Parts catcher offers automation operation.
Gang type tool makes tool change easily.

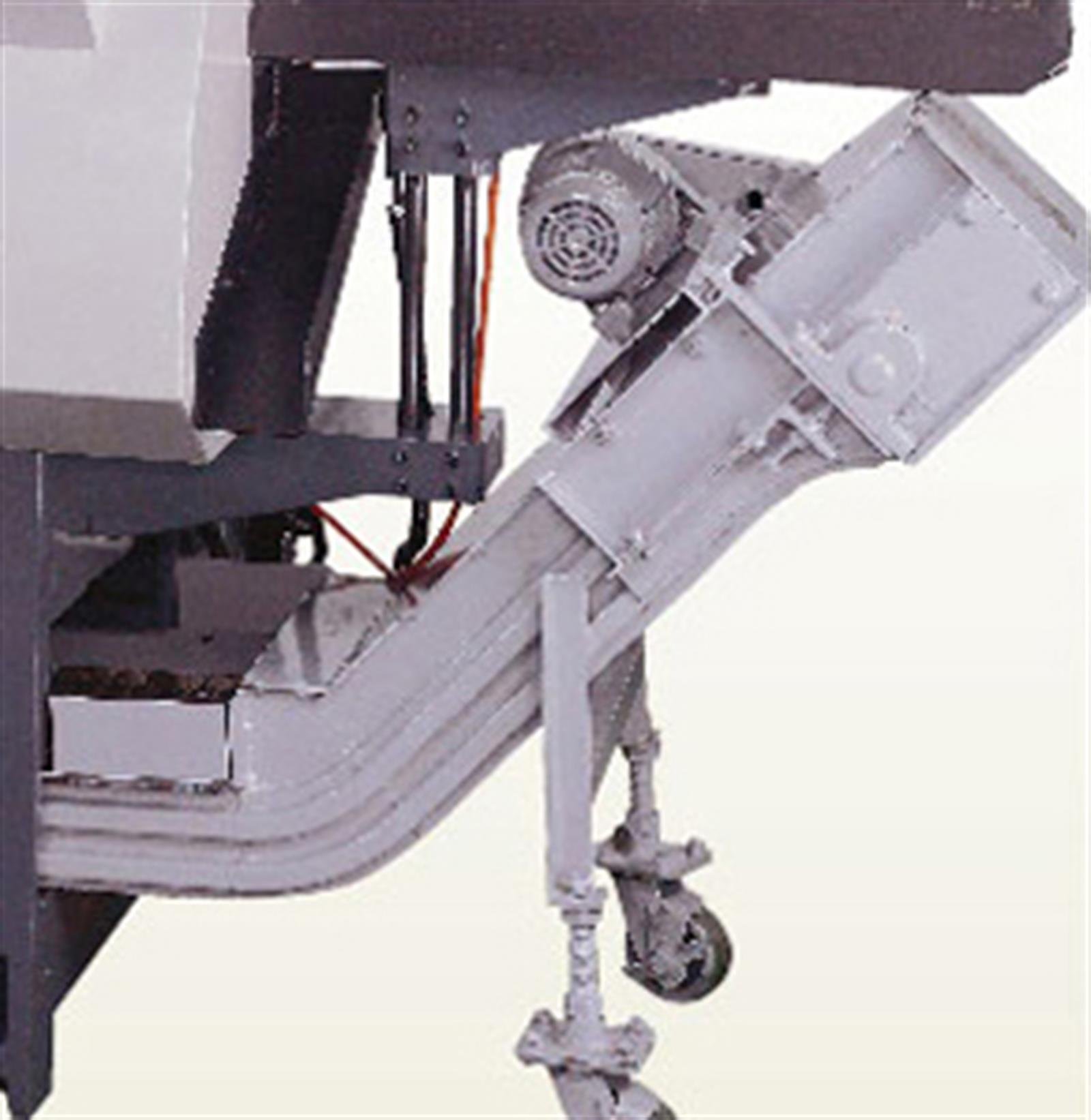

Wid chip conveyor makes chip removal easily.

Controller : Mitsubishi (1 set)
3-jaw hydraulic chuck (1 pc)
Foot chuck switch (1 pc)
Working Light (1 pc)
Tools & tool box (1 set)
Coolant system (1 set)
Gang type tool disc (1 pc)
Leveling bolts and pads 6 pcs (type 42 with 4 pcs)
Boring tool holder (3 pcs)
O.D turning upper and lower tool holders (4 pcs)
Tool holder bushing
PLG-42
6mm, 8mm, 10mm, 12mm, 16mm, 20mm (2 pcs/ea)

 8-stations hydraulic turret
 Chip conveyer+Bucket
 Part catcher or Part conveyor
 Tail-stock (movement is manual )

Items	PLG-42
Max. machining dia. (with 3 jaws chuck)	Ø130 mm
Max. machining length	Bar diameter x 3
(with tail-stock) -Gang Type	220 mm
(Opt. Turret)	160 mm
Swing	160 mm
X Axis Travel	230 mm
Z Axis Travel	250 mm
(Opt. Radial Power Tools)	-
Spindle Hole	55 mm
Bar Capacity	42 mm
Spindle Nose	A2-5
Spindle Chuck	6"
Spindle Motor	5.5kW/7.5HP
X axis Motor	1kW
Z axis Motor	1kW
Axial / Radial Power Tools Motor (Opt.)	-
Driven Tools Motor for Power Turret	2.2kW/3HP
Spindle Speed	100-6000 r.p.m.
Rapid traverse (X, Z axes)	16 m/min
Min. Input Unit	0.001 mm
Cutting Tool Size (Opt. Power Turret)	□20/□16 mm
Max. Bore Size of Tool	Ø25 mm
Coolant Pump Motor	1/4 HP
Machine Dimension (without Chip Conveyor)	215x143x199 cm
Machine Weight	1780 kgs
