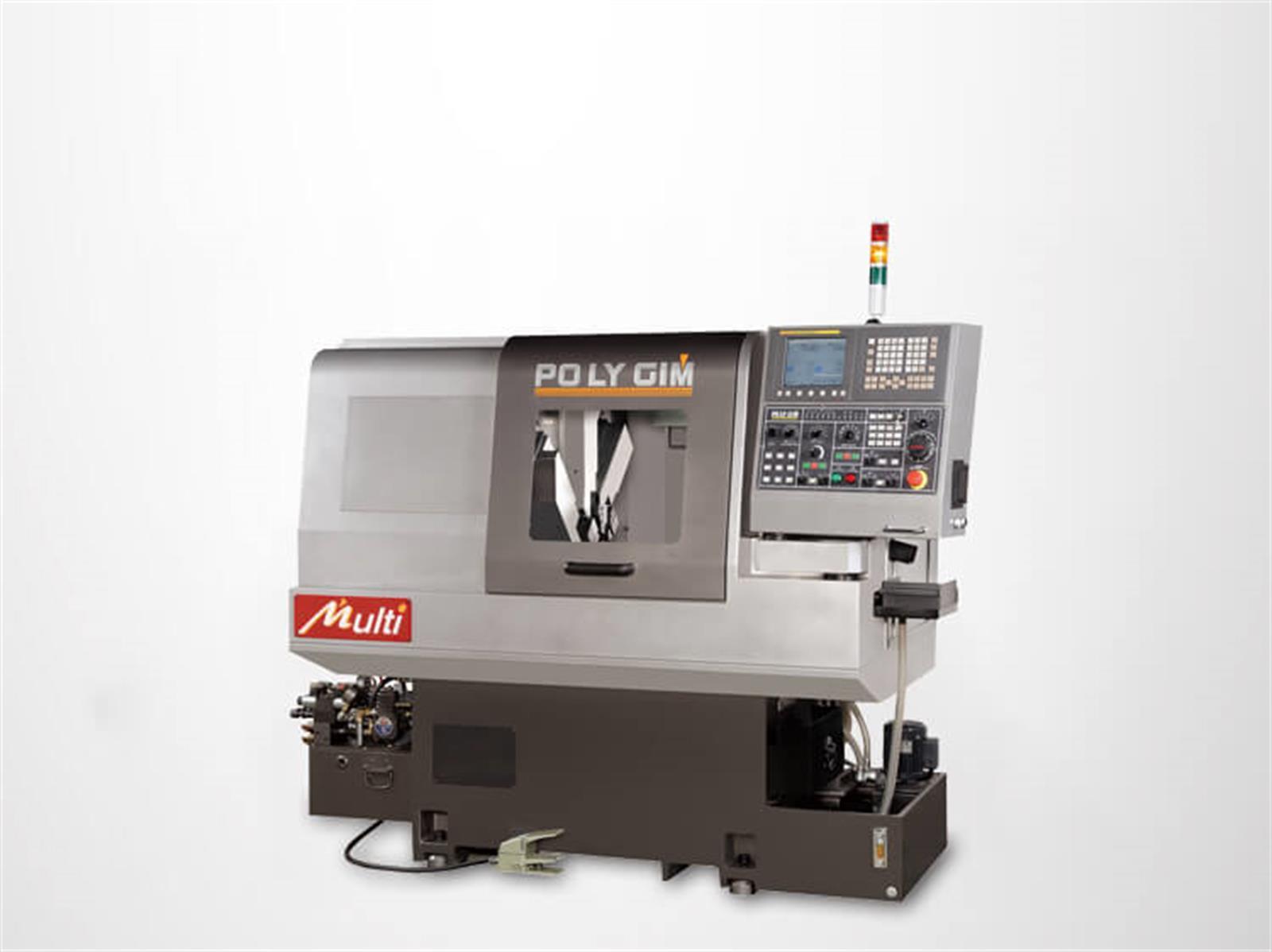

Polygim MULTI 25-S CNC Lathe Multi Series (MULTI 25-S)

Integrating cam, multi-tool synchronization, and CNC multi-axis control system.

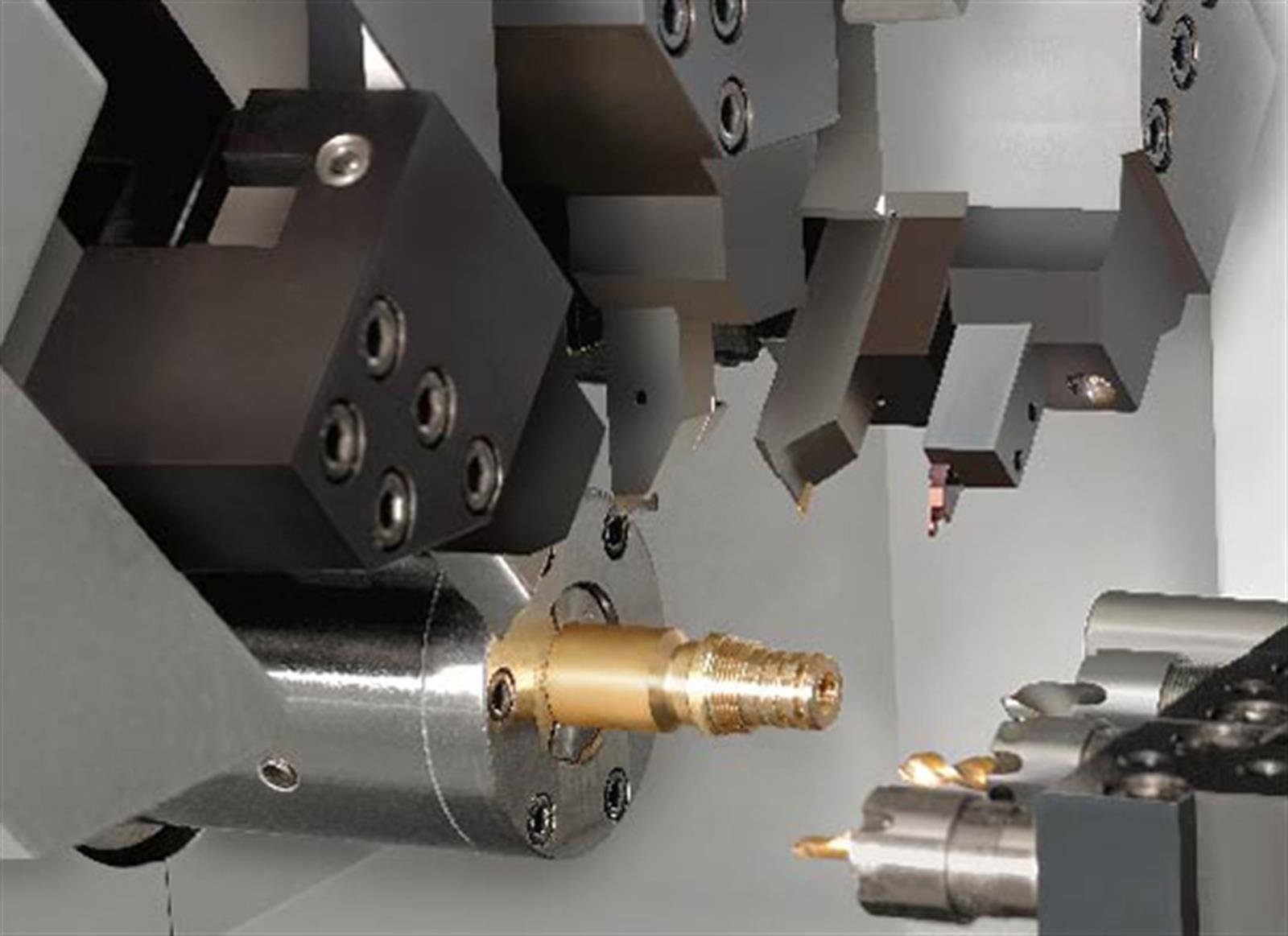

It can work with 4 tools simultaneously, greatly reducing machining time for machining.
The compact but powerful body maximizes quality, increasing efficiency.
Examples:

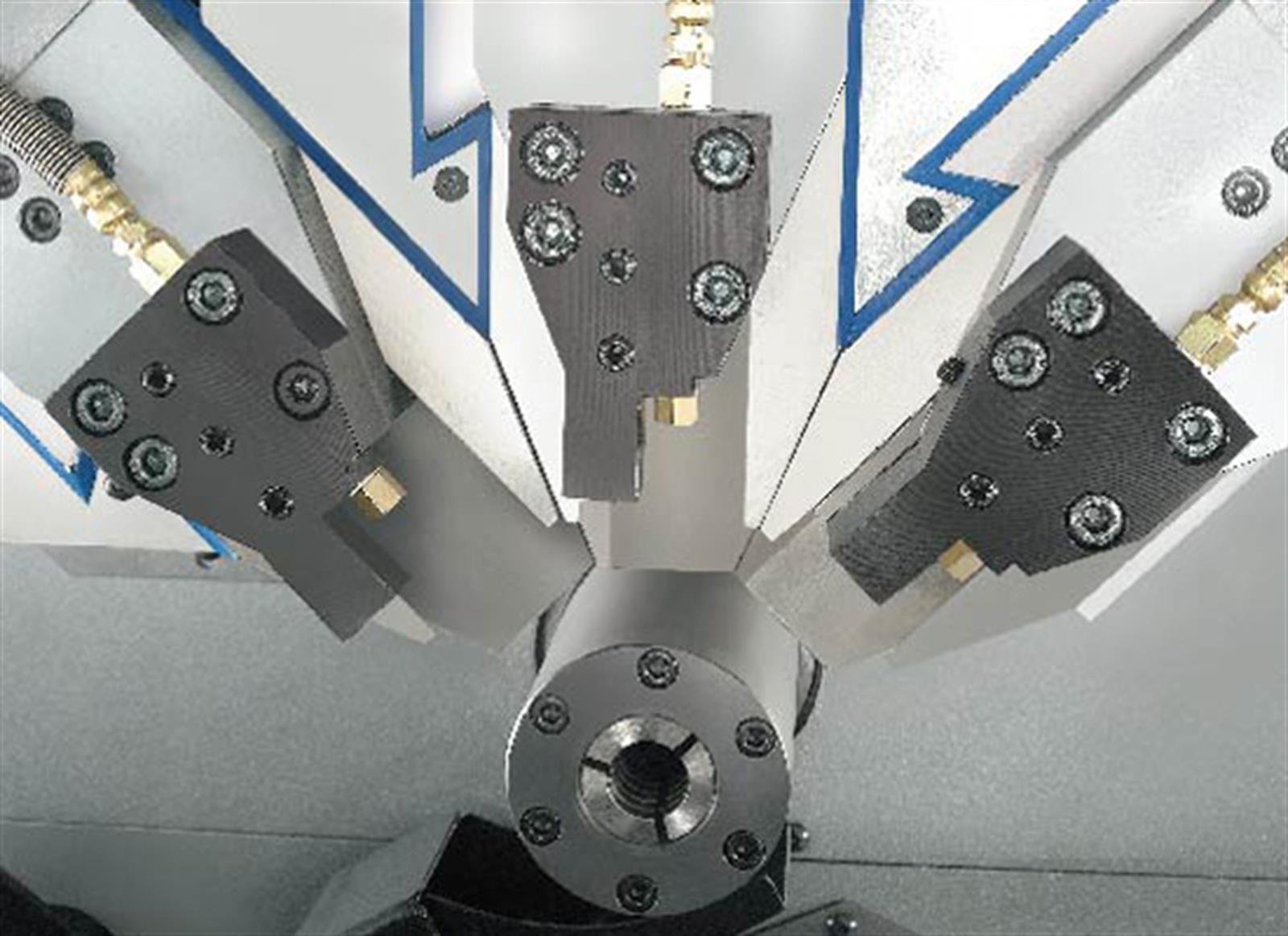

3 channel synchronous tool holder can setting 3 pcs tools
3 channel synchronous tool holder can setting 6 pcs tools

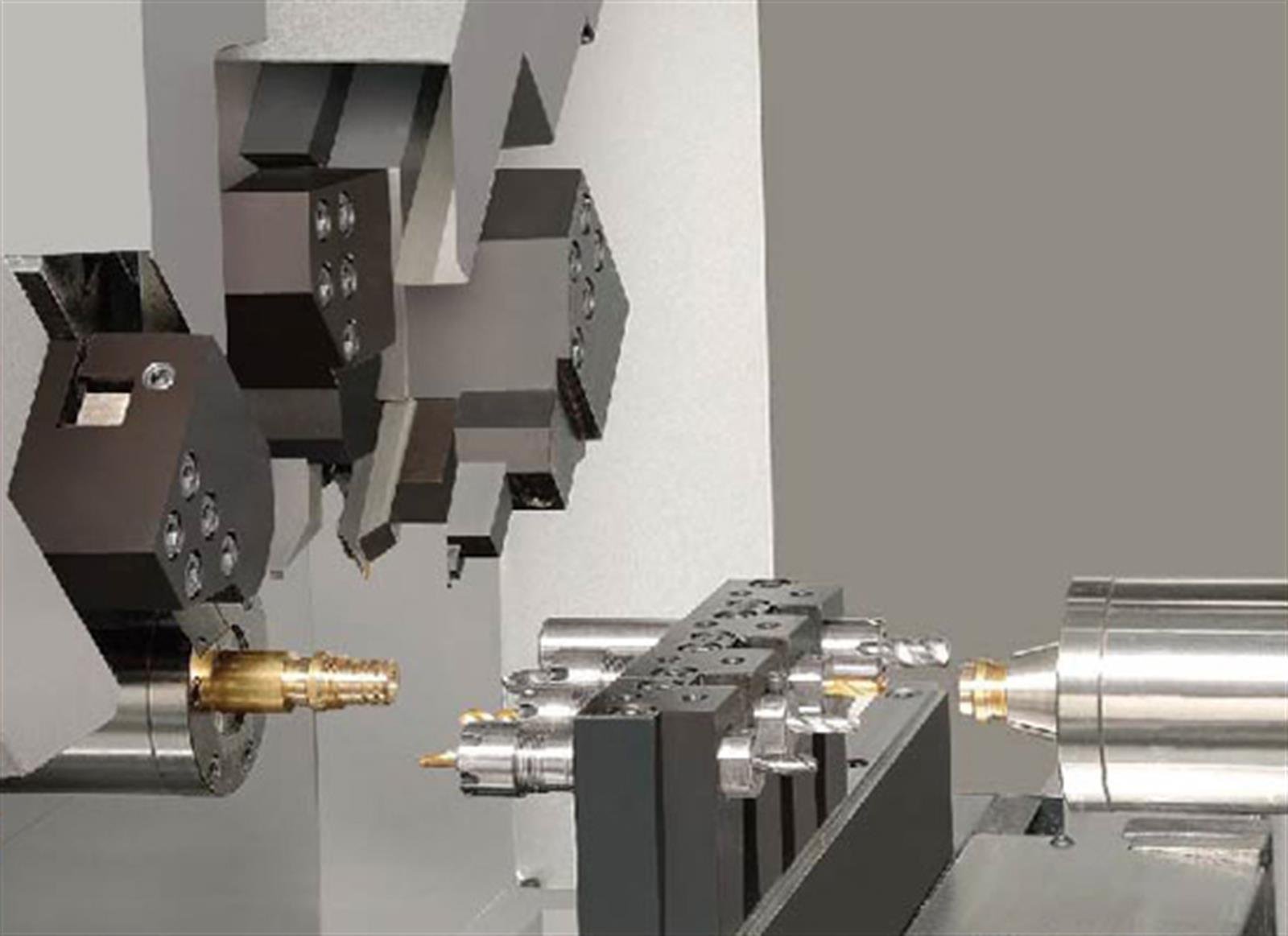

Gang type tool disc configure 4 pcs front boring tool holder
4 pcs back boring tool holder (if options sub-spindle have this accessorie)

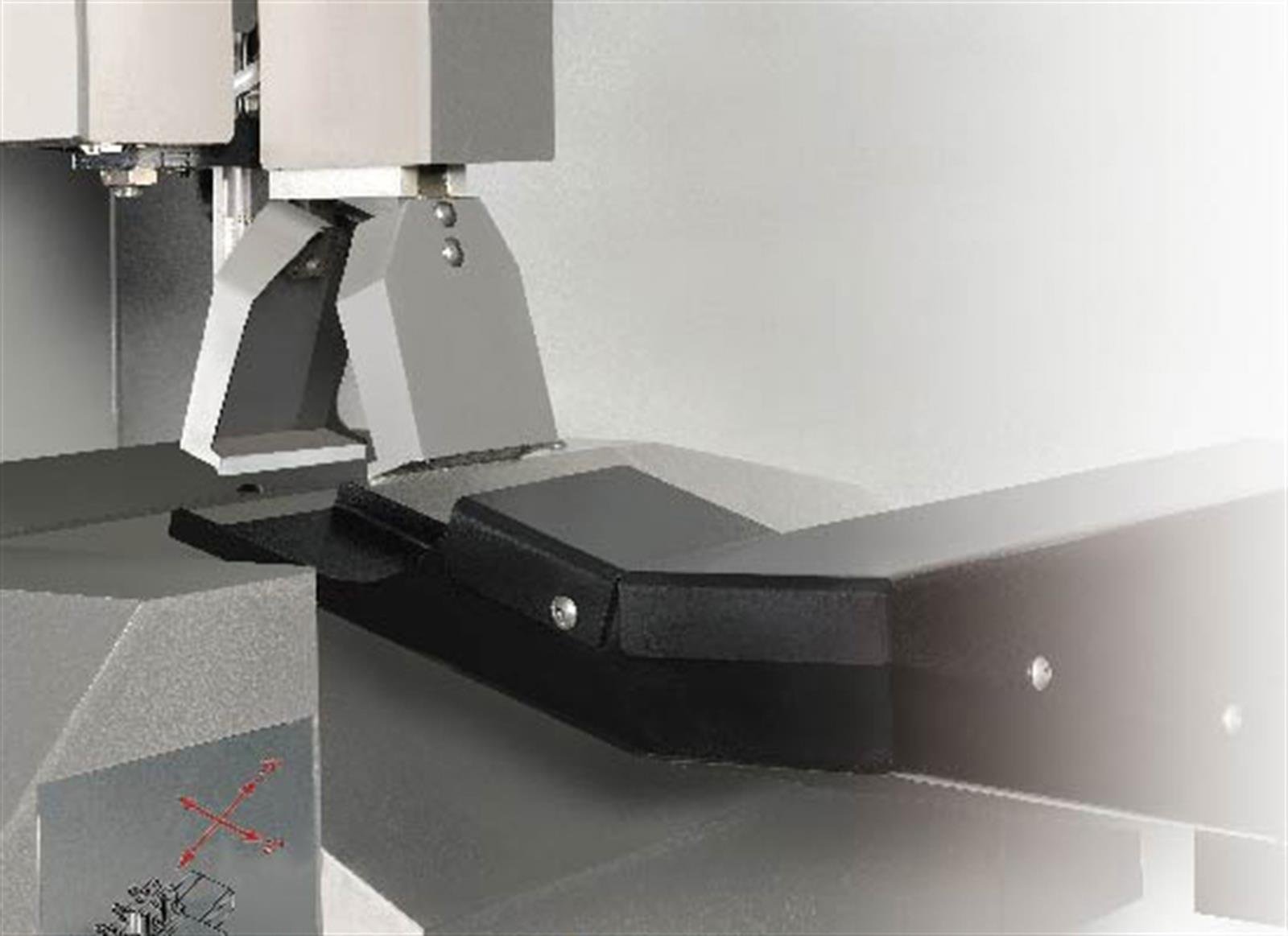

Part catcher for option sub-spindle

ITEMS	Q'TY
Model 25 Collet Chuck (161E)	1 pc
Working Light	1 pc
Tool and Tool Box	1 set
Coolant Device	1 set
Base Blocks	4 pcs
Boring Tool Holder	4 pcs
Tool Holder Bushing 6/8/10/12/16	2 pcs/each

ITEMS	Q'TY
Sub-Spindle	1 pc
Part Catcher (for One Spindle)	1 set
Part Conveyor (for Two Spindle)	1 set
Chip Conveyor	1 unit
Chip Bucket	1 unit

Items	MULTI 25-S
Max. Machining Dia.	Ø26 mm
Max. Machining Length	Bar diameter x3

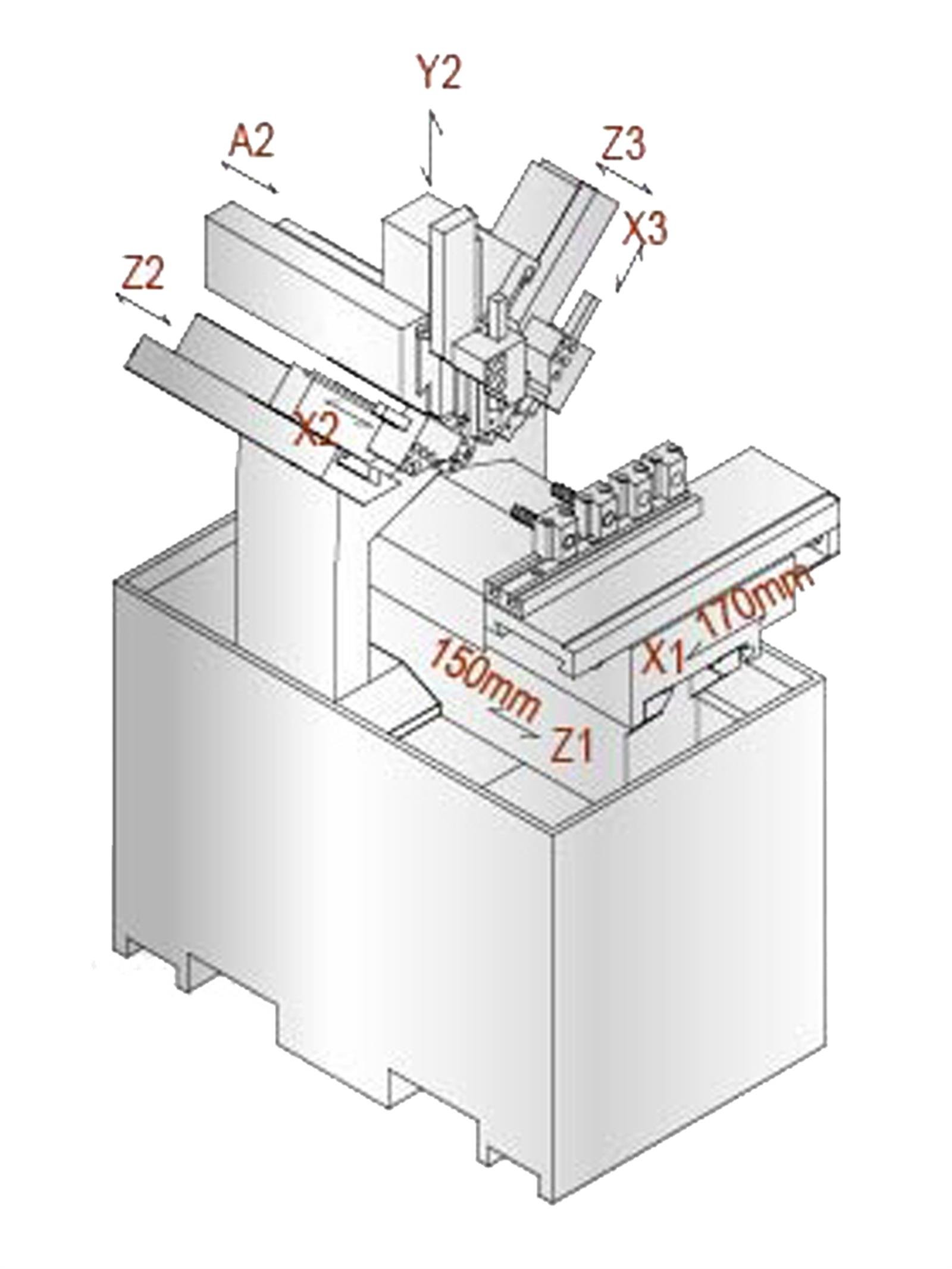

Max. Cross Travel (X Axis)	170 mm
Max. Longitudinal Travel (Z Axis)	150 mm
Bore of Spindle	34 mm
Max. Bar Feeding Dia.	26 mm
Type of Collet	161 E
Spindle Motor	2.2 kw
Spindle Speed Range	100-5,000 r.m.p.
Sub-Spindle Motor (Option)	1.1 kw
Sub-Spindle Speed Range (Option)	100-5,000 r.m.p.
Rapid Traverse Speed (X & Z Axis)	15 m/min
Min. Input Unit	0.001 mm
Cutting Tool Size	□16 mm
Max. Bore Size of Tool	Ø20 mm
X1/Z1/Z2/A2/Z3 Axes Motor	0.75 kw
A3 Axes Motor (Option Sub-Spindle)	0.75kw
X2/Y2/X3 Axes Motor	0.5kw
Number of Multi-Spindle Tools	6 pc
Coolant Pump Motor	1/2 H.P.
Hydraulic Pump Motor	1 H.P.
Machine Size (L x W x H)	1658 x 1362 x 1530 mm

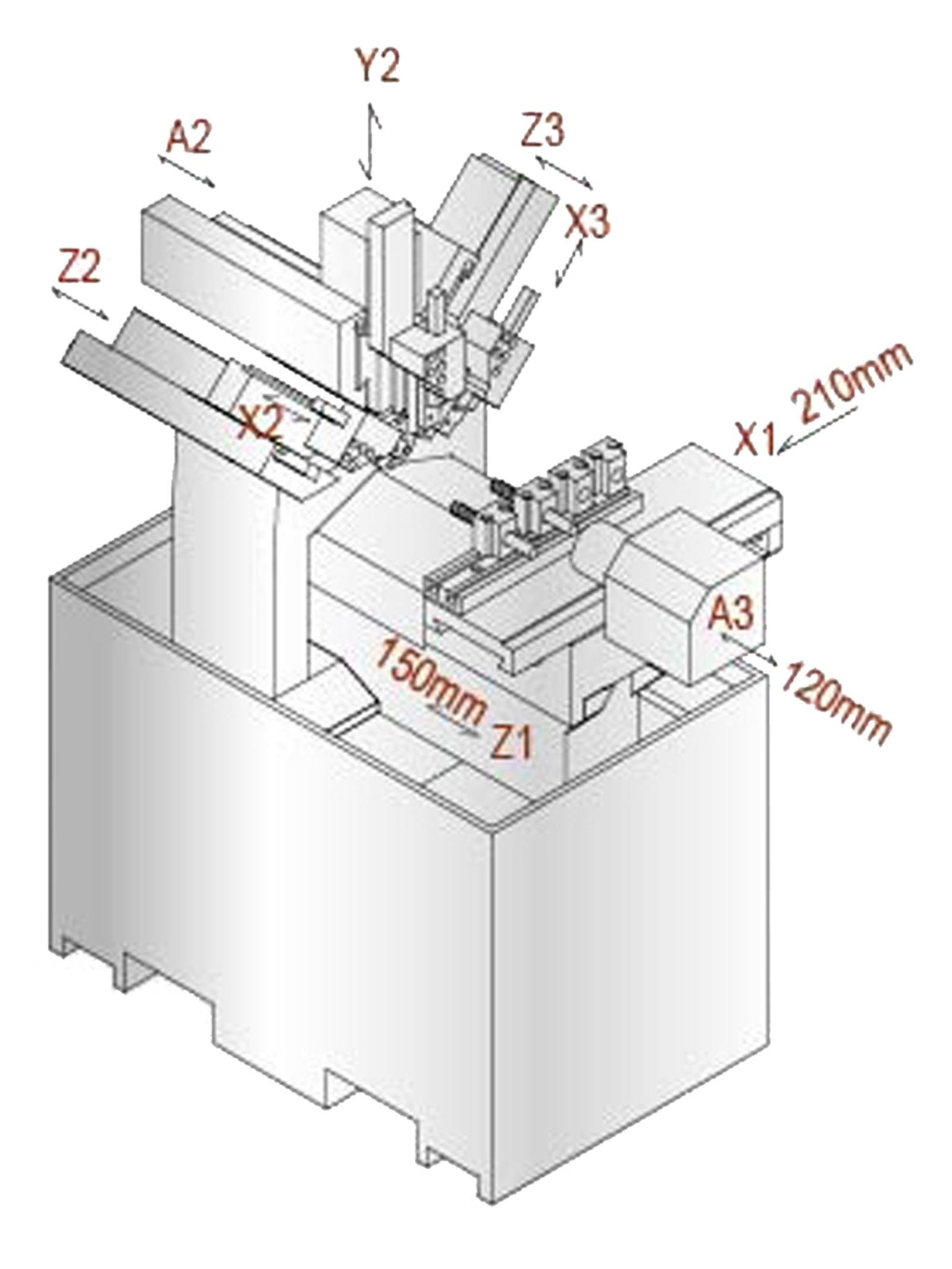

Machine Size-Option Sub-Spindle (L x W x H)	2000 x 1359 x 1657 mm
Machine Net Weight (Without Chip Conveyor)	1320 kgs
Machine Net Weight (Option Sub-Spindle, Without Chip Conveyor)	1980 kgs
