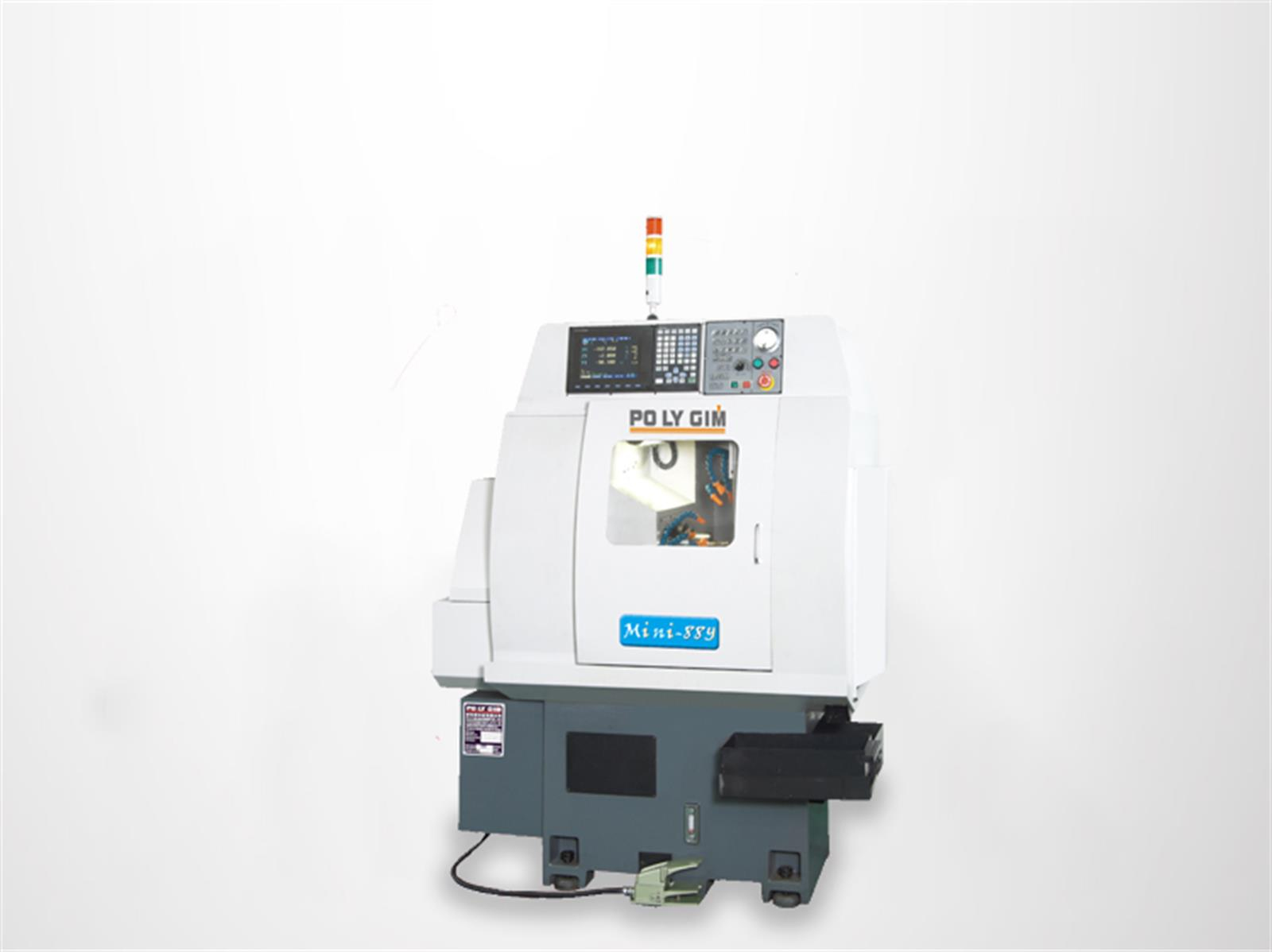

Polygim MINI-88Y Mini CNC Lathe (MINI-88Y)

Brand : Polygim

Stock Amount : 0

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InChina

Min. Order Qty.1 Pcs.

Warranty1 Year

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Lathes

Mini CNC Lathes

The original power turret design is replaced by Y-axis with tool holder design.
It can house :
6 pcs O.D. turning tools
4 pcs I.D. stationary tools
4 pcs cross driven tools
4 pcs front off-center driven tools

Collet chuck (1 pc)
Foot chuck switch (1pc)
Work light (1 pc)
Coolant device (1 set)
Leveling bolts and pads (4 pcs)
Tools and tool box (1 set)
O.D. turning tools (6 pcs)
I.D. stationary tools (4 pcs)
Cross driven tools (4 pcs)
Front off-center driven tools (4 pcs)

CF Axis (1 pc)
Chip conveyor (1 pc)
Chip bucket (1 pc)
Part catcher (1 pc)

Items	MINI-88Y
Max. Machining Dia.	25 mm
Max. Machining Length	Bar diameter x 3
X Axis	165 mm
Z Axis	150 mm
Y Axis	148 mm
Bore of Spindle	34 mm
Bar Capacity	26 mm
Spindle Nose	Ø85 mm
Collet Type	161 E / 25 mm
Spindle Motor	2.2 kw / 3 H.P.
X, Z, Y Axis Motor	0.75 kw
Cross and Front off-Center Driven Tools Motor	0.75 kw
Spindle Speed	100-6000 r.p.m.
Cross Spindle Speed	200-6000 r.p.m.
Front off-Center Driven Tool Speed	200-6000 r.p.m.
Spindle Indexing	5°
Rapid Traverse Speed (X, Z, Y Axis)	12 m/min
Min. Input Unit	0.001 mm
O.D. Tooling	6
O.D. Tool Dimension	□12 X 12 X 100
I.D. Tooling	4
I.D. Tool Dimension	Ø20 mm
I.D. Tool Max. Drilling Dia.	Ø20 mm
I.D. Tool Max. Tapping Dia.	M8
Cross Driven Tooling	4
Cross Driven Tooling Dimension	10 mm (ER16)
Cross Driven Tool Max. Drilling Dia.	Ø10 mm
Cross Driven Tool Max. Tapping Dia.	M8
Front off-Center Driven Tooling	4
Front off-Center Driven Tool Dimension	10 mm (ER16)
Front off-Center Driven Tool Max. Drilling Dia.	Ø10 mm
Front off-Center Driven Tool Max. Tapping Dia.	M8
Coolant Pump	1/2 H.P.
Hydraulic Pump	1/2 H.P.
Dimension	1420 x 1210 x 1710 mm
Weight	1158 kgs
