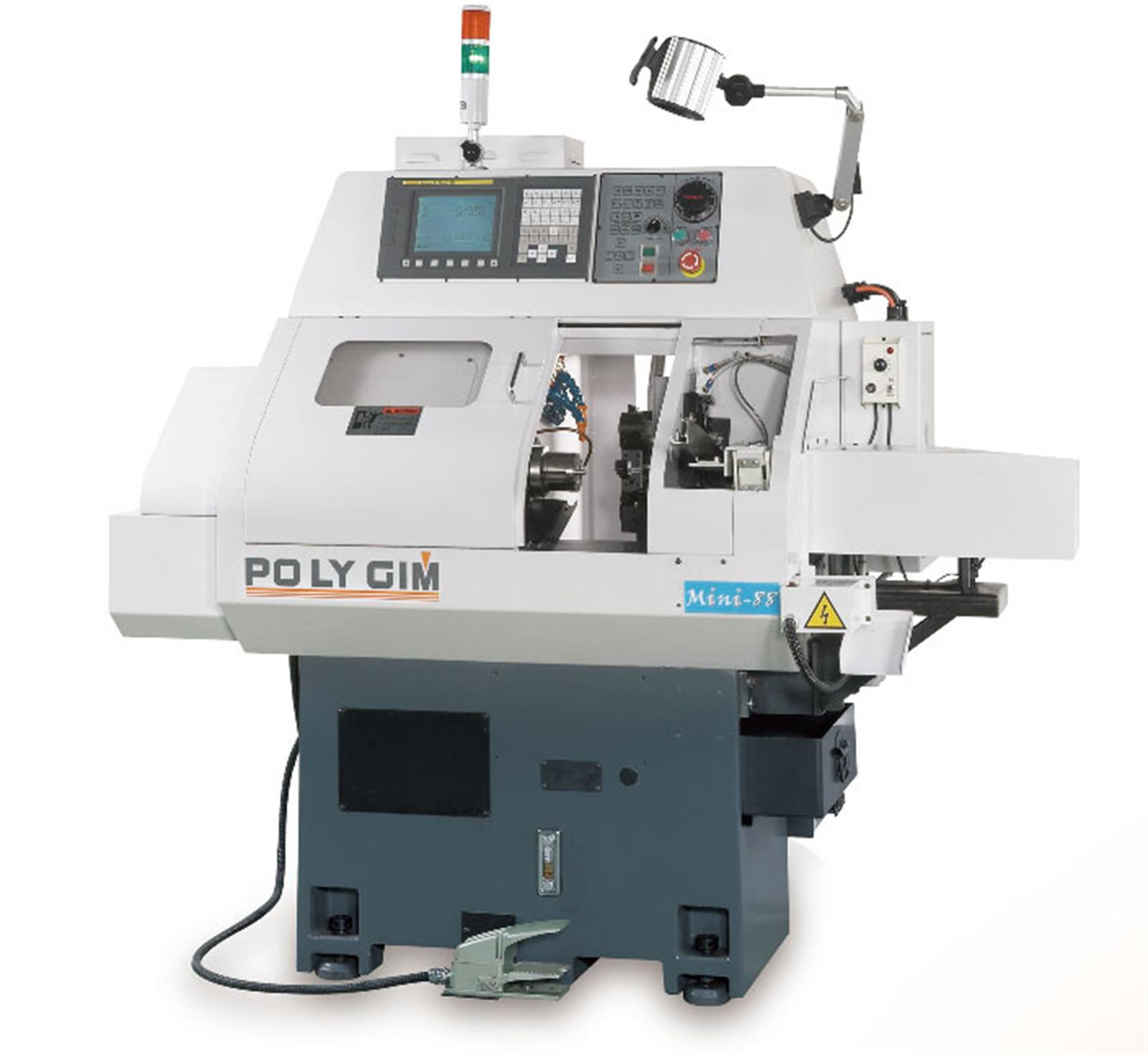

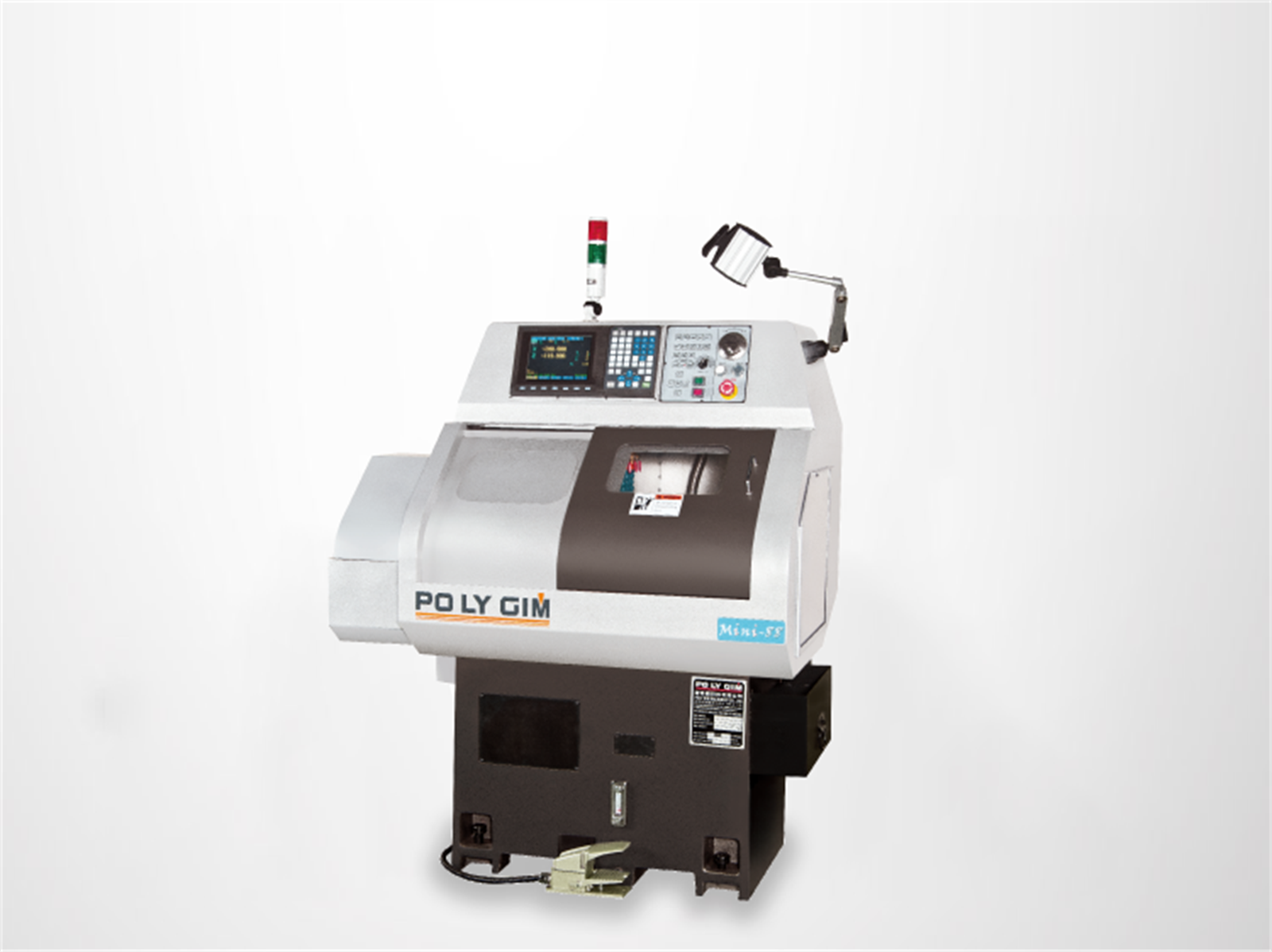

Polygim MINI-88 Mini CNC Lathe (MINI-88)

Brand : Polygim

Stock Amount : 0

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InChina

Min. Order Qty.1 Pcs.

Warranty1 Year

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Lathes

Mini CNC Lathes

Mini CNC Lathe | MINI-88-20
MINI-88-20 is equipped with built-in motor, air pneumatic collet chuck and gang type tool holder. It can house a maximum of 8 tools, which increases the turning efficiency. Besides, it features robot system(automated design)and sliding head design that make your working process more smooth.

ITEMS	MINI-88
Model 25 Collet Chuck (161E)	1 pc
Model 20 Collet Chuck (148E)	-
Foot Chuck-Swutch	1 pc
Work Light	1 pc
Tool and Tool Box	1 set
Coolant Device	1 set
Base Blocks	4 pcs
Tool Holder Up Base	2 pcs
Tool Holder Down Base	2 pcs
I.D. Stationary Tool Holder	4 pcs
Tool Holder Bushing	6/8/10/12/16 mm 2 pcs / each

ITEMS		88
Servo 8-Position Turret	1 pc	✓
3 Jaws Chuck	1 pc	✓
Part Catcher	1 set	✓
Chip Conveyor	1 unit	✓
Chip Bucket	1 unit	✓

Items	MINI-88
Max. Machining Dia.	60 mm (with chuck) 26 mm (with collet chuck)
Max. Machining Length	Bar diameter x 3
Swing Over Cross Slide	120 mm
Max. Cross Trave (X Axis)	170 mm
Max. Longitudinal Travel (Z Axis)	170 mm
Bore of Spindle	34 mm
Max. Bar Feeding Dia.	26 mm
Spindle Nose	Ø85 mm
Hydraulic Chuck	4"
Spindle Motor	2.2 kw / 3 H.P.
Spindle Speed Range	100-5000 r.p.m.
Rapid Traverse Speed (X & Z Axis)	15 m/min
Min. Input Unit	0.001 mm
Cutting Tool Size	16 mm
Max. Bore Size of Tool	Ø20 mm
Coolant Pump Motor	1/4 H.P.
Machine Dimension (L x W x H)	1200 x 1000 x 1500 mm
Machine Net Weight	1058 kgs
