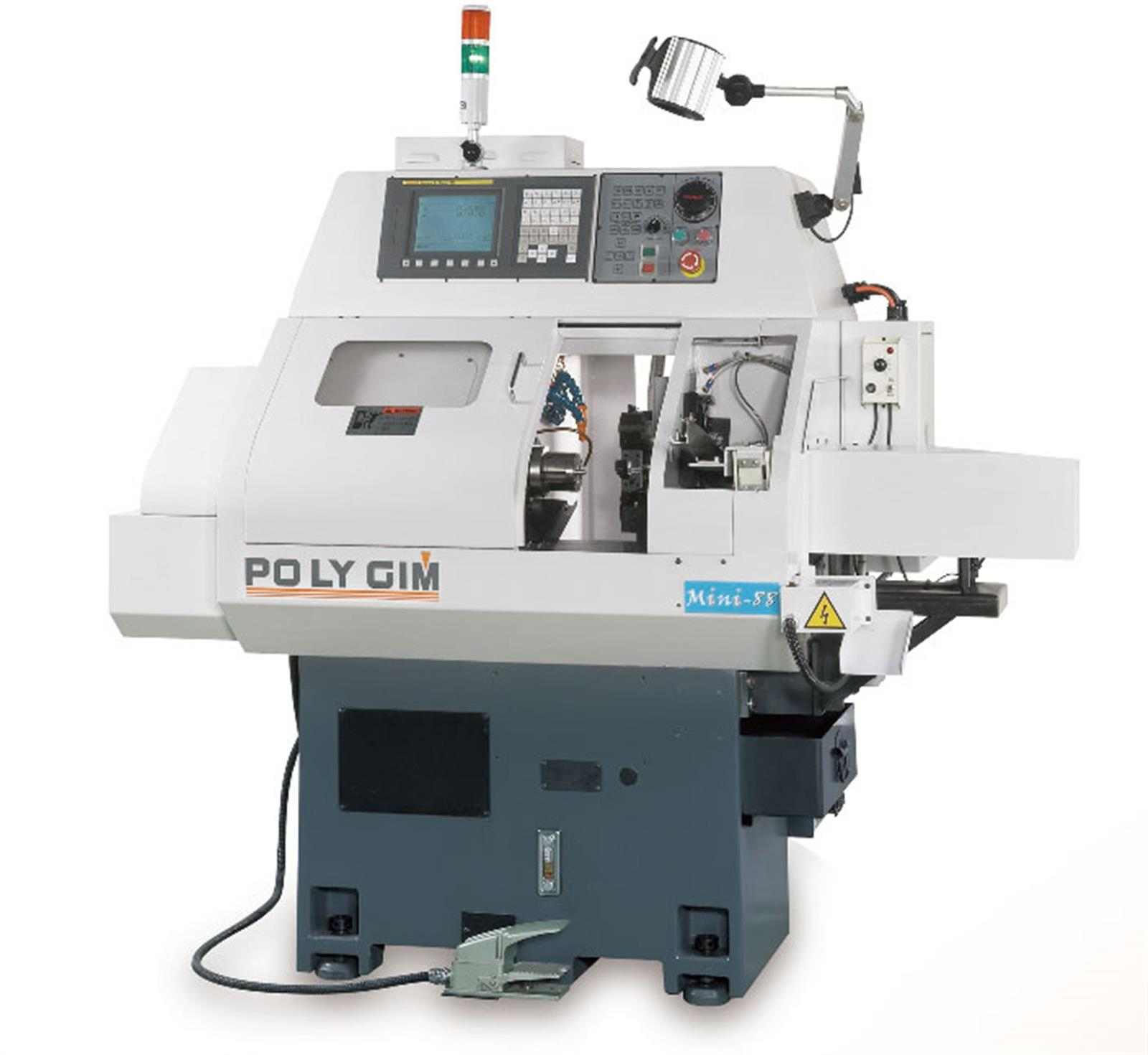

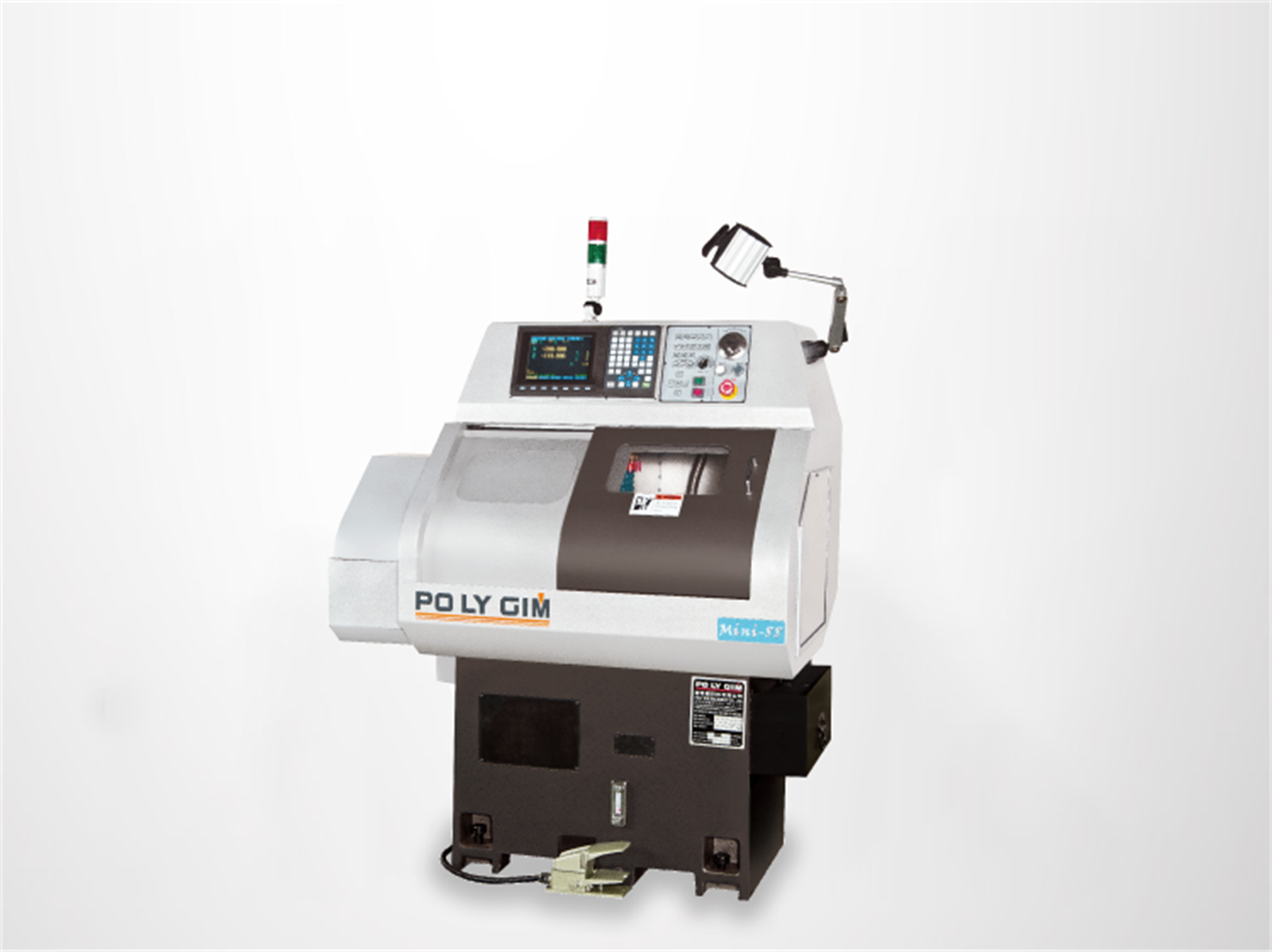

Polygim MINI-88-20 Mini CNC Lathe (MINI-88-20)

Mini CNC Lathe | MINI-88-20
MINI-88-20 is equipped with built-in motor, air pneumatic collet chuck and gang type tool holder. It can house a maximum of 8 tools, which increases the turning efficiency. Besides, it features robot system(automated design)and sliding head design that make your working process more smooth.

ITEMS	MINI-88-20
Model 25 Collet Chuck (161E)	-
Model 20 Collet Chuck (148E)	1 pc
Foot Chuck-Swutch	-
Work Light	1 pc
Tool and Tool Box	1set
Coolant Device	1 set
Base Blocks	4 pcs
Tool Holder Up Base	1 pcs
Tool Holder Down Base	1 pcs
I.D. Stationary Tool Holder	1 set
Tool Holder Bushing	6/8/10/12 mm
	2 pcs / each

ITEMS		MINI-88-20
Servo 8-Position Turret	1 pc	-
3 Jaws Chuck	1 pc	-
Part Catcher	1 set	✓
Chip Conveyor	1 unit	✓
Chip Bucket	1 unit	✓

Items	MINI-88-20
Max. Machining Dia.	21 mm
Max. Machining Length	Bar diameter x 3
Swing Over Cross Slide	120 mm
Max. Cross Trave (X Axis)	170 mm
Max. Longitudinal Travel (Z Axis)	170 mm
Bore of Spindle	23 mm
Max. Bar Feeding Dia.	21 mm
Spindle Nose	-
Hydraulic Chuck	-
Spindle Motor	2.2 kw / 3 H.P.
Spindle Speed Range	100-8000 r.p.m.
Rapid Traverse Speed (X & Z Axis)	15 m/min
Min. Input Unit	0.001 mm
Cutting Tool Size	16 mm
Max. Bore Size of Tool	Ø16 mm
Coolant Pump Motor	1/4 H.P.
Machine Dimension (L x W x H)	1100 x 1000 x 1500 mm
Machine Net Weight	1008 kgs
