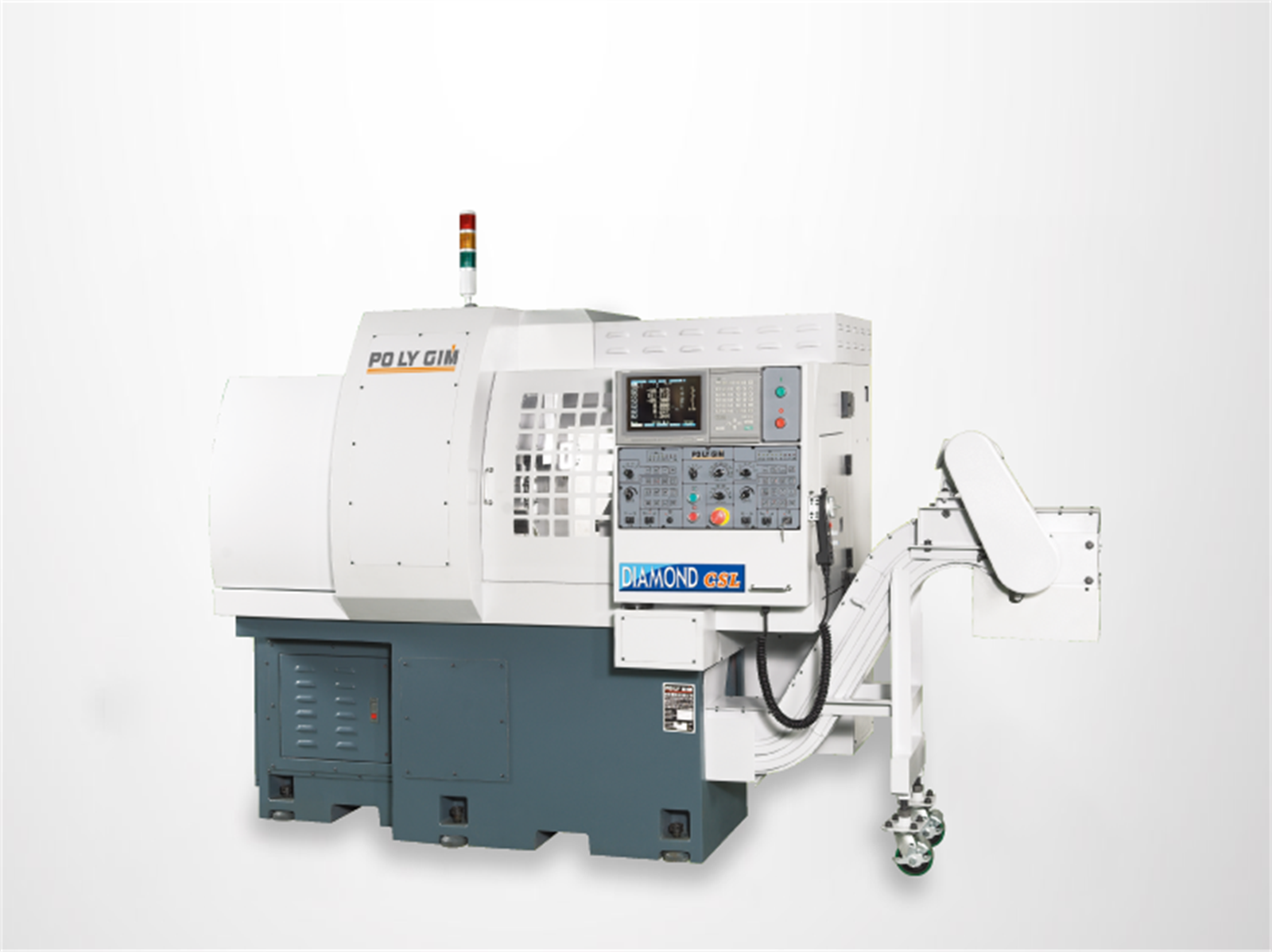

Polygim DIAMOND CSL 12-2Y Swiss Type CNC Lathe

Machine Features:

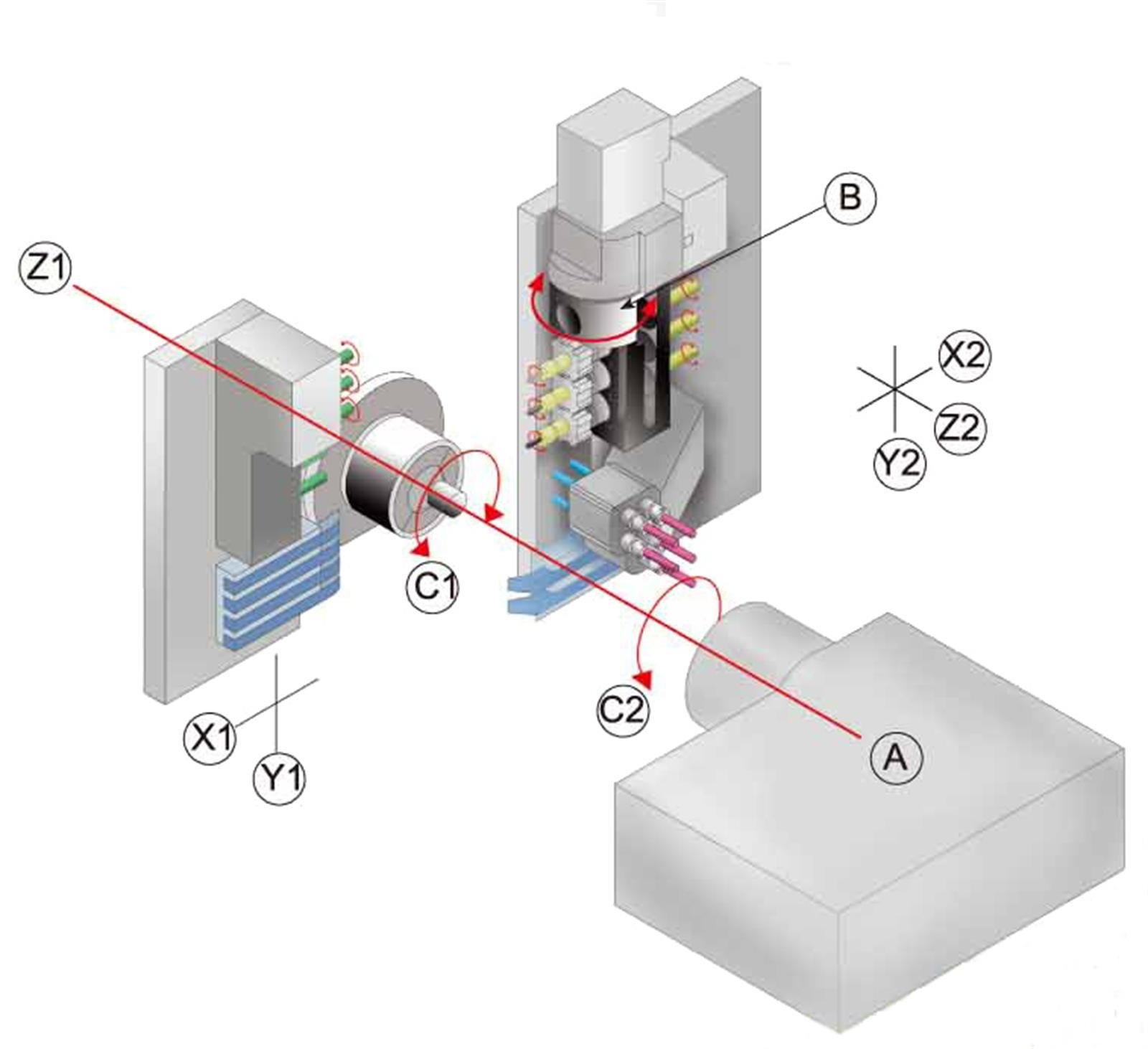

Po Ly Gim introduces the smallest Swiss type CNC lathe: the Diamond CSL 12-2Y. With a 12mm bar capacity and up to 10 working  axes, the Diamond CSL 12-2Y is not only compact in size, it also has superb capabilities. Among its unique features are the two Y-axes and six fully programmable (360°) tools that work on both the main and sub-spindle, making the Diamond CSL 12-2Y suitable for producing small electronic parts. It is also capable of doing milling and turning.

Main spindle
Sub-spindle
Working light
Coolant system
Part off detective sensor
Fixed bushing
Part catcher
6 pcs O.D. turning tool holder
5 pcs front I.D. stationary tool holder
5 pcs back I.D. stationary tool holder

5 pcs cross working driven tool holder
6 pcs 360° automatic rotary driven tool holder
CS axis (0.001° orientation)
Live bushing
Rough material bushing
(Max. machining = Bar dimmeter x3)
Chip conveyer
Chip bucket

Items		Y1	Y2
Working Range	Max. Machining Dia.	Ø12.7 mm
	Max. Machining Length Per Chucking	143 mm
	Max. Drilling Capacity	Ø7 mm
	Max. Tapping Capacity	M6
Tooling System	O.D. Turning Tooling	4	2
	O.D. Turning Tool Dimension	□10  x10 x 100	□10 x 10 x 100
	I.D. Tool	5	5
	I.D. Tool Dimension	7 mm (ER11)
	Cross Tool (Power - Driven Tool)	5
	Cross Tool Dimension	7 mm (ER11)
	Cross Tool Speed	200~6000 r.p.m.
	360° Automatic Rotary Driven Tool		6
	360° Automatic Rotary Driven Tool  Dimension		10 mm (ER16) x3 7 mm (ER11) x3
	360° Automatic Rotary Driven Tool Speed		200~6000 r.p.m.
Spindle	Spindle Hole Dia.	Ø13 mm
	Spindle Speed	200~10,000 r.p.m.
Sub-Spindle	Sub-Spindle Hole Dia.		Ø13 mm
	Sub-Spindle Speed		200~10,000 r.p.m.
	Sub-Spindle Max. Drilling Capacity.		Ø7 mm
	Sub-Spindle Max. Tapping Capacity.		M6
Rapid Speed	A Axis		30 m/min
	X1, Z1 Axis	30 m/min
	Y1 Axis	30 m/min
	X2, Y2, Z2 Axis		30 m/min
Motor	Main Spindle (M65/700)	1.5 kw / 2.2 kw
	Sub-Spindle (M65/700)		1.5 kw / 2.2 kw
	Y1, Y2 Axis	1.0 kw	1.0 kw
	A, X1, X2, Z1, Z2 Axis	0.75 kw	0.75 kw
	B Axis		0.4 kw
	Rotary Tools / B Axis Rotary Tools	0.4 kw	0.4 kw
	Coolant Pump	1 H.P.
	Lubrication	25 W
Machine Dimensions	Center Height	1050 mm
	Weight	2580 kg
	Dimension	2500 x 1200 x 1800 mm
Air Pressure	Air Pressure	5 kg /cm
	Air Supply	10 L /min
