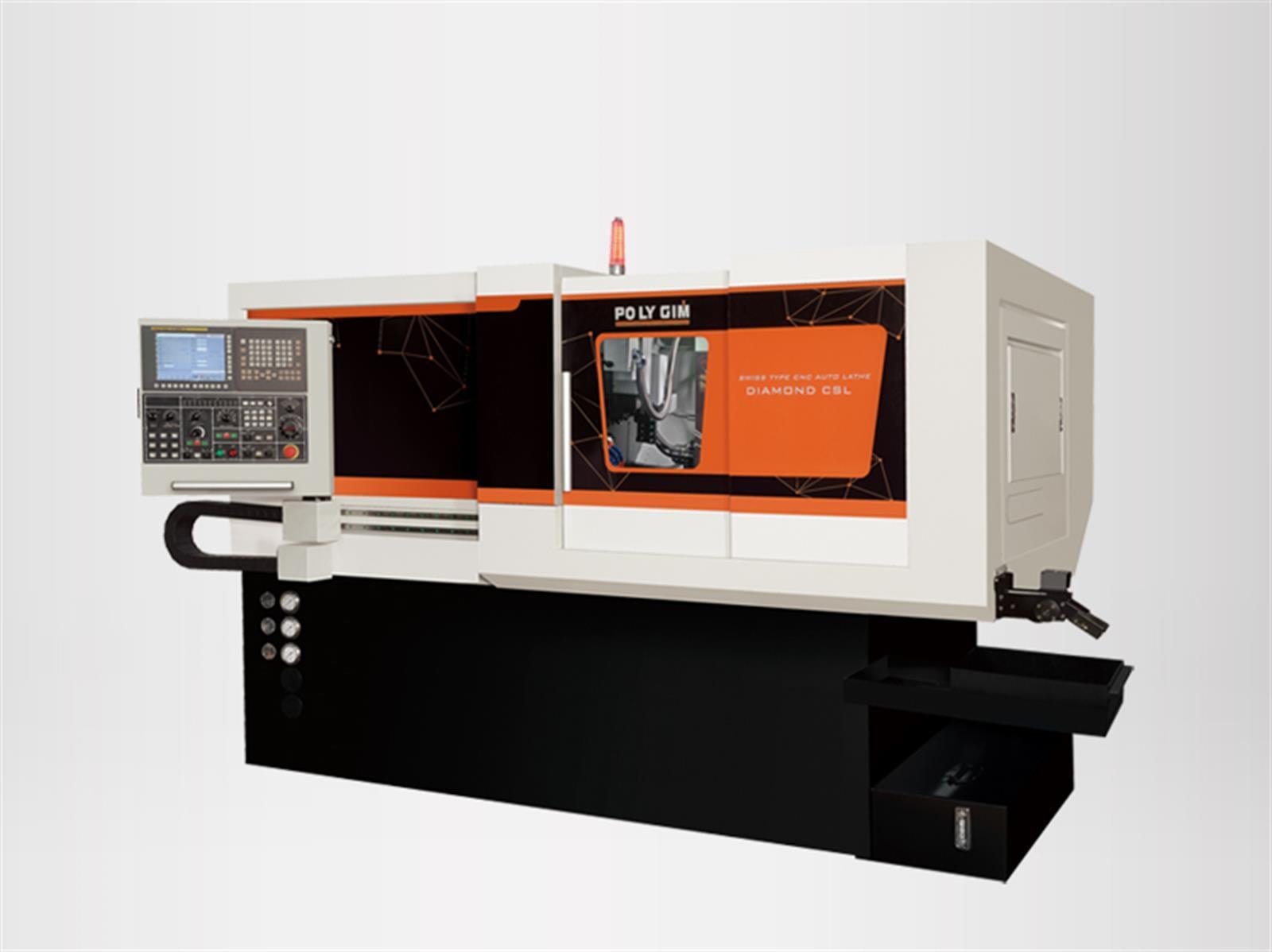

Csl Series Swiss Type Cnc Lathe Features For Sliding Head Turning

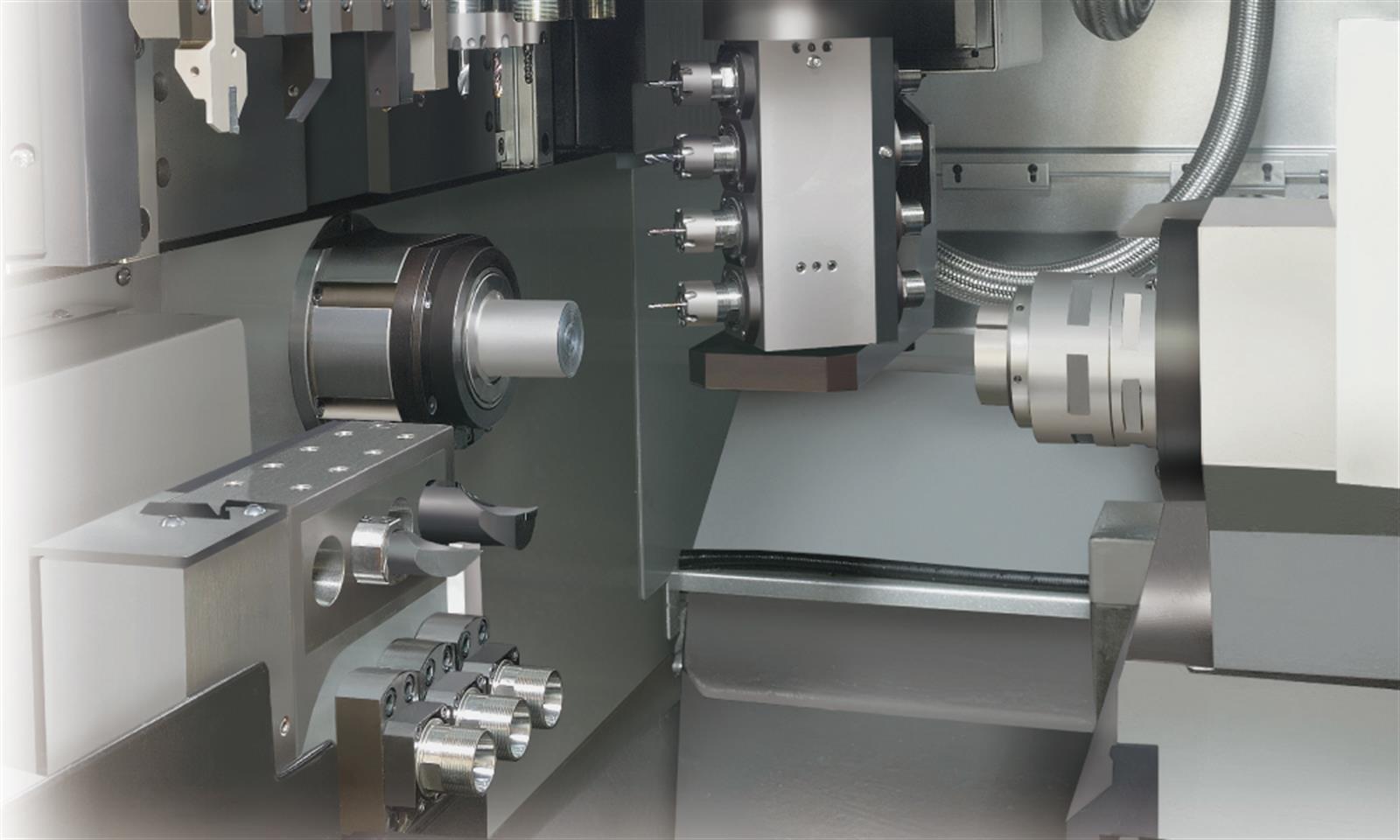

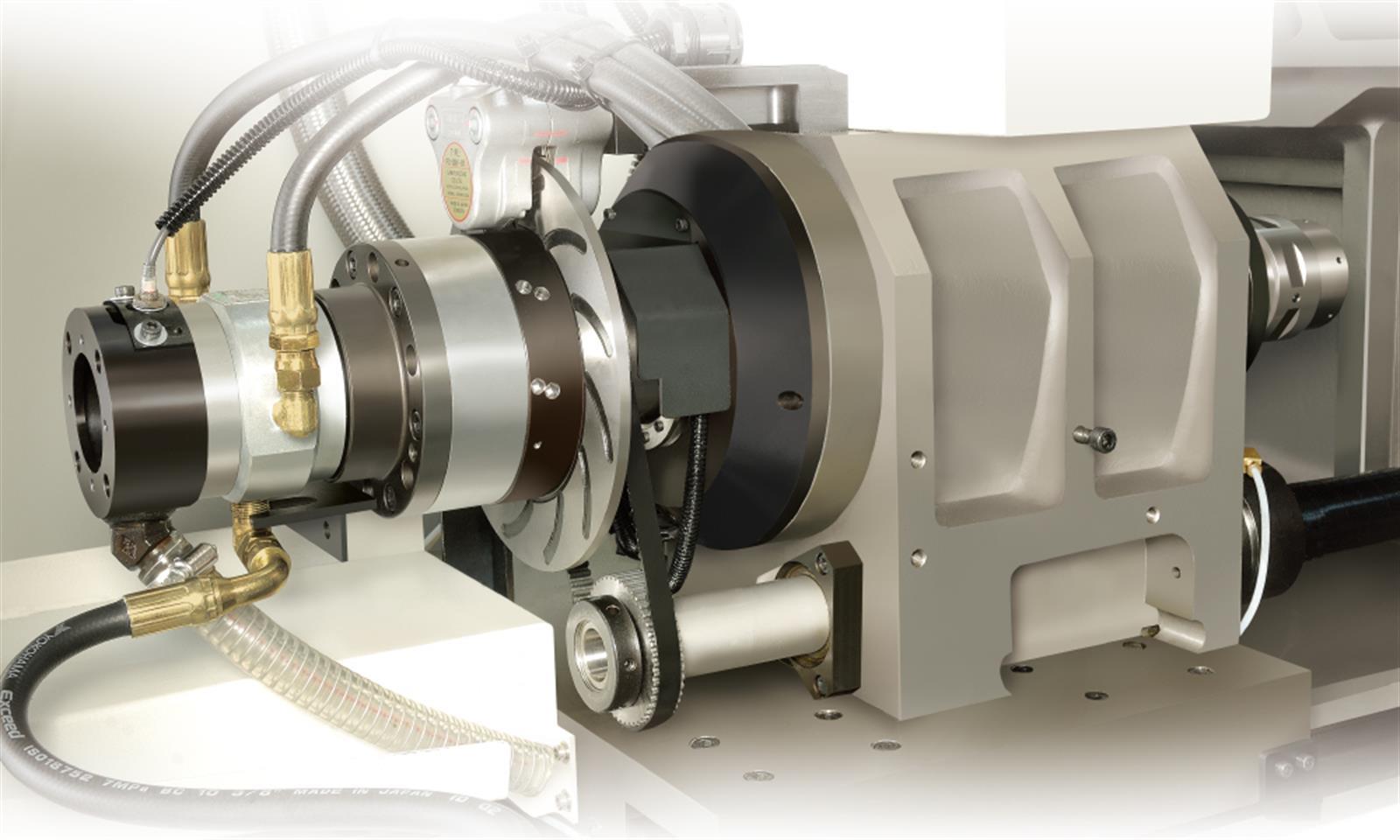

The CSL series Swiss type CNC lathe has a main spindle that is equipped with a built-in motor and comes standard with a C axis. A high-resolution CS axis is optional. This motor setup lays the foundation for high-precision sliding head turning operations. The sub-spindle on this Swiss type CNC lathe is equipped with a servo motor with a standard 5 degree indexing accuracy. Here aC-axis is optional for more variety during sliding head turning. There are 2 fixed and 2 power drills on the tool holder beside the sub-spindle, which can move forward and backward. It is suitable for deep hole processing.

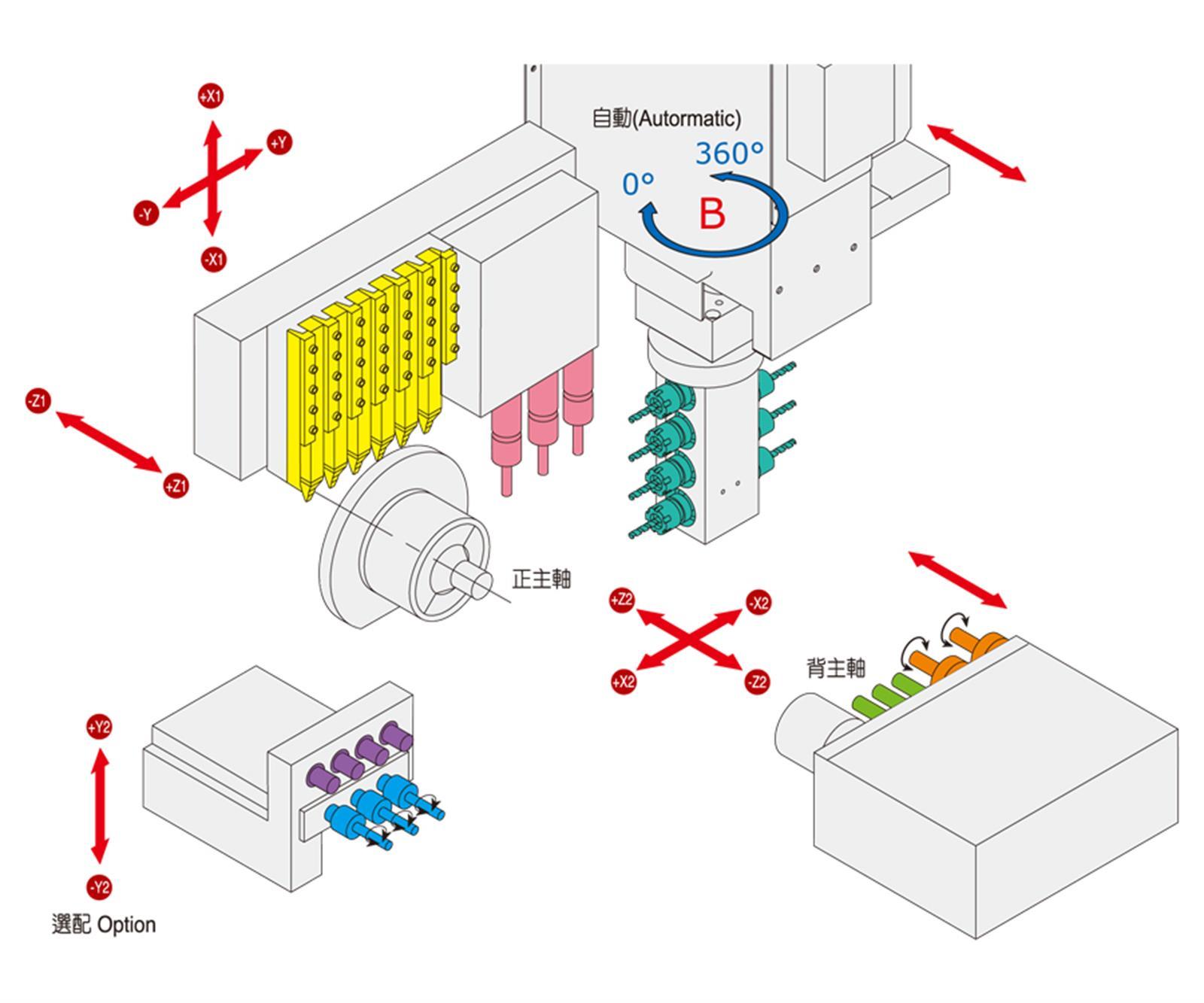

The CSL Series Swiss type CNC lathe is also equipped with cross spindle and bevel driven tool holes that will help you to do drilling, milling and tapping on the cross side and bevel which is essential for sliding head turning processing. Thanks to the cross travel sub-spindle design, the main and sub-spindle can work either one at a time or simultaneously for reduced machining duration. This design allowed for multi-functional front and rear machining.The B-axis bevel driven tool holder can be rotated 360 degrees to facilitate bevel drilling, milling and tapping with the main and rear spindle.
Swiss Type CNC Lathe Sliding Head Turning Applications
The biggest advantage of a Swiss type CNC lathe that performs sliding head turning is the ability to machine high-precision, long and slender parts, such as automotive components, medical equipment, optical instruments, aerospace devices, watches, and jewelry.
