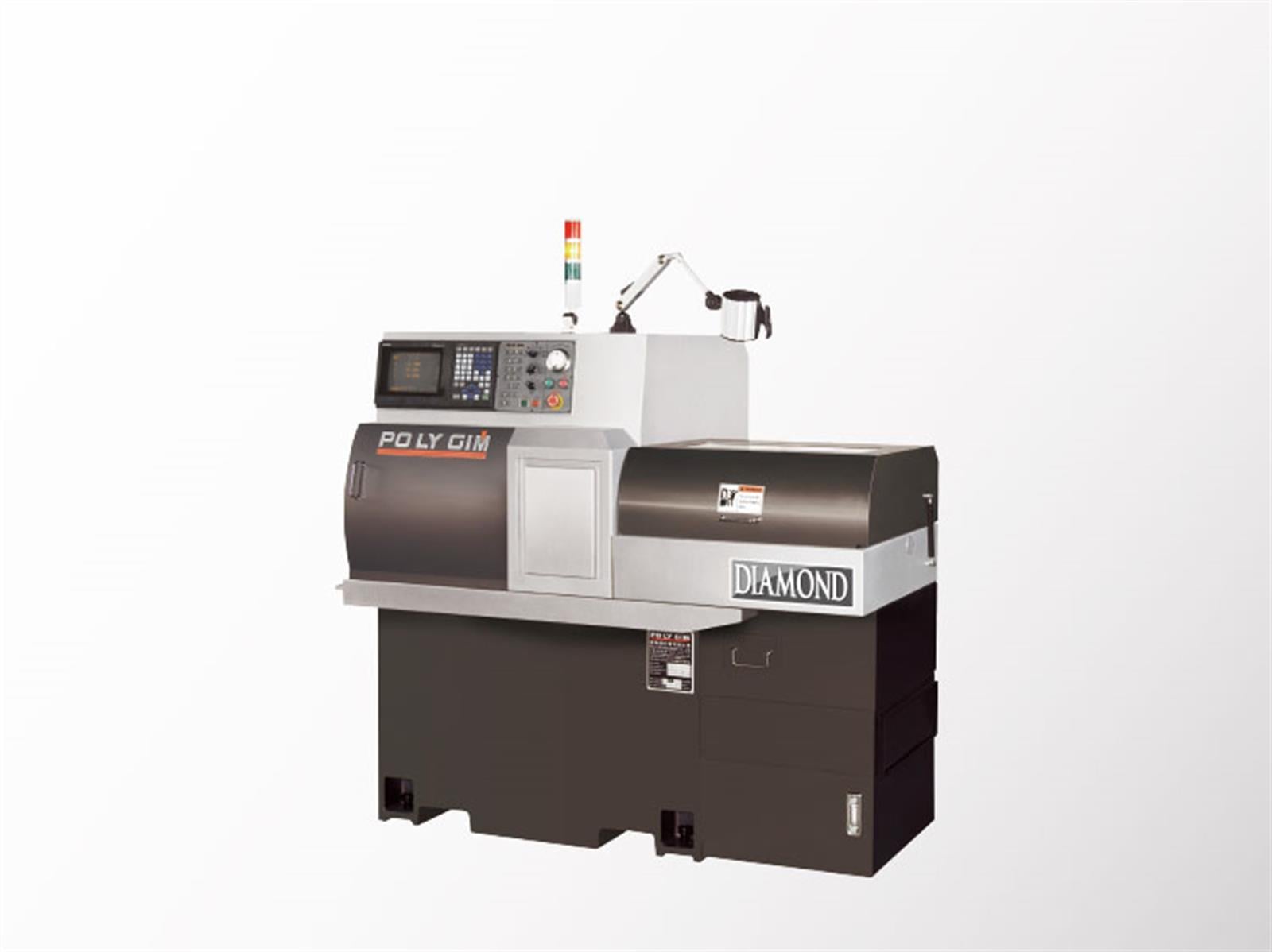

Polygim DIAMOND 12 Swiss Type CNC Lathe (DIAMOND 12)

Brand : Polygim

Stock Amount : 0

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InChina

Min. Order Qty.1 Pcs.

Warranty1 Year

Notify me when the price goes down

Notify me when it is in stock

Lathes

Swiss Type CNC Lathe

Short Remnant Material
With the optional Rough Material Bushing, the remnant material can be 50mm (depending on the parts length).
Raw Material Machining
0.1mm material tolerance can be achieved by using the Rough Material Bushing.

Main spindle C axis indexing	Not Available
Part off detective sensor	Standard
Coolant system	Standard
Working light	Standard
Part catcher	Standard
Chip tray	Standard
Fixed bushing	Standard
Cross working driven tool holder	Not Available
Front off-center driven tool holder	Not Available
(The optional simple sub-spindle does not have this configuration)	Not Available
Main spindle CS axis 0.01° indexing	Not Available

Main spindle C axis indexing	Not Available
Cross working driven tool holder	Not Available
Front off-center driven tool holder	Not Available
(The optional simple sub-spindle does not have this configuration)	Not Available
Main spindle CS axis 0.01° indexing	Not Available
Rough material bushing	Optional
Live Bushing	Optional
Simple sub-spindle	Optional
(rear clamping device)	Optional
Chip conveyor + bucket	Optional
(Only with simple sub-spindle has this option)	Optional

ITEMS		DIAMOND 12
Working Rang	Max. Machining dia.	Ø12.7 mm
	Max. machining length per chucking	145 mm
	Max. drilling dia.	Ø7 mm
	Max. tapping dia.	M6
O.D Tooling	Number of tools	6
O.D Tooling	Dimension	□10 ×10 ×100
I.D. Tooling	Number of tools	4
I.D. Tooling	Dimension	7 mm (ER11)
Cross Working Driven Tooling	Number of tools	-
	Dimension	-
	Speed	-
Front Working Driven Tooling	Number of tools	-
	Dimension	-
	Speed	-
Main Spindle	Spindle hole dia.	Ø13 mm
	Spindle speed	200- 8,000 r.p.m.
	Spindle indexing angle	-
Rapid Traverse	X1, Y1, Z1 axes	30 M
Motors	Main spindle motor	2.2 kW
	X1, Y1, Z1 axes motor	1 kW
	Coolant pump	1/4 HP
	Lubrication	4 w
	Driven tools motor	-
Machine Dimensions	Center height	1050 mm
	Weight	1188 kg
	Machine dimension	1200 x 900 x 1750 mm
Air Pressure	Air pressure	5 kg/cm
Air Pressure	Air supply	10 L/min

OPTIONAL		DIAMOND 12
Simple Sub-spindle(Rear Clamping Device)	Simple sub-spindle motor	1 kW
	Simple sub-spindle speed	3000 rpm
	Z2 axis motor	1 kW
	Z2 axis rapid traverse	18 M
	Number of back I.D Tools	4
	Dimension of back I.D Tools	7 mm (ER11)
	Machine weight	1350 kg
	Dimension	1882 x 1246 x 1860 mm
