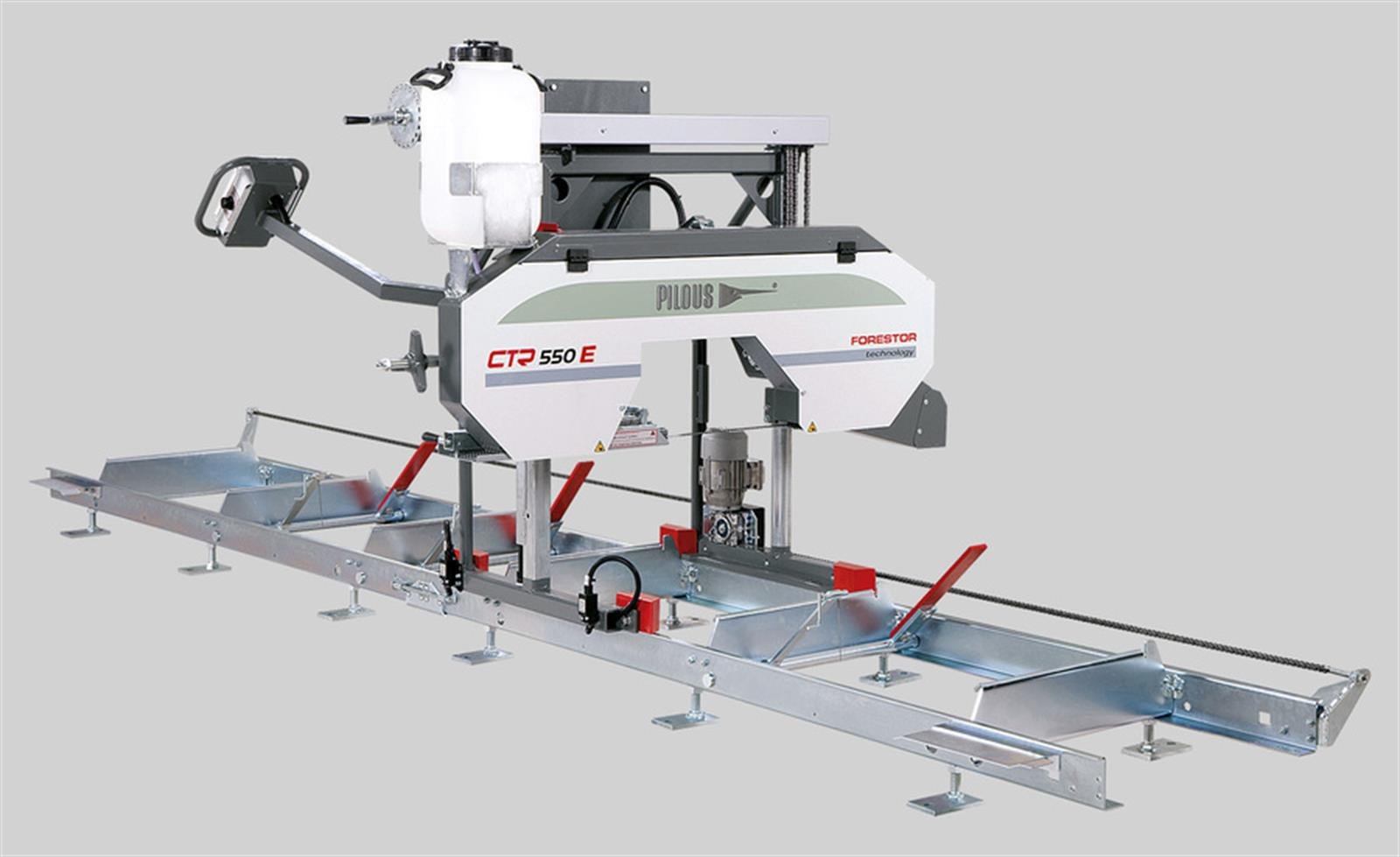

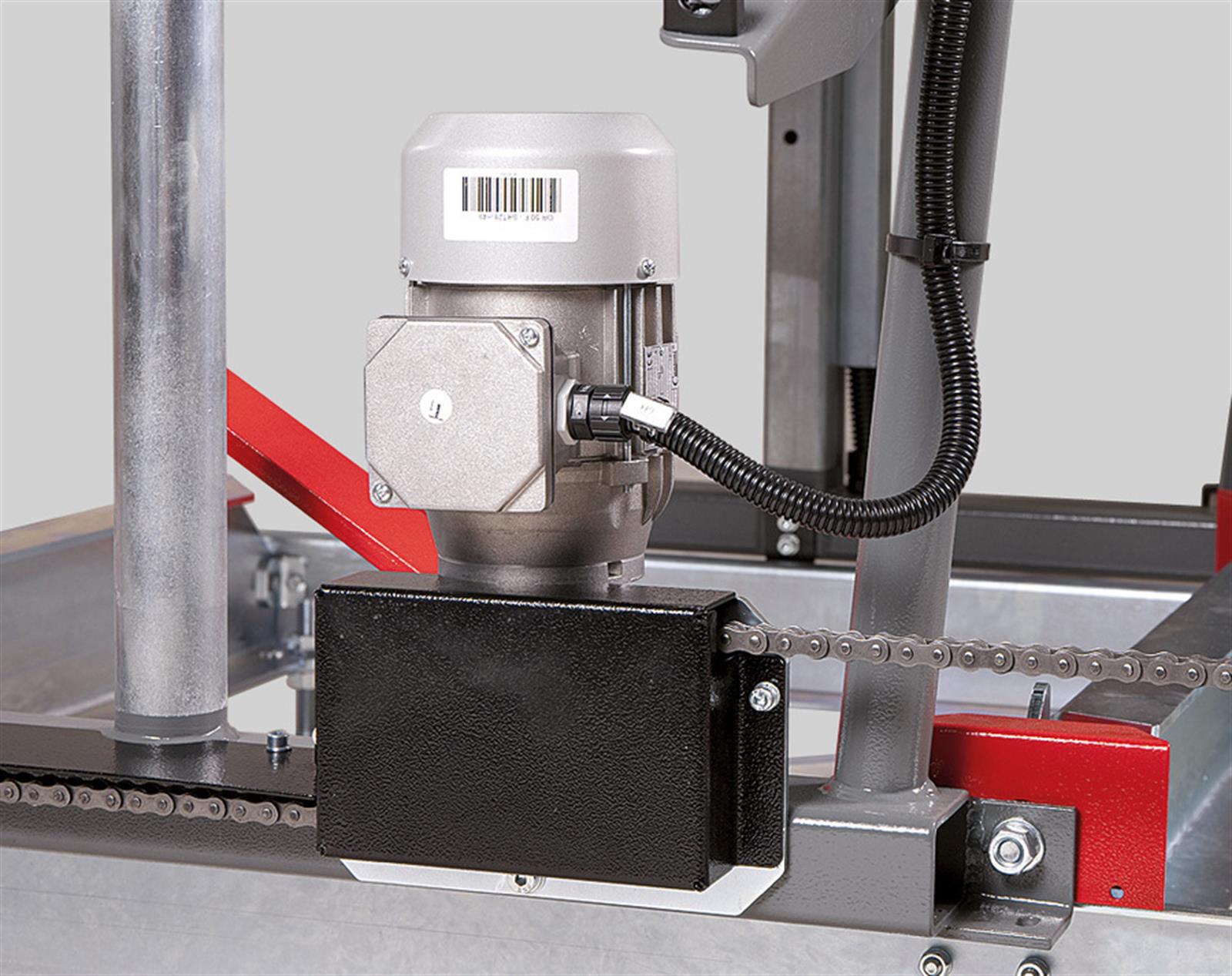

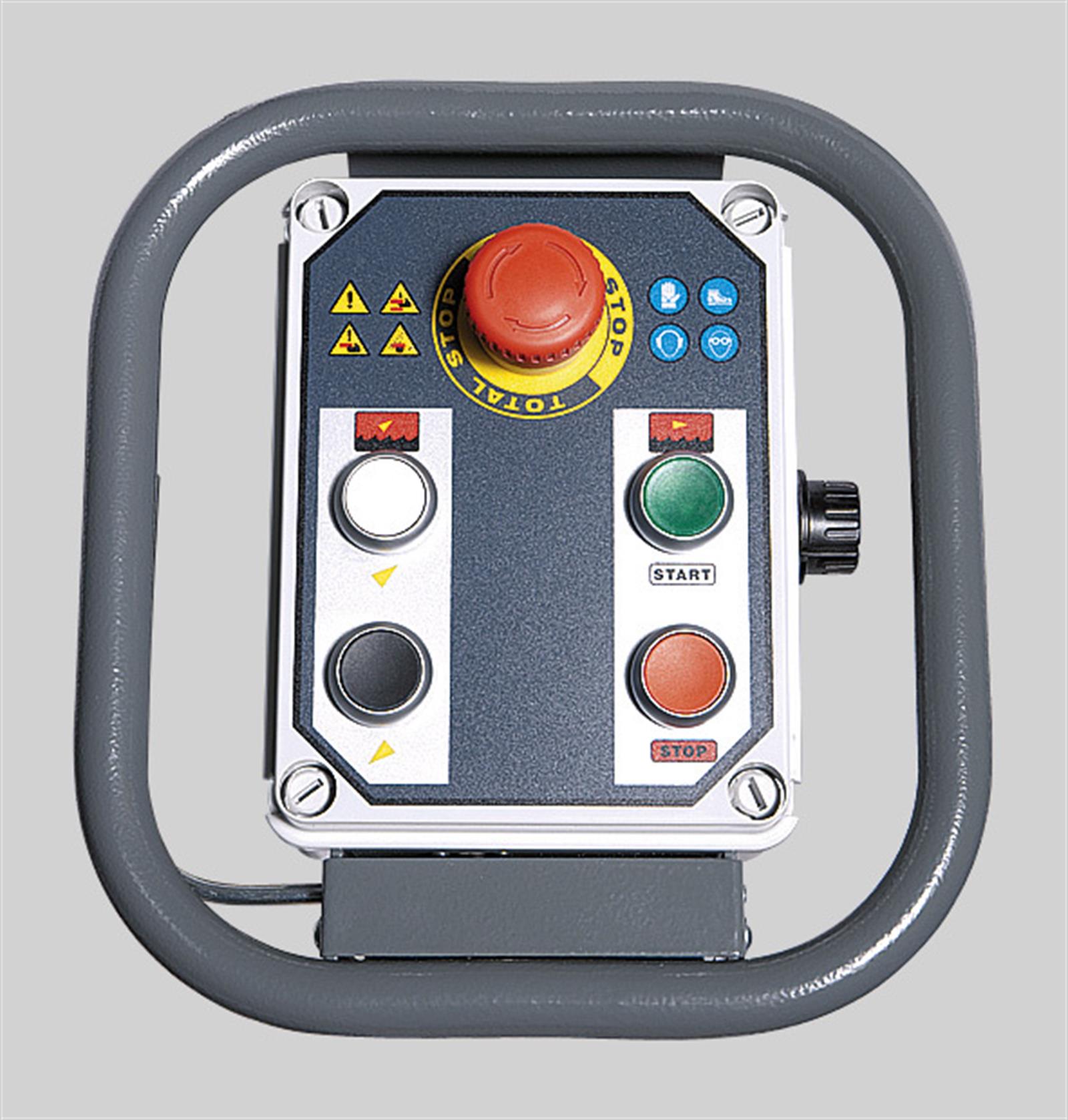

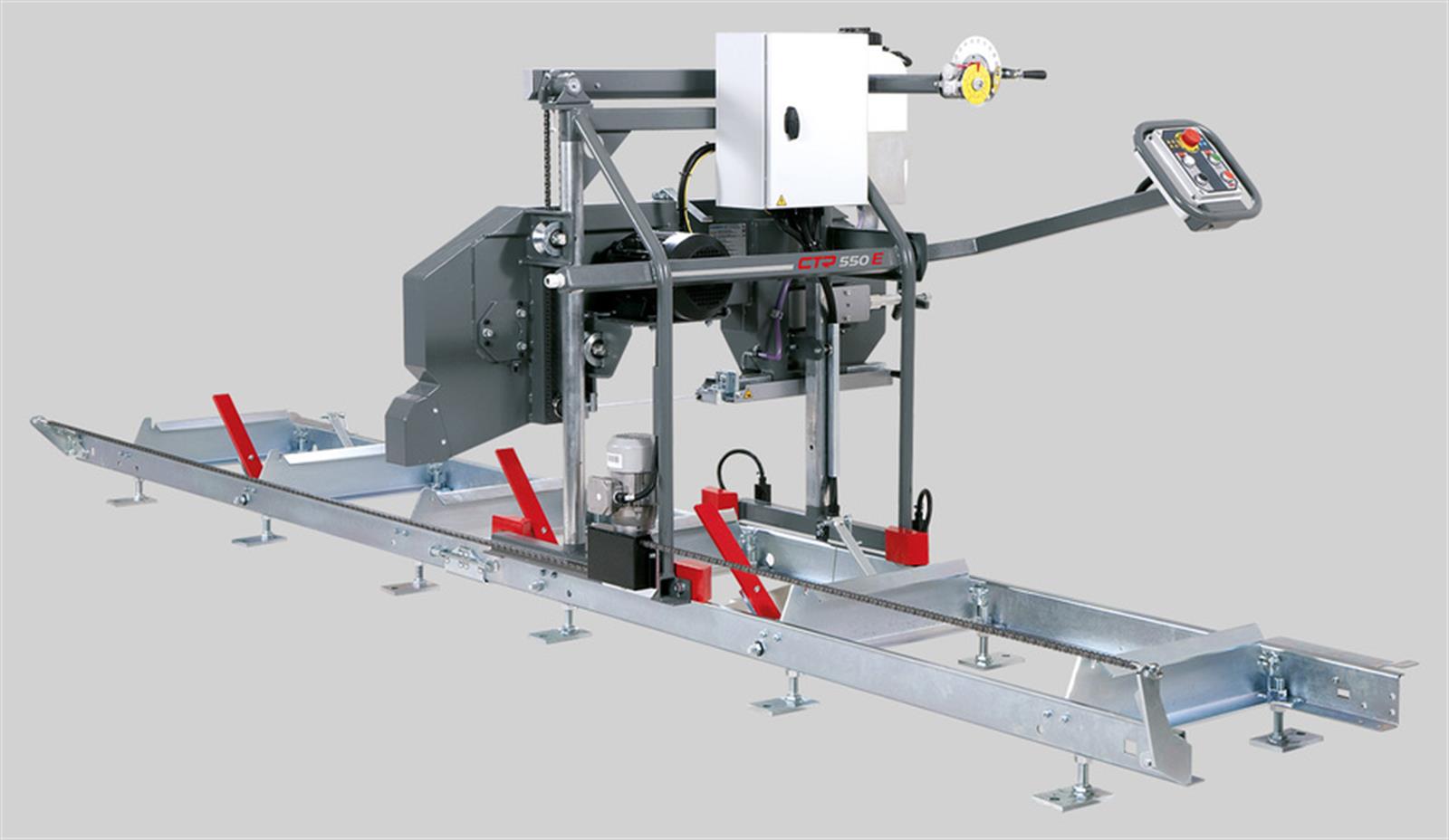

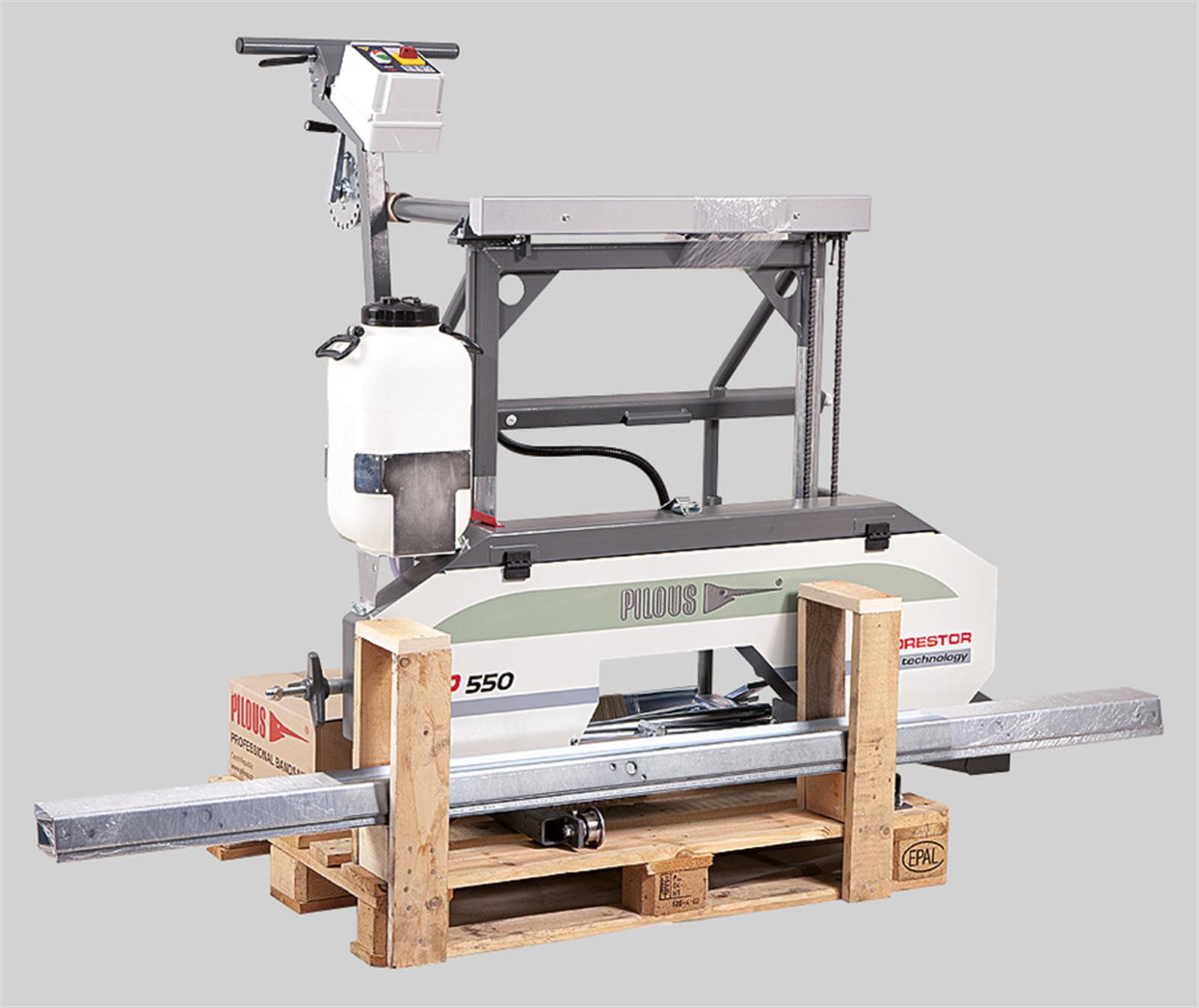

The smallest machine in the offer. It is designed primarily for cutting smaller volumes of lumber. Ideal solution for family farms or small sawmilling companies. Unlike sawmill CTR 550, this model is equipped with mechanical feed into the cut and back with continuous speed control. That greatly increases comfort of the operator and the overall productivity. The feed is driven by an electric motor with worm gearbox controlled by a frequency inverter. You can change the speed of travel simply by turning the potentiometer knob on the control panel. End positions are secured against impact by means of automatic deceleration and stopping. The control panel is placed on a mobile bridge of the sawmill arm. Thanks to that the operator has closer access to the workpiece when cutting. Height is adjusted using a hand crank with adjustable scale.
The solidly mounted drive wheel is driven via a V-belt by a professional electric motor, specially balanced against vibration. The machine's total input power of 4.18 kW guarantees low running costs and easy connection to the mains. Circuit breaker 16 A.

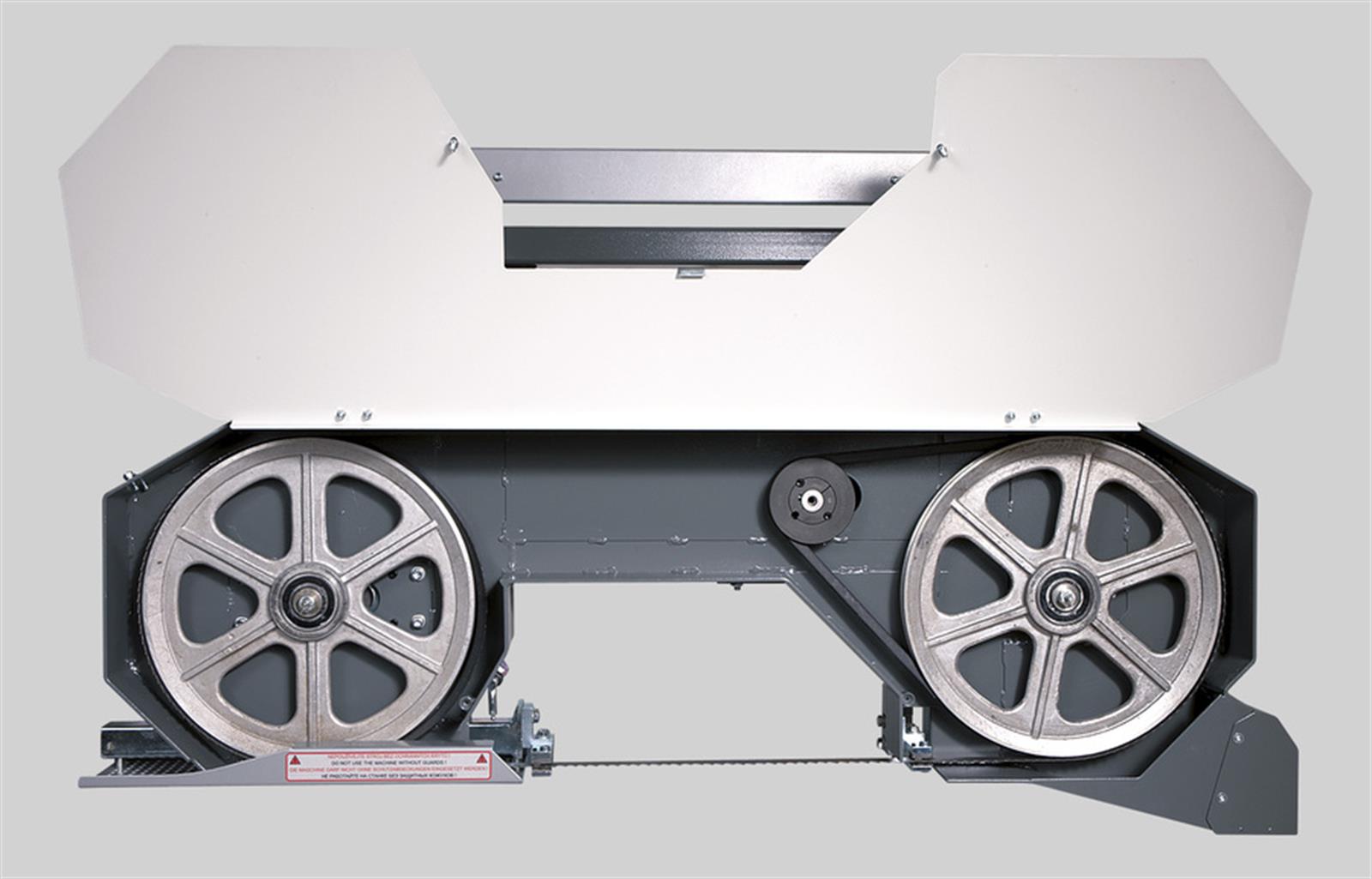

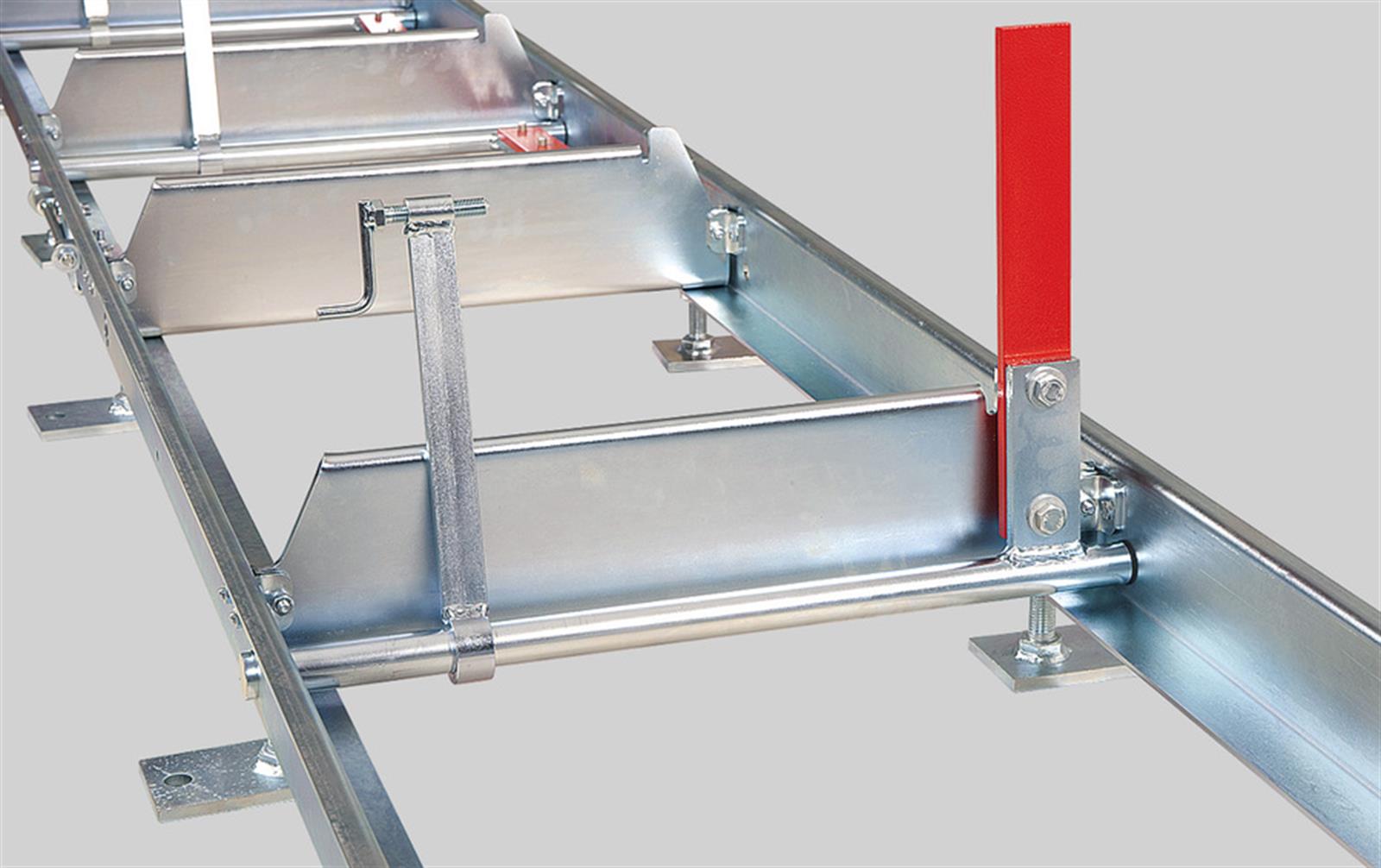

The tensioning wheel system moves in a cast iron guide, which guarantees long service life and precision adjustment even with long-term use of the machine. The arm is fitted with aluminium running wheels with precise anti-vibration balancing. The circumference of the wheel has a recessed groove in which a replaceable rubber-textile V-belt is fitted, which forms the contact surface between the wheel and the saw blade. The stability of the machine is based on solid steel travel sections, which ensure optimum guidance of the sawmill bridge. The travel sections are fitted with tilting angle bars and log clamps/cam dogs.
The CTR 550 E uses standard sawmill blades 27-35 x 0.9 mm as with the fully professional models.
The CTR model series represents the latest trends in log-cutting sawmill design, with special emphasis on maximum accuracy and long service life at minimum cost. The machines are designed in an original modular way, which allows easy replacement or adjustment of all main technical nodes and their individual parts. This significantly reduces maintenance costs in the long-term use of the machine and also reduces service times, thus reducing production downtime.
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
Nomimal current of circuit breaker is minimally 16 Ampere
Extending section 2,25 m
Include: 3x Cross beams, 1x Tilting angle bar, 1x Clamp Variable points: 1x Tilting angle bar, 1x Clamp
Saw blade tension indicator
Ensures accurate tensioning of the saw blade to a required value according to the pressure gauge and its control during the use of the machine. Optimum tensioning of the saw blade is essential for its service life and cutting accuracy.
START/STOP cooling system
Integrated in the cooling system is an electromagnetic through-flow valve, which automatically opens when the saw blade is started and closes when the saw blade is stopped. It substantially lowers the coolant consumption and saves time needed for replenishment of coolant liquid.
Cant hook
Serves as help with manipulation with logs on machine frame.
Clamp with tilting angle bar
Additional clamping kit. It consists of the clamp and a tilting angle bar.
Additional clamp
Cam dog
For fast and easy squared lumber clamping.
Grease Gun
For regular maintenance of the machine according to the lubrication plan. Metal grease gun for 400g tubes. Equipped with a flexible pressure hose.
Synthetic Grease LV 2-3
400g tube for the grease gun.

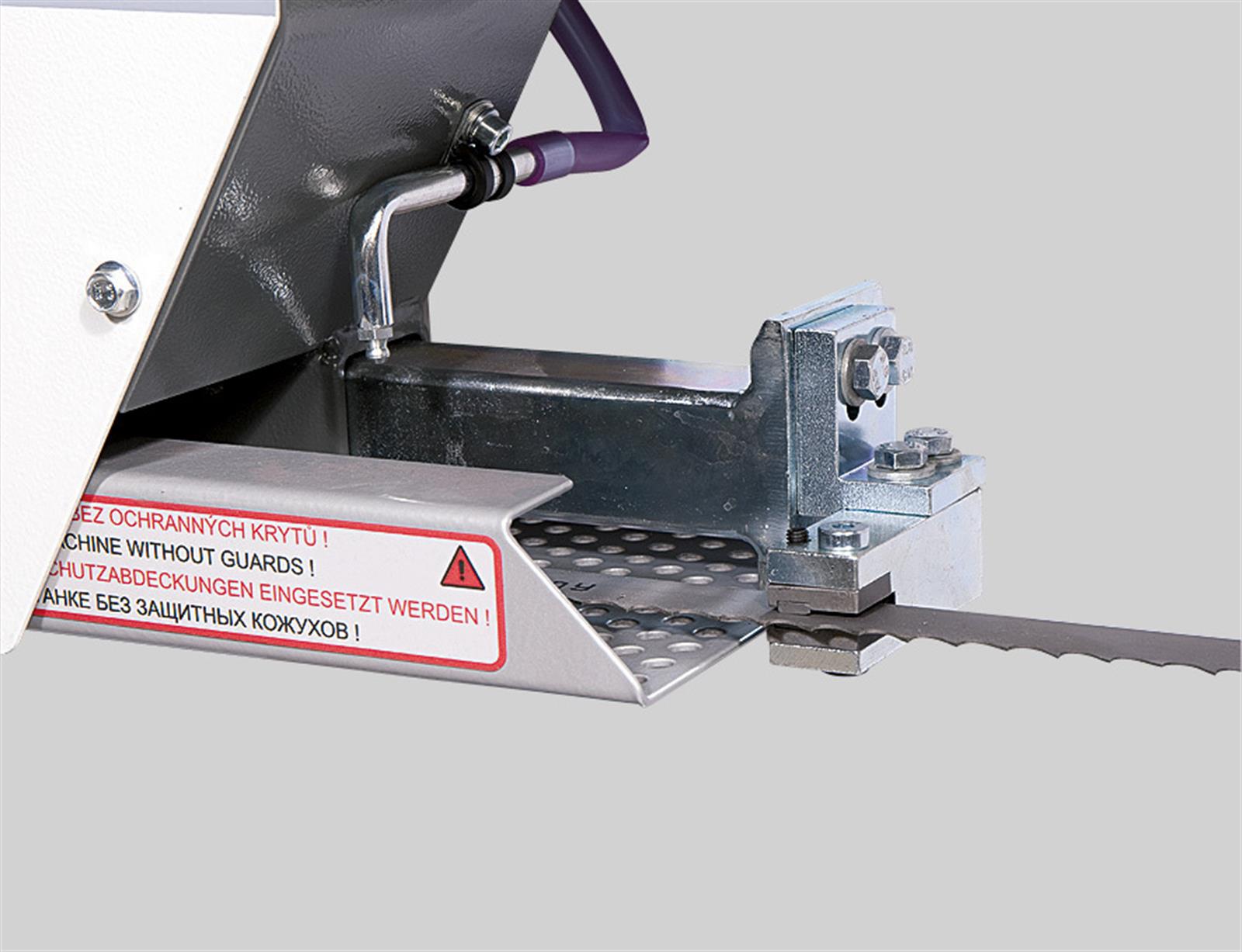

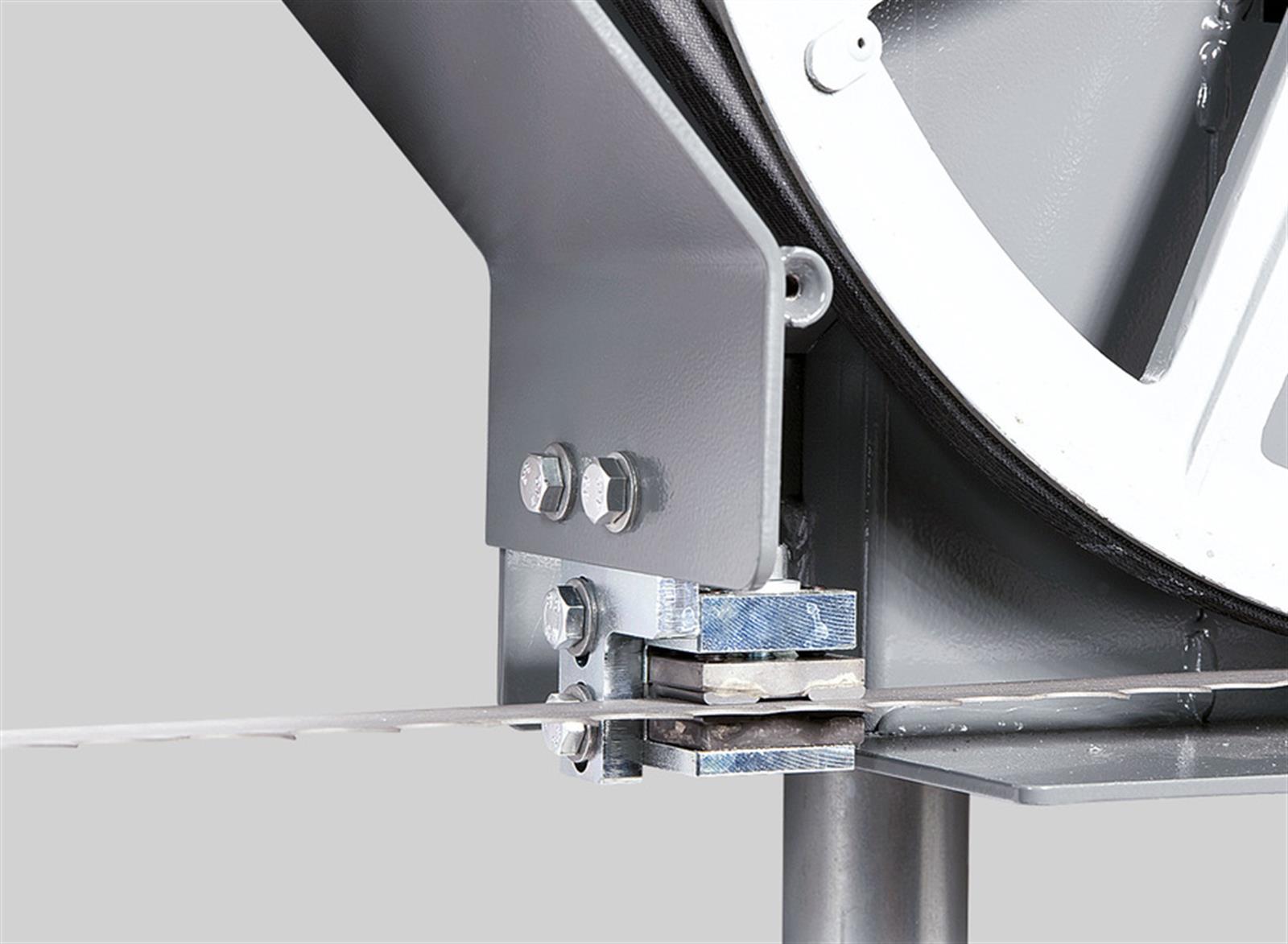

Hard-metal plate 20 x 0.9 mm
Hard-metal plate 12 x 4 mm
Running wheel V-belt SPB 1500
Driven Wheel V-belt 17x1220 Li
