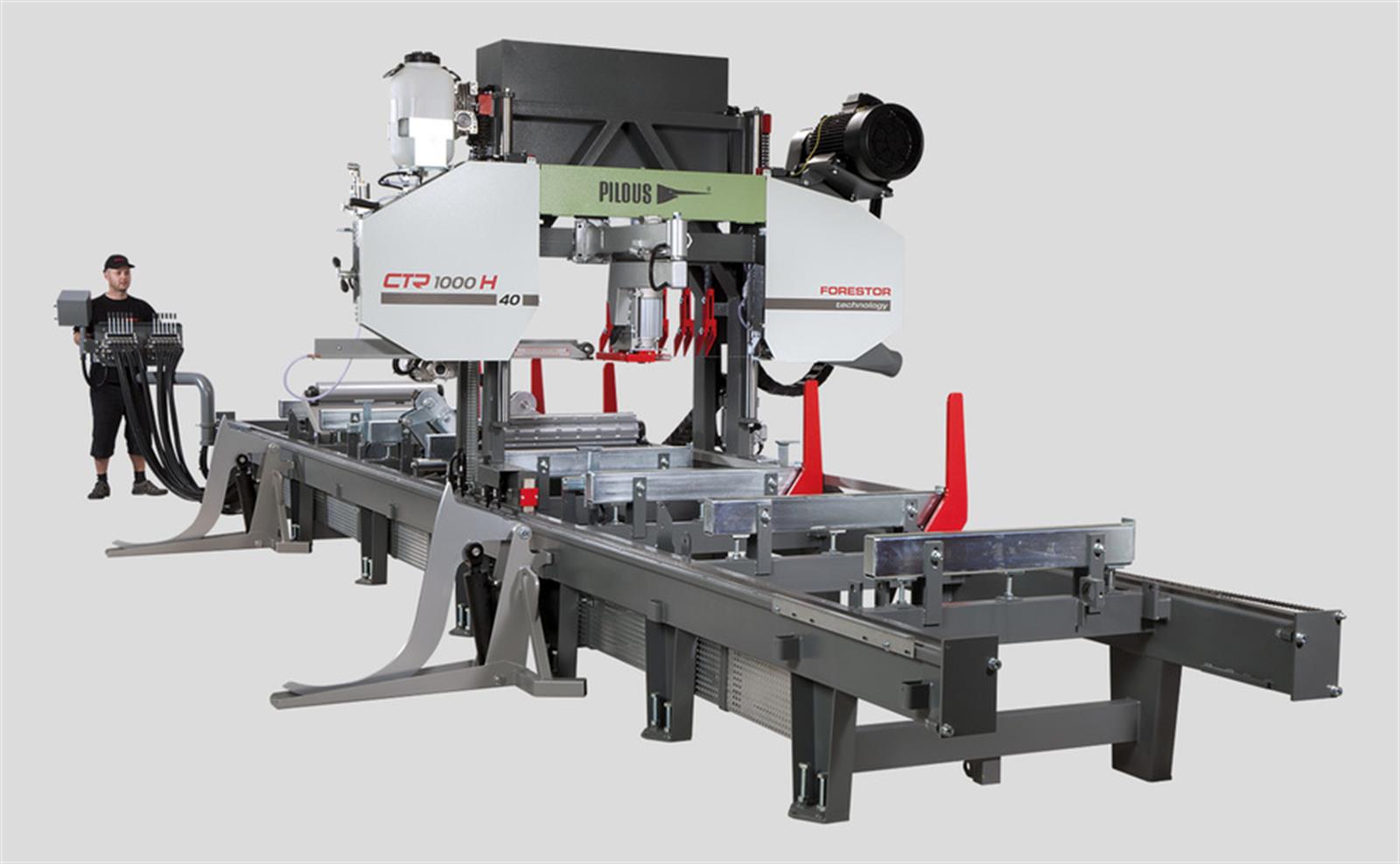

Pilous CTR 1000 H 40 Bandsaws (Pilous CTR 1000 H 40 Bandsaws)

• Feed into the cut and back - motor-powered

• Control panel - stationary

• Log handling - hydraulic

• Arm height adjustment - motor-powered

Exceptionally robust construction of the machine and high-performance hydraulic equipment allow operation even under the most difficult operating conditions including non-stop operation. Many hydraulic accessories easily handle even very large logs, significantly increase the productivity of the machine and save labour costs.

The machine is equipped with a measuring system in the basic version with simple intuitive operation on a large colour touch screen. The new generation of the operating system allows a choice of four cutting modes. It is possible to set the repetition of a constant or variable thickness of lumber.
It is also possible to choose between two methods of automatic arm exit after the cut, either to a fixed height or by the last measure with an adjustable allowance.
Simple and quick entry of board thickness from an editable library.
The new system guarantees fast and accurate automatic setting of the desired cutting thickness, thus avoiding human error when setting the cut manually. It greatly saves time and makes production more precise.

The basic version is fitted with following hydraulic accessories:

• Hydraulic clamp - 2x
• Tilting angle bar - 5x
• Pull-up log turner - 1x
• Log levelling passive roller - 1x
• Log levelling driven roller - 1x

Thanks to the unique modular design of CTR series the machine is fitted with many fitting points for hydraulic equipment. That allows large variability of its placement with regard to the total log length and specifics of the processed material.

A wide, exceptionally massive bridge of the sawmill arm and robust running sections ensure undisturbed operation when cutting and even at high running speeds. Professional execution of all main technical units, such as running wheels with their bearing system, sawmill arm construction, powering and feeding system, etc. ensure maximum service life and machine accuracy even under the most difficult operating conditions.

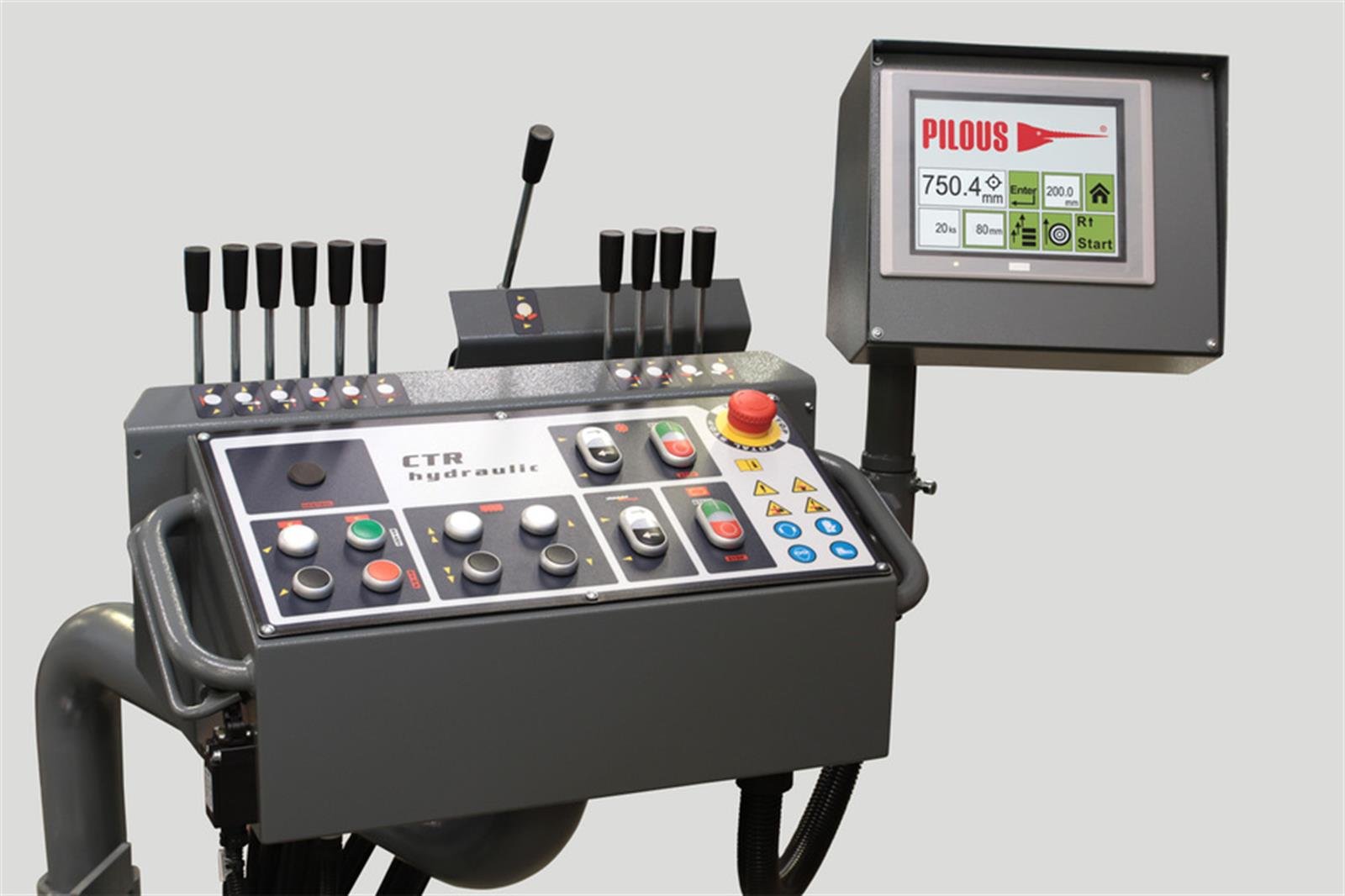

The central control panel is stationary and it’s placed on the main running section. This allows convenient machine control from a single place with complete hydraulic accessories. The feed into the cut and back is driven by an electric motor with worm gearbox controlled by a frequency inverter. The travel speed can be changed simply by turning the potentiometer knob on the control panel. The end positions are secured against impact by automatic deceleration and stopping.

The massive sawmill arm is borne on adjustable hard-chromium rods (for moving up and down) which ensure absolute accuracy of sawmill arm movement and virtually unlimited service life, if the machine is lubricated regularly. The vertical movement of the arm is provided by double-sided synchronous chain transmission powered by an electric motor with worm gearbox.

The arm is fitted with running wheels made of high-quality grey cast iron with accurate balancing against vibrations. The wheel has a groove along its circumference. The groove holds a replaceable rubber-textile flat belt which creates an optimum contact area between the wheel and the sawblade.

The sturdily mounted running wheel is powered through a V-belts by a professional electrical motor specially balanced against vibrations.

The tensioning wheel system moves along a sturdy cast iron dovetail slide with screws and a bar for fine-tuning, which allows highly accurate adjustment without any free travel even in long-term machine operation.

The basis of the machine is formed by extremely stable running sections with reversible, adjustable, steel guidance of the arm bridge. Running sections are amply dimensioned for the indicated maximum diameters of processed logs and based on practice they count even with very tough operating conditions. Double sided guidance of a bridge on the running section combined with a powerful engine, enable fluent and fast shift (removal) of cut pieces when using the Board return arms. The log length is virtually unlimited, it only depends on the number of installed running extending sections. Running sections are fitted with massive, height-adjustable log-bearing beams, tilting angle bars, and log clamps.

The CTR model series represents the latest trends in sawmill design, with special emphasis on maximum accuracy and long service life at minimum cost. The machines are designed in an original modular way, which allows easy replacement or adjustment of all main technical nodes and their individual parts. This significantly reduces maintenance costs in the long-term use of the machine and also reduces service times, thus reducing production downtime.

A wide range of accessories simplify and accelerate machine operation and influence its production. It is therefore possible to adapt the sawmill exactly according to the needs of the customer.

All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.

Nomimal current of circuit breaker is minimally: main el. motor 15,0 kW – 50 Ampere / main el. motor 18,5 kW – 63 Ampere

SPECIAL ACCESSORIES

• Main motor 18.5 kW

  For even higher performance, for example, when cutting oversized logs or even when cutting very hard materials, especially with Stellite-tipped blades 18.5 kW motor can be recommended.

• Extending section 3 m

  Include 1x Tilting angle bar

  Extending section is equiped with many points for instalation of hydraulic equipment. That provides variability of placement with aspect of cutting material.

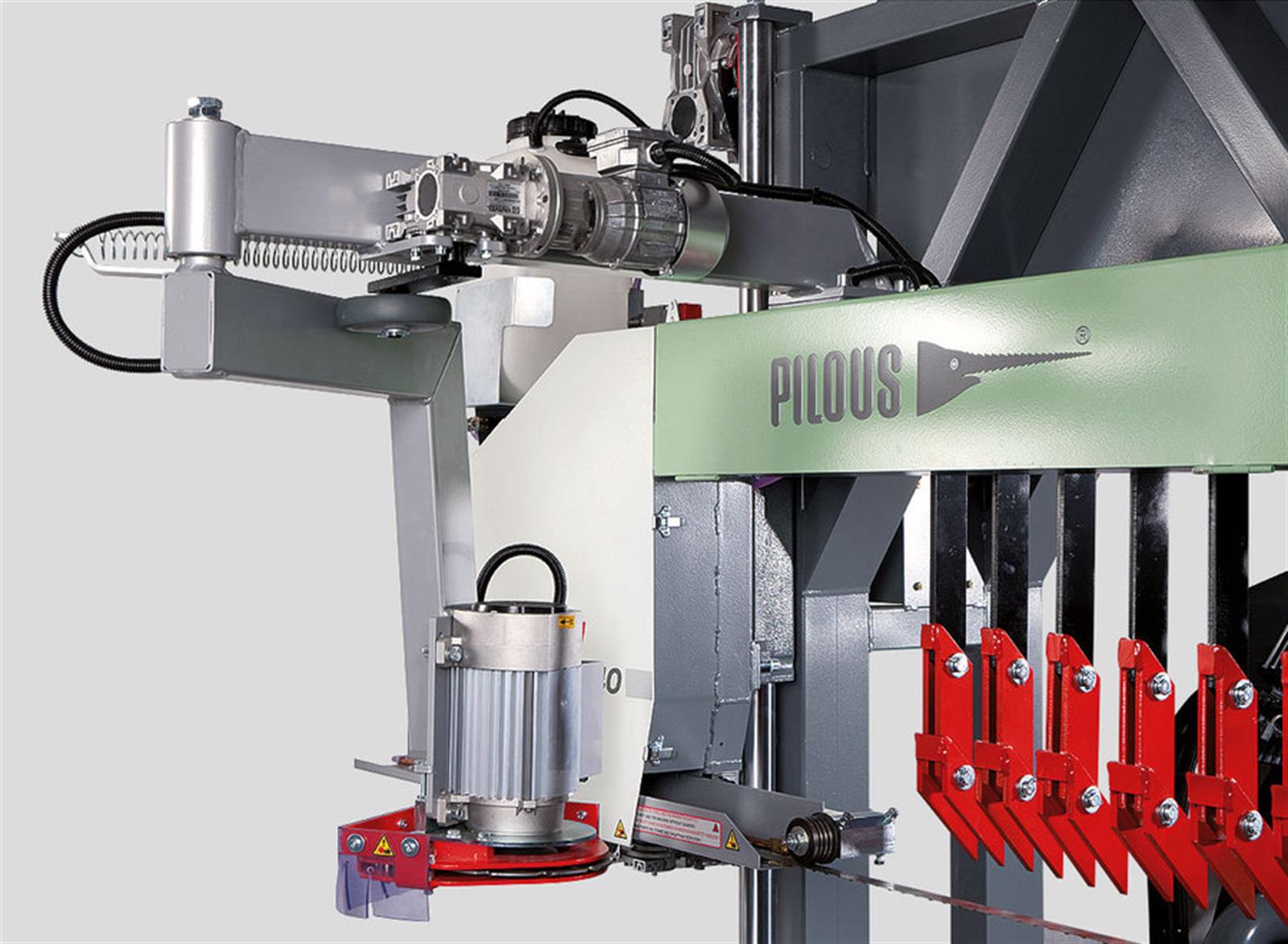

• Debarker

  Debarker with hard metal tips is designed to remove dirt at points where the sawmill blade cuts into the log. The saw blade do not get blunt quickly. Frequent saw blade exchanges are reduced, the saw blade life, and the productivity of the machine increase.

• Hydraulic saw blade tensioner

  Operated by a hydraulic hand pump with accurate pressure indication. The hydraulic saw blade tensioner is more accurate and convenient.

• Ammeter - blade load indicator

  The ammeter scale shows the sawmill blade engine load during the cut. It is designed to simplify the selection of the feed speed; it also indicates the saw blade bluntness. A timely exchange of the saw blade increases the life-span and improves the cutting quality.

• Soft starter - smooth blade start-up

  Electronic device enabling a smooth start-up of the saw blade motor. It prevents grid surges reducing mechanical stress of the whole machine.

• Electrically controlled guide bar

  Adjustment of sliding guide bar of the saw blade depending on the log diameter electrically controlled from the central control desk.

• Laser Sight

  Laser aiming is a very practical helper for axial alignment of the log before the cutting. The cutting level shows a line copying the path of the saw blade.

• Cant hook

  Serves as help with manipulation with logs on machine frame.

• START/STOP cooling system

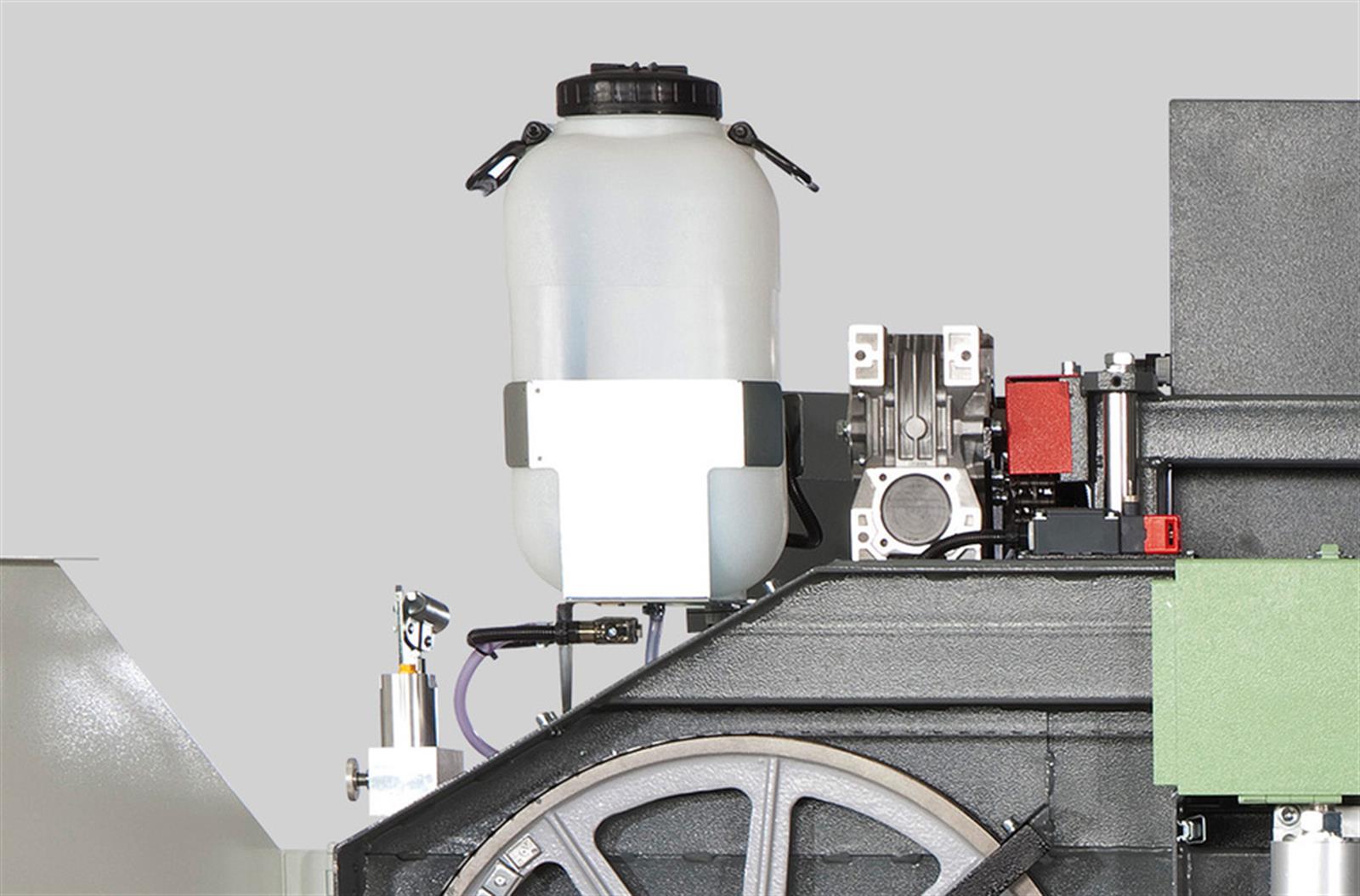

  Integrated in the cooling system is an electromagnetic through-flow valve, which automatically opens when the saw blade is started and closes when the saw blade is stopped. It substantially lowers the coolant consumption and saves time needed for replenishment of coolant liquid.

• START/STOP pressure cooling system

  The cooling system consists of a pressure pump in the coolant tank, flow control solenoid valve and two-way jets that spray the sawmill blade both from below and from above. Double-side cooling prevents undesirable stress in the saw band and adhesion of resin from underneath the sawmill blade and thus helps maintain stabler sawmill blade operation, more accurate cut and longer service life. Integrated in the cooling system is an electromagnetic through-flow valve, which automatically opens when the saw blade is started and closes when the saw blade is stopped. It substantially lowers the coolant consumption and saves time needed for replenishment of coolant liquid.

• ARCTIC

  Version of the machine adapted for work in extremely cold operating temperatures reaching down to - 40 °C. Machine’s switch board, control panel and digital measuring are fitted with heating elements. The heating is controlled through a thermostat. Frost-resistant lubricant. Band sawmills use frost-resistant hydraulic oil.

• Grease Gun

  For regular maintenance of the machine according to the lubrication plan. Metal grease gun for 400g tubes. Equipped with a flexible pressure hose.

• Synthetic Grease LV 2-3

  400g tube for the grease gun.

HYDRAULIC ACCESSORIES

• Double-arm hydraulic log loader

  The hydraulic double-arm log loader allows safe and fast lifting of the log onto the loading area of the machine. The main frame of the machine is fitted with lifting attachments along its full length, which allow easy transport of individual holders according to the length of the loaded material. Each loader is controlled separately, which allows to lift easily even very tapered logs.

• Additional arm for log loader

• Pull-up angle bars with hold-down clamps

  Comfortable substitution of standard tilting angle bars and clamps. Hydraulic pull-up angle bars and hydraulic hold-down clamps, set of 4 + 2 pieces.

  The method of pulling up the hydraulic angle bars eliminates the movement of the log.

  Compare with standard clamps the hydraulic hold-down clamps allow the clamping of the log with pressure to the machine bed.

• Hold-down clamp

  Hydraulic hold-down clamp align themselves automatically according to the log diameter and allows clamping of the lumber with pressure to the machine bed. All hold-down clamps used on the machine are controlled by a single controller.

• Pull-up log turner

  One piece is always a part of the basic version of the machine and it is a vital multi-functional assembly, the most significant of all hydraulic accessories. It moves both in vertical and horizontal axis on strong hard chromium plated rods using two independently controlled hydraulic cylinders. It is used to clamp, turn and feed the material to tilting angle bars.

• Double-arm chain log turner

  Powerful chain log turner is equipped with two pivoted, separately controlled arms. They hold chains, synchronously driven by a hydraulic motor. The chains facilitate easy turning of the cut material. When cutting long logs that need constant turning we recommend to equip the machine with a pair of turners. This will help reduce the required handling times significantly and therefore increase the machine effectiveness.

• Log levelling passive roller

  Lifts the log axis in horizontal position according to its taper or lifts the whole log above the loading area to allow easier handling. The robust rotary cylinder ensures simple feed of the log.

• Log levelling driven roller

  Lifts the log axis in horizontal position according to its taper or lifts the whole log above the loading area to allow easier handling.

• Hydraulic clamp

  Hydraulic log clamp aligns themselves automatically according to the log diameter or can be locked in the desired position. They are also used for one-side material clamping against Tilting angle bars. All clamps are controlled by a single controller.

• Board return arms

  During the back feed of the saw blade arm after the cut the side stops help feed the cut material towards the control panel, allowing very simple collection of the material. From this point the material can be fed onto follow-up belt or roller conveyors.

• Board hydraulic slide

  The hydraulics allow setting in accordance to the cutting plane. It is used to slide the fed material onto the follow-up belt or roller conveyors.

• Hydraulic lever

  The additional lever of the hydraulic distributor enables the connection and control of additional hydraulic accessories.

CONSUMABLE PARTS

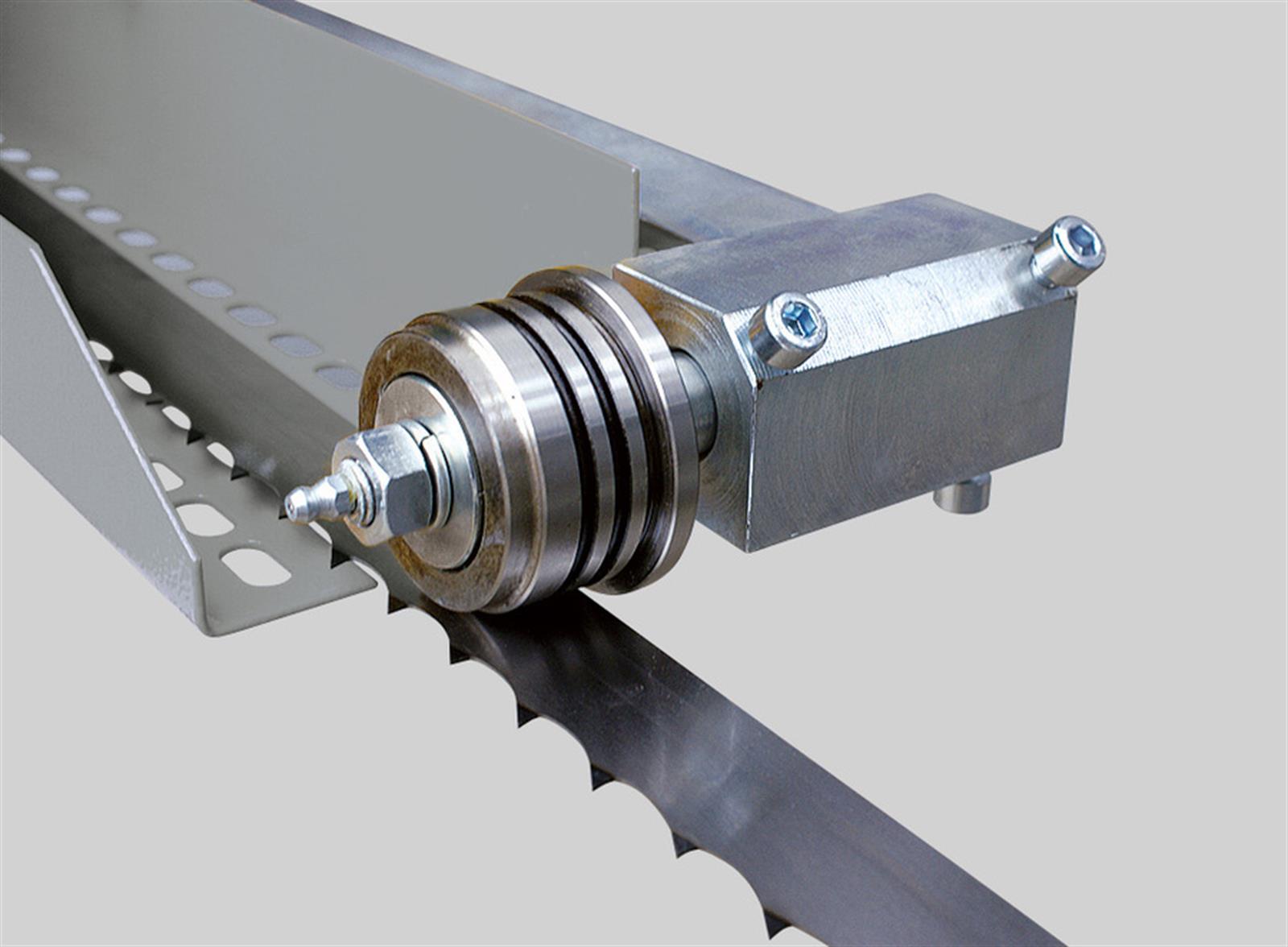

• Blade Roller Kit  VK 35

  Hardened roller, bearings, and shaft designed for a sawmill blade 35 mm.

• Blade Roller Kit  VK 40

  Hardened roller, bearings, and shaft designed for a sawmill blade 40 mm.

• Flat running wheel belt GPK 1885
