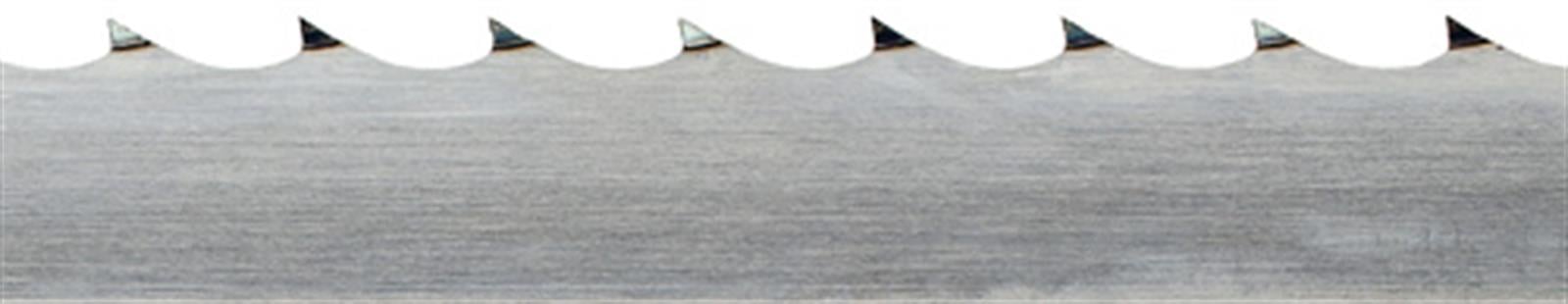

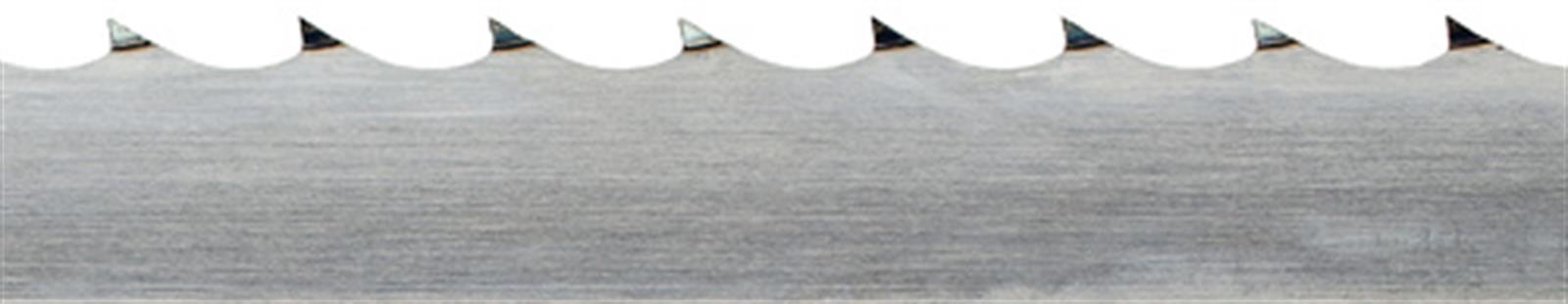

Pilous Carbon Spring Steel MAXWOOD-S Saws (Pilous Carbon Spring Steel MAXWOOD-S Saws)

Excellent, durable carrier C75 alloy steel with the addition of nickel achieves hardness of 41–43 HRC. Therefore, the tooth tips do not require any further heat treatment. The blade is characterized by high flex life. The teeth of the sawmill blade are nor set neither sharpened.

Tooth shape WM

Sawmill blade dimensions (mm)		Tooth pitch (mm)			Tooth face angle
width	wall	19	22	25
32	0,9/1/1,1		●	●	10°
35	0,9/1/1,1/1,27		●	●	10°
38	1/1,1/1,27	●	●	●	10°
40	0,9/1/1,1/1,27		●	●	10°
50	0,9/1/1,1		●	●	10°
55	0,9/1/1,1		●	●	10°
60	1,1		●	●	10°

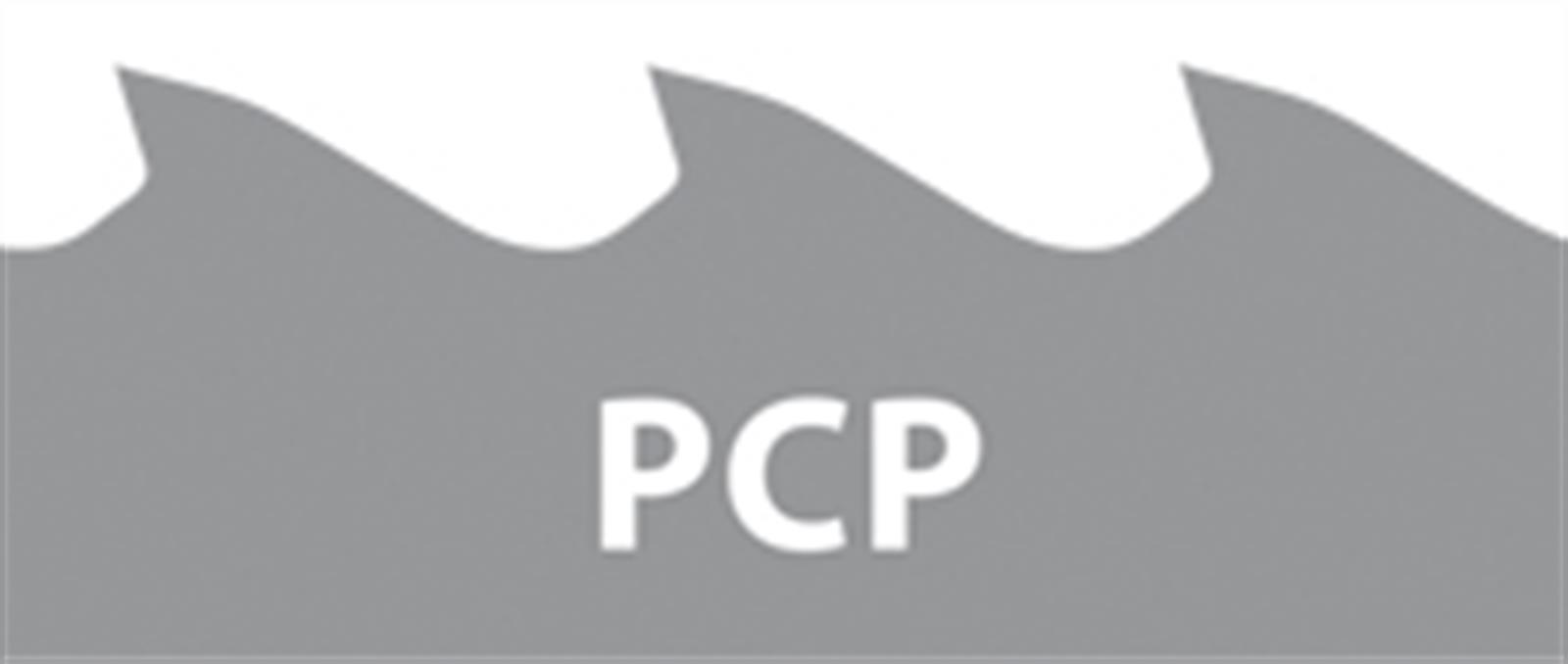

Tooth shape PV/PCP

Sawmill blade dimensions (mm)		Tooth pitch (mm)					Tooth face angle
width	wall	20	25	30	35	40
50	0,9/1/1,1	●	●				14°
55	0,9/1/1,1	●	●	●	●		14°
60	0,9/1/1,1	●	●	●	●	●	14°
70	1/1,1	●	●	●	●	●	14°
