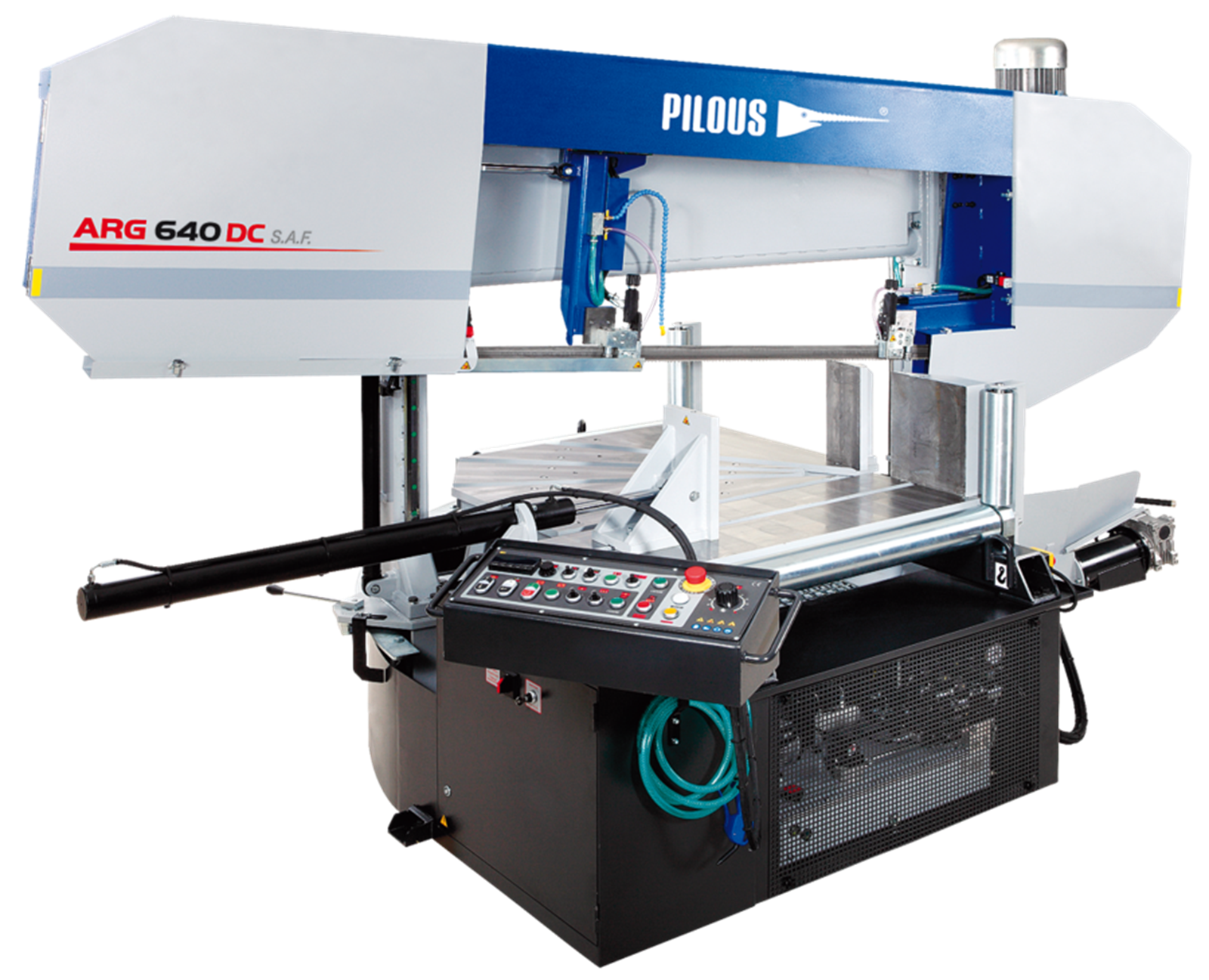

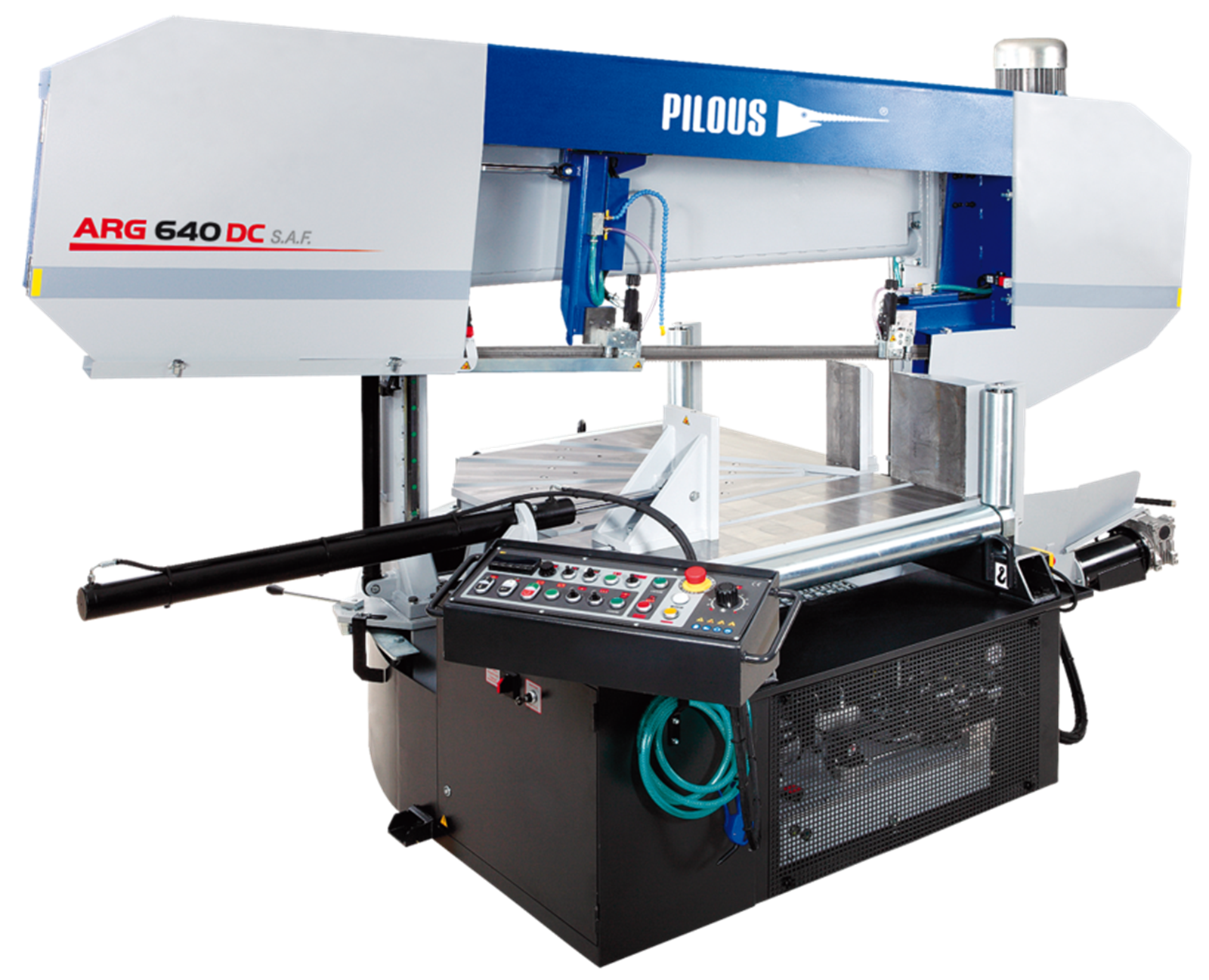

Powerful band saw with a massive dual-column support of the saw band arm which moves on linear guidance. That ensures excellent stiffness of the whole system and precise cutting. The modern conception of a massive band saw arm allows for industrial cutting of full materials of large sections, cutting of very large sections and also for cutting under 60°. The robust industrial band saw is generally suitable for all demanding production plants. The saw band sized 54 x 1.6 mm ensures accurate cutting of large cross-sections. The band is manufactured in many versions and allows for cutting of wide range of materials, including stainless steel or tool steel. Thanks to an exceptionally robust base, the system of rotary dual-column arm support and remarkably large loading surface of the vice the machine excels in its category. All of this ensures unique stability, accuracy and service life.
Easy intuitive controls throug an ergonomic rotary central panel. When you switch to the manual mode you can control all functions separately. The machine is equipped with a high-performance industrial hydraulic unit which allows setting of the contact pressure of the vice. All of this in connection with hydraulics-controlled saw band feed into cut significantly increases cutting efficiency, especially in larger series and cutting of full and high-quality materials. Both saw band guiding heads are fitted with automatic regulation of feed into cut, which significantly increases the rate and accuracy of cutting and service life of the saw band. Pressing a single switch will execute complete cutting cycle – material clamping, band and cooling system start, cutting, band and cooling stop, arm uplift to the original adjustable position and vice unclamping. Hydraulic unit allows you to set the required pressure of the vice. Maximum cutting efficiency is maintained also thanks to the possibility of setting optimum saw band rate by a frequency converter in the range between 15 and 90 m/min., which significantly contributes to cutting accuracy and service life of saw bands.
Plenty of accessories in the basic version:
Frequency converter - Standard equipment
Enables continuous blade speed regulation between 15–90 m/min. and thus setting the optimum cutting conditions for the given material.
Electrical cleaning brush - Standard equipment
Steel circular brush powered by and industrial motor with worm gearbox. Used to remove chips from the saw band behind the cut.
Pressure regulation - Standard equipment
Hydraulically controlled double-side automatic regulation of saw band feed into cut according to the resistance of the material to be cut. Significantly reduces the cutting time and service life of the saw band.
Hydraulic tensioning - Standard equipment
Ensures convenient tensioning of the saw band via the central control panel. Optimum tensioning of the saw band is essential for its service life and cutting accuracy.
Screw chips conveyor - Standard equipment
Ensures smooth removal of chips from the machine. Reduces the time needed for the cleaning of the machine especially when cutting series of full materials producing large amount of chips.
Rinse spray gun - Standard equipment
For cleaning working space of the machine.
Hydraulic pressure device
Used to clamp bundles of material to be cut. Ensures reliable clamping by hydraulically controlled vertical contact pressure working within the machine’s cycle.
Halogen lamp
Provides good lighting of the workplace of the machine. An invaluable tool especially when the lighting at the workplace is insufficient.
Oil mist lubrication
Creates an oil mist that is sprayed onto the cutting edge. It replaces the use of a classic coolant, especially when cutting sections during which leakages may occur. Possibility of using organic oils.
Laser alignment
High-quality industrial laser projects the cutting line on the material to be cut. Makes the setting of the required material length simpler, faster and more accurate.
Display of angles
Digital scanning and display of set cutting angles ensures fast and accurate setting of the required angle. The value is displayed on a clear, ergonomically placed display. We recommend this equipment especially for angular cutting.
Chip container
For easy handling is chip container equiped with wheels and swivel chip bin.
