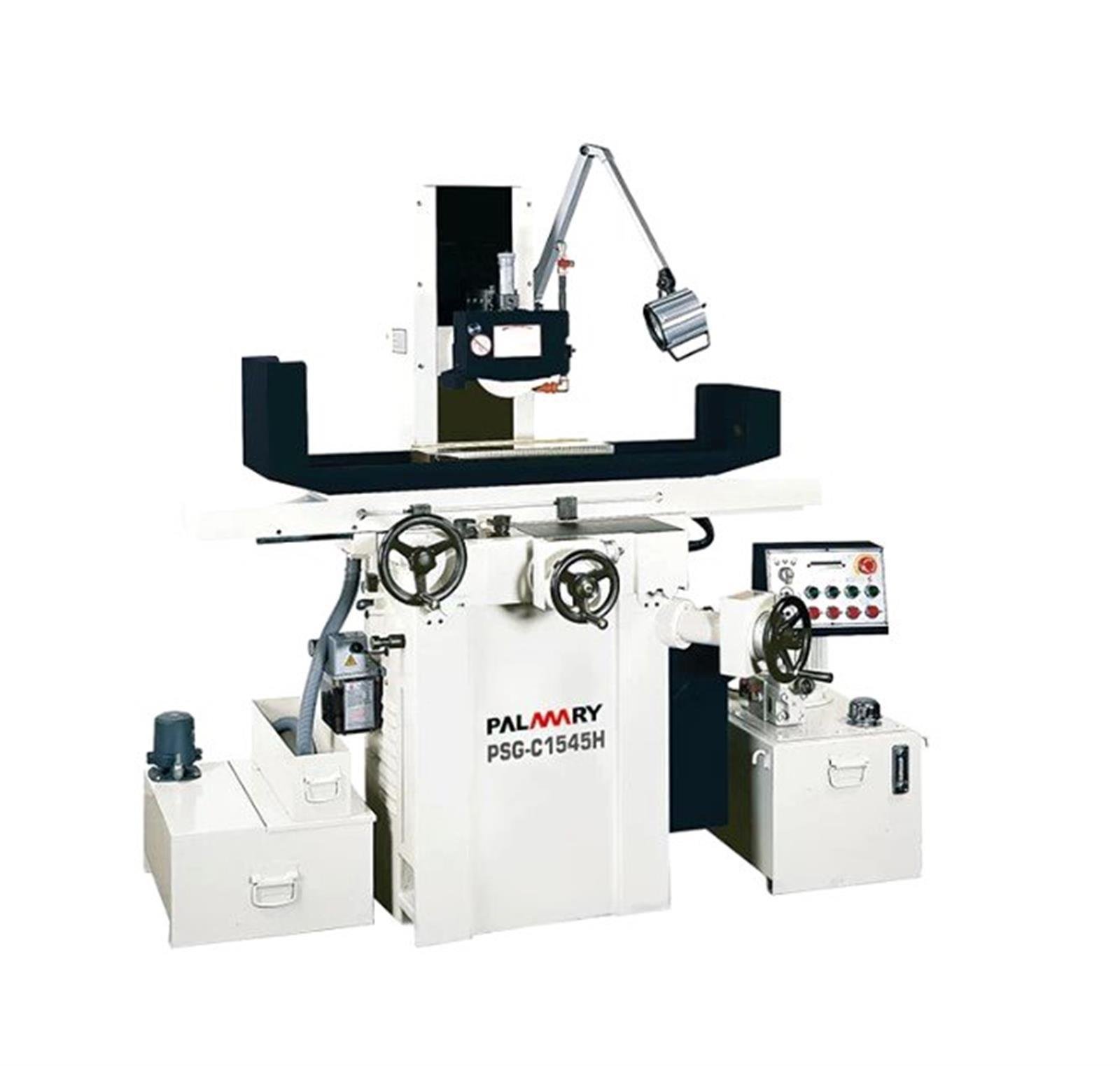

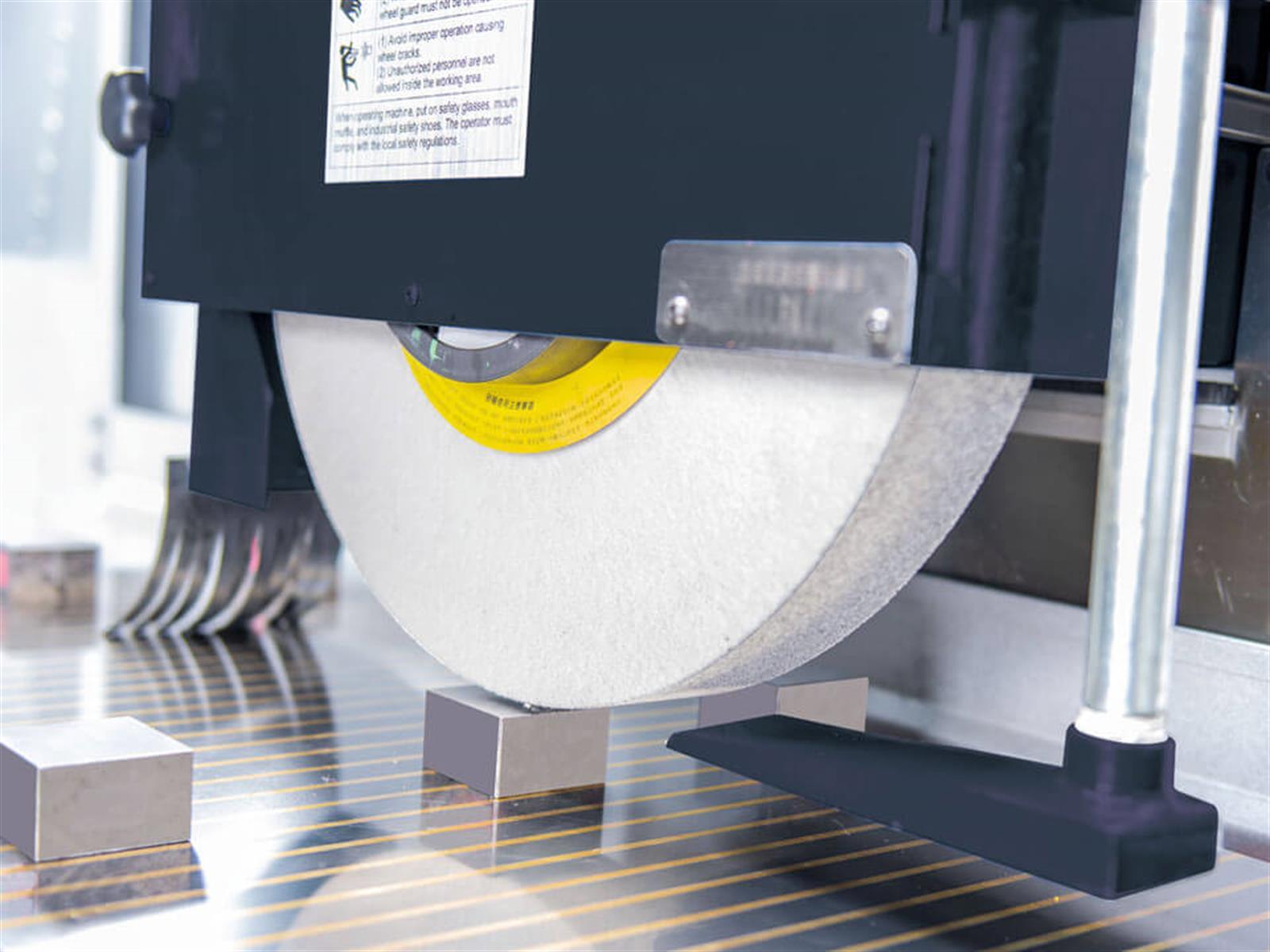

Palmary PSG-1545AH Surface Grinder

Grinding wheel x 1
Wheel flange x 1
Flange extractor x 1
Wheel balancing arbor x 1
Wheel balancing stand x 1
Wheel dresser with diamond x 1
Leveling screw and plates x 1
Work lamp (PSG-15/20/25/30/40 only) x 1
Tools (Leveling pad) and tool box x 1



Coolant system
Dust suction system
Auto. down feed AD5 (NC function)
Auto. demagnetizer for magnetic chuck
Parallel dresser
Dust suction with coolant system
Magnetic coolant separator
Power rapid for vertical
Micro feed for vertical / cross feed
Electro / Permanent magnetic chuck
NC auto. dressing and compensation



Model	PSG-1545AH
Working surface of table	150 x 450 mm (6" x 18")
Max. surface ground	150 x 450 mm (6" x 18")
Max. distance center of spindle to table	450 mm (18")
Table speed	5~25 m/min
Table guideway	V & flat way
Auto. cross feed increment (approx.)	0.1 x 12 mm
Rapid power cross feed (approx.)	1100(60Hz) / 900(50Hz)
Cross feed on hand wheel (1 rev)	5 mm (0.2")
Cross feed on hand wheel (1 gra)	0.02 mm (0.001")
Rapid power head elevation (opt., approx.)	550 mm/min (13"/min) (60 Hz)
	450 mm/min (11"/min) (50 Hz)
Vertical feed on hand wheel (1 rev)	2 mm (0.05")
Vertical feed on hand wheel (1 gra)	0.01 mm (0.0002")(std.) / 0.005 mm (0.0001") (with AD5, opt.)
Auto. down feed (opt.)	0.001 mm ~ 0.999 mm/time (0.0001" ~ 0.0999"/time)
Wheel speed	3500 r.p.m. (60 Hz) / 2900 r.p.m. (50 Hz)
Wheel dimension	180 x 13 x 31.75 mm (max. 200 x 20 x 31.75 mm)
	(7" x 0.5" x 1.25") (max. 8" x 0.75" x 1.25")
Spindle motor	2 HP
Hydrauilc pump motor	1 HP
Auto. cross feed motor	25 W
Rapid head elevation motor	1/5 HP (opt.)
Coolant pump	1/8 HP (opt.)
Machine net weight	900 kgs (1980 Lbs)
Machine floor space	2080 x 1200 mm
