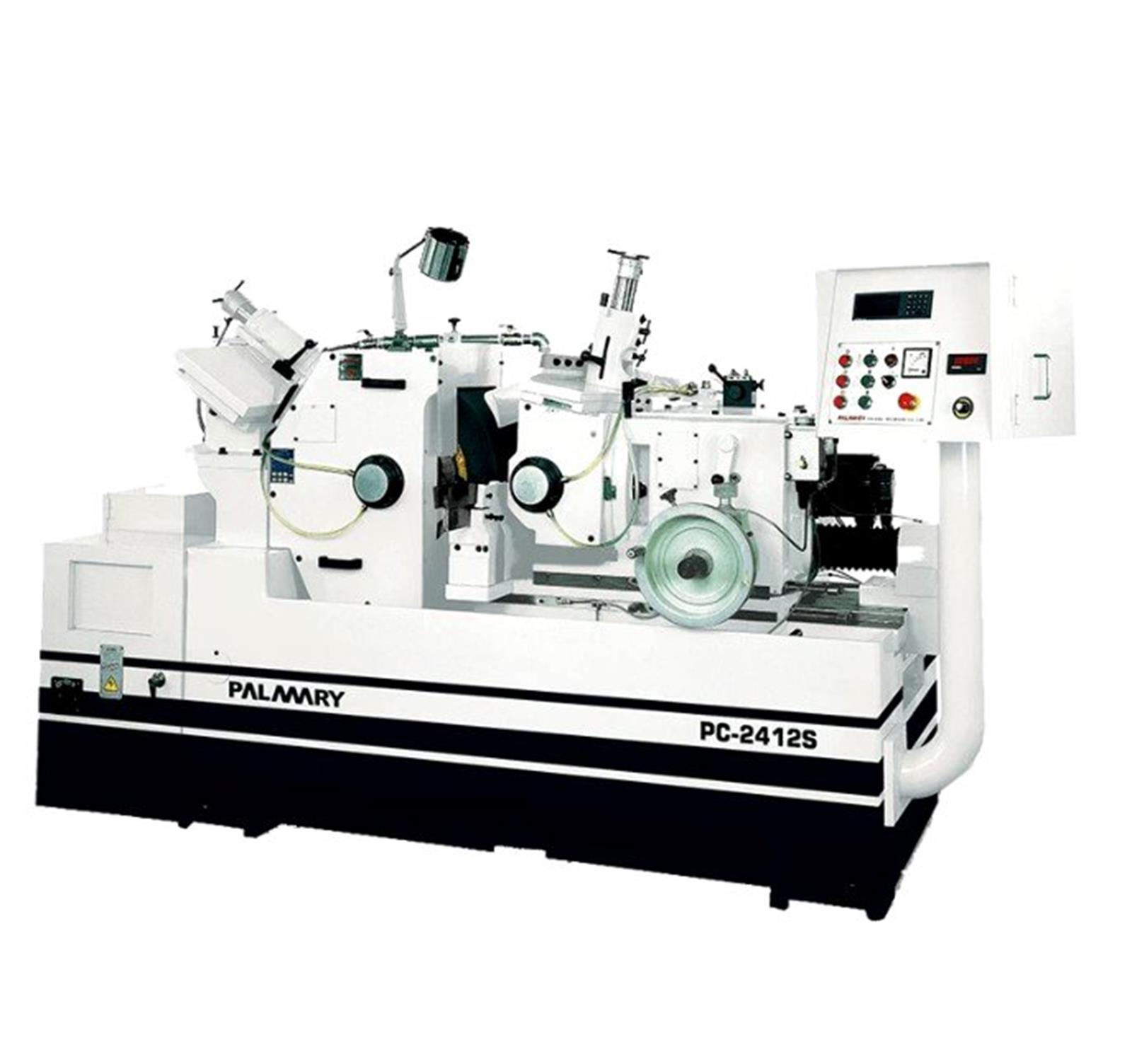

Palmary PC-24S Centerless Grinder (PC-24S)

Regulating wheel and flange x 1
Grinding wheel and flange x 1

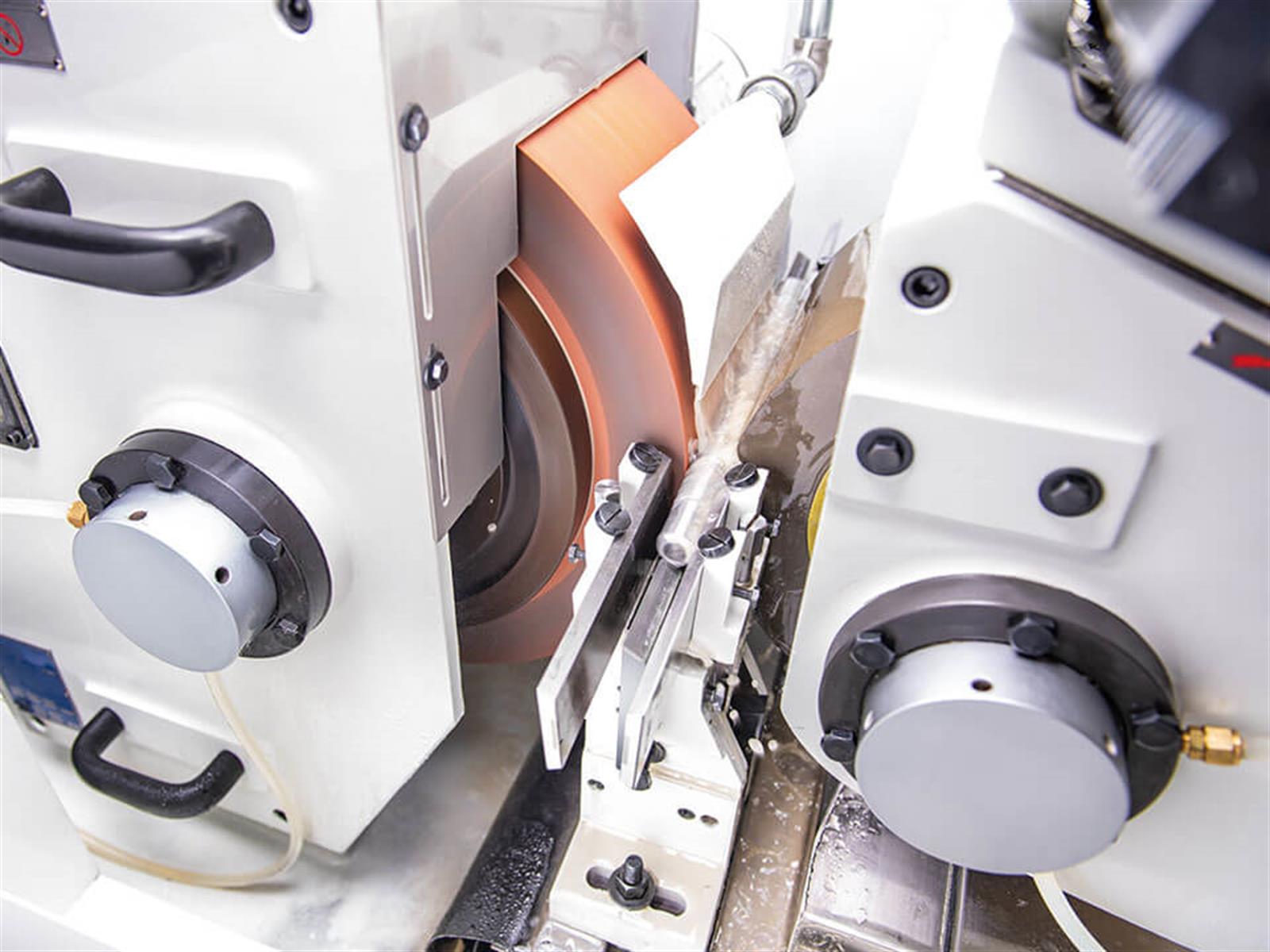

Infeed work rest and carbide blade x 1
Thrufeed work rest and carbide blade x 1
Electric system x 1
Hydraulic tank with pump x 1
Coolant tank with pump x 1
Diamond tools (2 pcs/set) x 1
Work lamp x 1
Tools (Leveling pad) and tool box x 1

Spare grinding wheel flange
Spare regulating wheel flange
Large work rest (thrufeed grinding) L : 250~500 mm
Infeed grinding large workrest
Wheel balancing stand and arbor
Profile grinding attachment
Auto. infeed attachment
Manual feeder for infeed grinding (up and down)
Hydraulic work ejector (infeed grinding)
Auto. loading and unloading attachment (infeed grinding)
Auto. loading attachment (thrufeed grinding) (Ø5~20 mm, L100~600 mm)
Auto. unloading attachment (thrufeed grinding)
Auto. feeder for thrufeed grinding (hopper type) (Ø2~8 mm, L50~180 mm)
Vibratory feeder (thrufeed grinding)
V type supporter for long bar grinding (Ø2~14 mm)
Magnetic coolant separator
Paper filter
Hydrocyclone coolant separator

Model	PC-24S
Grinding Wheel
Standard grinding range (dia.)	Ø1~Ø100 mm
Grinding wheel size (O.D. x width x I.D.)	Ø610 x 205 x Ø304.8 mm
Linear velocity	40 M/s
Grinding wheel motor	30HP x 4P (22 kW)
Regulating Wheel
Regulating wheel size (O.D. x width x I.D.)	Ø305 x 205 x Ø127 mm
Regulating wheel speed	10~300 r.p.m. (variable speed)
Regulating wheel motor	5 kW servo motor
Regulating wheel tilt angle	+5°~-3°
Regulating wheel swivel angle	±3°
Handwheel Graduation
Slide feed graduation	2 kW servo motor
Slide micro-feed graduation	2.5 mm/rev/0.01 mm/graduation
Trimming device graduation	2 mm/rev / 0.01 mm/graduation
Motor
Hydraulic pump motor	1HP x 4P
Coolant motor	1/2HP x 2P

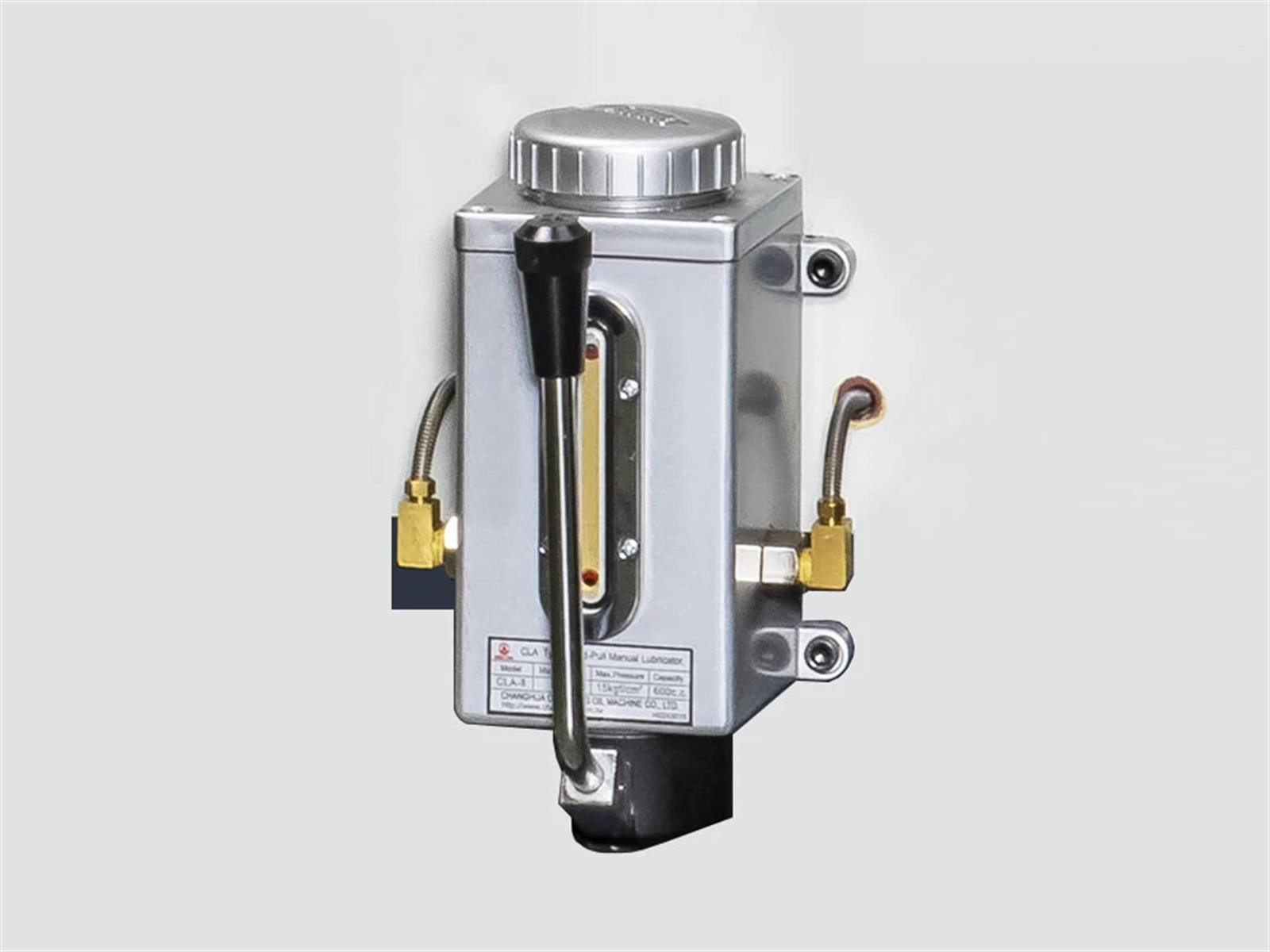

Lubrication	Manual Lubricator
Tank
Coolant tank	170 L
Hydraulic tank	88 L
Lubrication	0.6 L
Weight
New weight	6000 kgs
