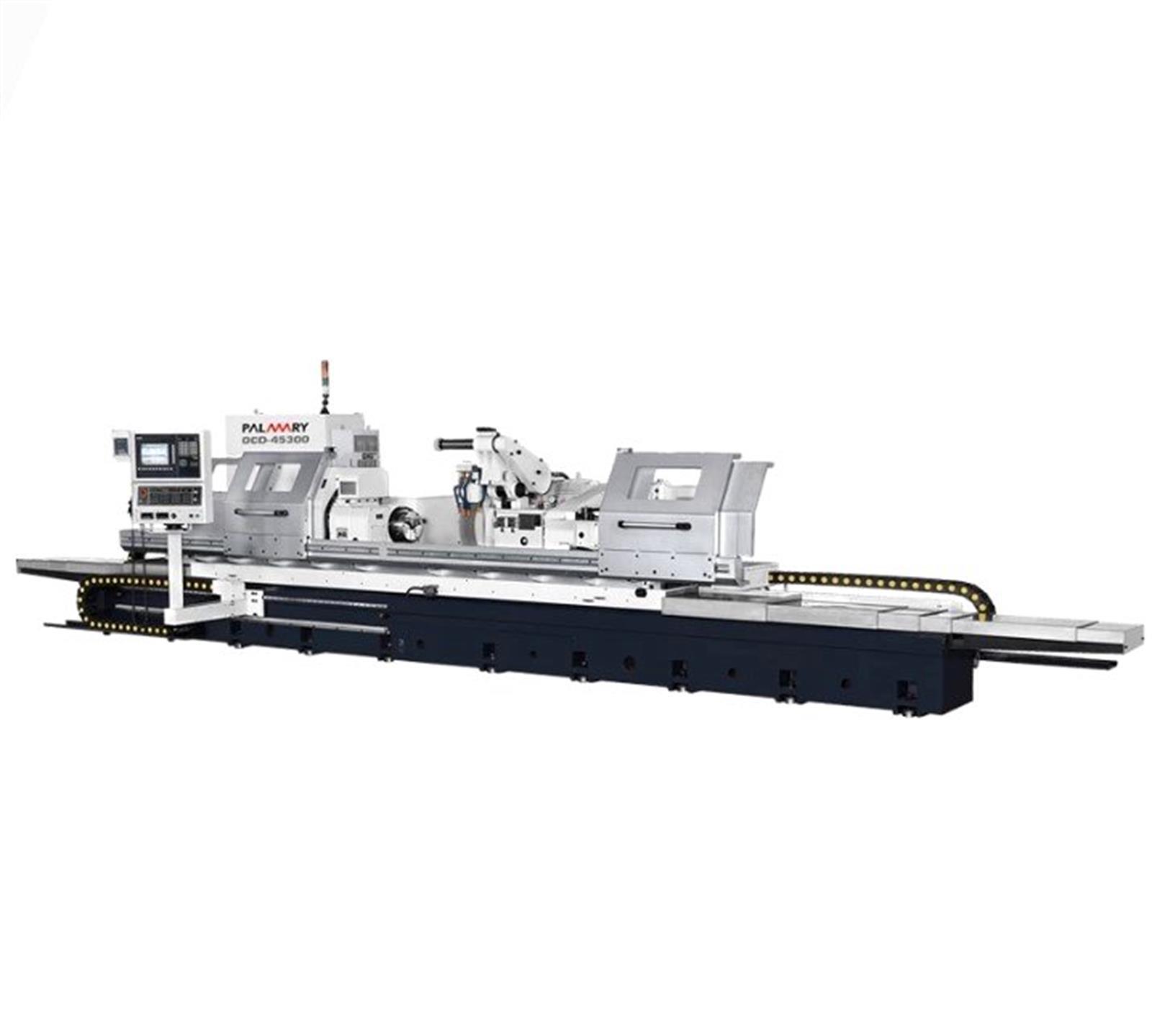

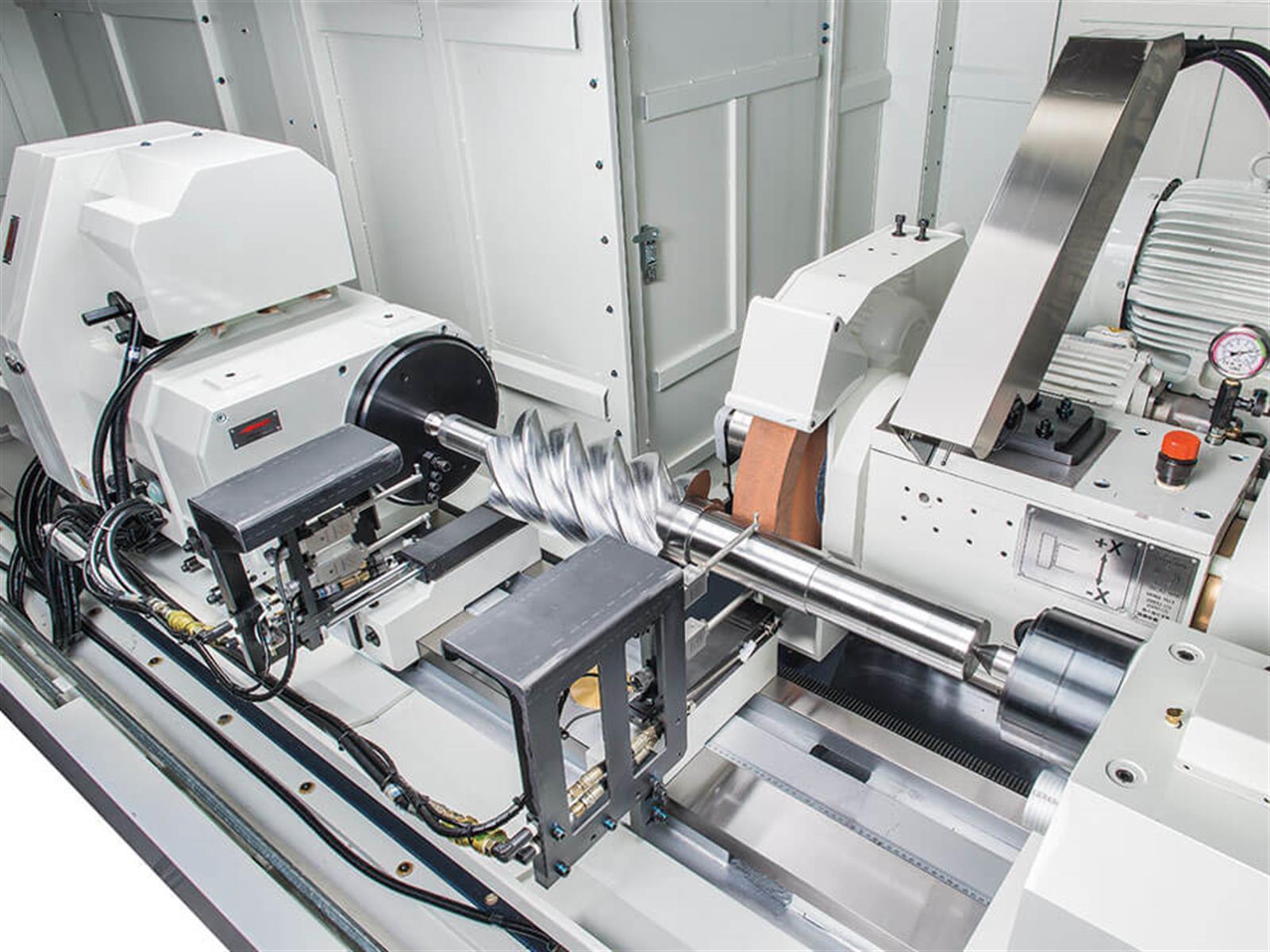

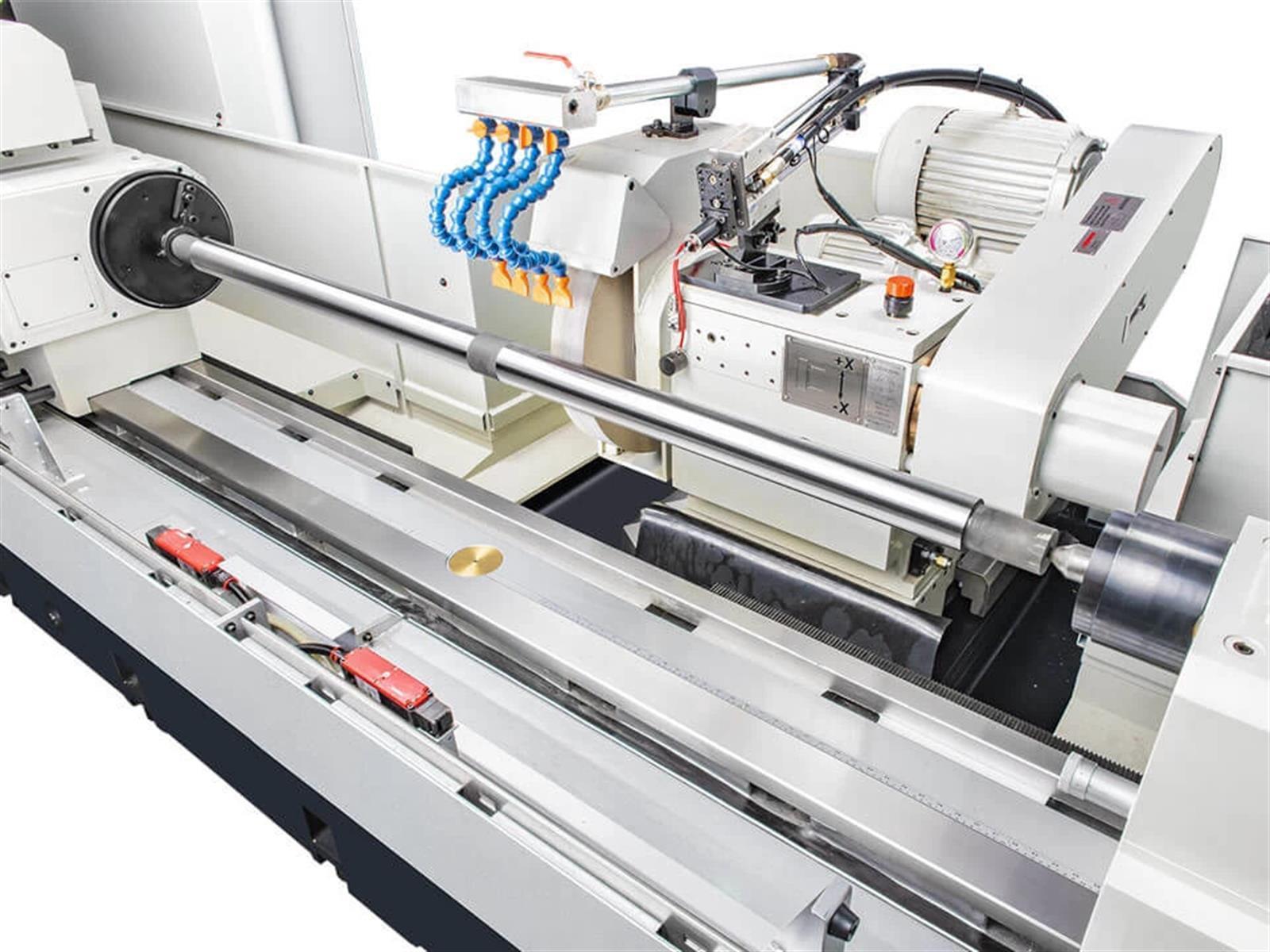

Palmary OCD-45300 Cylindrical Grinder (OCD-45300 )

FANUC CNC controller x 1
Grinding wheel and flange x 1
Diamond tool holder (tailstock mounted type) x 1
Direct drive hydraulic tailstock with micro adjustment x 1
Linear scale (for X axis) x 1
Carbide tipped work centers (2 pcs/set) x 1
Semi-enclosed splash guard x 1
Electric system x 1
Hydraulic tank with pump x 1
Coolant tank with pump x 1
Work lamp x 1
Tools (Leveling pad) and tool box x 1



Internal grinding attachment
Heavy type 2-point steady rest (2 pcs/set)
Heavy type work holders (Ø30~Ø100mm)
Heavy type 3-point steady rest
Live work center
Adjustable 3-jaw scroll chuck
Adjustable 4-jaw scroll chuck
Spare grinding wheel flange
Heavy type 2-point steady rest (2 pcs/set)
Heavy type work holders (Ø30~Ø100mm)
Heavy type 3-point steady rest
Live work center
Adjustable 3-jaw scroll chuck
Adjustable 4-jaw scroll chuck
Spare grinding wheel flange
Wheel balancing stand and arbor
Auto. grinding wheel balancer
Vibration meter for manual G.W. balancing
Gap control
Touch probe gauge
Auto. matic in-process gauge
Magnetic coolant separator
Paper filter



Model	OCD-45300
Capacity
Swivel over table	Ø450 mm
Distance between centers	3000 mm
Max. external grinding diameter	Ø420 mm
Max. load of centers	800 kgs
Grinding wheel
O.D. x width x I.D.	Ø510 x 50~125 x Ø152.4 mm
Linear velocity	45 M/s
Grinding wheel - X axis
Auto. rapid advance	10 m/min
Max. stroke	350 mm
Min. setting unit	0.001 mm
Table - Z axis
Auto. rapid advance	10 m/min
Max. stroke	3520 mm
Min. input increment	0.001 mm
Swivel angle	0° ~ 3°
Work spindle head
Swivel angle	0° (Fixed Type)
Center taper	M.T. No. 5 / M.T. No. 6 (opt.)
Spindle speed (variable)	0~210 r.p.m.

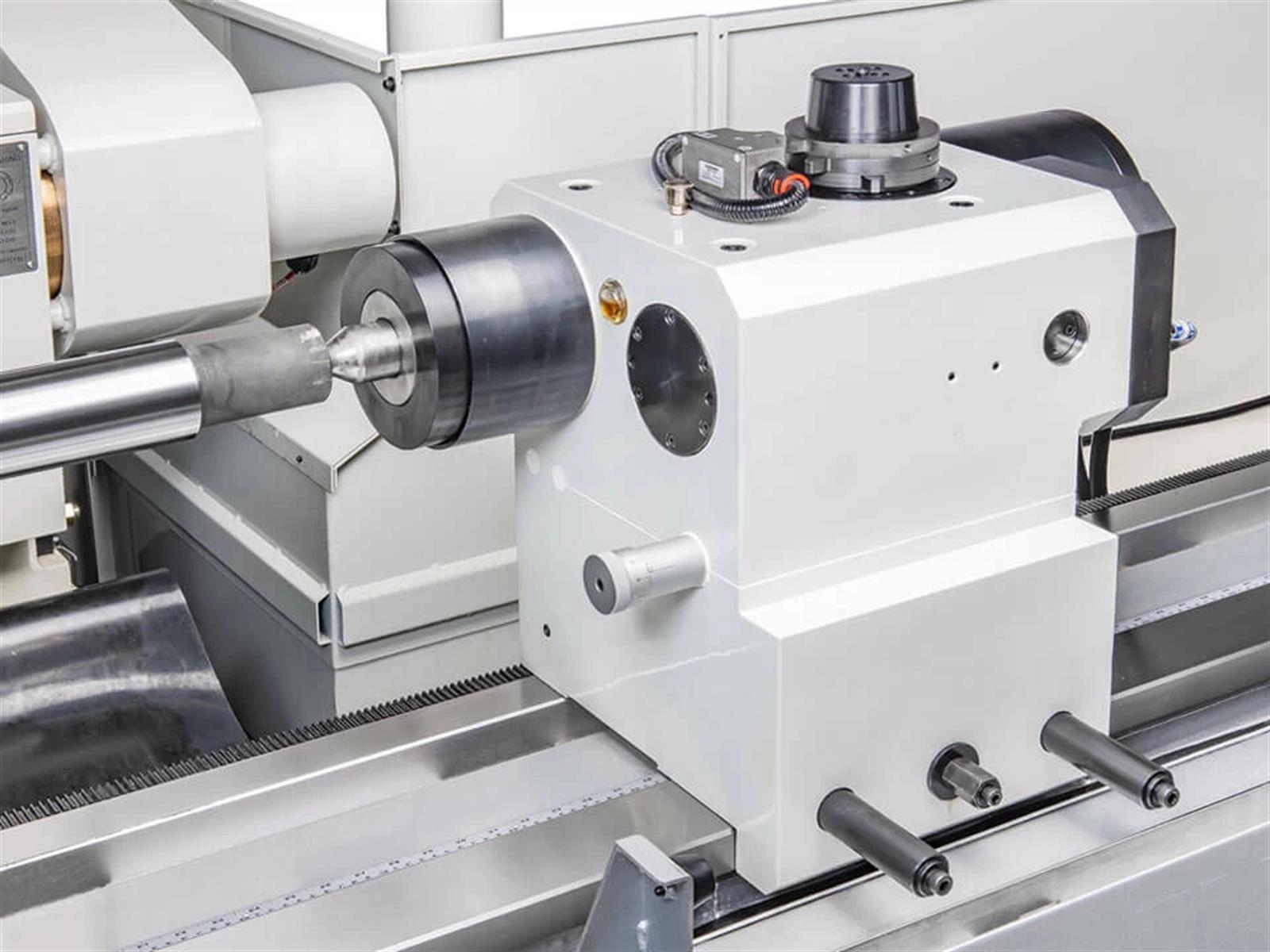

Tailstock
Center taper	M.T. No. 5
Type of motion	Hydraulic
Max. motion distance	60 mm
Motor
Wheel spindle	11 kW
Workhead spindle (AC Servo Motor)	2.9 kW
Wheelhead feed (AC Servo Motor)	2.8 kW
Table feed (AC Servo Motor)	4.4 kW
Hydro-static hydraulic pump	0.37 kW (4P)
Wheel spindle lubrication pump	0.37 kW (4P)
Coolant pump	0.37 kW (2P)
Ballscrew lubrication	Auto lubricator (LUBE)
Internal grinding spindle (opt.)	0.75 kW (2P)
Power
Total voltage	30 KVA
Tank
Wheel spindle lubrication tank	31 L
Lubrication tank	31 L
Hydraulic tank	31 L
Ballscrew lubrication tank	0.7 L
Coolant tank	230 L
Machine weight
New weight	16000 kgs
