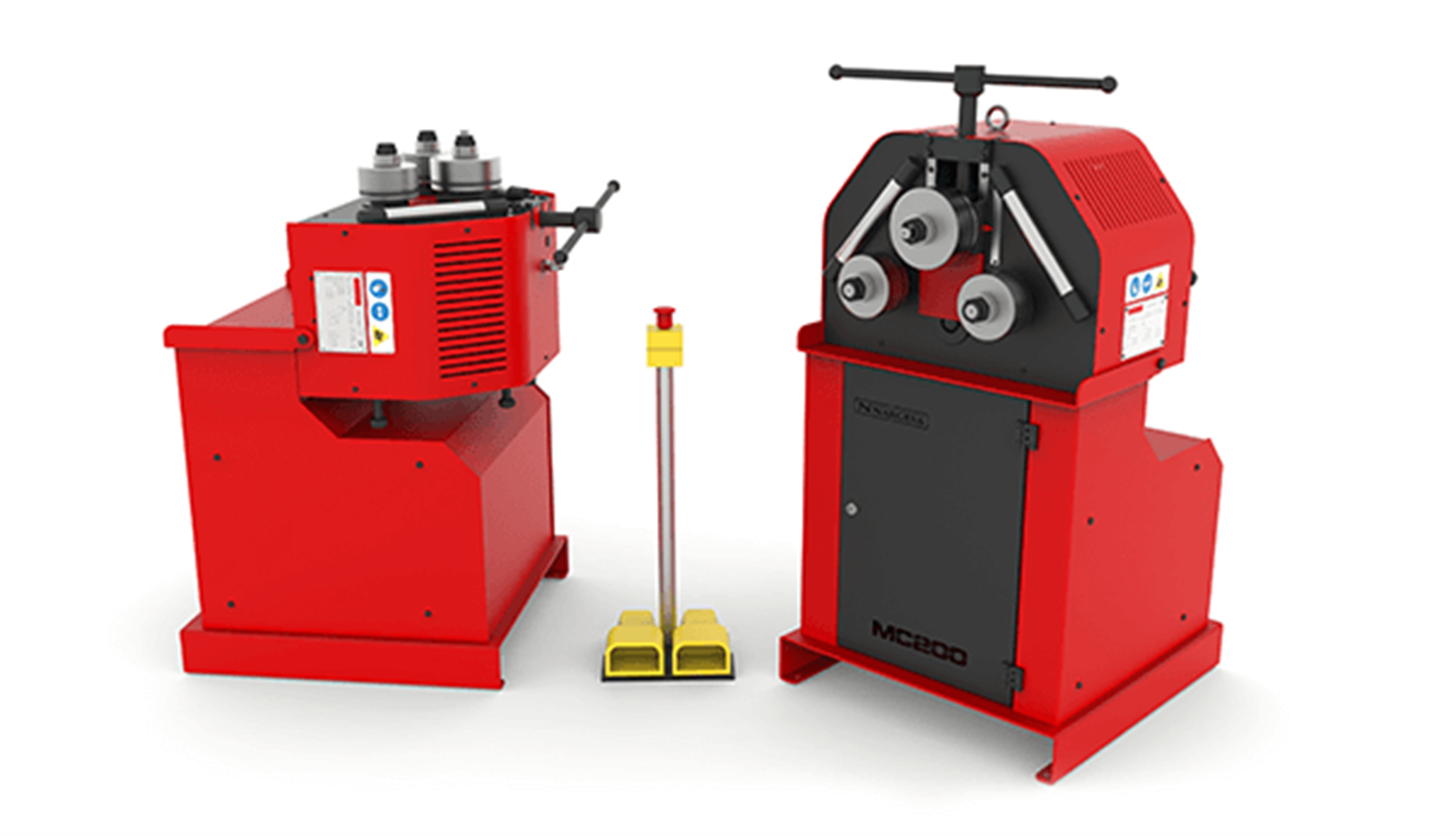

Profile Former MC200 NARGESA, made of welded and mechanized steel sheet. Unlike the others, this one is not made of cast iron. Ideal for making flanges, greenhouses, balausters, tables, chairs, doors, windows... making a great number of circular shape in all kinds of profiles. Its robustness, axis diameter, reducer capacity and other features, make it one of the best bending machines in the market, within the category of two traction rollers. All products Nargesa are according to the European directives and regulations CE regarding manufacturing of industrial machinery.
Manufacturing process of a spiral staircase Download (1.35 MB)
Buying a bending machine Download (924.32 KB)
MC200 Catalog Download (1.44 MB)
MC200 Instructions book Download (9.98 MB)
All our products are manufactured in our facilities in Spain. The hydraulic and electronic components are completely standard and from leading European brands, with service worldwide: Rexroth, Bosch, Roquet, Schneider Electric, LG, Telemecanique, Pizzato etc...
In the PDF file you will see and download the bending capacity for Profile Formers. This are guidance sizes, it always depends a lot on the material hardness and quality of the pipe of profile.
Nargesa Section Bending machines capacity Download (1.48 MB)
Rollers made of Steel F155 and treated to 62 Rc. Suitable for bending all kind of round steel or stainless steel pipes. Always clean up the rollers well before using stainless steel not to get the pipe contaminated.
Measures rollers Download (685.73 KB)
Rollers made of Sustarin to bend round stainless steel pipes, aluminium and delicate materials with thickness not bigger than 2.5mm. Sustarin rollers do not danage nor get the pipe contaminated.
Measures rollers Download (699.74 KB)
Especially designed for measuring radii on profiles.
REF: 140-MED08-00001 The High precision digital radius gauge allows the user to have a direct and immediate reading of inner and outer radius in a range from 55 to 11.250 millimeters or from 2" to 443" inches. The High precision digital radius gauge measures radii in spherical objects such as tubes, profiles and pipes in a quick and accurate way. It is really fast and easy to use! It indicates the inner or outer radius of the part we are bending without removing it from the machine and without needing to previously draw and cut a guide template.
It's equipped with 9 standard pieces, by means of which the user can work all kinds of profiles. Square., rectangular pipe, solid round and square bars. U Profile, T profile, angle, flat bar, edged flat bar...
Adjustable rollers, by washers with the size of profile or pipe which allows us to make bending to different pipe or profile sizes.
Steel rollers F1140 treated and rectified.
Assembling of the rollers Download (983.52 KB)
Dimensions of the machine: 790x810x1300 mm. Weight: 320 Kg. Tariff Item Code: 84622900 Other Features:
