Working method by twisting and flexion in COLD.
Machine suitable for small, medium and big production.
Safe and reliable transmision by a mmotor reducer with flat treated pinions, achieving a remarkable performance ans least maintenance.
Perfect formaking all kinds of ornamental standard parts and essential to make our own designs, a lot more demanded in the market. The pieces requested by architects, technicians and final customers, make it a very important tooling in a blacksmith workshop.
In order to make this kind of special job, Nargesa provides the user with the fitting plates, under request, so the very customer can make his own designs himself.

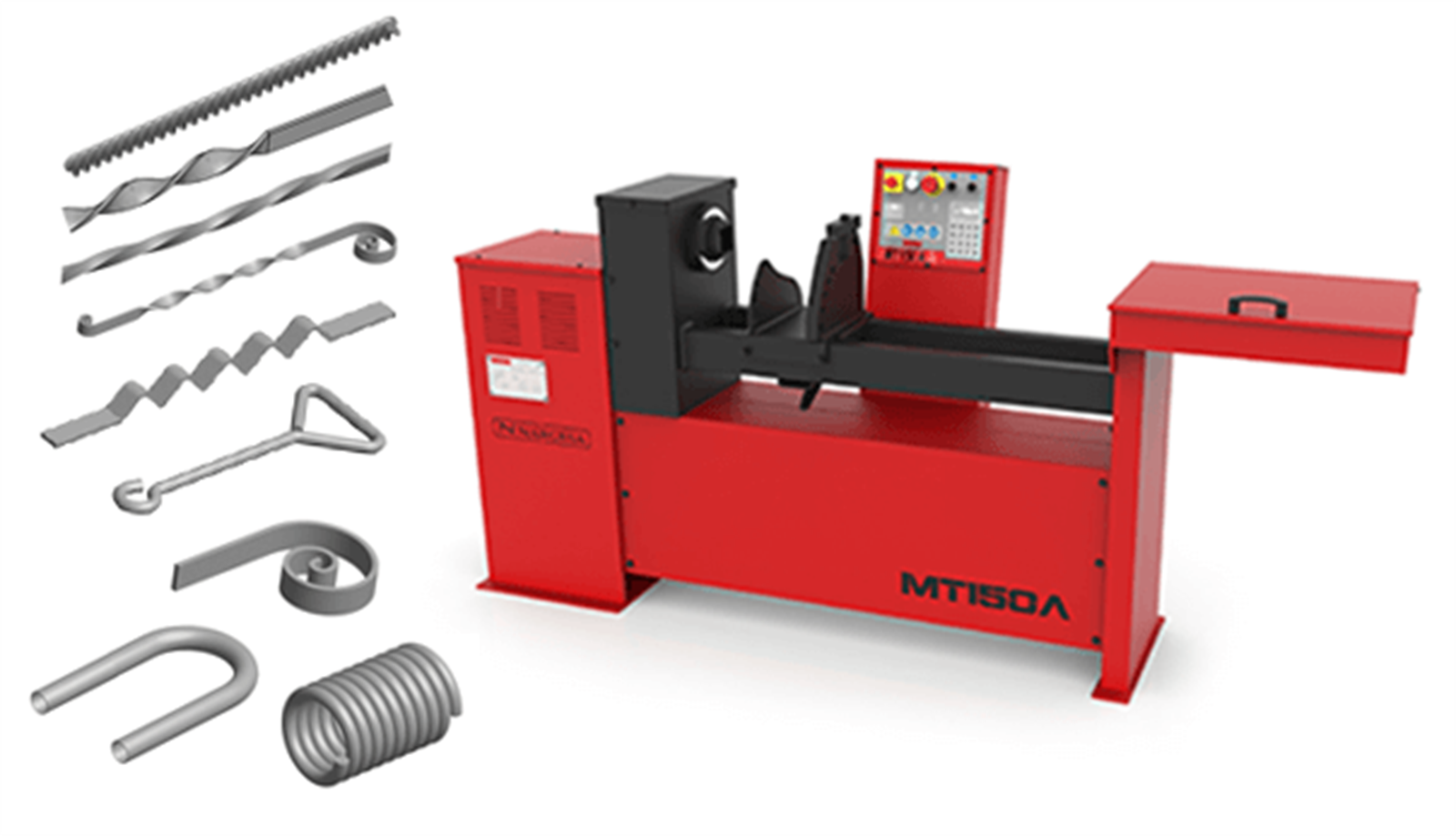

The twisting machine Nargesa MT150A is equipped with a complete set of standard tooling, by means of which tha user can make a great deal of shapes: twisted, scrolls, bendings, hooks, chains,... (More information in STANDARD TOOLING at the bottom of this page).
There is also the possibility of buying optional tooling: Belly top railing tooling, British rail, flat ben rings, decorative baskets... (More information in OPTIONAL TOOLING at the bottom of this page).
Technical features
Max. twisting capacity 20 mm or 3/4" inch.
Max. bending capacity 16 mm or 5/8" inch.
Max twisting and bending capacity in flat bar, clod or hadrail 35X10 mm or 1 1/4"X3/8" inch.
Possibility of buying the tooling for the machine in mm or inches.
Max. continuous scrolling length 960 mm.
Engine power: 0,37Kw / 0,5 HP.
CNC programmer to repeat series, piece counter, automatic unbolt, memories...
Adjustable millimeter scale on its head to make all parts the same.
Electric panel command with double button, right and left , which makes it a very easy handling machine.
2-phased tension: 230 V. Single phased.
For single phased machines please ask quotation.
Rotation speed controller
Adjustable rotation speed from 0 to 9 r.p.m.
Lower bench palletized to move the machine easily to the working site or storage.
The machine is delivered completely mounted.
Packaging with fumigated wooden pallet NIMF 15 and a 3-layered cardboard box suitable for sea freight.
Optional complete wooden packing NIMF15. Its robustness, versatility and easy handling condition turn it into one of the best machines for an ornamental blacksmith workshop.
All our products are manufactured in our facilities in Spain. Electric and hydraulic components are completely standard and from the best European leading trademarks with technical support all over the world: Rexroth, Bosch, Roquet, Schneider Electric, LG, Telemecanique, Pizzato etc...
